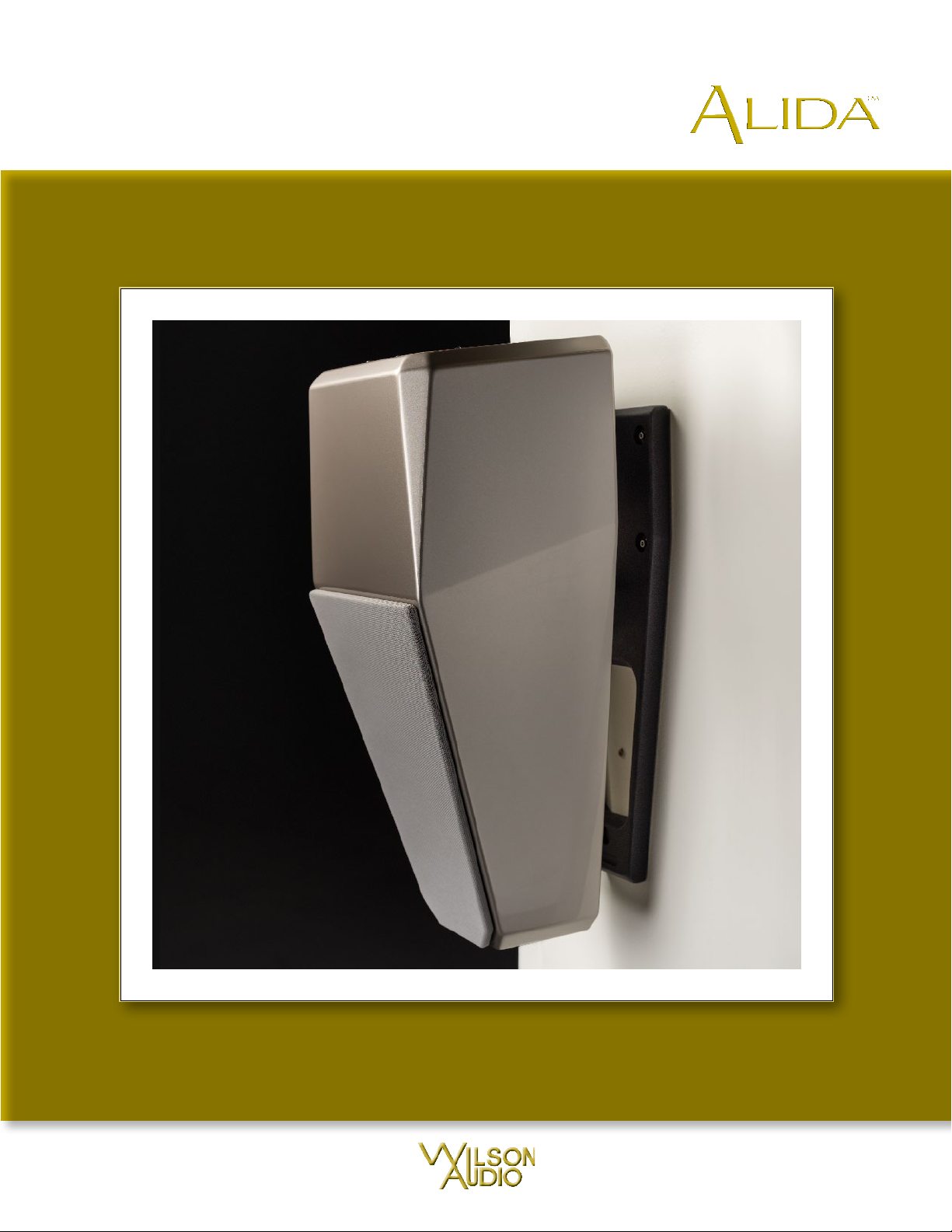

WILSON AUDIO Alida Bedienungsanleitung

Alida Owner’s Manual

Wilson Audio® is a registered trademark of Wilson Audio Specialties, Inc.

Sophia®, WATT/Puppy®, MAXX®, X-1 Grand SLAMM®, and Alexandria® are regis-

tered trademarks of Wilson Audio Specialties, Inc.

WilsonGloss™, WATCH® Center, WATCH® Surround, and WATCH® Dog are trade-

marks of Wilson Audio Specialties, Inc. The Wilson Audio Duette is also a product of

Wilson Audio Specialties, Inc.

This manual was produced by the Wilson Audio Engineering and the Sales and Mar-

keting Departments. The information contained herein is subject to change without

notice. Current Revision 3.0. If you are in need of a more recent manual, please

contact your dealer.

The information in this manual is the sole property of Wilson Audio Specialties, Inc.

Any reproduction, in whole or in part, without the express written permission of

Wilson Audio Specialties, Inc., is prohibited. No material contained herein may be

transmitted in any form or by any means, electronic or mechanical, for any purpose,

without the express written permission of Wilson Audio Specialties, Inc.

Al i d A O wner’sM AnuAl

Wilson Audio Specialties

TAble O f C OnTenTs

COnTenTs

seCTiOn 1 — i nTrOduCTiOn�� 7

Section 1.1—AlidA d eSign c onSiderAtionS ...................... 9

AdjustAble M ounting s ysteM: �� 9

ne w e nclosure �� 10

convergent s ynergy t weeter �� 10

ne w g rill-frAMe: �� 11

crossover �� 11

seCTiOn 2 — u nCrATing y O u r A l i d A �� 13

Section 2.1—UncrAting the A lidA ................................ 15

initiAl c heck �� 15

unpAcking the A lidA�� 15

Section 2.2—cr A t e c ontent c heckliSt .......................... 16

AlidA c r A t e �� 16

seCTiOn 3 — i ny Our r O O M �� 19

Section 3.1—th e W ilSon A Udio S etUp p rocedUre ............. 21

listening r ooM s e t u p ( v oicing) �� 21

Zone o f n eutrAlity: A lidA �� 21

Section 3.2—room A coUSticS ...................................... 22

slAp e cho�� 23

stAnding w A v e s �� 24

coMb f i l t e r e ffect�� 25

Section 3.3—reSonAnceS ........................................... 26

structurAl r esonAnce�� 26

voluMe r esonAnce �� 27

Section 3.4—YoUr r oom ............................................ 28

Al i d A O wner’sM AnuAl

Wilson Audio Specialties

rooM s hApes �� 28

AlidA i n Ad edicAted h oMe t heAter �� 30

speAker p lAceMent v ersus l istening p osition �� 30

speAker o rientAtion �� 31

AlidA A s AreAr o r side chAnnel �� 31

w A t c h d o g p Assive s ubwoofer �� 31

seCTiOn 4 — M OunTing The A l i d A �� 33

Section 4.1—moUnting the A lidA ................................................. 35

Section 4.2—SAfetY W Arning ...................................... 35

Mounting s urfAce e vAluAtion �� 35

Section 4.3—moUnting the W All B rAcket ...................... 36

MArking l ocAtion �� 36

drilling p ilot h o l e s �� 36

Section 4.3—plAcing A lidA ........................................ 38

plAcing A lidA o n its b rAcket �� 39

Section 4.4—connecting S peAker t o A mplifier................ 41

speAker c Ables �� 42

sp A d e l ugs�� 42

Section 4.5—AlidA S etUp c ompleted............................. 42

Section 4.6—locking doWn the A lidA ............................ 43

seCTiOn 5 — C Are O f The f inish �� 45

Section 5.1—cAre o f the f iniSh .................................. 47

dusting the A lidA �� 47

cAre o f the g rilles�� 47

breAk-i n p eriod �� 48

Section 5.2—encloSUre t echnologY ............................. 48

Wilson Audio Specialties

TAble O f C OnTenTs

MA t e r i A l s �� 48

Adhesive �� 49

Section 5.3—depth o f d eSign ..................................... 49

seCTiOn 6 — T rOubleshOOTing�� 51

Section 6.1—troUBleShooting ..................................... 53

seCTiOn 7 – r epAirs �� 57

Section 7.1—repAir p rocedUreS .................................. 59

replAcing A n o pen r esistor �� 59

replAcing Ab A d d river �� 59

seCTiOn 8 — A l i d A s peCifiCATiOns �� 61

Section 8—AlidA S pecificAtionS................................... 63

MeAsureMents: �� 63

diMensions: �� 63

weight u ncrAted:�� 63

shipping w eight ( ApproxiMAte): �� 63

AlidA d iMensions i llustrAted �� 64

iMpedAnce c u r v e �� 65

seCTiOn 9 — n OMOgrAph �� 67

Section 9.1—AlidA n omogrAph .................................... 69

seCTiOn 10—wArrAnTy i nfOrMATiOn �� 71

Section 10.1—WArrAntY i nformAtion ............................ 73

liMited w ArrAnty �� 73

conditions �� 73

reMedy�� 74

wArrAnty l iMited t o o riginAl p urchAser �� 74

Al i d A O wner’sM AnuAl

Wilson Audio Specialties

deMonstrAtion e quipMent �� 75

MiscellAneous�� 75

se C T i O n 1 — i n T r O d u C T i O n

Al i d A O wner’sM AnuAl

Wilson Audio Specialties

seCTiOn 1�1—Al i d A d esign C OnsiderATiOns

Wilson Audio Specialties

Section 1.1—Alida Design Considerations

Special Applications projects have a long and illustrious history at Wilson Audio.

In 1983, Dave Wilson needed a small location monitor for the series of audiophile-

acclaimed classical music recordings he was doing at the time. Finding nothing suit-

able on the market, he went into his garage and built the original WATT®. Its truncated

pyramid shape, constructed from mineral-filled methacrylic, broke the mold of then-

current loudspeaker design and has been widely copied since for one reason: it worked

extremely well. Mated to its dedicated woofer enclosure, the WATT/Puppy, now called

Sasha W/P, continues to be Wilson Audio’s longest running and best-selling loudspeak-

er.

Alida is the latest Special Applications product from Wilson Audio. It was de-

signed to offer the timbrel neutrality, dynamic response, soundstage depth, and trans-

parency of floor-standing Wilson loudspeakers, but to do so in the extremely adverse

conditions of wall-mounted applications. The Alida is a perfect example of performance

disproportionate to size.

Unlike most wall-mount speakers, Alida possesses all the salient attributes of

Wilson loudspeakers: dynamic agility, tonal expression, and musical beauty. The Alida

incorporates the same anti-jitter crossover technology that underlies the astonishingly

grain-free transparency and musicality of full-size Wilson loudspeakers. With strong

power handling capacity and low end frequency response reaching 40 Hz, this speak-

er will forever change the perception of just how good a wall-mounted speaker can

sound.

Adjustable Mounting System:

The greatest challenge for any wall-mount loudspeaker is accounting for the del-

eterious interaction with the wall and ceiling, as well as degradation caused by the

mount itself. This causes frequency nonlinearities—accentuating some frequencies and

Al i d A O wner’sM AnuAl

Wilson Audio Specialties

effectively masking others. Alida minimizes wall/ceiling resonant interactions through

thoroughly re-engineered mounting system. The Alida is mounted to its bracket via an

new individually machined, aircraft-grade aluminum mechanism, reducing wall-born

interactions and resonances.

Where the outgoing Wilson Surround Series 2 could be rotated up to 10 degrees,

Alida’s new mount provides up to 30 degrees of rotation. The Alida can be more fully

optimized for both the time-domain and driver dispersion.

For those clients upgrading from the Surround Series 2 to the Alida, Wilson has

made the task of swapping the two loudspeakers relatively straightforward by provid-

ing compatible mount locations on the X-material wall bracket. Simply remove the old

bracket and replace it with the Alida bracket. The top three holes in the center will cor-

respond to those same holes in the replacement bracket. For an additional fee, Wilson

will paint the X-material bracket to match the wall or the Alida itself.

New Enclosure

Using state-of-the-art materials technology first developed for the Alexandria XLF

and the Sasha W/P, Alida provides stunning results. By employing Wilson’s state-of-the-

art enclosure analysis, the heart of which is probing the minute panel resonances us-

ing laser vibrometry, the engineering team was able to reduce the resonant signature of

the Alida enclosure to vanishing levels. A rear-wave diffuser, similar to the technology

found in Wilson’s larger speakers, helps reduce time-domain distortion inside the cabi-

net.

Convergent Synergy Tweeter

The new Wilson Convergent Synergy Tweeter first found a home in the Alexandria

XLF. Wilson’s tweeter rejects exotic materials in favor of a new silk dome design that

better meets all of Wilson Audio’s musical design goals—and, perhaps most important-

ly, provides a seamless match to Wilson’s midrange driver.
