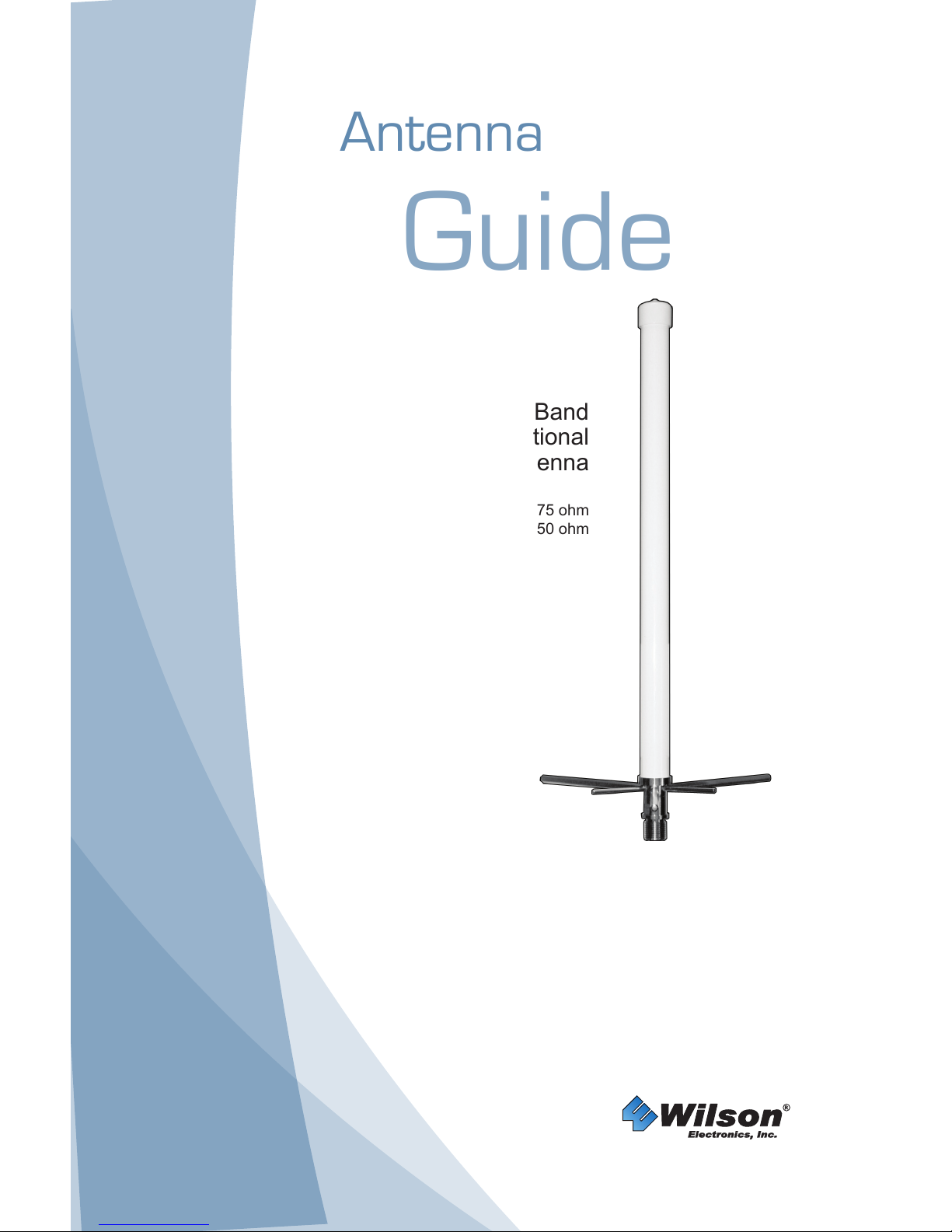

Wilson Electronics 301201 Bedienungsanleitung

Antenna

Installation

Guide

Features:

• High-gain

• Weather resistant

• Built-in ground plane

• Slim and unobtrusive

• Mounting bracket included

• Installs Easily

• For fixed installations

Multi-Band

Omni-Directional

Antenna

PART# 301201 - 75 ohm

PART# 301202 - 50 ohm

1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Antenna Adapter

An 18-inch external adapter is required to connect the cell phone or cellular data card

directly to the antenna. The external adapter is cell phone/data card specific and may be

purchased through a local retailer. Refer to Wilson Electronics Adapter Guide to identify

the right adapter for your cell phone or cellular data card. The Adapter Guide is available

through a local retailer. It is also available on our web site, www.WilsonElectronics.com,

or you may call Technical Support at 866-294-1660.

Package Contents

1 – Multi-Band Omni-Directional Antenna 6 – Radials (3 short, 3 long)

1 – L-Bracket 4 – 10x1 Phillips round screws

1 – U-bolt assembly 1 – Thread-locker liquid

1 - N Female - FME Male Connector (2F1108)

(Provided only with 301202 Antenna)

Determine Your Mounting Location

The antenna should be mounted high on the building with no obstructions. There is a

compromise between installing the antenna as high as possible and keeping the cable

run short to reduce signal loss. (The longer your cable, the greater the signal loss will

be.) For cable runs under 20 feet (recommended), Wilson Electronics offers various RG-

58 cable lengths and connectors (sold separately). If a cable length greater than 20 feet

is needed, we recommend increasing the cable size to Wilson 400 cable to minimize

signal loss.

Make sure your mounting location is as far away as possible from other antennas and

upright objects such as flagpoles. Be careful not to kink or crush the antenna cable or

bend it tightly during installation. This can lead to poor performance and signal loss. It

is important to mount the antenna vertically; mounting horizontally or at an angle will

significantly degrade performance.

How It Works

Wilson Electronics Dual-Band Omni-Directional Antenna will collect the cell tower signal

and send it through the cable to a Signal Booster or directly to the cell phone or cellular

data card. When the cell phone or cellular data card transmits, the signal is transferred to

a Signal Booster or directly to the antenna and broadcasted back to the cell tower.

Thank you for purchasing a Wilson Electronics Antenna

Please read all instructions before installing your antenna, and check the parts supplied

against those listed in this guide. Wilson Electronics weatherproof, fiberglass-encased

antenna is omni-directional and ideal for many exterior building locations, such as homes,

offices, stores and warehouses.

Our innovative design results in high efficiency and low signal loss, which means more

signal to your cell phone or cellular data card. This multi-band, high-performance, omni-

directional antenna supports multiple frequencies (Specifications are on the back page). It

is backed by Wilson Electronics 30-day money-back guarantee and 1-year limited warranty.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed

to be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Figure 1

Figure 2

Mount the Antenna

Apply a small amount of thread-locker liquid to the threads on each of the six radials

and screw them into the holes at the base of the antenna. Attach the supplied L-bracket

to a sturdy vertical surface using four screws. It may also be attached to a pole with the

supplied U-bolt assembly (Figure 1). Remove the hex-nut and lock-washer from the base

of the antenna, thread the antenna cable through the large hole in the L-bracket, slip the

lock washer and hex-nut over the end of the cable and tighten against the underside of

the L-bracket to hold the antenna securely (Figure 2).

RF Safety Warning: The antenna must be installed with a separation of at least 16 inches from any persons and

must not be located or operating in conjunction with any other antenna or signal booster.

Connect the Cable

Connect the extension cable (sold separately) to the antenna cable, route the

extension cable to the signal booster location, and connect the extension cable to the

signal booster. (See the instructions that came with your Signal Booster for power-up

procedure.)

If you are connecting the antenna directly to a cell phone or data card, connect the cable

to the appropriate adapter (sold separately) and attach the adapter to your phone or data

card.

Technical Support

For expert assistance with your installation, call Wilson Electronics Technical Support

Department toll-free at 866-294-1660. Representatives are available to assist you

between 7:00 a.m. and 6:00 p.m. (MST) Monday through Friday. You may also visit the

Technical Support section of our website: www.WilsonElectronics.com.

Antenna Specifications

Part Number 301201 301202

Frequency Range 700-800 MHz / 824-894 MHz / 880-960 MHz / 1850-1990 MHz

Impedance 75 ohms 50 ohms

Antenna Gain 3.2 dBi 700-800 MHz / 4.1 dBi 824-894 MHz / 2.7 dBi 880-960 /

5.1 dBi 1850-1990 MHz

Radiation Omni

Polarization Vertical

Ground Plane Built-in

Connector F-Female FME Female

Material Whip - Stainless Steel / Casing - Fiberglass

Height 18 inches / 45.7 cm

Part #103045 AIG OD 011 / 06.28.11

3301 East Deseret Drive, St. George, UT 84790

For additional Technical Support visit www.WilsonElectronics.com

or email at: tech@wilsonelectronics.com

Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432

www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day

money-back guarantee. If for any reason the performance of any product is not

acceptable, simply return the product directly to the reseller with a dated proof of

purchase.

90-Day Warranty

Wilson Electronics antennas are warranted for ninety (90) days against defects in

workmanship and/or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Antennas may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its

option, either repair or replace the product. Wilson Electronics will pay for delivery

of the repaired or replaced product back to the original consumer if located within

the continental U.S.

This warranty does not apply to any antennas determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
