Wilson Electronics 304201 Bedienungsanleitung

Antenna

Installation

Guide

iDEN Glass

Mount

Antenna

PART# 304201

Features:

• iDEN/PCS frequencies (800/900/1900 MHz)

• Vehicle, home or ofce use

• Installs Easily

• Permanent installation

• Built-in ground plane

• Requires antenna adapter (sold separately)

• Compatible with Wilson Electronics signal boosters

Wilson

Electronics, Inc.

1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

How They Work

Wilson Electronics Tri-Band Glass Mount antenna will collect the cell tower signal

and send it through the cable to a signal booster or directly to the cell phone or

cellular data card. When the cell phone or cellular data card transmits, the signal

is transferred to a signal booster or directly to the antenna and broadcast back to

the cell tower.

Antenna Adapter (Sold Separately)

In order to attach your antenna to your cellphone you will need an adapter.

The adapter connects the phone to the antenna coax and transfers signal to

and from the antenna. If you need help locating an adapter for your phone call

Wilson toll-free at 1-866-294-1660.

Item List

1. Glass Mount Antenna

2. Interior Coupling Box and Coax

Installing the Glass Mount Antenna

The Glass Mount Antenna may be

mounted along the top of the front or

rear window. For best performance

do not mount on rear window of

trucks or SUVs. Check to insure your

mounting location will not interfere

with windshield wiper operation.

Keep the antenna away from the

defogger wires. If the antenna

must be mounted on the defogger,

center it between the defogger wires

as much as possible. Clean the

exterior window surface with provided

alcohol swab. Be sure the same

location inside the window is clear

of obstacles. Remove the protective

paper on the base to expose the

adhesive pad and rmly press the

antenna into place on the outside of

the window. Make sure the whip is

screwed securely to the antenna.

Avoid

Defogger

Wires

Possible Mounting

Locations

Wilson Electronics Signal Boosters Amplify Coverage

A Wilson Electronics signal booster (sold separately), when used in conjunction

with your antenna, can improve your cell phone and laptop data card coverage

signicantly. Wilson Electronics manufactures a wide range of wireless and

direct connect signal boosters for mobile or in-building use. See your dealer for

details or visit www.WilsonElectronics.com.

3. Alcohol Swabs (2)

4. Antenna Adapter (Sold Separately)

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Warning: The antenna and coupling box must be properly aligned or the

antenna will fail to function. The arrow indicators on the antenna base and

coupling box must face the same direction when installed.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

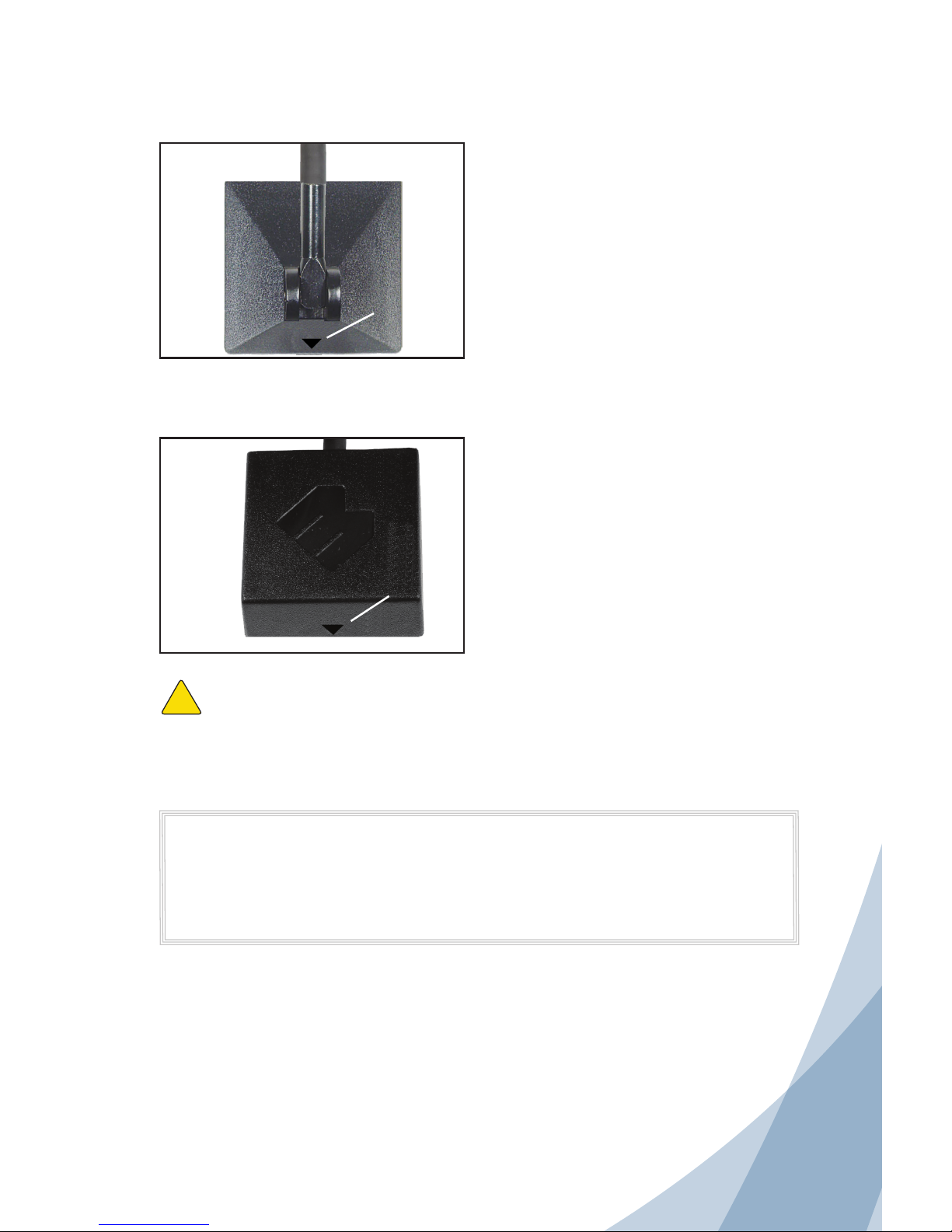

Direction

Indicator

Direction

Indicator

Antenna

Base

Coupling

Box

Note: If installing on a home or ofce

window, ensure that it is not dual pane

glass.

Installing the Interior Coupling Box

The coupling box is installed on the glass

inside the vehicle. Be sure to align it with

the antenna base on the outside of the

glass. Clean inside glass with the provided

alcohol swab where you will mount the box.

The coupling box must be installed so

it’s arrow indicator faces in the same

direction as the arrow indicator on the

antenna base. Remove the protective

paper to expose the adhesive pad and

rmly press the coupling box into place.

Connect the coax cable to your adapter

cable.

Both arrows MUST be facing same direction

(up or down - as long as they are together)

Wilson

Electronics, Inc.

Antenna Specications

Part Number 304201

Frequency Range 824-894 MHz / 880-960 MHz / 1850-1990 MHz

Impedance 50 ohms

Antenna Gain 3.5 dBi 824-894 MHz / 3.5 dBi 880-960 MHz /

4.5 dBi 1850-1990 MHz

Radiation Omni

Polarization Vertical

Ground Plane Built-in ground plane

Connector FME-Female

Material Whip - stainless steel

Coax Cable RG58 - 14 feet / 4.27 meters

Height 15 inches / 38.10 cm

Mount Glass mounting with 3M™ adhesive

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If, for

any reason, the performance of any product is not acceptable, simply return the product directly to the

reseller with a dated proof of purchase.

90-Day Warranty

Wilson Electronics antennas are warranted for ninety (90) days against defects in workmanship and/or

materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated

proof of purchase.

Antennas may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof

of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson

Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of

the repaired or replaced product back to the original consumer.

This warranty does not apply to any antennas determined by Wilson Electronics to have been subjected to

misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

3301 East Deseret Drive, St. George, UT 84790

For additional Technical Support visit www.WilsonElectronics.com

or email at: [email protected]

Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432

www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular

Part #103021 AIG DBGM 002 / 6.3.11
