Wilson Electronics SIGNALBOOST 811210 Bedienungsanleitung

Note: This manual contains important safety and operating information.

Please read and follow the instructions in this manual. Failure to do so

could be hazardous and result in damage to your Signal Booster.

SIGNALBOOST™

Dual-Band Mobile

Signal Booster

(811510 is single band)

Contents:

How it Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Before Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

In-Vehicle Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Outside Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Signal Booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cellular Cradle Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Ultra Slim Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Powering Up the Signal Booster . . . . . . . . . . . . . . . . . . . . . . 7

In-Building Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Warnings and Recommendations . . . . . . . . . . . . . . . . . . . . . 9

Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Signal Booster Specifications . . . . . . . . . . . . . . . . Back Cover

Appearance of device and accessories may vary.

1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

12-inch Magnet-Mount

Antenna

(301103)

Soft Carrying

Case

(859924)

Mini Magnet-Mount

Antenna

(301113)

Installation Instructions for the Following Wilson Electronics Signal Booster:

SIGNALBOOST™ Dual-Band Mobile Signal Booster

Model #811210

FCC ID: PWO819DA IC: 4726A-819DA

The term “IC” before the radio certification number only signifies that

Industry Canada technical specifications were met.

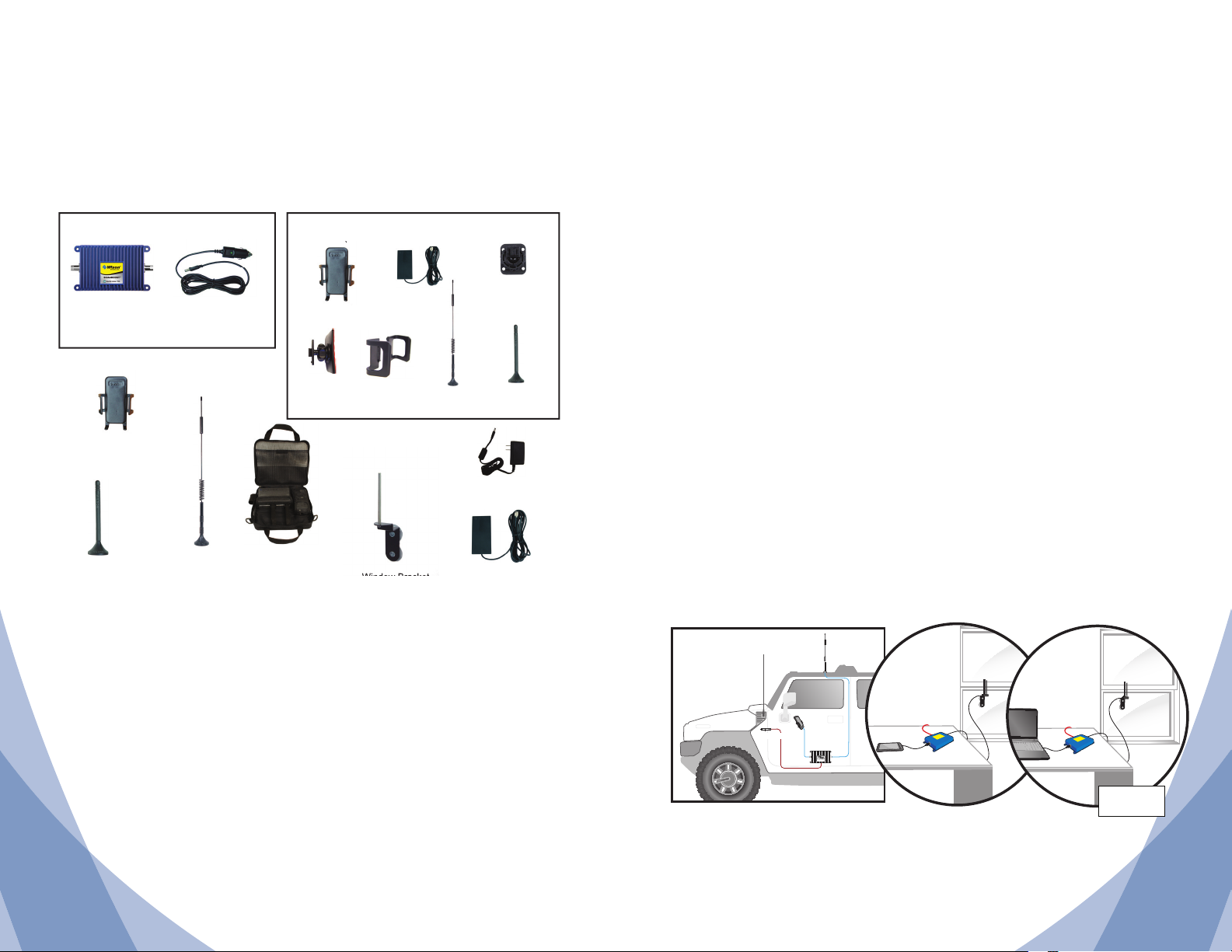

Inside this Package Items below may be included with some kits

DUAL-BAND

Signal Booster

Ultra Slim

Antenna

12" Magnet-

Mount Antenna

Cellular

Cradle Plus

Adhesive

Bracket

Cradle Arms

Adhesive/Screw

Swivel Bracket

How it Works

The Signal Booster, in conjunction with the use of an Outside Antenna, will collect the

signal from the cell tower and send it through the cable to the Signal Booster. The state-of-

the-art technology that powers this Signal Booster is designed to increase your signal more

than 20 times, and reduce disconnects and dropped calls. The boosted signal is then sent

to the Cellular Cradle Plus or Ultra Slim Antenna (depending on which one you have). Your

cellular device receives the improved signal. When the cellular device transmits, the signal

goes through the Cellular Cradle Plus or Ultra Slim Antenna, boosted by the Signal Booster

and broadcasted back to the cell tower through the Outside Antenna.

If your kit contains the Cellular Cradle Plus, it provides a convenient place to stow your cell

phone and allows the driver to keep both hands on the wheel while using the phone, greatly

increasing safety. This kit may include different mounting options for installing the cradle on

the dash or console of your vehicle.

If your kit does not contain a Cellular Cradle Plus, it is available for purchase at

www.WilsonElectronics.com

12 V DC power supply

(vehicle)

4" Mini Magnet-

Mount Antenna

Optional Items and Accessories

AC/DC power supply

(859903)

Cellular

Cradle Plus

Available at www.WilsonElectronics.com

Window Bracket

(901128)

(301246)

Ultra Slim Antenna

(301143)

Window Bracket

Not For Sale in U.S. / Canada: 811510, 811514, 811710, 811714, 811910, 811914

Before Getting Started

Magnet-Mount

Antenna

Signal Booster

In-Vehicle Installation Diagram In-Building Installation Diagram

This guide will help you properly install your Wilson Electronics SIGNALBOOST™

Dual-Band Signal Booster. It is important to read through all of the installation steps

for your particular application prior to installing any equipment. Read through the

instructions, visualize where all the equipment will need to be installed and do a soft

installation before mounting any equipment. Please contact Wilson Electronics Technical

Support with any questions at 866-294-1660. You may also send an email to

[email protected]

Installation Overview

The following steps provide a summary of the Signal Booster/antenna installation

process using the Mini Magnet-Mount or Magnet Mount Antenna. However, they are not

a substitute for the complete installation instructions on the following pages, which you

should read thoroughly. If you are using a different Outside Antenna, follow the specific

instructions that come with it.

STEP 1: Install the Outside Antenna

For a In-Vehicle installation, attach the Outside Antenna in the center of the vehicle’s roof

and run the cable through the door to the Signal Booster. For In-Building installation, affix

the optional window bracket to a window with the suction cups, attach the Outside Antenna

to the bracket and run the cable to the Signal Booster. (See page 3 for In-Vehicle, and page

8 for In-Building.)

STEP 2: Install the Signal Booster

Position the Signal Booster in a well-ventilated location away from direct sunlight. Run the

cable from the Outside Antenna and attach it to the connector labeled “Outside Antenna” on

the Signal Booster. (See page 4)

STEP 3: Attach the Cellular Cradle Plus or Ultra Slim Antenna

Attach the Cellular Cradle Plus or Ultra Slim cable to the connector labeled “Inside

Antenna” on the Signal Booster. If using the Ultra Slim Antenna, attach the antenna to your

cell phone or cellular data card with the VELCRO® provided. (See page 6)

STEP 4: Power up the Signal Booster

IMPORTANT! Before connecting the power supply, ensure that both the Outside Antenna

cable and the Cradle Plus or Ultra Slim cable are connected. (See page 7)

Laptop

Connection

Cell Phone

Connection

SIGNALBOOST™SIGNALBOOST™

(Products may change due to upgrades)

AC Power Supply and

Window Bracket

sold separately

(Part #859940)

Power Supply

Cellular

Cradle Plus

Appearance of device and accessories may vary.

3Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

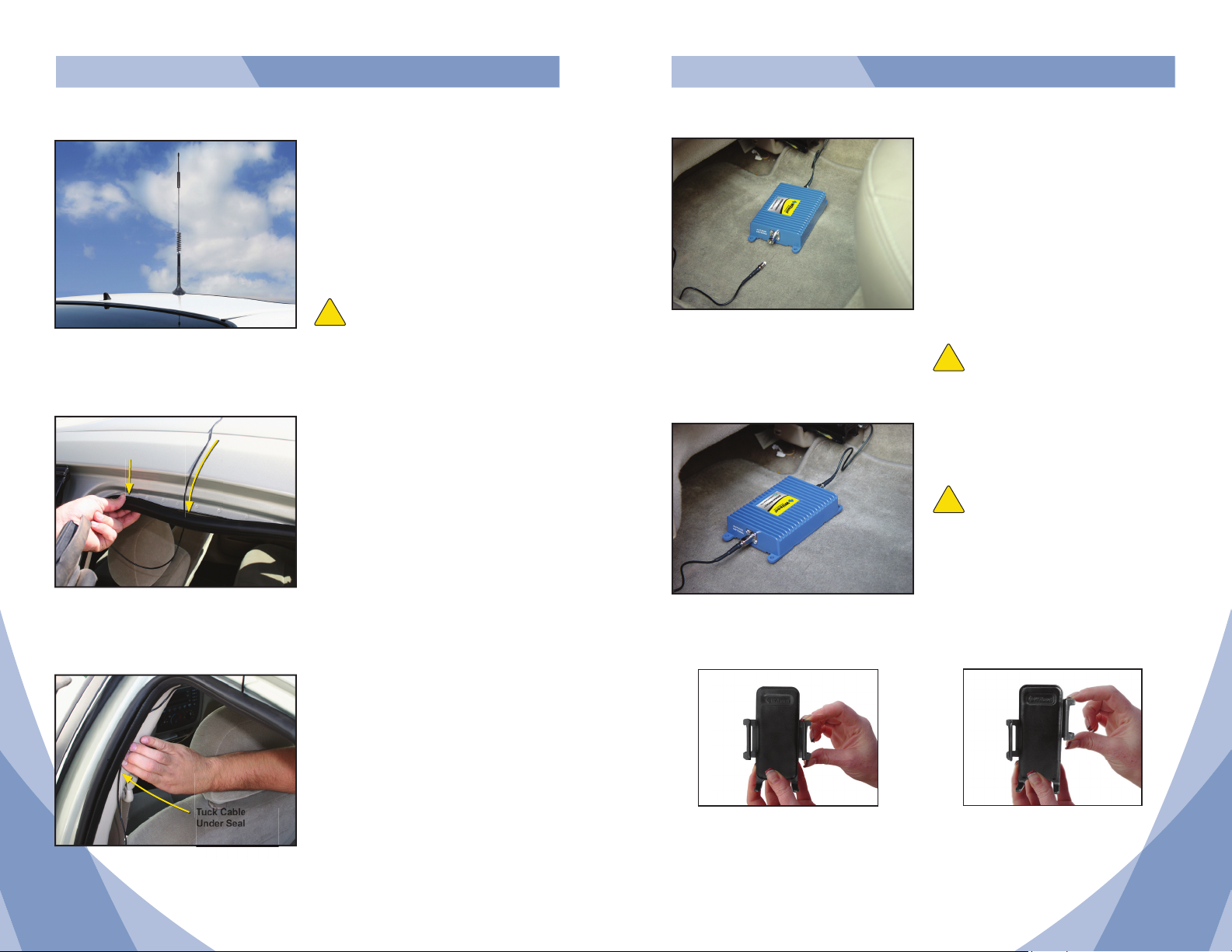

To receive the best cell signal, select a

location in the center of the vehicle’s roof

that is 12 inches away from any other

antennas and free of obstructions. The

antenna must be installed vertically. Signal

performance will be degraded if the antenna

is not vertical.

The antenna cable is small enough to easily

tuck under the door seal or plastic molding.

The antenna cable may run through the

door to the Signal Booster. For a more

professional looking installation, run

the antenna cable under the door seal.

Carefully pull down the door seal. Run the

cable through the seal and push the seal

back into place. This prevents constant

wear and tear on the cable as the door

opens and closes.

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Tuck Cable

Under Seal

Warning: The antenna used with this Signal

Booster must have a separation distance of

at least 12 inches from all persons.

Installing the Outside Antenna

In-Vehicle In-Vehicle

Warning: Do not plug in the DC power

supply until the Outside Antenna and

Cellular Cradle Plus or Ultra Slim Antenna

cables are attached to the Signal Booster.

Select a location to install the Signal

Booster that is away from excessive heat,

direct sunlight or moisture and that has

proper ventilation.

Recommended installation locations for the

Signal Booster are:

• Under the seat

• Under the dash

Run the cable from the Outside Antenna

and attach it to the connector labeled

“Outside Antenna” on the Signal Booster.

Attach the cable from the Cellular Cradle

Plus or the Ultra Slim Antenna to the

connector on the Signal Booster.

Warning: Do not plug the Signal Booster

directly into the cell phone or cellular data

card using an antenna adapter. It could

damage the Signal Booster, cell phone

and/or cellular data card.

Installing the Wilson Electronics Signal Booster

Adjusting the Cradle Plus Arms

Included with your Cradle Plus are various sized arms, which will provide you with multiple

options to customize the Cradle to fit your phone.

1. Change arms

Gently grab the arm and lift upward until

the arm slides free from the Cradle.

2. Reposition arms

Position the arm above a different slot on

the Cradle. Gently slide the arm down until

the arm is firmly in place.

5Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Installing the Cellular Cradle Plus

(Included in some kits)

Option 1 - Adhesive Bracket

Clean the area where the bracket will be

mounted with the alcohol wipe (included in

some kits) and a soft cloth. Allow to dry.

Peel the backing to expose the adhesive

and press the bracket onto the desired

location in the vehicle. Note: Be sure the

bracket is positioned vertically.

Allow the adhesive to cure for 24 hours

before you attach the cradle.

Note: Once the cradle is attached, you can

adjust the angle of the adhesive bracket

by applying gentle pressure to the top or

bottom of the cradle.

Option 2 - Adhesive/Screw Swivel

Bracket

Clean the area where the bracket is to be

mounted with the alcohol wipe (included in

some kits) and a soft cloth. Allow to dry.

For an adhesive mount, peel the backing

to expose the adhesive and press the

bracket onto the desired location in the

vehicle. Allow the adhesive to cure for

24 hours before you attach the cradle.

For a screw mount, use an ice pick or awl

to punch through the adhesive and expose

the four screw holes in the bracket. Note:

Screws are not included in this kit.

Using the bracket as a template, mark the

locations for the screws as shown, drill

pilot holes and attach the bracket with

screws (not included).

Once the cradle is attached, you can

loosen the knurled wheel and swivel the

hook to the desired angle, then re-tighten

the wheel.

Attaching the Cradle

Once you have installed the mount in the desired location, attach the cradle by aligning

the rectangular hole on its back with the hook on the mount. Grasping the sides of the

cradle, slide it downward approximately ¼ inch into place.

For best mounting results and long-

term performance, we suggest that

you choose a flat smooth surface

like the console area of your vehicle

between the two front seats. If this is

not available in your vehicle, you may

mount the cradle on the front of the

dashboard.

If mounting the cradle on a sloped

area of the dashboard in your vehicle,

please note that gravity may affect

the adhesive over time. Use the

screw mount for a more permanent

attachment.

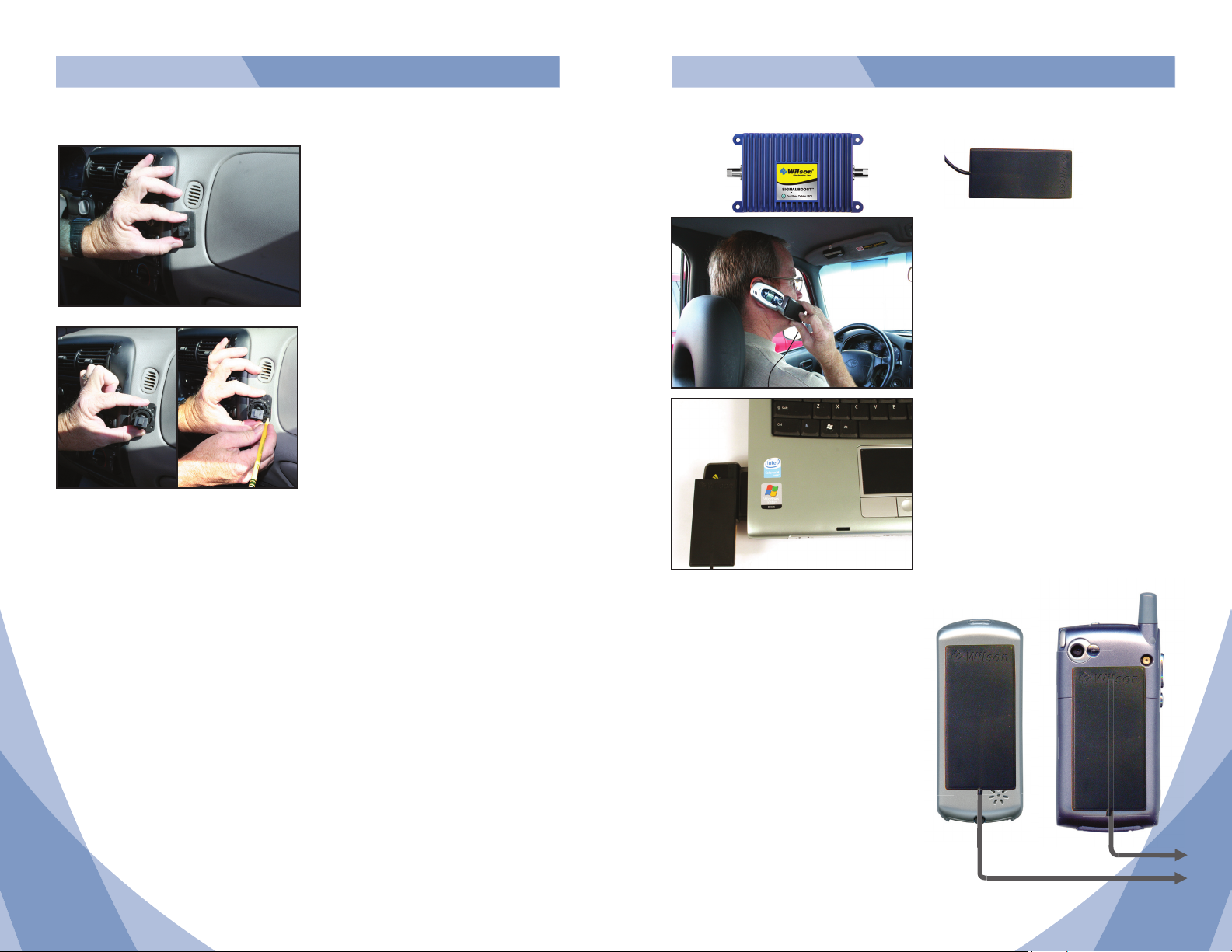

The Ultra Slim must be placed directly

on the cell phone or cellular data card to

work properly. Attach the Ultra Slim to the

cell phone or cellular data card with the

VELCRO® provided.

The Ultra Slim cable is long enough to

reach the Signal Booster location. This

allows for ease and convenience of use.

To adjust the Ultra Slim for the best signal,

go to a weak signal location where your cell

phone registers only 1-2 bars without the

Ultra Slim connected. (Be sure the Signal

Booster is turned off when checking for low

signal). Then, attach the Ultra Slim to the

phone, power up the Signal Booster and

you should see a signal improvement of 2 or

more bars.

Note: Many phones take up to 30 seconds

to reset the bar indicator.

To maximize performance, attach the Ultra

Slim as close as possible to the original

antenna on your cell phone or cellular data

card.

For cell phones with an internal antenna,

place the Ultra Slim on the back of the

phone near the top. (Figure 1)

Note: Certain phones, such as the

Motorola RAZR, have internal antennas at

the base, rather than the top, in which case

the Ultra Slim should be attached at the

bottom rear of the phone.

For cell phones with an external antenna,

place the Ultra Slim directly below the

phone’s original antenna. (Figure 2)

If you have any questions as to the location

of the antenna on your phone, call Wilson

Electronics Technical Support at:

866-294-1660.

Figure 1 Figure 2

To Signal Booster

Cellular data card

Installing the Ultra Slim Antenna

(Included in some kits)

In-Vehicle In-Vehicle

7Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Make sure both the Outside Antenna and

Cellular Cradle Plus or Ultra Slim Antenna

cables are connected before powering up

the Signal Booster.

Connect the power cable from the power

supply to the Signal Booster input marked

“12 V DC” and insert the large end into the

power socket or the vehicle power outlet.

The Signal Booster may remain on all the

time. However, leaving the Signal Booster

on in a vehicle when it is not running can

discharge the battery in a day or two.

A good option is to power the Signal

Booster through the ignition switch so the

Signal Booster is turned on and off with the

vehicle.

Carefully insert the power cable

(Power supply may change due to upgrades)

IMPORTANT: Do not power up the Signal

Booster unless both antenna cables are

attached to the Signal Booster.

Warning: Use only Wilson

Electronics power supply units. Use

of a non-Wilson Electronics product

may damage your equipment.

AC/DC power supply (sold separately) (859903)

Note: The aluminum casing of the Signal Booster will adjust very quickly to the ambient

temperature of its environment. For example, in the summer, when the inside of a car

can reach 140° Fahrenheit, the Signal Booster temperature may be 150° or higher. The

casing will be hot to the touch, similar to a metal door handle or steering wheel. Such

high temperatures will not damage the Signal Booster, nor do they pose a fire risk. As

recommended in these instructions, when installing the Signal Booster in a vehicle, select

a location with adequate ventilation, such as under the seat or dashboard. Keep the area

free of items that could block air flow to the Signal Booster.

Powering Up the Signal Booster Installing the Outside Antenna

To receive the best cell signal, select a window location at least 12 inches away from any

radio or television antennas and free of obstructions.

Using the suction cups, position the mounting bracket on the

window at a height convenient to where the Signal Booster will

be located, then attach the antenna to the bracket.

The antenna must be installed vertically. Signal performance will

be degraded if the antenna is not vertical.

Select a location to install the Signal

Booster that is away from excessive heat,

direct sunlight or moisture and that has

proper ventilation.

Recommended installation locations are:

• On a desk or table top

• In a bookshelf

• On the floor

In-Building

Installing the Wilson Electronics Signal Booster

Warning: The antenna used with this Signal Booster must

have a separation distance of at least 12 inches from all

persons.

Warning: Do not plug in the AC power

supply until both antenna cables are

attached to the Signal Booster.

In-Vehicle & In-Building

Wilson® Electronics recommends that all AC power

supplies for home electronics be plugged into a

Surge Protector Power Strip.

Run the cable from the Outside Antenna

and attach it to the connector labeled

“Outside Antenna” on the Signal Booster.

Attach the Cellular Cradle Plus or Ultra

Slim cable to the connector labeled “Inside

Antenna” on the Signal Booster.

Then attach the Cellular Cradle Plus or

Ultra Slim to your cell phone or data card.

(See page 5 & 6.)

9Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

Or email: [email protected] Hours: 7am to 6pm MST.

Warnings and Recommendations

Warning:

The antenna must be installed with a separation distance of at

least 12 inches from any vehicle occupant and must not be located

or operating in conjunction with any other antenna or Signal

Booster. Use of this Signal Booster with an antenna providing

gain higher than 6.12 dBi is in violation of FCC regulations for

which the offender is fully liable. All Wilson Electronics mobile

antennas provide 6.12 dBi gain or less.

Warning: Do not connect the power supply to the Signal Booster until

the Outside Antenna and Cellular Cradle Plus (or Ultra Slim

Antenna) cables are attached to the Signal Booster.

Warning: Do not plug the Signal Booster directly into the cell phone or

cellular data card using an antenna adapter. It could damage

the Signal Booster, cell phone and/or cellular data card.

About Wilson Electronics

Wilson Electronics, Inc. has been a leader

in the wireless communications industry for

over 40 years. The company designs and

manufactures Signal Boosters, antennas and

related components that significantly improve

cellular signal reception and transmission in

a wide variety of applications, both mobile

(marine, RV, vehicles) and in-building (home,

office, M2M).

With extensive experience in antenna and Signal Booster research and design,

the company’s engineering team uses a state-of-the-art testing laboratory,

including an anechoic chamber and network analyzers, to fine-tune antenna

designs and performance. For its Signal Boosters, Wilson Electronics uses

a double electrically insulated RF enclosure and cell tower simulators for

compliance testing.

All products are engineered and assembled in the company’s 55,000-square-foot

headquarters in St. George, Utah. Wilson Electronics has product dealers in all

50 states as well as in countries around the world.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-

back guarantee. If for any reason the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics Signal Boosters are warranted for one (1) year against defects

in workmanship and/or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned MaterialAuthorization (RMA)

number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer if located in the USA.

This warranty does not apply to any Signal Boosters determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

3301 East Deseret Drive, St. George, UT 84790

For additional Technical Support visit www.WilsonElectronics.com

or email at: [email protected]

Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432

www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular

One or more of the following U.S. Patent numbers may apply to the Signal Booster in this

product – D596,614; D596,615; D563,381;7,729,669; 7,486,929; 7,729,656; 7,409,186;

7,783,318; 7,684,838; 12,714,994.

This device complies with Part 15 of FCC rules. The transaction is subject to two

conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation. Changes or modiﬁ cations not expressly approved by Wilson Electronics could

void the authority to operate this equipment.

Signal Booster Specifications

Dual-Band Specifications

Model Number 811210

Connectors FME-Male

Impedance (input/output) 50 Ohms

Dimensions 5 x 3.5 x 1.2 inch or 12.7 x 8.9 x 3 cm

Weight 1.03 lbs or 0.468 kg

Frequency 824-894 MHz / 1850-1990 MHz

1Passband Gain (nominal)

800 MHz (uplink/downlink) 25 dB / 25 dB

1900 MHz (uplink/downlink) 25 dB / 25 dB

220 dB Bandwidth (nominal)

800 MHz (uplink/downlink) 53 MHz / 62 MHz

1900 MHz (uplink/downlink) 112 MHz / 110 MHz

³Power output for single cell phone (uplink) 800 MHz 1900 MHz

CDMA +33.0 dBm +29.3 dBm

GSM +34.3 dBm +30.3 dBm

EDGE +34.1 dBm +30.2 dBm

AMPS +30.1 dBm

Power output for single received channel

(downlink) 800 MHz 1900 MHz

CDMA +5.1 dBm +6.8 dBm

GSM +3.2 dBm +4.4 dBm

EDGE +3.2 dBm +4.6 dBm

AMPS +3.2 dBm

4Power output for multiple

received channels (downlink).

The maximum power is reduced by

the number of channels:

Number of

channels

Maximum Power

800 MHz 1900 MHz

2 +1.0 dBm +1.7 dBm

3 -2.5 dBm -1.8 dBm

4 -5.0 dBm -4.3 dBm

5 -7.0 dBm -6.3 dBm

6 -8.5 dBm -7.8 dBm

Noise Figure (typical) 3.5 dB nominal

Isolation uplink/downlink more than 50 dB

Power Requirements 12 V, 2 A (subject to uplink power)

Notes:

1. Nominal gain is the maximum gain at any frequency in the passband.

2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplification is 20 dB

lower than the passband amplification. One of the frequencies is lower than the passband and the other is higher.

3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier

signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can

cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by

an attenuator at the output of the device.

4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.

AIG#110464_REV.21_11.30.11

Signal Booster Specifications- Not for use in U.S. or Canada

Model Number 811510 / 14 811710 / 14 811910 / 14

Frequency 880-960 MHz 880-960 MHz / 1710-1880 MHz 880-960 MHz / 1920-2170 MHz

Gain (up/down) 25 dB / 25 dB

Max RF + 34 dBm / + 32 dBm

Noise Figure 3.5 dB nominal

Flatness

(up/down) ± 2 dB / ± 2 dB

Isolation > 50 dB

Power Requirements 12 V, 2 A (subject to uplink power)

Connectors FME-Male 50 ohms

Dimensions 5 x 3.5 x 1.2 (inch) / 12.7 x 8.9 x 3 (cm)

Weight 1.03 lbs / 0.468 kg

Andere Handbücher für SIGNALBOOST 811210

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Wilson Electronics Extender Handbücher

Wilson Electronics

Wilson Electronics 801105 Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics DT4G 460101 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics Signal 3G Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost Office 200 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro A500 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Bedienungsanleitung

Wilson Electronics

Wilson Electronics DB Pro 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics Mobile 4G SmarTech III 460108 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460006 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost Office 100 Bedienungsanleitung

Wilson Electronics

Wilson Electronics Pro 70 Plus Bedienungsanleitung

Wilson Electronics

Wilson Electronics MobileMaxx 3G 460011 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE X 475021R Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE 4G-X OTR 470210R Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro A1000 Bedienungsanleitung

Wilson Electronics

Wilson Electronics DB Pro 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Bedienungsanleitung

Wilson Electronics

Wilson Electronics PRO 70 PLUS SELECT Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE 4G-X 470510R Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics signalboost dt 271265 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
