WIN Enterprises MB-60480 Bedienungsanleitung
User’s Manual
Version 1.0
Multi-Core SBC
Model Number MB-60480 & MB-60490*
AMD Opteron™-based PICMG 1.3-style High-throughput SBC
* The MB-60490 is based on MB-60480 design, but does not include the AMD8132
and ATI M9 chips
2
Table of Contents
1.0. Chapter 1. Introduction………………………………………………………….3
1.1. Description………………………………………………………………………. 3
1.2. Specifications……………………………………………………………………. 3
1.3. Midplane Options………………………………………………………………… 4
1.4. Location of Connectors & Jumpers…………………………………………….. 5
1.5. List of Connectors & Switch…………………………………………………… 5
1.6. List of Jumpers…………………………………………………………………… 5
2.0. Chapter 2. Connectors and Jumpers………………………………………. 6
2.1 Connector, Jumper and Switch Settings………………………………………. 6
Appendix A: Golden Finger Pinouts…………………………………………….. 16
Appendix B: SMBus Addresses Map……………………………………………. 17
3
1.0 Chapter 1. Introduction
1.1. Description: AMD Opteron™-based PICMG 1.3-style high-throughput
SBC
The MB-60480 and MB-60490 are high-throughput, high performance PICMG 1.3 style SBCs
for intense applications such as medical & military imaging, scientific, oil & gas exploration,
seismic, etc that support up to two AMD Dual-core Opteron processors.
1.2. Specifications
Core Features
CPU Supports 32- and 64-bit computing with full range of AMD Opteron Socket 940
processors, low to high power (30/55/95 W) single and dual-core CPUs
Chipset NVIDIA nForce Professional 2200/ AMD 8132 (AMD8132 on MB-60480 only)
BIOS AWARD/PHOENIX
Memory 2 slots with up to 8GB; DDR PC-3200 ECC Registered. optional 4 slots/16GB
Hardware
Monitoring System Monitoring: Supports temperature, fan speed, and voltage monitoring.
Watchdog Timer: Can generate a system reset. Supports software-selectable
timeout interval.
Backplane Passive backplanes: IP-90120, IP-90190, IP-90220, IP-90230, IP-90240
I/O
HyperTransport Stackable 16-lane connector
Serial Port Two RS232 serial ports
USB 4 USB 2.0 ports
Ethernet 3 10/100/1000 Gigabit Ethernet LAN port
Video Integration ATI 64MB M9 Graphics on MB-60480 only
PCI Express 16 lanes. Semi-custom pin-out supports PCIX & 16 Lane PCI Express
Graphics Optional: integrated ATI M9 64MB graphics
S I/O Chipset Winbond W83627 THF
Storage
SATA One EIDE & 4X SATA ports with RAID 0,1
Mechanical & Environmental
Electrical ATX power supply
Board Size 13.330 in. x 4.976 in.; 33.86 cm x 12.64 cm
Environmental Operating Temperature: 0° to 45° degrees C
Ordering Information
MB-60480 WIN AMD Opteron™-based PICMG 1.3 Full Size SHB Express/PCI-
4
1.3. Midplane Options
5
1.4. Location of Connectors & Jumpers
1.5. List of Connectors & Switch
Connector Description Connector Description
CN1 LPC Bus Connector (Port 80) CN15 SATA Connector
CN2 USB Port0/1 Connector CN16 Auxiliary +12V Power Connector
CN3 USB Port2/3 Connector CN17 40-pin IDE Connector
CN4 SATA Connector CN18 GbE Output Connector
CN5 Fan Connector CN19 VGA DB-15 Connector
CN6 24-bit LVDS Even Channel CN20 PS/2 KB/Mouse Mini-DIN
CN7 24-bit LVDS Odd Channel CN21 Hyper Transport Connector
CN8 COM2 Connector CN22 GbE RJ-45 Connector
CN9 COM1 Connector CN23 Fan Connector
CN10 LCD Inverter Connector CN24 GbE RJ-45 Connector
CN11 SATA Connector CN25 Fan Connector
CN12 Front Panel Connector
CN13 Fan Connector
CN14 SATA Connector SW1 SW1
1.6. List of Jumpers
Pin Define Pin Define
JP1 LCD Panel Power Select JP4 PCI-X 100/133MHz Bus Speed Select
JP2 Flash Recovery Header JP5 Multi or Single PCI-X slots Select
JP3 Clear CMOS Control
6
2.0. Chapter 2. Connectors and Jumpers
2.1 Connector, Jumper and Switch Settings
CN1: LPC Bus Connector (Port 80)
The MB-60480 supports a LPC bus connector for Port-80 card to display the post-code.
Pin Assignment Pin Assignment
1 +3.3V 2 LAD0
3 LAD1 4 LAD2
5 LAD3 6 LFRAME#
7 PCIRST 8 +5V
9 CLK 10 Key-Pin
11 Ground 12 Ground
13 LPC_DRQ0# 14 Ground
15 LPC_SERIRQ 16 Ground
CN2 & CN3: USB0~ 3 connectors
Pin Assignment Pin Assignment
1 +5V 2 +5V
3 Data- 4 Data-
5 Data+ 6 Data+
7 Ground 8 Ground
9 Key-Pin 10 Ground
CN5, CN13, CN23, and CN25: Fan Connector
Pin Assignment
1 Ground
2 +12V
3 Speed Detect
Note1:
CN5 pin-3 is not connected
CN13 connect to W83627THF TACH2 detect pin.
CN25 connect to W83627THF TACH1 detect pin.
CN26 connect to W83627THF TACH3 detect pin.
7
CN4, CN11, CN14, and CN15: SATA Connector
Pin Assignment
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
CN6: 24-bit LVDS Even Channel
1-1 Pin Define Pin Define
1 LVDS_TXU0P 2 LVDS_TXU0N
3 Ground 4 Ground
5 LVDS_TXU1P 6 LVDS_TXU1N
7 Ground 8 LCD Power Input
9 LVDS_TXU3P 10 LVDS_TXU3N
11 LVDS_TXU2P 12 LVDS_TXU2N
13 Ground 14 Ground
15 LVDS_TXUCKP 16 LVDS_TXUCKN
17 ENABKL 18 LCD Power Input
19 +12V 20 +12V
8
CN7: 24-bit LVDS Odd Channel
1-2 Pin Define Pin Define
1 LVDS_TXL0P 2 LVDS_TXL0N
3 Ground 4 Ground
5 LVDS_TXL1P 6 LVDS_TXL1N
7 Ground 8 LCD Power Input
9 LVDS_TXL3P 10 LVDS_TXL3N
11 LVDS_TXL2P 12 LVDS_TXL2N
13 Ground 14 Ground
15 LVDS_TXLCKP 16 LVDS_TXLCKN
17 ENABKL 18 LCD Power Input
19 +12V 20 +12V
CN8: COM2 Connector
Pin Assignment Pin Assignment
1 DCD2 6 DSR2
2 RXD2 7 RTS2
3 TXD2 8 CTS2
4 DTR2 9 RI2
5 Ground 10 NC
CN9: COM1 Connector
Pin Assignment Pin Assignment
1 DCD1 6 DSR1
2 RXD1 7 RTS1
3 TXD1 8 CTS1
4 DTR1 9 RI1
5 Ground 10 NC
CN10: LCD Inverter connector
Pin Assignment
1 +12V
2 ENABKL
3 Ground
9
CN12: Front Panel Connector
Pin Assignment Pin Assignment
1 Speaker - 2 Speaker +
3 Power LED- 4 Power LED+
5 Power Button- 6 Power Button +
7 Reset Button- 8 Reset Button+
9 IDE LED- 10 IDE LED+
CN16: Auxiliary +12V Power Connector
Pin Assignment Pin Assignment
1 Ground 2 Ground
3 +12V 4 +12V
CN17: IDE Connector
Pin Define Pin Define
1 RESET* 2 Ground
3 DATA7 4 DATA8
5 DATA6 6 DATA9
7 DATA5 8 DATA10
9 DATA4 10 DATA11
11 DATA3 12 DATA12
13 DATA2 14 DATA13
15 DATA1 16 DATA14
17 DATA0 18 DATA15
19 Ground 20 KEY PIN
21 DREQ 22 Ground
23 DIOW* 24 Ground
25 DIOR* 26 Ground
27 IOCHRDY 28 Ground
29 DACK* 30 Ground
31 IRQ14 32 N/C
33 A1 34 DETECT
35 A0 36 A2
37 HD SELECT 0* 38 HD SELECT 1*
39 ACTIVE* 40 Ground
10

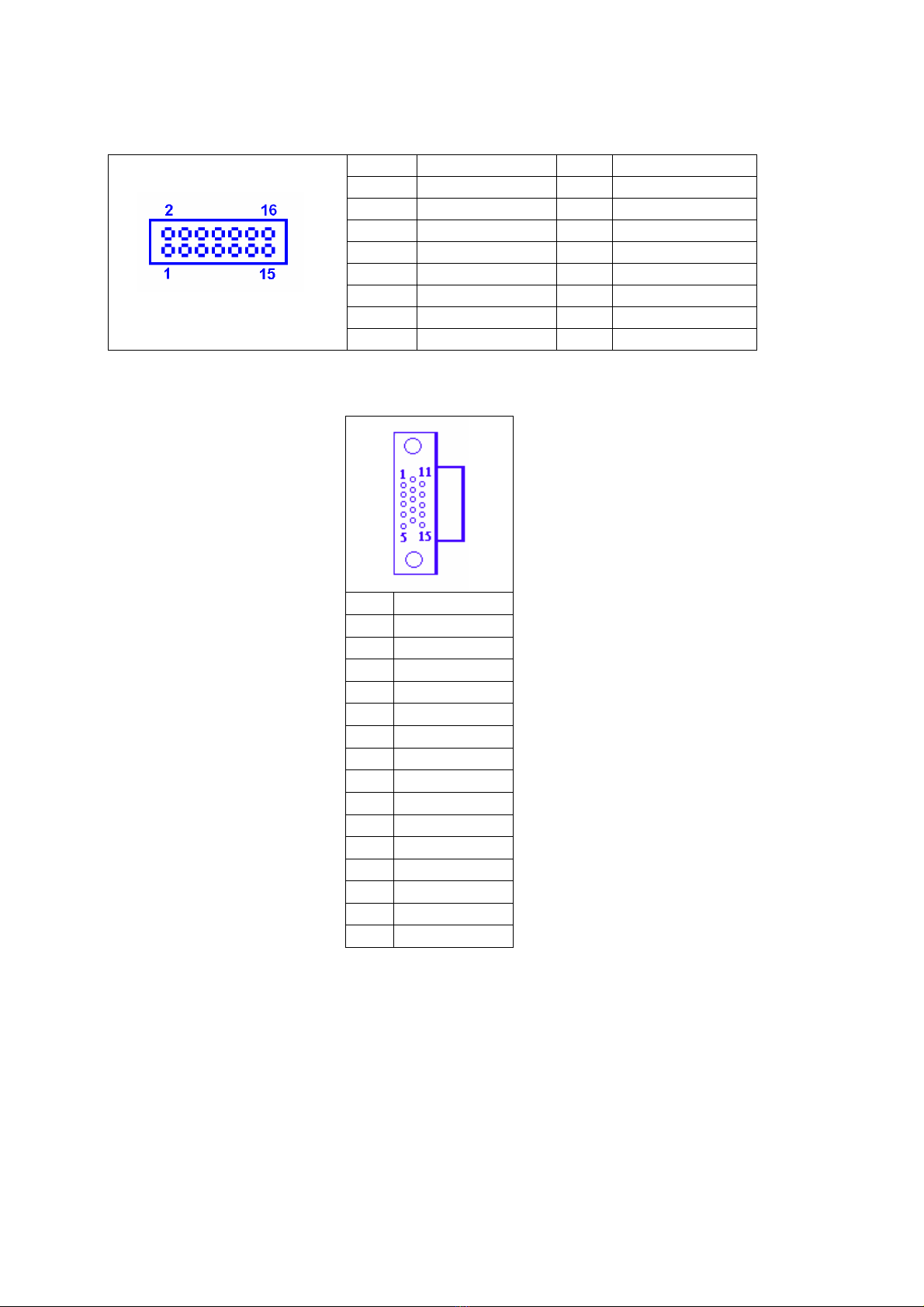

CN18: GbE Output Connector
Pin Assignment Pin Assignment
1 MDIP0 9 Ground
2 MDIN0 10 LINK100#
3 MDIP1 11 NC
4 MDIN1 12 LINK1000#
5 MDIP2 13 VDD_GbE_2.5V
6 MDIN2 14 LED_TX
7 MDIP3 15 NC
8 MDIN3 16 Ground
CN19: VGA DB-15 Connector
Pin Define
1 RED
2 GREEN
3 BLUE
4 NC
5 Ground
6 Ground
7 Ground
8 Ground
9 +5V
10 Ground
11 NC
12 DDC DATA
13 HSYNC
14 VSYNC
15 DDC CLOCK
