Winco SPECTRUM ECT-300 Beilage

ELECTRIC COUNTERTOP

CONVEYOR TOASTER

Installation and Operating Instruction Manual

BEFORE OPERATING ANY EQUIPMENT, READ AND FAMILIARIZE YOURSELF WITH THESE USE AND SAFETY INSTRUCTIONS

Congratulations on your purchase of this SPECTRUM commercial equipment. When used as intended, and with

proper care and maintenance, you are sure to experience years of reliable operation from this equipment. To ensure

best results, it is important that you read and follow the instructions in this manual carefully. It is important to

keep these instructions in a safe place for future reference.

Model Voltage Frequency Power Amperage P lu g Ty pe

Overall Dimensions

Weight

Width Depth Height

ECT-300 120V 50/60 1800W 15A

NEMA 5-15P

14-5/8"

(370mm)

16-9/16"

(420mm)

16-3/8"

(415mm)

40.5 lbs

18.3 kgs

NEMA 5-20P

(Canada)

ECT-700 208/240V 50/60 Hz 1800/2400W 8.6/10A NEMA 6-15P

Form No. ECT-Series Manual - 03/21

ECT-700

ECT-300

For California Customers

WARNING:



CAUTION:



ATTENTION:



300

700

SLICES

PER

HOUR

SLICES

PER

HOUR

Visit www.wincous.com for manuals in English & Spanish

Visite www.wincous.com para ver manuales en inglés y español.

Electric Countertop Conveyor Toaster

Important For Future Reference

Introduction

Congratulations on the purchase of your SPECTRUM™ Commercial

Conveyor Toaster. Please take time to carefully read through this

manual to ensure the machine is operated and maintained properly, to

ensure the best possible performance from the product for many years.

SPECTRUM will not accept liability for the following if:

• The instructions in this manual have not been followed correctly.

• Non-authorized personnel have tampered with the machine.

• Non-original spare parts are used.

• The machine has not been handled and cleaned correctly.

• There is any use damage to the unit.

Immediately Inspect for Shipping Damage

All containers should be examined for damage before and during

unloading. The freight carrier has assumed responsibility for its safe

transit and delivery. If equipment is received damaged, either apparent

or concealed, a claim must be made with the delivering carrier.

A. Apparent damage or loss must be noted on the freight bill

at the time of delivery. It must then be signed by the carrier

representative (Driver). If this is not done, the carrier may refuse

the claim. The carrier can supply the necessary forms.

B. If concealed damage or loss is not apparent until after equipment

is uncrated, a request for inspection must be made to the carrier

within 15 days. The carrier should arrange an inspection. Be certain

to keep all contents and packaging material.

Please complete this information and retain this manual for the life of the equipment. For

Warranty Service and/or parts, this information is required.

Model Number Serial Number Date Purchased

! !

WARNING: IMPROPERINSTALLATION,ADJUSTMENT,

ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE

PROPERTY DAMAGE, INJURY, OR DEATH. READ THE

INSTALLATION, OPERATION, AND MAINTENANCE

INSTRUCTIONS THOROUGHLY BEFORE INSTALLING

OR SERVICING THIS EQUIPMENT.

AVERTISSEMENT: TOUTE INSTALLATION, RÉGLAGE,

MODIFICATION, RÉPARATION OU ENTRETIEN

INCORRECT PEUT OCCASIONNER DES DOMMAGES

MATÉRIELS, DES BLESSURES GRAVES OU LA MORT.

LIRE LES INTRUCTIONS D'INSTALLATION, D'UTILISATION ET

D'ENTRETIEN ATTENTIVEMENT AVANT D'INSTALLER OU DE

RÉPARER CET APPAREIL.

! !

CAUTION: THESEMODELSAREDESIGNED,BUILT,AND

SOLD FOR COMMERCIAL USE ONLY. IF THESE MODELS

ARE POSITIONED SO THE GENERAL PUBLIC CAN USE

THE EQUIPMENT, MAKE SURE THAT CAUTION SIGNS,

WARNINGS, AND OPERATING INSTRUCTIONS ARE

CLEARLY POSTED NEAR EACH UNIT SO THAT ANYONE

USING THE EQUIPMENT WILL USE IT CORRECTLY AND

NOTINJURETHEMSELVESORHARMTHEEQUIPMENT.

ATTENTION: CES MODÈLES SONT CONÇUS, FABRIQUÉS,

ET VENDUS POUR UN USAGE COMMERCIAL SEULEMENT.

SI CES MODÈLES SONT PLACÉS POUR QUE LE GRAND

PUBLICPUISSELESUTILISER,ASSUREZ-VOUSQUELESCONSIGNES

D’ATTENTION, D'AVERTISSEMENT, ET LES INSTRUCTIONS

D'UTILISATION SOIENT CLAIREMENT AFFICHÉES PRÈS DE

CHAQUEUNITÉDE SORTEQUEN'IMPORTEQUELUTILISATEURDE

L'APPAREIL L'EMPLOIE CORRECTEMENT ET NE SE BLESSE PAS OU

N'ENDOMMAGE PAS L'APPAREIL.

! !

WARNING: A FACTORY AUTHORIZED SERVICE

PROVIDER SHOULD HANDLE ALL MAINTENANCE

AND REPAIR. BEFORE DOING ANY MAINTENANCE

OR REPAIR, FOLLOW SERVICE SET UP ARRANGEMENT

ON PAGE 11.

AVERTISSEMENT: UN TECHNICIEN AUTORISÉ PAR

L'USINE DEVRA EFFECTUER TOUT L'ENTRETIEN ET LES

RÉPARATIONS. AVANT DE FAIRE TOUT ENTRETIEN OU

RÉPARATION, VEUILLEZ CONTACTER WINCO.

Electric Countertop Conveyor Toaster

Table of Contents

Specications .............................................................................. 1

Warnings ..................................................................................... 2

Introduction ................................................................................ 2

Packaging .................................................................................... 3

Installation .................................................................................. 4

Operation .................................................................................... 5

Cleaning, Care & Maintenance ................................................. 6

Safety ........................................................................................... 6

Troubleshooting ......................................................................... 7

Service & Repair .......................................................................... 7

Exploded View ........................................................................... 8

Spare Parts List............................................................................ 9

Electrical Diagram .................................................................... 10

Limited Warranty ......................................................................11

Package Contents

All units come with an Operating Instruction Manual and the following:

• SPECTRUM™ Commercial Conveyor Toaster

• Crumb Tray

• Four (4) Legs

• Feeder Rack

SPECTRUM prides itself on quality and service, ensuring that at the

time of packing, all products are supplied fully functional and free

of damage. Should you nd any damage as a result of freight, please

contact your SPECTRUM dealer immediately.

Unpacking the Equipment

DISPOSE OF ALL PACKAGING MATERIALS IN AN

ENVIRONMENTALLY RESPONSIBLE MANNER.

1. Remove all packing materials and tape, as well as any protective

plastic and cardboard, from the unit.

2. Clean any glue residue left over from the plastic or tape.

3. Place the unit in the desired position and height.

Please keep this manual in a safe place for future use!

Installation and start-up must be performed by a qualiﬁed installer who has thoroughly read, understands and follows these instructions.

NOTE

Please remember that this manual and the warning labels do not replace the need to be alert, to properly train and

supervise operators, and to use common sense when using this equipment.

• Return Chute

• Pass-Through Chute

Installation

2. Remove the SPECTRUM™ Commercial Conveyor Toaster from the

packaging. Be certain that all protective plastics and residues are

thoroughly cleaned from its surface.

3. Place the Conveyor Toaster on a rm level surface; the adjustable

feet can assist in leveling.

Local standards and regulations should be consulted in order to

abide by standards set in relation to positioning, spacing, and

ventilation. SPECTRUM recommends that you allow no less than 4”

for a ventilation gap around the perimeter of this unit. Common

sense should be used when choosing position and operation of this

product.

4. The installation of the unit must conform to the NATIONAL

ELECTRIC CODE, ALL LOCAL ELECTRIC CODES AND ORDINANCES, AND

ALL THE LOCAL ELECTRICAL COMPANY RULES AND REGULATIONS.

Additionally, we recommend a 4" spacing surrounding the unit in

order to provide adequate ventilation.

5. Proper connections and power supply are essential for ecient

performance. Supply the appropriate power and connect to

source; the Conveyor Toaster is now ready to turn on and operate.

(For power supply please see technical speciﬁcation on page 1).

Fournir l'alimentation secteur appropriée et brancher l’appareil à la

source d'alimentation ; votre Grille-pain à Convoyeur est maintenant

prête à être allumée et à fonctionner. (Pour l’alimentation, veuillez

voir la che technique, page 1).

6. The ECT-300 units are wired to be used with a 120V, NEMA 5-15R or

5-20R receptacle on a dedicated circuit.

7. The ECT-700 units are wired to be used with a 208/240V,

NEMA 6-15R receptacle on a dedicated circuit.

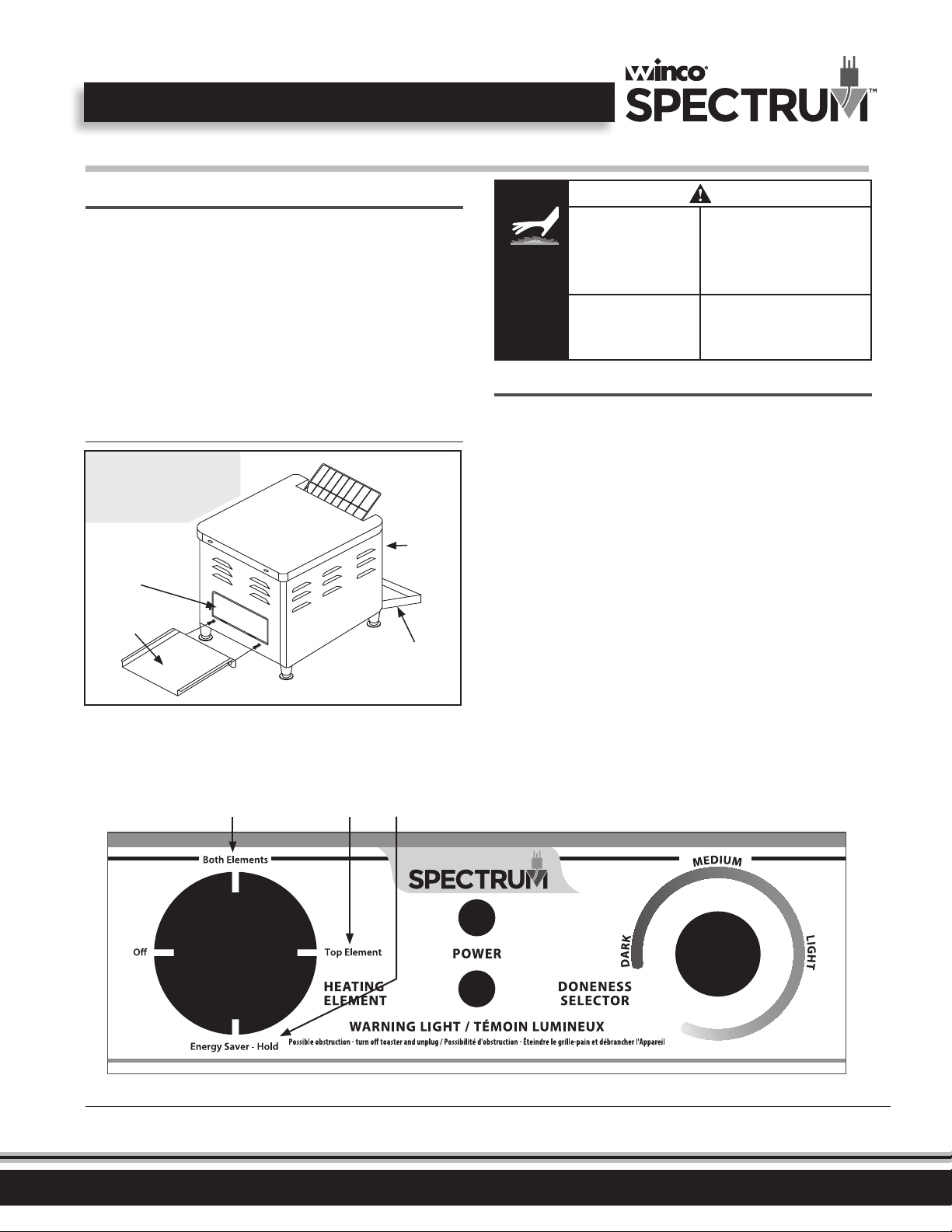

8. The Conveyor Toaster can operate as a pass-through operation

or return operation. Please follow the instructions for the

appropriate/required method.

Votre Grille-pain à Convoyeur peut fonctionner avec un seul passage

ou avec aussi un passage de retour. Veuillez voir les schémas

ci-dessous et suivez les instructions pour la méthode appropriée

nécessaire.

These instructions should be followed at all times. Failure to follow

these instructions could result in injury to yourself and others.

TO REDUCE RISK OF INJURY OR DAMAGE TO THE UNIT:

1. Read this manual thoroughly before installation and operation.

DO NOT proceed with installation and operation if you have any

questions or do not understand anything in this manual. Contact

your representative or the manufacturer rst.

Fire Hazard.

Correct installation precautions,

procedures and regulations

must be followed. Operation

and safety training is necessary

for all users of this equipment.

Risque d'incendie

La surchaue des vapeurs d'huile ou de

l'huile peut s'enammer et provoquer

un incendie. Surveillez la température,

la qualité et le niveau d’huile. Utilisez et

entretenez le système d'élimination des

vapeurs d'huile.

The equipment must be

installed by qualied personnel

only. Correct installation

precautions, procedures and

regulations must be followed

in order to reduce the risk of

re. Hood and re suppression

systems must be maintained

per manufacturer's guidelines.

Only qualied and trained

personnel are to use this

equipment.

Faire chauer l'huile avec précaution. Si

l'huile fume, réduire le feu. Ne pas laisser

l'appareil sans surveillance. Si le feu se

produit, éteindre l'appareil, couvrir jusqu'à

refroidissement. Ne pas mettre l'eau dans

l'huile chaude ou enammée. Ne faites pas

fonctionner avec de l'huile sous la barre

d'huile. L’huile sale a un point d'éclair

plus bas. Remplacer l'huile sur une base

régulière. Maintenir le niveau d'huile

correct. Utiliser un système d'évacuation

de la vapeur d'huile (capot) pour réduire

l'accumulation de graisse et d'huile sur les

surfaces de paroi ou de plafond.

WARNING AVERTISSEMENT

ATTENTION

Proper Grounding · Mise à la terre correcte

This machine is provided with a three-pronged

grounding plug. The outlet to which this plug

is connected must be properly grounded. If the

receptacle is not the proper grounding type, contact an

electrician. DO NOT, under any circumstances, cut

or remove the third ground prong from the power cord

or use any adapter plug.

Cette machine est équipée d'une che à trois broches.

La prise sur laquelle cette che est branchée doit être

correctement mise à la terre. Si la prise n'est pas le type de

mise à la terre, contactez avec un électricien. NE PAS, en

aucun cas couper ou enlever la troisième broche de terre à

partir du cordon d'alimentation ou utiliser un adaptateur.

USE A GROUNDED OUTLET

DO NOT ADD AN ADAPTOR

TO THE PLUG

UTILISER UNE PRISE AVEC MISE

À LA TERRE NE PAS AJOUTER UN

ADAPTATEUR SUR LA FICHE

Electrical Shock Hazard

Keep water and other liquids

from entering the inside of the

unit. Liquid inside the unit could

cause an electrical shock.

Risque de choc électrique

Conserver l'eau et d'autres liquides

de pénétrer à l'intérieur de l'appareil.

Liquide à l'intérieur de l'appareil pourrait

provoquer un choc électrique.

Do not spray water or cleaning

products. Liquid could contact

the electrical components

and cause a short circuit or an

electrical shock. Do not use unit

if power cord is damaged or has

been modied.

Ne pas pulvériser de l'eau ou des produits

de nettoyage. Le liquide pourrait contacter

avec les composants électriques et causer

un court-circuit ou un choc électrique.

Ne pas utiliser l'appareil si le cordon

d'alimentation est endommagé.

ou a été modié.

WARNING AVERTISSEMENT

Do not position or operate near combustible materials/ammable

objects.

Ne pas placer ni faire fonctionner l'appareil près de

matériels combustibles ou d'objets inﬂammables.

Once the Conveyor Toaster has been placed in position, be sure that

the stainless steel waste tray is correctly positioned.

Une fois que votre Grille-pain à Convoyeur est mise en

place, veillez à ce que le bac à déchets en acier inoxydable

soit correctement placé.

CAUTION

Operation

Heating Elements & Doneness Selector

The Conveyor Toaster has upper and lower heating elements which can

be used together or alternatively; the top element can be used on its

own. This can provide exibility when toasting and grilling.

To operate, turn the HEATING ELEMENT Dial to the desierd selection

(see diagram below):

A. BOTH ELEMENTS: Provides full power to both the upper and

lower elements.

B. TOP ELEMENT: Provides full power to the upper element only.

C. ENERGY SAVER-HOLD: Reduces power to unit when not in use,

keeping it warm for fast heat up when required.

Additionally, the speed of the conveyor can be controlled using the

DONENESS SELECTOR Dial, to determine the darkness/lightness of the

toasted products.

• Adjusting the "DONENESS SELECTOR" to "LIGHT" will INCREASE the

conveyor speed, resulting in Lighter toasted products.

• Adjusting the "DONENESS SELECTOR" to "DARK" will SLOW the

conveyor speed, resulting in Darker toasted products.

Using the Pass-Through & Return Chutes

• To use the pass-through chute: 1) Attach the pass-through chute

to the screws below the rear discharge door, 2) Release the back

door chute to create a bridge from the conveyor belt to the rear

discharge.

• To use the return chute: 1) Attach the return crumb tray to

the ledge just below the rear discharge door, 2) Close the rear

discharge door - this will allow toast to slide toward the front of

the unit and down the front return chute (see diagram below).

A B C

NOTE

Please remember that this manual and the warning labels do not replace the need to be alert, to properly train and supervise

operators, and to use common sense when using this equipment.

Burn Hazard.

When in operation, the

Conveyor Toaster will be hot at

the entrance to the conveyor

cavity.

Please take extreme caution.

Risque de brûlure.

Ne touchez pas les surfaces chaudes ou

chauées liguid tout appareil chaue ou

en fonctionnement.

USE CAUTION WHEN

TOUCHING THE UNIT.

Ne touchez pas le liquide chaud

ou les surfaces de chauage

lorsque l’appareil chaue ou en

fonctionnement.

WARNING AVERTISSEMENT

HOT

Rear & Front Toast Return Chutes, Crumb Tray

Pass-Through

Toast Chute

Rear Discharge

Toast Door (closed)

Front

Crumb Tray

If the back catch tray is open the food

will come out the back.

If the back catch tray is closed the

food will go out the front.

Front Return

Toast Chute

Cleaning, Care & Maintenance

To maintain the appearance and increase the service

life, clean your unit daily. The SPECTRUM™ Commercial

Conveyor Toaster should be cleaned after each day’s

operation; however, the unit may require more frequent

cleaning, depending on the volume of production.

Safety

SAFETY PRECAUTIONS

Before installing and operating this equipment be sure

everyone involved in its operation are fully trained and

aware of all precautions.

Accidents and problems can result from a failure to follow

fundamental safety precautions.

• A WINCO® Approved Recommended Qualied Service Technician

should carry out repairs if necessary. Do not remove any

components or service panels on this product.

• Allow the Conveyor Toaster to cool down after use before

dismantling for cleaning; the unit will be too hot to handle

immediately after use.

• Before cleaning, switch o power and disconnect power cord from

the outlet.

• If the power cord is damaged, it must be replaced by a WINCO®

Approved Recommended Qualied Service Technician in order to

avoid a hazard.

1. Switch power o and disconnect from the outlet before cleaning.

2. Allow the Conveyor Toaster to cool down after use before

dismantling for cleaning; the unit will still be too hot to handle

immediately after use. Remove the return chutes, feeder and

catch trays and wipe clean with a damp cloth; be sure to dry before

returning them to the unit.

For detailed cleaning these non-electrical parts can be submerged

and washed thoroughly if needed.

3. The remainder of the Conveyor Toaster can be cleaned with a

damp cloth using hot, soapy water.

4. Do not immerse completely in water or use hose to clean.

5. Warm soapy water is recommended for cleaning; prolonged use of

cleaning agents may cause damage to stainless steel.

Burn Hazard.

When in operation, the

Conveyor Toaster will be hot at

the entrance to the conveyor

cavity.

Please take extreme caution.

Risque de brûlure.

Ne touchez pas les surfaces chaudes ou

chauées liguid tout appareil chaue ou

en fonctionnement.

USE CAUTION WHEN

TOUCHING THE UNIT.

Ne touchez pas le liquide chaud

ou les surfaces de chauage

lorsque l’appareil chaue ou en

fonctionnement.

WARNING AVERTISSEMENT

HOT

Electrical Shock Hazard

Keep water and other liquids

from entering the inside of the

unit. Liquid inside the unit could

cause an electrical shock.

Risque de choc électrique

Conserver l'eau et d'autres liquides

de pénétrer à l'intérieur de l'appareil.

Liquide à l'intérieur de l'appareil pourrait

provoquer un choc électrique.

Do not spray water or cleaning

products. Liquid could contact

the electrical components

and cause a short circuit or an

electrical shock. Do not use unit

if power cord is damaged or has

been modied.

Ne pas pulvériser de l'eau ou des produits

de nettoyage. Le liquide pourrait contacter

avec les composants électriques et causer

un court-circuit ou un choc électrique.

Ne pas utiliser l'appareil si le cordon

d'alimentation est endommagé.

ou a été modié.

WARNING AVERTISSEMENT

Please keep this manual in a safe place for future use!

Installation and start-up must be performed by a qualiﬁed installer who has thoroughly read, understands and follows these instructions.

If your SPECTRUM™ Commercial Conveyor Toaster does not operate, please check the following before placing a service call:

Troubleshooting

Service and Repair

THIS EQUIPMENT MUST ONLY BE SERVICED BY AN AUTHORIZED AGENT.

NOTE

Parts protected by the manufacturer or its agent are not to be adjusted by the installer unless the installer is an authorized service agent.

If you have any questions or problems DO NOT send unit to WINCO® without rst contacting our customer service department.

See "Limited Warranty" section on page 11 for details.

ISSUE MIGHT BE CAUSED BY RECOMMENDED SOLUTION

The unit is not working;

POWER indicator light is not on

Main power supply Check main power supply

Unit is not switched on Check that the unit is correctly plugged in and turned on; ensure that

you've read & understand the manual for correct operation

Faulty dial control Check that set screws on both knobs are correctly secured

Plug and lead are damaged Unplug the unit from power source and inspect cable for fraying or

damage.

Internal wiring fault Call WINCO to make service arrangements through its Service

Provider Network

The unit is heating up but POWER

indicator light is not on Power indicator light is faulty Replace Power indicator light

Slow heat up or no heat up, but

Power is ON

Incorrect operation Ensure that you have clearly read the manual, to understand the

operating functions

Warm up Allow ve (5) minutes for unit to warm up

Elements are faulty Replace faulty elements - Replacement must be done by an

authorized service provider

Faulty power selector switch Replace faulty power selector switch - Replacement must be done

by an authorized service provider

Incorrect voltage Make sure power is connected to correct voltage for this unit - see

name-plate on back of unit for correct voltage

The carry chain does not work

Unit is not on, or the power selector

switch is not activated Turn the unit on and adjust function control to required setting

Faulty speed control Replace faulty speed control - Replacement must be done by an

authorized service provider

Motor fault Check input power

Gear / Chain fault Inspect drive chain for any broken links

Incorrect voltage Make sure power is connected to correct voltage for this unit - see

name-plate on back of unit for correct voltage

Exploded View

MODELS: ECT300 & ECT700

1 2

25 26

23a

7 8 9

23b

Parts List

ECT-300 ECT-700

No. Description Part #

1Return Chute ECT700-P1

2Foot ECT700-P2

5Fan ECT300-P5 ECT700-P3

6Motor ECT300-P4 ECT700-P4

7Silicone Bushing ECT700-P5

8Shaft Bracket ECT700-P6

9Shaft Cover ECT700-P7

10 Gear 1" Dia, 12 Teeth ECT700-P8

11 Gear 1-3/4" Dia, 20 Teeth ECT700-P9

12 Chain ECT700-P10

13 Conveyor Belt ECT700-P11

14 Pass-Through Chute ECT700-P12

15 Back Bae Plate ECT700-P13

16 Plug & Lead ECT300-P1 ECT700-P14

Plug Socket ECT300-P7 n/a

Optional Power Cord, NEMA 5-20P ECT300-P8 n/a

17 Heating Element - UPPER ECT300-P2 ECT700-P15

18 Heating Element - LOWER ECT300-P3 ECT700-P16

19 Conveyor Drive Shaft Assembly - FRONT ECT700-P17

20 Conveyor Drive Shaft Assembly - BACK ECT700-P18

21 Indicator Light - GREEN ECT700-P19

22 Indicator Light - RED ECT700-P20

23a Control Knob - ON/OFF ECT700-P21

23b Control Knob - DONENESS ECT700-P22

24 OFF - 3-Position Heating Switch ECT700-P23

25 Conveyor Belt Speed Control Switch ECT300-P6 ECT700-P24

26 Temperature High Limiter ECT700-P25

27 Crumb Tray ECT700-P26

28 Feeder Rack ECT700-P27

29 Bushing - Power Cord ECT700-P28

Please contact factory for special order parts not listed.

Electrical Circuit Diagrams

These circuit diagrams have been provided to assist qualied electricians; Only SPECTRUM™

service agents, or qualied electricians should carry out repairs, if repair is required.

Do not remove any components or service panels on this product.

GEAR MOTOR

EL2 (N)L1

DIODE

VARISTOR

MALFUNCTION LIGHT

PILOT LIGHT

HI-LIMIT

BOTTOM ELEMENT

TOP ELEMENT

FAN

120V ~

208V/240V

MANUAL SHIFT SWITCH

GEAR MOTOR

EL2 (N)L1

DIODE

VARISTOR

MALFUNCTION LIGHT

PILOT LIGHT

HI-LIMIT

BOTTOM ELEMENT

TOP ELEMENT

FAN

120V ~

208V/240V

MANUAL SHIFT SWITCH

ECT700

ECT300

Manual Shift Switch

Gear Motor

L2 (N)

208V/240V

120V~

14 AWG

Diode

Varistor

Fan

Pilot Light

Hi-Limit

Bottom Element

Bottom Element (900 Watts)

Top Element

Top Element (900 Watts)

Malfunction Light

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Winco Toaster Handbücher

Winco

Winco Spectrum ECT-700 Beilage

Beliebte Toaster Handbücher anderer Marken

Taurus

Taurus ARCTIC 960648 Bedienungsanleitung

Redfox

Redfox TO 920 G Bedienungsanleitung

Moulinex

Moulinex LS340D11 Bedienungsanleitung

Amica

Amica TD 3021 Bedienungsanleitung

Electrolux

Electrolux EAT978 Bedienungsanleitung

SEVERIN

SEVERIN SA 9275 Bedienungsanleitung

Breville

Breville the Big One BTS100 Bedienungsanleitung

Sunbeam

Sunbeam TA2540 Bedienungsanleitung

ARENDO

ARENDO 305716 Bedienungsanleitung

Life

Life Crispy AT-001 Bedienungsanleitung

Beko

Beko TAM 6201 I Bedienungsanleitung

Zephir

Zephir ZHC485 Bedienungsanleitung

H.Koenig

H.Koenig TOS9 Bedienungsanleitung

ZIEGELMULLER

ZIEGELMULLER Ritter ET 10 Produkthandbuch

HURAKAN

HURAKAN HKN-TOP3 Bedienungsanleitung

Philips

Philips HD2565 Bedienungsanleitung

Bosch

Bosch DesignLine Plus TAT4P44 GB Series Bedienungsanleitung

Panasonic

Panasonic NT-ZP1-V Bedienungsanleitung
