Windster RA-7630SS Bedienungsanleitung

www.windsterhood.com

RA-7630SS

RA-7636SS

RA-7642SS

RA-7648SS

Please read this operation manual thoroughly before

using your range hood. Store it in a safe location for

when you need to reference it in the future.

NOTE: PLEASE INSPECT HOOD

IMMEDIATELY UPON RECEIVING.

CLAIM OF DAMAGE AFTER 7 DAYS

OF DELIVERY WILL BE DENIED.

This unit is designed for indoor

residential use only. DO NOT USE

OVER A WOOD GRILL OR MOUNT

IN OUTDOOR ENVIRONMENT.

ISLAND SERIES

TABLE OF CONTENTS

Table of Contents

Safety Information ..............................................................2 3

Content Checklist .....................................................................4

Measurements ...........................................................................5

Preparation ................................................................................6

Installation ...........................................................................7 8

Installation Diagram...................................................................9

Operation & Features .............................................................10

Cleaning & Maintenance .........................................................11

Troubleshooting ......................................................................12

Part List / Replacement ..........................................................13

Warranty / Contact Us .....................................................14 15

SAFETY INFORMATION

TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,

AND/OR INJURY OBSERVE THE FOLLOWING:

Unit is intended for indoor residential use only. If you should have questions,

contact the manufacturer at the address or telephone number listed in the

warranty.

In case the unit should need to be cleaned or repaired, switch power off at

service panel and lock service disconnecting means to prevent power from

being switched on accidentally. When the service disconnecting means cannot

be locked, securely fasten a prominent warning device, such as a tag, to the

service panel.

Installation work and electrical wiring must be done by a qualified technician in

accordance with all applicable codes and standards, including fire-rated

construction.

Sufficient air is needed for proper combustion and exhausting of gases

through the flue (chimney) of fuel burning equipment to prevent back drafting.

such as those published by the National Fire Protection Association (NFPA),

and the American Society of Heating, Refrigeration and Air Conditioning

Engineers (ASHRAE), and the local code authorities.

Because the unit is made of stainless steel, it may contain sharp edges. Be

careful to avoid cuts and abrasions by wearing protective gloves during

installation and cleaning.

Before you begin to cut or drill into the wall, verify that there is no electrical

wiring or any other hidden electrical components.

Ducted fans must always be vented to the outdoors.

The unit must be properly grounded and installed at the recommended height

before beginning operation.

To reduce the risk of fire, use only metal ductwork.

CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT

USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS

AND VAPOR

SAFETY INFORMATION

.TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT

USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

Regardless of heat level, never leave any surface materials unattended while

operating an open flame.

Always turn hood ON when cooking at high heat or when flambéing food (i.e.

Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

Depending on amount of usage, clean ventilating fans and filters frequently.

Grease should not be allowed to accumulate on fan or filter. For instructions

on the how to clean, see maintenance page.

Never leave surface units unattended at high settings. Boil-overs may cause

smoking and greasy spillovers may ignite as result. Heat oils slowly on low or

medium settings.

Use proper pan size. Always use cookware appropriate for the size of the

surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE

EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE

FOLLOWING:

SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then

turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not

go out immediately, EVACUATE AND CALL 911.

NEVER PICK UP A FLAMING PAN Doing so may result in serious burns

and possibly spread the fire.

DO NOT USE WATER Grease fire must be extinguished before further

action may be taken. Using water will agitate the grease and may cause a

violent steam explosion.

Use a Fire Extinguisher ONLY if:

You know you have a Class ABC extinguisher, and you already know

how to operate it.

The fire is small and contained in the area where it started.

The fire department is being called.

You are able to safely control the fire with your back to an open exit. *

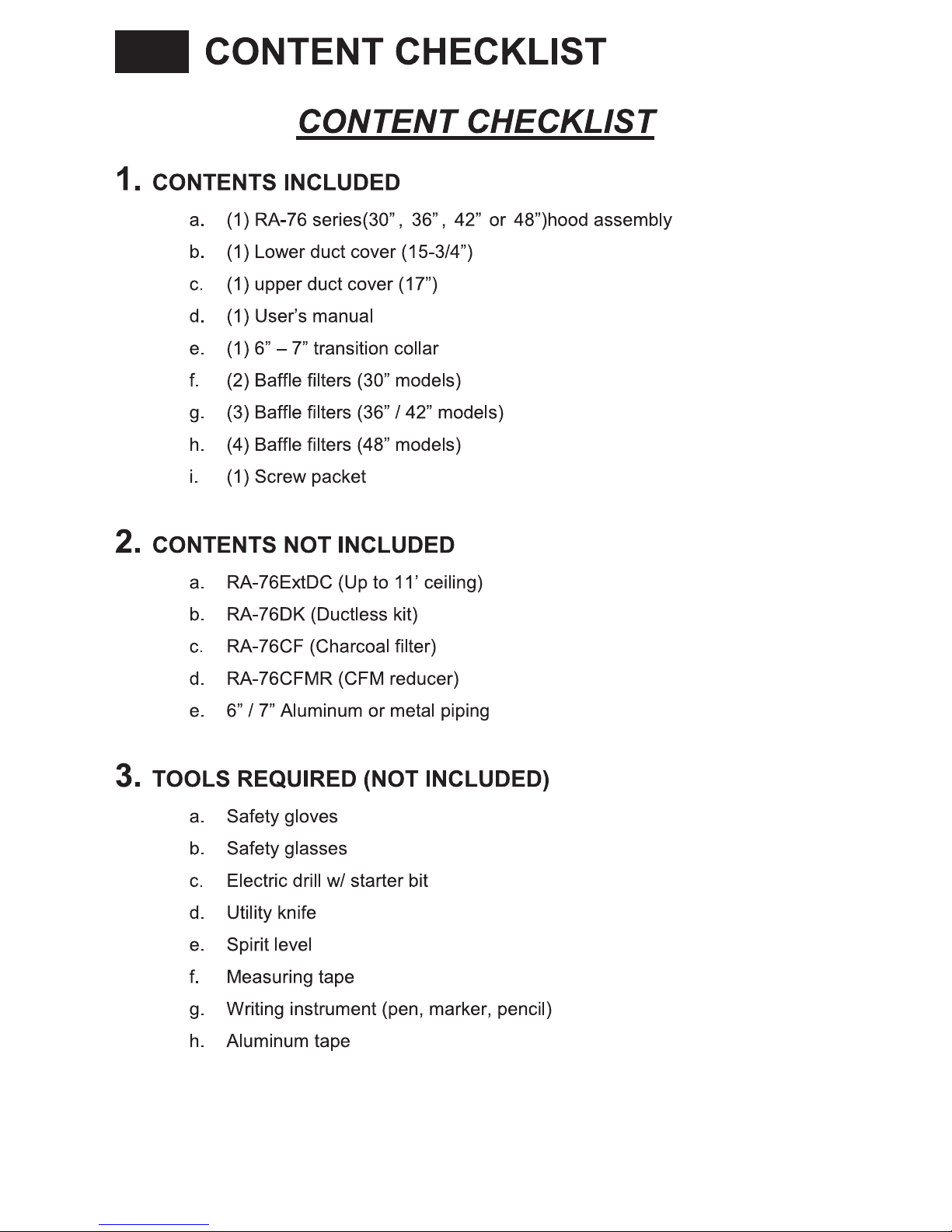

MEASUREMENTS

PREPARATION

1. BEFORE YOU START

**BE SURE YOUR UNIT WILL FIT YOUR CEILING HEIGHT**

**DO NOT INSTALL IF DAMAGED**

**RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED**

a. Be sure you have all the content of your purchase and required tools for

this installation.

b. Installation may take at least 2 to 3 hours from start to finish.

c. Plan to use as few elbows or turns as possible for more efficient air flow.

d. Collar size may need to be increased if utilizing a long duct run.

e. Turns must be made after passing ceiling.

f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.

g. At least two people are needed for installation.

h. Hiring a certified installer and electrician is recommended.

2. LOCATION

**THIS MODEL MAY NOT FIT ALL CEILING HEIGHTS**

a. Determine the exact location you where want to install the range hood.

b. Distance between cooktop and range hood -

c. Range hood should be mounted at stated measurements to ensure

performance and lifespan of electrical components.

d. Correctly measure the dimension needed to install the unit.

3. HOOD

a. Inspect for any sign of defect or damage. (ie. scratches, dents, loose

seams, etc.)

b. Power up the unit to make sure it is working properly.

Use Fig. 1a and 1bon page 5 for measurements

INSTALLATION

1. STANDARD INSTALLATION

a. Make sure all preparation steps are completed.

b. Determine your ceiling height to see if you need an extension.

i. Hood unit height = 12

ii. Standard DC height = 15-3/4 (lower) + 17 (upper)

iii. Minimumheight (Standard duct cover only) =

iv. Maximum height (Standard duct cover only) = 3

v. (OPTIONAL) RA-76ExtDC Minimum height = 31-1/2

vi. (OPTIONAL) RA-76ExtDC Maximum height = 54-1/2

vii. Standard Installation = Hood + standard DC

viii. Long Installation = Hood + RA-76ExtDC

c. Determine the location you want to install the range hood. (Fig. 2a)

d. Prepare ceiling and locate wood support.

e. Use stencil to guide the support frame installation.

f. Mount the unit upper support frameto the ceiling.

h. Attach upper duct cover to the upper support frame using 4 screws.

i. Insert lower support frame to the upper support frame.

j. Adjust the lower support frame to your desired height. (Fig. 2b)

k. Use a spirit level to ensure the balance of the support frame is true.

l. Slide lower duct cover into the support frames and secure with screws.

m. Install ducting through the ceiling.

n. Secure hood from the bottom by using the (8) screws provided. (Fig. 2c)

o. Connect piping to the outlet of the hood.

p. Installation is complete when hood is securely in place. (Fig. 2d)

INSTALLATION

2. EXTENSION INSTALLATION (OPTIONAL)

a. AFTER COMPLETING STEP A E OF STANDARD INSTALLATION,

replace the standard support frame and duct cover with either the

extension set or the short duct cover set.

b. P

3. COLD WEATHER INSTALLATION (OPTIONAL)

a. Check with your local building codes to see if a CFM reducer is an

acceptable alternative to make-up air.

b. Remove the RA-76CFMR (CFM Reducer) and inspect for any sign of

defect or damage. (ie. Cracks, broken flips)

c. AFTER COMPLETING Step A L of STANDARD INSTALLATION

d. Place the CFM reducer onto the outlet of the unit and seal the connection

point with aluminum tape. (Be sure it is secure with no opening or gaps)

e. Connect piping to the outlet of the hood.

f. Installation is complete when hood is securely in place.

4. DUCTLESS INSTALLATION (OPTIONAL)

a. AFTER COMPLETING Step A F of STANDARD INSTALLATION

b. Remove the RA-76DK (ductless kit) and inspect for any sign of defect or

damage. (ie. dents, broken inlet)

c. Attach the ductless kit to the support frame and secure with screws.

d. Install the upper duct cover and secure it to the support frame.

e. Slide the lower duct cover up to the upper duct cover and hold in place.

f. .

g. REPEAT N STANDARD INSTALLATION.

Installation diagram available on next page

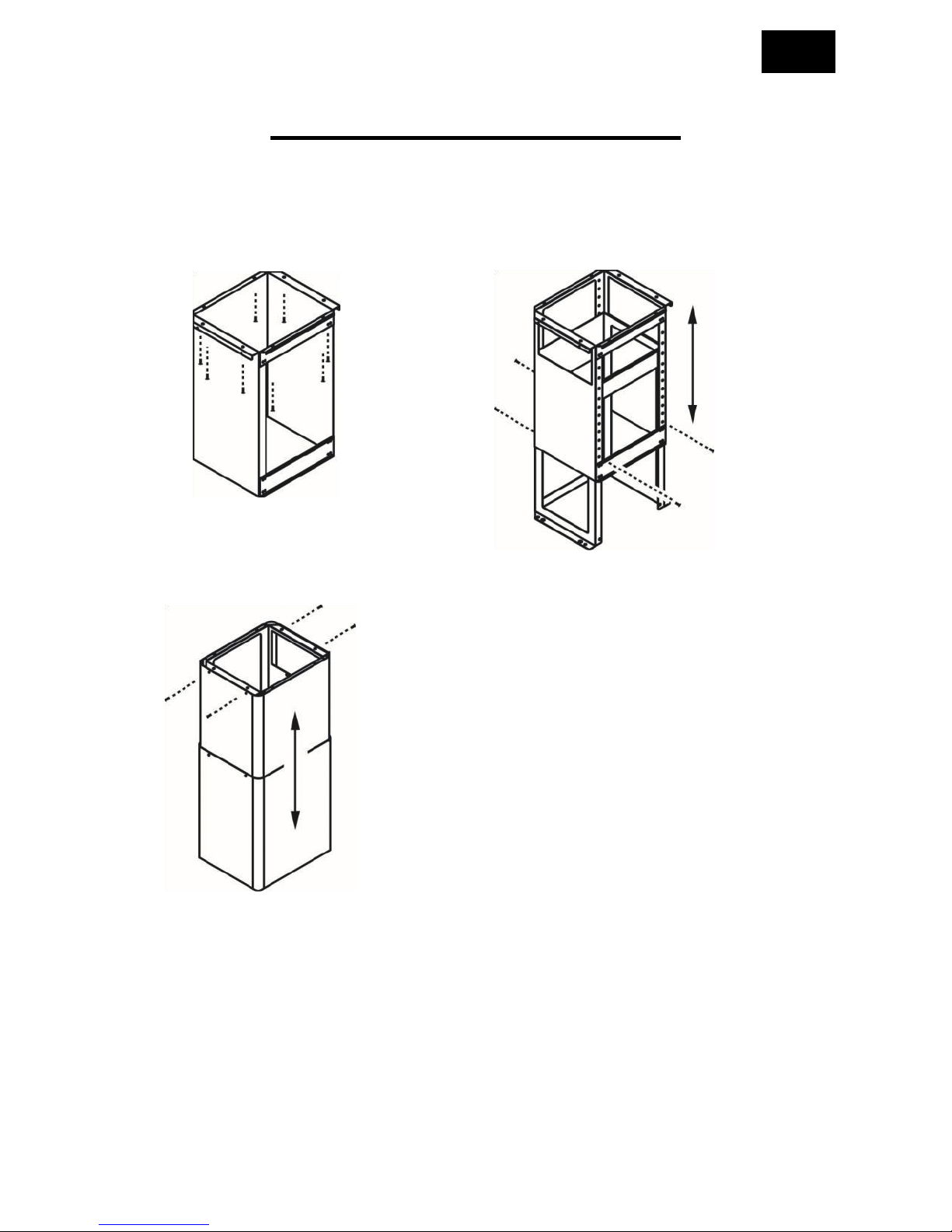

INSTALLATION DIAGRAM

Fig. 2a

Fig. 2b

Fig. 2c
