EA200/EA400 QUICK START GUIDE
EA200
DOCUMENTATION
While your alarm system or device is reliable and sophisticated, it does not offer guaranteed
protection against burglary, fire or other emergencies. Any security product, whether commercial
or residential, is subject to compromise or failure-to-warn for a variety of reasons.
This equipment, like other electrical devices, is subject to component failure.
The most common cause of a system not functioning properly is due to
inadequate maintenance. Your system should be tested weekly to make sure all detection
devices are operating properly. Your control panel and keypads should be tested as well.
Images and software are subject to change. For the most up-to-date information please use the
QR code provided above.
ea200.winland.com
Limitations of the Alarm System or Device
ea400.winland.com
This quick start guide is NOT a substitute for the EA200/EA400 User Manual. All documentation related
to operations should be followed. For further guidelines and safety information, please read the
entire EA200/EA400 User Manual prior to installation and operation of this unit.

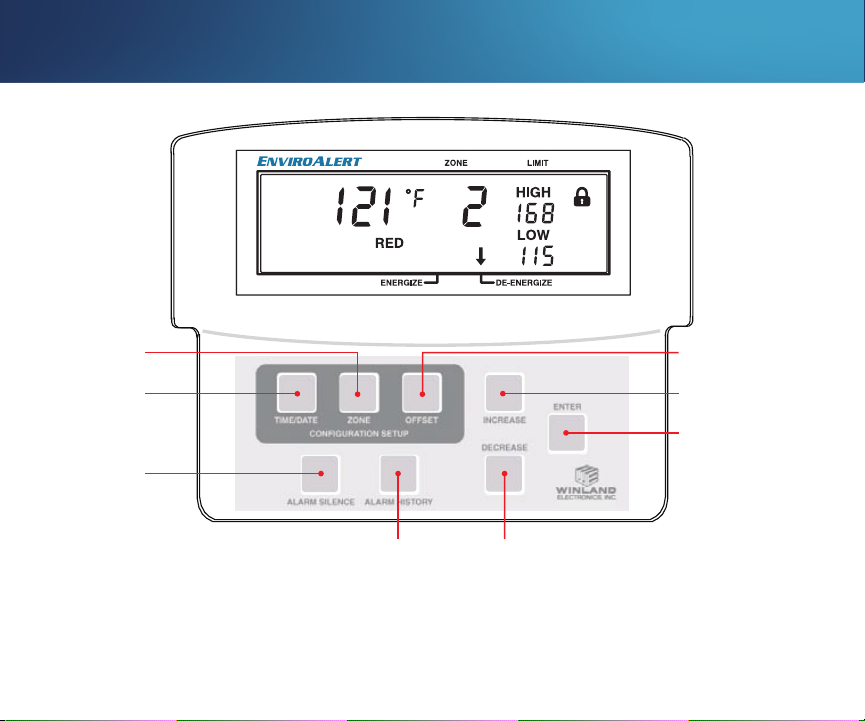

ALARM SILENCE
ALARM HISTORY DECREASE
ENTER
INCREASE
OFFSET
ZONE
TIME/DATE
FRONT PANEL
RELAYS
OUTPUT
SENSOR INPUTS
BACK PLATE
AUX OUT
Zone 1
PWR IN
PWR OUT
Zone 2
REMOTE PROBE INPUT
ALARM OUTPUTS
(On-Board
Sensor)
Zone 2
(External
Sensor)
EA200
AUX OUT
Zone 1
Zone 2
Zone 3
Zone 4
PWR IN
PWR OUT
Zone 1
Zone 2
Zone 3
Zone 4
REMOTE PROBE INPUTS
ALARM OUTPUTS
EA400
POWER CONNECTIONS
EA200 EA400
UNLOCK
To UNLOCK the unit, press the
ALARM SILENCE and ENTER key at the
same time and release at the same time.
ENTER
ALARM SILENCE
Padlock indicates devices lock
status. Closed padlock indicates
device is locked.
Open padlock indicates
device is unlocked.
PROGRAMMING SENSOR
This table depicts the type of zone to program based on your sensor.
NOTE
Device MUST be unlocked to program/edit/delete
sensors. Not all screens shown in quick start guide.
UNLOCKED
Once the device is unlocked. Press ZONE to enter
programming. You can verify you are in program
mode when the zone number is flashing.
Next you will select your zone type. Refer to
previous page for the correct zone type.
For example using a TEMP-H-S you will select
F,Red or C,Red.
NOTE
When changing setting while in programming
you will use the INCREASE/DECREASE buttons and
confirm selection by pressing ENTER button.
First select the zone you wish to program.
Note: Number will be flashing.
PROGRAMMING SENSOR
Set desired HIGH limit. Use
INCREASE/DECREASE buttons to set
high limit, then press ENTER button.
Set desired LOW limit. Use
INCREASE/DECREASE buttons to set
low limit, then press ENTER button.
Set desired time delay. Number depicts the
amount of minutes before alarm goes off.
Use INCREASE/DECREASE buttons to set
time delay, then press ENTER button.
Select Energize or De-Energize. By default
De-Energize is selected. Use
INCREASE/DECREASE buttons to set option,
then press ENTER button.
NOTE
De-Energize Vs Energize
De-Energize: Monitors the sensor.
Energize: Monitors the sensor and
power loss.
When switching between the two
modes, make sure to power cycle
device for changes to take effect.
When programming the zone for
Energize, this will flip the polarity
of the relay. Wire accordingly.
PROGRAMMING SENSOR
TROUBLESHOOTING
• ERR displayed • EA200/EA400 internal calibration error
• Unit will need to be sent in to be
calibrated. Contact Winland Technical
• Flashing Zone digit and ashing temperature
reading of -50°C or -58°F. (Blue Sensor)
• Flashing Zone digit and ashing temperature
reading of 0°C or 32°F. (Red Sensor)
• Open connection between sensor and
EA200/EA400 SENSOR INPUTS connections.
• Bare wire end not properly inserted into
Terminal Block Adapter.
• Defective sensor.
• Check connections. Make sure any splices are
correct. Make sure Terminal Block Adapter is
properly connected to the EA200/EA400 header
connector pins.
• Replace sensor as required.
• Flashing Zone digit and ashing temperature
reading of 70°C or 158°F. (Blue Sensor)
• Flashing Zone digit and ashing temperature
reading of 150°C or 302°F. (Red Sensor)
• Shorted connection between sensor and
EA200/EA400 SENSOR INPUTS connections.
• Defective sensor.
• Check connections. Make sure any splices are
correct.
• Try Zone with another sensor.
• Replace sensor as required.
• Excessive, obviously incorrect temperature
reading. (For example 32°F displayed for nominal
actual temperature of 80°F)
• Wrong programming used for sensor type used.
(Refer to page 6 of this quick start guide)
• Make certain programming matches sensor type
used. (refer to page 6 of this quick start guide)
800.635.4269
https://winland.com © 2022Winland Electronics, Inc.
D-011-0099 Rev G (07/2022)
