Winmate M101RK Series Bedienungsanleitung

Please read these instructions carefully before using this product, and save this manual for future use.

Rugged Android Tablet

M101RK Series

Quick Start Guide

V1.0

For more information on this and

other Winmate products, please

visit our website at:

www.winmate.com

Document Part Number: 9152111K1057

M101RK Rugged Android Tablet Quick Start Guide

- 2 -

❶Getting Started

Congratulations on purchasing Winmate® M101RK Rugged Android Tablet

Computer. The rugged design allows you to use it in harsh outdoor

environments.

This quick start guide tells you step by step how to get the Tablet Computer up

and running. You will find instructions for the following procedures:

•Unpacking

•Description of Parts

•First Time Operations

•Turning On/Off the Device

❷Unpacking

Check and identify the standard supplied accessories.

Standard factory shipment list:

Tablet Computer

Standard Battery

98K000A0003R

Power Adapter

922D036W12V6

Power Cord and Plugs

Capacitive Touch Stylus

9B000000001D

Quick Start Guide

M101RK Rugged Android Tablet Quick Start Guide

- 3 -

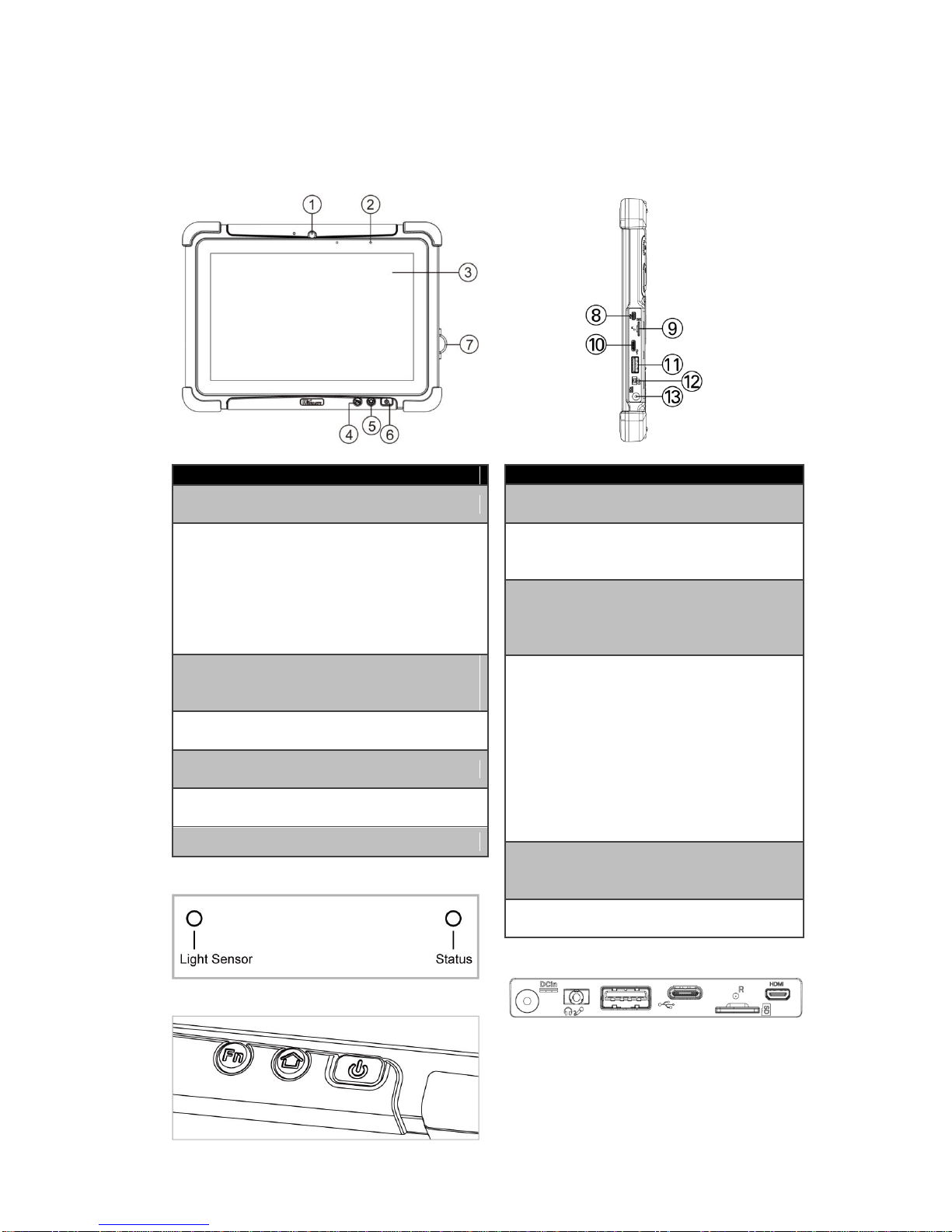

❸Description of Parts

Front:

Right:

Item

Description

Front

Camera

2 Megapixel Webcam

LED

Indicators:

Show the current

status of the Tablet

Computer Red:

Charging / Hot-swap

battery

Green: Full Charge

Blue: Turning on

Touch

Screen

Display and act as one

of the inputs for the

Tablet Computer

Back

Button

Back to previous page

Home

Button

Back to Desktop

Power

Button

Power on/off

I/O Cover

Protects I/O ports

Front LED Indicators Details:

Front Button Details:

Item

Description

Micro

HDMI

HDMI Output

Micro

SD Card

Reader

Memory card reader

port for Micro SD

Card

USB

Type C

High speed USB port

connects to PC or

USB devices such as

mouse, keyboard, etc.

USB 3.0

Host

High speed USB port

connects to PC or

USB devices such as

mouse, keyboard, etc.

Note: This USB port

won’t work when the

tablet is connected to

the optional docking.

Please use the USB

ports on the docking.

Mic

In/Line

Out

Headset or

headphone can be

connected

Power

Jack

DC-IN power input

jack

Side I/O Details:

M101RK Rugged Android Tablet Quick Start Guide

- 4 -

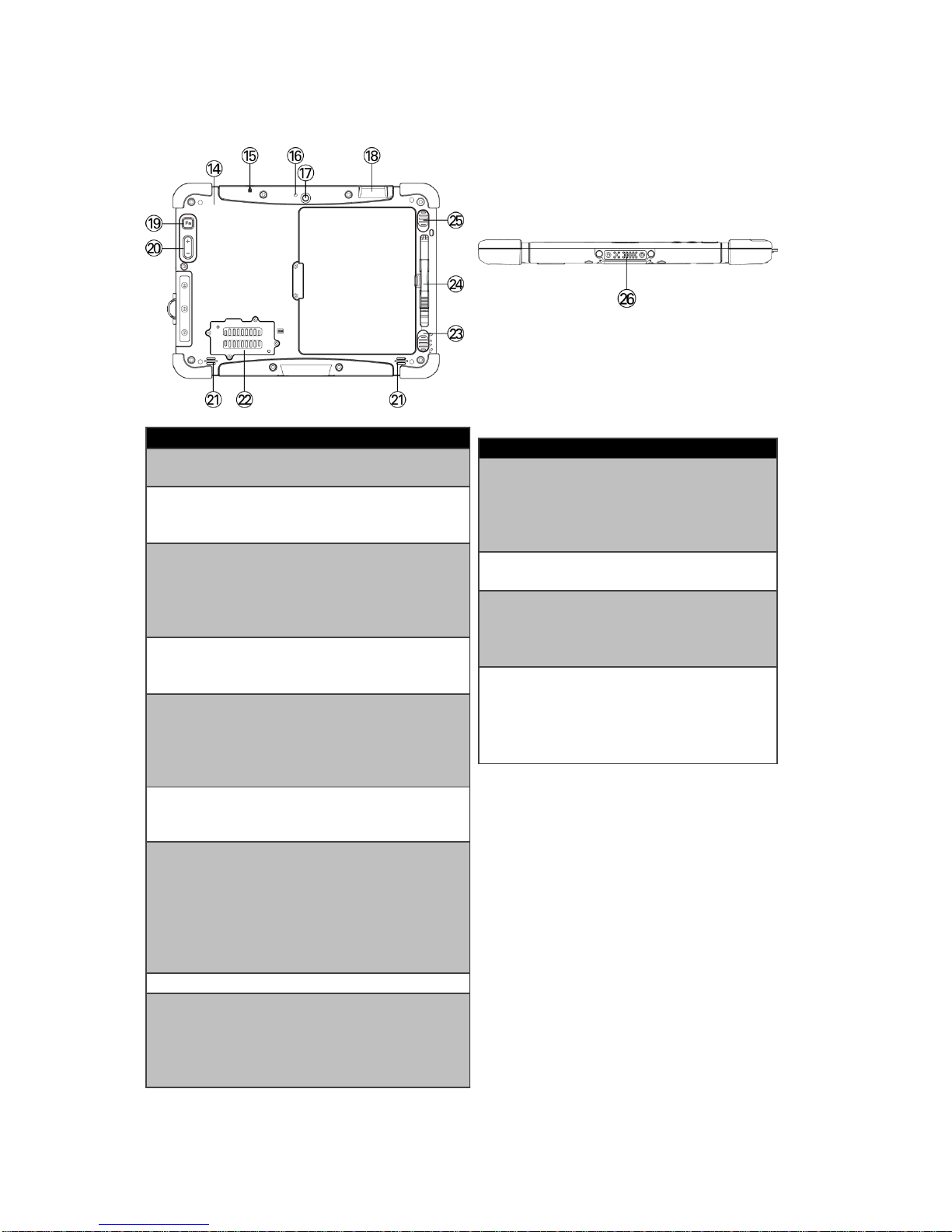

Rear:

Item

Description

RFID / NFC

(Optional)

RFID reader for

reading of RFID tags.

Kensington

Lock Port

Provide lock access for

Kensington Lock.

Expansion

Port

Provide optional

connectivity to custom

modules for special

application (USB2.0,

RS232).

Rear

Camera

5MP Autofocus

Camera. Captures

photos and videos.

Optional

Barcode

Barcode Scanner for

reading of 1D / 2D

barcode.

Fn Button

Menu.

Volume

Control or

Scan

Buttons

Volume Control

(+) Raise volume,

(-) Lower volume.

Scan Button

Use WDC to change

button definition (+)/(-)

for scanning

Speakers

Emits sounds

3G / LTE

Module

(Optional) /

SIM card

slot

Service window to

insert Micro SIM card.

Also provide access to

3G / LTE Module.

Bottom:

Item

Description

Battery

Lock Latch

Latch to lock the

battery in place

once battery is

inserted. No spring

loaded.

Touch Pen

Slot

Pen holder slot to

store touch pen.

Battery

Release

Slider

Spring-loaded

slider that latches

the battery in.

Docking

Connector

Port to docking

solutions such as

vehicle docking to

provide power and

external antenna.

M101RK Rugged Android Tablet Quick Start Guide

- 5 -

❹First-Time Operation

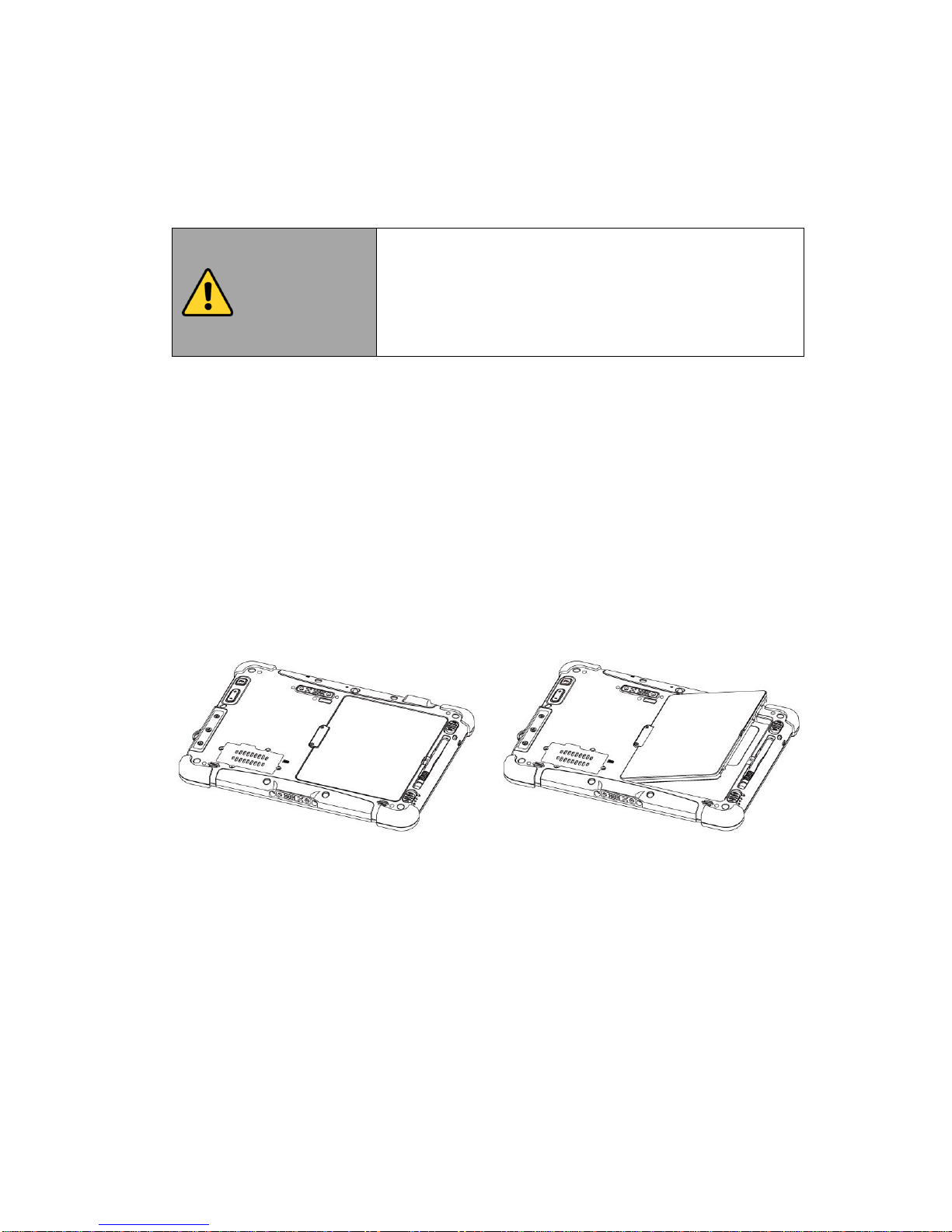

Inserting Battery Pack

CAUTION

Discontinue using device immediately if you notice

the battery is swelling, or looks puffy or misshapen.

Do not attempt to charge or use the device. Do not

handle a damaged or leaking battery. Do not let

leaking battery fluid come into contact with your

eyes, skin or clothing.

To insert the standard battery pack into the Tablet Computer:

1. Disconnect AC adapter and power cord from the tablet computer.

2. Turn the tablet computer over, back facing up.

3. Locate the Battery Lock Latch and push it to the “Unlocked”position.

4. Locate the Battery Release Slider that is spring-loaded. Pull back and hold.

5. Insert the battery on the connector-pins side first, and then lower the

battery into the battery compartment. Continue to hold the Battery Release

Slider before battery is fully inserted.

6. Make sure the battery is completely lowered into the compartment before

letting go the Battery Release Slider. Battery will be flat against the

housing once fully inserted.

Removing the Battery Pack

1. Power off the tablet computer (or put it to sleep). Disconnect any cords

connected to the computer.

2. Turn the tablet computer over, back facing up.

3. Locate the Battery Lock Latch and push it to the “Unlocked”position.

4. Locate the Battery Release Slider that is spring-loaded. Pull back and hold.

5. Lift the battery out using the opening on side of battery compartment.

M101RK Rugged Android Tablet Quick Start Guide

- 6 -

Connecting to Power Supply

The Tablet Computer operates either on external AC power or internal battery

power.

It is recommended to use AC power when you start up the Tablet Computer for

the first time.

CAUTION

Use only the AC adapter included with your Tablet

Computer. Using other AC adapters may damage the

Tablet Computer and the Battery.

CAUTION

For users start up the Tablet Computer for the first

time with internal battery power, please make sure

the battery is fully charged before using.

Perform the following to connect the Tablet computer to AC Power:

1. On the side of the Tablet computer, lift the I/O protective cover by pulling

on the latch

2. Plug the DC cord of the AC adapter into the Power Jack of the tablet

computer.

3. Plug the AC power cord into the AC adapter.

4. Finally, Plug the AC power cord into the electrical outlet.

When the AC Adapter is connected, the battery pack starts charging. The battery

LED indicator on the tablet computer would show different states. Please refer

Description of Parts for information about LED indicators.

Standard Battery (BS101)

Item

Hours

Battery Life

8 Hours

Battery Charging Hours

2.5 Hours

M101RK Rugged Android Tablet Quick Start Guide

- 7 -

❺Turning On and Off the Device

This section describes how to turn on/ off the device.

Turning On

To turn on the device:

1. Press and hold the power button for 3 seconds, located on the top side of

the unit.

2. When the device vibrates, release the power button.

3. The desktop screen is displayed.

Turning Off

To turn off the device:

1. To turn off the device, press and hold the power button until the phone

options menu appears, tap the Power Off .

2. User can also use the Phone options menu to put the device into silent or

airplane mode.

Winmate Inc.

9F, No.111-6, Shing-De Rd., San-Chung District,

New Taipei City 24158, Taiwan, R.O.C

Tel: 886-2-8511-0288

Fax: 886-2-8511-0211

Email: sales@winmate.com.tw

www.winmate.com
