Wintal DVBT702 Kurzanleitung

Table of Contents

1.Precautions

2.Accessories

3.Appearance

4.Remote Control Application

5.Basic Operation Methods

6.DVB-T Menu Operation

6.1.Auto installation

6.2.Installation setup

6.3.Program receive and shift

6.4.Program search function

6.5.Main menu option

6.6.Parental control

6.7.System setup option

6.8.

6.9.Game menu option

6.10.DIY menu setting

6.11.Error message

6.12.Menu Analog quantity

6.13.Off-time setting

7.ATV Menu Operation

8.In Order to Receive clearer picture

9.Before you request for repair

10.Technical parameters

Accessory Setting

-1-

1. Precautions

Storage and Keeping

Maintenance

Please plug off all connection wires before you start cleaning this machine.

Keepthismachine

awayfromtoohot

ortoocoldplaces

Thestorage

temperatureofthis

machineis-20~

60→,the

application

temperatureofthis

machineis5~35→

Neverusethis

machinenear

bathtub,

washbasin,and

kitchen,etcplaces

withwaterorat

dampbasement,

swimmingpoolor

similarplaces

Never make the

TV set under

effect of moisture,

dust or oil smoke

etc environment

Avoid this

machine from

dropping or

impacting

Never extrude

or chafe this

machine with

sharp objects

Never put this

machine within

certain box at

your will or place

it at too-

oscillating place

and under further

severe collision

Please wipe the

machine cover,

display screen

and buttons with

soft cloth

dipped with

little soft

abluent

Neverwipe this

machinewith

abrasioncloth,

abstergent

powder,alcohol

andbenzene etc

various

propellantsor

chemical

cleaningmedia

Alcohol

Special Notice

Warning!

or turn on the TV set while driving.

2. It is very dangerous to watch or operate TV while driving.

For the sake of safety for yourself and others, please do not watch

A few highlights or dark spots may occur on the LCD screen. It is a very

common phenomenon of the active matrix display technology, and does

not mean any defects or faults. Never try to repair this machine by yourself.

In case of any fault or failure, please turn off the display at once, and notify

our Company or the corresponding dealer.The display is made up of many

precision electronic components.Any disassembly or modification may lead

to further damage.

1.Only the attached AC adapter and the automobile adapter (9V) are suitable.

2.For the sake of safety, when you do not intend to use the display, please

unplug the AC adapter or automobile adapter.

Operation Precautions

1.Please don't tune your headphone / earphone at too high volume, otherwise,

it may lead inconvenience and danger to yourself and other people.

2.For open-designed earphone, to avoid influencing your periphery, please

tune down the volume.

3.In case of any tinnitus, please tune down the volume or stop using this

machine.

4.It is recommended by the aurists that the earphone should not be

continuously used for a prolong period.

Earphone Operation Precautions

-2-

2. Accessories

AVin/out

cord

AC adapter

Remote

control

adapter

Digital

TVantenna

-3-

AAA type

batteries

Double-side adhesive

tape for base support

se support

-4-

3. Appearance

Lang

Teletext

TV/AV

Sleep

Return Search/Auto

EPG

Info

CALL

Exit

TV/

Radio Audio

FAV Prlist

Guide Game Pause

Mode

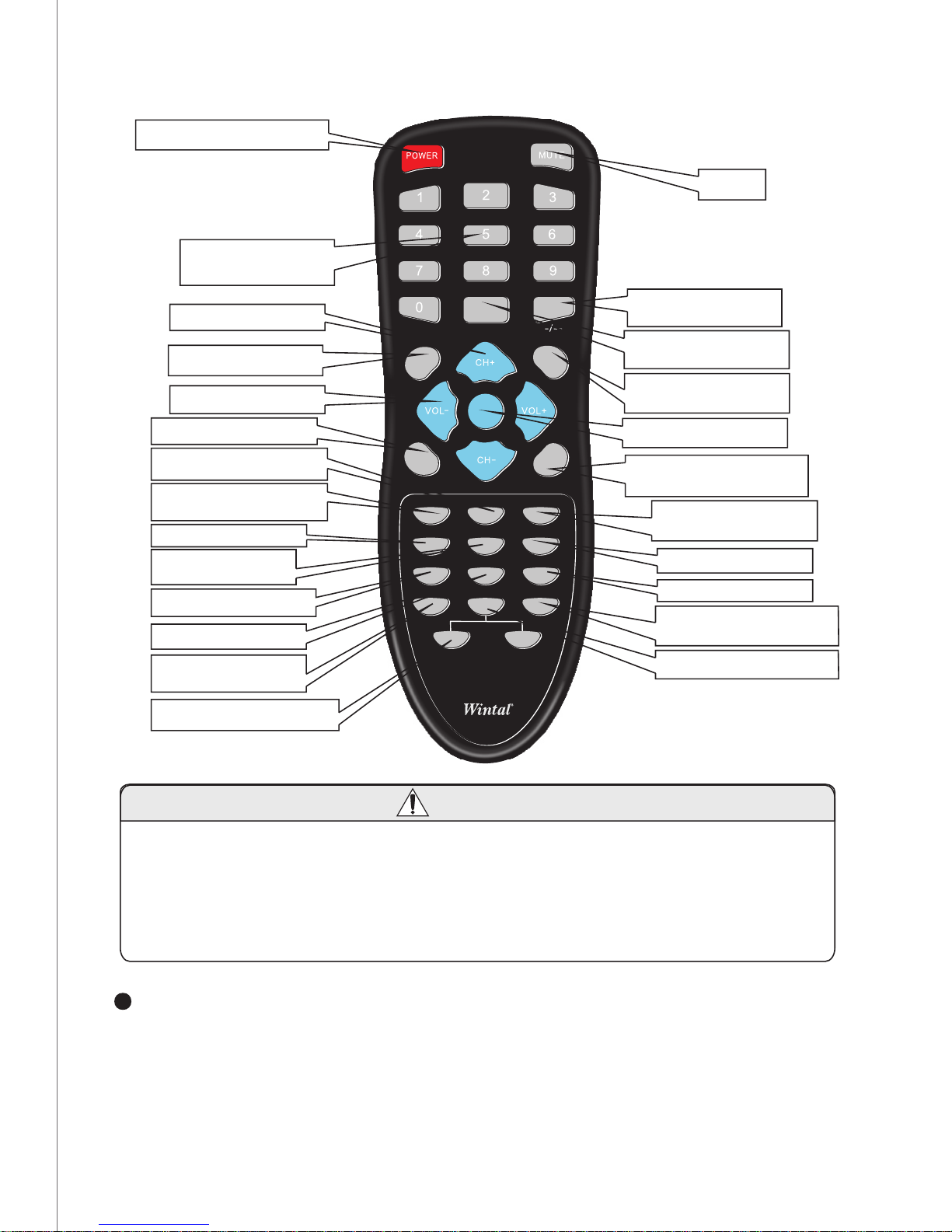

4. Remote Control Operation

StandbyPower on/off /

Auto Search/

Auto adjust

Enter Game menu

Program Edit Table

Turn on Teletext

Display Electronic

Program Guide

Mute

Main Menu

Input numbers/

Channel keys

Analog quantity adjust

OSD Language

Select

My Favourite

Channel on/off

Nine Picture Guide

Information

Display

Return to Last

Program/Menu(Exit)

DVB Confirm

L/R Sound Output

Shift

Pause

DVB Music Shift

Sleep time/

Clock setup

DVB/ATV/AV

Shift

Return to the

previous program

Picture Mode

Caution

1.Please align the remote control with the infrared-receiving window on TV set in

operation.

2.Never oppress, drop, wet or disassemble the remote control.

3.Never press any button continuously and swiftly. Operation interval is at least 2 seconds.

4.Press Power to turn on the TV before pressing CH+, CH- for channel selection.

5.If the remote control were not to be used for a long time, please remove batteries.

Channel keys (digit keys (0-9) and - / - - ): There are 0 ~ 255 in total of 256

channels available on the remote control for your option by the 11 buttons

of 0-9 and - / - - on the remote control. When the channel is a one-digit

figure, just press the corresponding digit key. If the channel is a two-digit

figure, you should press - / - - first to show - - on the display screen before

further pressing the corresponding digit keys. (ATV mode only)

Volume Adjust

Channel Adjust

-5-

POWER (Power On / Off):

Press this button to turn off the TV , press it again to turn on the TV.

LANG:

Press this button to realize the switch of German, French, Dutch, English,

Spanish, Portuguese and Italian OSD menu language.

SEARCH: (Auto adjust)

Start Auto search in DVB mode.

Press and hold for 5 seconds to realize auto search in ATV mode.

FAVORITE PR: My Favourite Channel option on/off (DVB mode only).

GAME: Press this button to enter the game menu(DVB mode only).

TELETEXT: Turn on the teletext option to watch teletext information

(DVB mode only).

GUIDE: Enter nine picture guide function (DVB mode only).

PRLIST: Enter the Program Edit List function (DVB mode only).

EPG: Press this button to display (DVB mode only)

INFO: Press this button to display the information of current

program(DVB mode only).

MENU: Press this button to display the main menu.

EXIT: Return to last program or menu.

CH+ / CH- (Channel select):

Press CH + ,the number of TV channel increases.

Press CH - , the number of TV channel decreases.

VOL-/+ (Volume adjust):

Press VOL-, the volume of TV set decreases.

Press VOL+, the volume of TV set increases.

OK: Confirm key (DVB mode only).

MUTE (Mute):Press this button, the sound will disappear. Press it again or

pressVOL+/VOL- to resume the normal sound.

AUDIO: Press this button to realize the switch of L/R sound output .

0,1,2,3,...,9: Channel keys: Press to chose the corresponding channel.

Press 0-9 digital keys to chose a two-digit or three-digit channel.

Pause (DVB mode only): Press it to pause the picture or sound.

TV/RADIO: Shift between TV and Radio (DVB mode only)

Sleep: Off-time setup.You can set Sleep Time to automatically turn off

the TV set within 120 minutes.

Return: Press this button to return to the previous channel.Press it again

to return to the current channel.

DVB/ATV/AV shift: Press this button to shift between Digital TV,

Analogue TV and Vedio/Audio(AV)

Electronic Program Guide .

-6-

+/-: Bright, contrast. Color, and TINT analog quantity adjust.(Only DVB mode)

Press Mode, then press +/- to adjust the analog quantity of bright, contrast ,

color or TINT.

Mode:(Picture mode)

a. In DVB mode, press this button to select the items between bright, contrast,

color and TINT. Then press +/- to adjust the analog quantity of the chosen

item .

b. In ATV mode, press this button to realize the five picture modes: Standard,

Soft, Vivid, Light and Personal.

-7-
