Winterhalter GS 501 Bedienungsanleitung

Winterhalter GS 501

Betriebsanleitung

Operating Instructions

Notice d‘utilisation

Sehr geehrte Damen und Herren,

sehr geehrte Kunden!

»Vertrauen schenken« – »Vertrauen

haben«: Ein Unternehmen zu führen

ohne Vertrauen in die eigenen Talente

und Fertigkeiten, in die Beziehungen

zu Kunden und Lieferanten, ist für

uns undenkbar.

Diese Grundhaltung erlaubt uns Spit-

zenleistungen. Wir stellen uns täglich

den Herausforderungen, »tüfteln« an

Technik und Design, und entwickeln

neue Konzepte, um unseren Kunden

Sicherheit und Erfolg zu garantieren.

Ich danke Ihnen für Ihr Vertrauen,

das Sie uns mit dem Kauf dieser

Winterhalter Spülmaschine schenken.

Mit den besten Grüßen und Wünschen

für die Zukunft

Ihr

Dear Customer,

„Giving trust“ – „having trust“: run-

ning a company without having faith

in your own abilities and skills, and

in the relationship to customer and

supplier is unthinkable for us.

This guiding company principle allows

us to give our best. We live up to the

challenges on a daily basis, „tinke-

ring“ with technology and design

and developing new concepts that

guarantee our customers‘ safety and

success.

I thank you for the trust that you

have placed in us by buying this

Winterhalter product.

With kind regards and best wishes for

the future

Yours sincerely

Mesdames, Messieurs,

Chers clients,

«Faire conﬁance et gagner la conﬁ-

ance», telle est notre devise car il est

impossible de conduire une entreprise

sans faire conﬁance en nos ressources

créatives, aux relations avec la clientè-

le et les fournisseurs.

Ce principe nous conduit à des réali-

sations de pointe et, jour après jour,

nous nous assignons de nouveaux

déﬁs au niveau technique et pour la

conception, que nous maîtrisons par

notre persévérance, dans l’intérêt de

la sécurité et du succès du travail de

nos clients.

Je vous remercie de la conﬁance que

vous placez en nous et que vous avez

illustrée en faisant l‘acquisition de ce

lave-vaisselle Winterhalter.

Je vous souhaite un grand succès dans

vos activités.

Toujours à votre service

Jürgen Winterhalter Jürgen Winterhalter Jürgen Winterhalter

89005828 1

Operating instructions

for Winterhalter Gastronom dishwasher GS 501

Contents

1 Intended use----------------------------------------------------------------------------------------------------------------------1

2 Safety instructions---------------------------------------------------------------------------------------------------------------1

3 Before using the machine-----------------------------------------------------------------------------------------------------3

4 Operating and control elements ---------------------------------------------------------------------------------------------5

5 Functioning of the dishwasher -----------------------------------------------------------------------------------------------5

6 Preparation for washing -------------------------------------------------------------------------------------------------------6

7 Washing ---------------------------------------------------------------------------------------------------------------------------8

8 After washing------------------------------------------------------------------------------------------------------------------- 10

9 Maintenance and care ------------------------------------------------------------------------------------------------------- 11

10 Faults----------------------------------------------------------------------------------------------------------------------------- 13

11 Emission values --------------------------------------------------------------------------------------------------------------- 13

1 Intended use

•The Winterhalter Gastronom dishwasher GS 501 may only be used for washing items from the

catering industry and related trades.

•The machine may only be used for this purpose and in accordance with the operating instructions.

•The dishwasher is a technical implement for commercial use and is not intended for domestic applica-

tions.

•Any change in design or use of the utensil washer carried out without the written permission of Win-

terhalter Gastronom GmbH leads to the guarantee and product liability becoming null and void. If da-

mage is caused to the utensil washer due to failure to observe the instructions given in this manual, no

claims under guarantee can be made to Winterhalter Gastronom GmbH.

2 Safety instructions

Make sure that you have read and understood the operating instructions before you start to use the washer.

The Winterhalter customer service department can tell you how to operate the washer and how it works.

These operating instructions must always be kept within easy reach of the dishwasher.

The following symbols are used in this manual:

Warning: Failure to observe these instructions can lead to danger to life, e.g. from electrical

equipment.

Attention: Failure to observe these instructions can lead to damage to equipment.

No drinking water! The water in the machine is not for drinking.

This sign indicates recommendations and special features.

2 89005828

•The dishwasher may only be used once the operating instructions have been read

and understood. Receive instruction in the operation and functioning personally from

the Winterhalter custommer service.

•This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities or lack of experience and knowledge unless

they have been given initial supervision or instruction concerning the use of the appli-

ance by a person responsible for their safety.

•Only operate the dishwasher in the manner described in this manual.

•In the event of danger or faults, switch the dishwasher off immediately.

•Do not open any machine casings or machine parts if tools are necessary to do so.

•Work on the electrical equipment is only to be carried out by specilist personnel.

First diconnect the dishwasher from the mains.

•The water in the dishwasher is not drinking water.

•In the event of faults which are not due to the customer’s water or electricity supply,

contact the Winterhalter customers service.

•In the event of faults with unknown causes, do not swith the dishwasher on again un-

til the cause is known. If necessary, contact the Winterhalter customer service.

•Only use detergent and rinse additive which are suitable for industrial dishwashers.

We recommend the products developed by Winterhalter Gastronom. These are spe-

cially suited to Winterhalter Gastronom dishwashers. All quantities given refer to Win-

terhalter Gastronom products. Observe danger instructions printed on packaging.

•During daily cleaning, make sure that no rusting foreign bodies remain inside the

dishwasher. This can cause the interior to rust. The rust particles may come from

non-stainless items to be washed, cleaning aids, damaged wire trays or baskets or

from supply lines which have not been rust proofed.

•Leave the hood open until the next time you put the machine into operation, so that

the inside of the machine can dry out. This is important for long-lasting protection

against corrosion, even with high grade stainless steel.

•Protect the dishwasher against frost. Systems carrying water can be damaged if they

freeze.

•Do not use normal washing-up liquid. This leads to large amounts of foam building up

in the dishwasher.

•The dishwasher is splash-proof. Do not spray the outside with a high pressure

or steam jet cleaner.

•Check the FI-residual current operated device for functioning regularly according to

the regulations by pressing the test button.

•In addition to daily cleaning, we recommend that you have the dishwasher serviced at

least twice a year by Winterhalter customer service.

89005828 3

3 Before using the machine

Before you use the machine in your work, it must be connected on your premises by trained specialists in

conformance with locally effective regulations and then set in operation by the Winterhalter customer service.

Do not expose the machine to freezing temperatures. Freezing can damage running water

systems damaged.

3.1 Setup and hookup

Setting up and hooking up the machine to the customer's supply lines and outlets must

be performed in conformance with specific local and national circumstances by ap-

proved fitters.

Completeness check:

After unpacking the machine, first check the delivery against the packing slip to see that it is complete and

has suffered no damage during transportation. Inform the haulage company, the insurance company and the

manufacturer immediately of any damages.

Setting up and aligning the machine

Install supply and drainage tables for pass-through machines and adjust with slight incline to machine or

available sink. Before starting installation, use a spirit level to check that the machine is totally horizontal.

Adjust the machine’s feet to compensate for any unevenness of the floor.

Sanitary installations:

Please observe carefully the information in the attached connection diagram!

Make sure that the water pressure and flow capacity demanded by the connection diagram are

present so that the machine will function properly.

•Install an easily accessible main shutoff valve in the water supply line near the machine. It may not

be located behind the machine.

•The machine is DVGW and WRC approved, or designed and built according to DVGW and WRC gui-

delines. It can be connected to the fresh water supply line without any safety device in between.

•Use the hose and the fine filter in the machine to connect it. The fine filter keeps particles from the

water supply line from getting into the machine and causing extraneous rust to form on the cutlery or

the machine itself.

•If water hardness is greater than 6°d, the installation of a water softener is recommended. Now, the

water inlet temperature is max. 50°C.

•The machine is optionally equipped with a drain pump. The maximum draining capacity is found on

the connection diagram.

4 89005828

Electrical installation:

DANGER! Danger of death due to live components!

Have the electric installation of the washer and the auxiliary devices belonging to it carried out

only by a specialist firm of electricians approved by the responsible electricity board in accor-

dance with the norms.

Observe the technical connection regulations.

Before commissioning the washer, check that all electrical protection systems are working

correctly.

Caution! The machine is only to be considered free from voltage when the mains disconnect-

ing switch (mains switch) provided by the customer is switched off.

The electrician must take note of the following:

•The total connected load of the machine is stated on the rating plate.

•Safeguard the electrical connection of the machine with delayed-action fuses or automatic fuses in

conformance with the total connected load (see rating plate). Do not use the machine to safeguard

any other electric power consumers.

•As required by regulations, install a main or on-off switch, as well as an FI safety switch in the electri-

cal supply line. All poles of this switch must respond when it is switched off and it must be at least 3

mm between contacts. It must be installed near the machine and be easily accessible.

•Connect the machine to your potential equalization system. The screw for this connection is located in

the machine's base.

If you set up the machine on a supporting stand, the potential equalization system must be put be-

tween the machine and the stand.

Connecting cable

The connecting cable may only be changed or replaced by the manufacturer, its customer service represen-

tative or a similarly qualified person. Use an H07 RN-F type cable or equivalent.

Phase sequence of main power cable

Mains 1/N/~ 2/-/~ 3/N/~ 3/-/~

No. of leads 3 3 5 4

PE green-yellow green-yellow green-yellow green-yellow

N blue - blue -

L1 brown brown grey brown

L2 - blue brown grey

L3 - - black black

Final work:

The machine must be entirely connected to the electrical power mains and the fresh water supply and waste

water drain system. The electrical safety system must be tested and fully functional.

A Winterhalter customer service technical performs the initial start-up. In the process, the operator of the

machine is instructed in how the machine works.

3.2 Initial start-up

After the machine has been connected to your supply lines according to regulations, contact the Winterhalter

agent responsible for your locality in order to perform the initial start-up and be instructed in how to run the

machine.

89005828 5

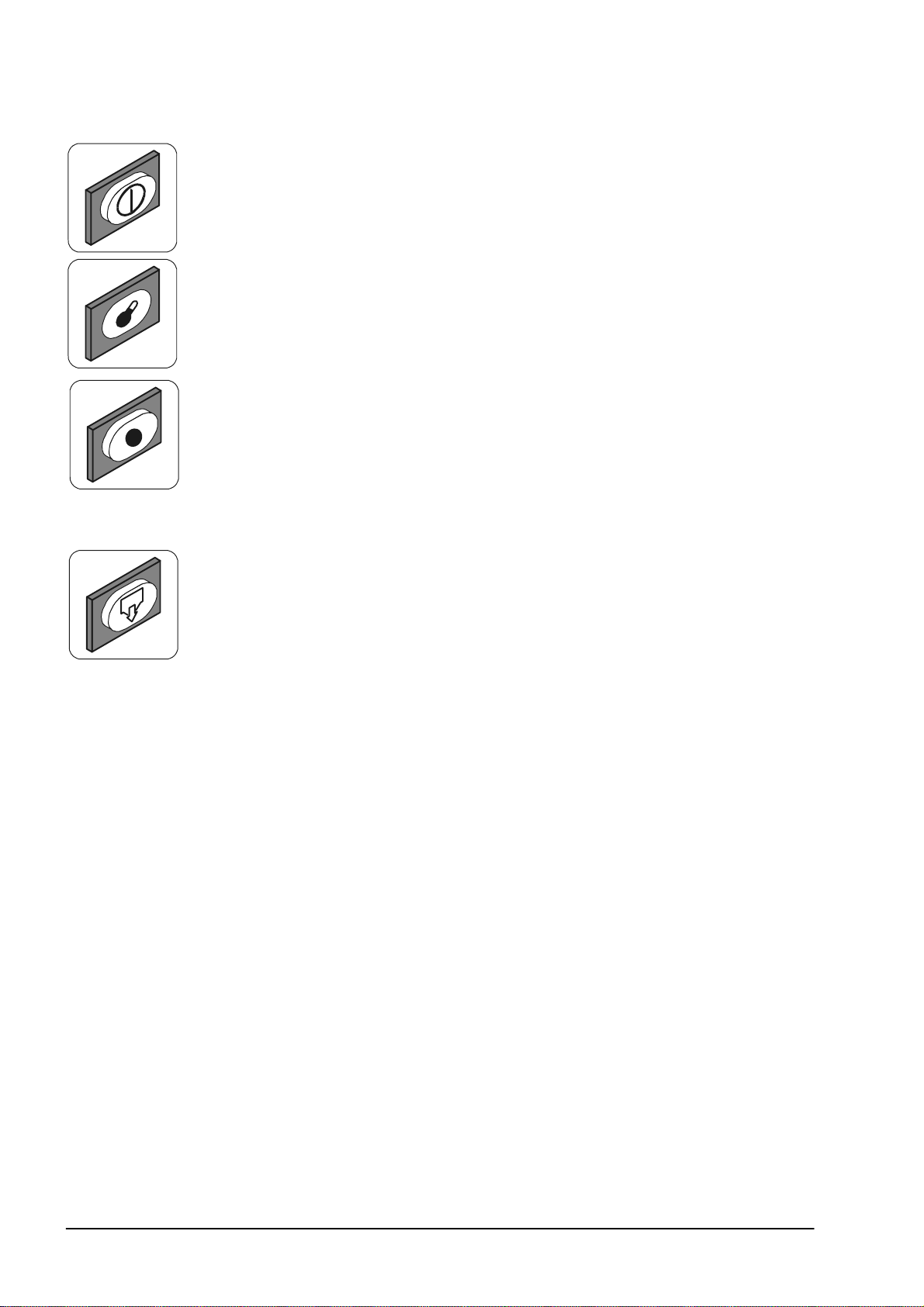

4 Operating and control elements

On/Off switch

Press On/Off switch: dishwasher is switched on.

Indicator lamp in On/Off switch lights up.

Press On/Off switch: dishwasher is switched off.

Indicator lamp in On/Off switch does not light up.

Indicator lamp (can only light up with full tank)

Indicator lamp illuminated: heating phase of tank.

Indicator lamp extinguished: heating phase completed.

Programme switch

Press programme switch: short programme.

Release programme switch: long programme.

The indicator lamp in the programme switch lights up while the programme is in progress.

OPTIONAL FEATURE:

Pushbutton switch for drain pump

Press switch: drain pump pumps out tank water (switch lights up)

Release switch: drain pump not in operation (switch does not light up.)

5 Functioning of the dishwasher

After it is switched on, the dishwasher heats up the boiler. During this heating up phase, the tank is filled in

batches with water and simultaneously heated up. The temperature indicator lamp lights up after filling of the

tank is completed until the pre-set target temperature is reached. Then the indicator lamp goes out. It lights

up repeatedly during the heating phases of the tank.

Once the tank has been filled completely, a wash cycle is started automatically to signal readiness for opera-

tion.

The dishwasher is fitted with an automatic hood start. When closing the hood, slight pressure has to be ap-

plied to overcome the hood catch position. The pre-set programme starts as soon as the lid has been closed.

The container for rinse additive is installed separately from the dishwasher. Dosage for the rinse additive is

controlled automatically by the dishwasher.

6 89005828

6 Preparation for washing

Open stop valve of water supply.

Switch on the mains disconnecting device (mains switch) provided by the customer.

Check level in rinse additive container and detergent container (only with automatic

detergent dosage).

Replace or fill up empty containers.

Observe safety instructions on packaging.

Screw standpipe into wash tank with slight turning movement.

Check whether drainage filter, pump suction filter and surface strainers are installed.

Do not load dishes.

Close hood.

89005828 7

Switch on dishwasher:

Press On/Off switch: dishwasher is switched on.

Indicator lamp in On/Off switch is illuminated.

Tank is filled by the boiler and heated up.

Once the tank is filled completely, a wash cycle is started automatically to signal

readiness for operation.

The programme switch lights up.

Indicator lamp illuminated: heating phase.

Indicator lamp extinguished: heating phase completed.

Detergent dosage

If the dishwasher is fitted with an external detergent dosage pump, there is no need for manual dosage. In

this case, detergent dosage is carried out automatically by the dishwasher.

With an external detergent dosage pump, please observe the operating instructions belonging to it.

Manual detergent pre-dosage:

Pour detergent powder into surface strainer with cup.

Dosage: Approx. 120g

We recommend Winterhalter Gastronom detergent powder. Observe the

Winterhalter Gastronom recommended dosage.

Observe safety instructions on the detergent packaging.

Close hood. Wash programme is started.

8 89005828

Programme switch illuminated: wash programme in progress.

Programme switch extinguished: wash programme completed.

Manual addition of detergent:

Manual addition of detergent powder must be repeated after approx. every 5 wash

cycles. Pour 60g of detergent powder onto the surface strainer. Then start the wash

programme.

7 Washing

Pre-clean dishes (if necessary pre-wash with spraying nozzle), place in wash rack:

Upper surface of plate facing forward.

Cups and bowls, opening facing down.

Insert cutlery in one layer only.

To select programme length:

Press programme switch: short programme

Release programme switch: long programme

Note: The indicator lamp in the programme switch does not light up yet

Close hood. The wash programme starts automatically.

Inhaltsverzeichnis

Andere Winterhalter Spülmaschine Handbücher

Winterhalter

Winterhalter UC series Bedienungsanleitung

Winterhalter

Winterhalter UC-S Bedienungsanleitung

Winterhalter

Winterhalter UC series Bedienungsanleitung

Winterhalter

Winterhalter MTR Series Bedienungsanleitung

Winterhalter

Winterhalter P50 Bedienungsanleitung

Winterhalter

Winterhalter GS 315 Bedienungsanleitung

Winterhalter

Winterhalter UC-S Bedienungsanleitung

Winterhalter

Winterhalter PT Series Kurzanleitung

Winterhalter

Winterhalter UC series Bedienungsanleitung

Winterhalter

Winterhalter GS630 Bedienungsanleitung

Winterhalter

Winterhalter PT 500 Bedienungsanleitung

Winterhalter

Winterhalter UC-S Betriebsanleitung

Winterhalter

Winterhalter STR series Bedienungsanleitung

Winterhalter

Winterhalter PT 500 Bedienungsanleitung

Winterhalter

Winterhalter UC Series Kurzanleitung

Winterhalter

Winterhalter GS 500 series Bedienungsanleitung

Winterhalter

Winterhalter PT-M Bedienungsanleitung

Winterhalter

Winterhalter 4P GDR Bedienungsanleitung

Winterhalter

Winterhalter PT ClimatePlus Betriebsanleitung

Winterhalter

Winterhalter UC series Bedienungsanleitung

Winterhalter

Winterhalter C50 Bedienungsanleitung

Winterhalter

Winterhalter GS 600 Series Bedienungsanleitung

Winterhalter

Winterhalter DMX Kurzanleitung

Winterhalter

Winterhalter UC series Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
