Wireless-tag WT51 Series Bedienungsanleitung

WT5105-M1-DK

QUICK START

Version 1.1.0

Jun.17, 2020

Wireless-Tag Technology Co., Ltd.

WT5105-M1-DK

1 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

Disclaimer and Copyright Notice

Information in this paper, including URL references, is subject to change without prior

notice.

This document is provided “as is” with no warranties whatsoever, including any warranty of

merchantability, non-infringement, fitness for any particular purpose, or any warranty

otherwise arising out of any proposal, and specification or sample. All liability, including

liability for infringement of any patent rights，relating to use of information in this

document is disclaimed. No licenses, either express or implied, by estoppel or otherwise,

to any intellectual property rights are granted herein.

All trade names, trademarks and registered trademarks mentioned in this document are

property of their respective owners, and hereby acknowledged.

WT5105-M1-DK

2 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

Revision History

Version

Author

Reviewer

Date

Notes

1.0.0

Brussin

Mar.25, 2020

First release

1.1.0

LIYAN

Jun.17, 2020

Hardware version updating

WT5105-M1-DK

3 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

Contents

1. Environmental preparation.........................................................................................................................4

2. Hardware description ....................................................................................................................................5

3. Hardware connection........................................................................................................................................6

4. Software Burning preparation.......................................................................................................................8

5. Burning ...................................................................................................................................................................9

6. DK Schematic diagram.................................................................................................................................. 11

WT5105-M1-DK

4 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

1. Environmental preparation

⚫Software environment

Platform: Windows10

SDK: WT51XX_SDK_2.1.0

Compilation tool: keil5

Burning tool: WT51-RFtools.exe

（Download URL: http://doc.8ms.xyz/docs/wt5105/wt5105-1bv84c2qhb0pe）

⚫Hardware environment

WT5105-M1 module

WT5105-M1-DK

Type-c cable

As shown below:

WT5105-M1-DK

5 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

2. Hardware description

The front view and back view of wt5105-m1-dk are shown in the figures below. The self-locking switch

SW1 is used to switch the power supply of the module: when SW1 is pressed, the module is powered by

the USB interface; when SW1 is released, the module is powered by the button battery on the back of the

development board. The touch buttons S1 and S2 are used to control the level status of the TM pin and

RST pin of the module: RST is connected to GND when S1 is pressed (RST is high level by default); TM is

connected to VCC when S2 is pressed (low level by default). The J5 pin header is connected to RST and

TM respectively.

The front view of WT5105-M1-DK

WT5105-M1-DK

6 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

The back view of WT5105-M1-DK

3. Hardware connection

Connect the computer and the development board with the type-C data cable. If the red power indicator

D1 is on, it indicates the power supply is normal. Then press the power switch SW1 to complete the power

supply of the development board.

As shown below:

WT5105-M1-DK

7 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

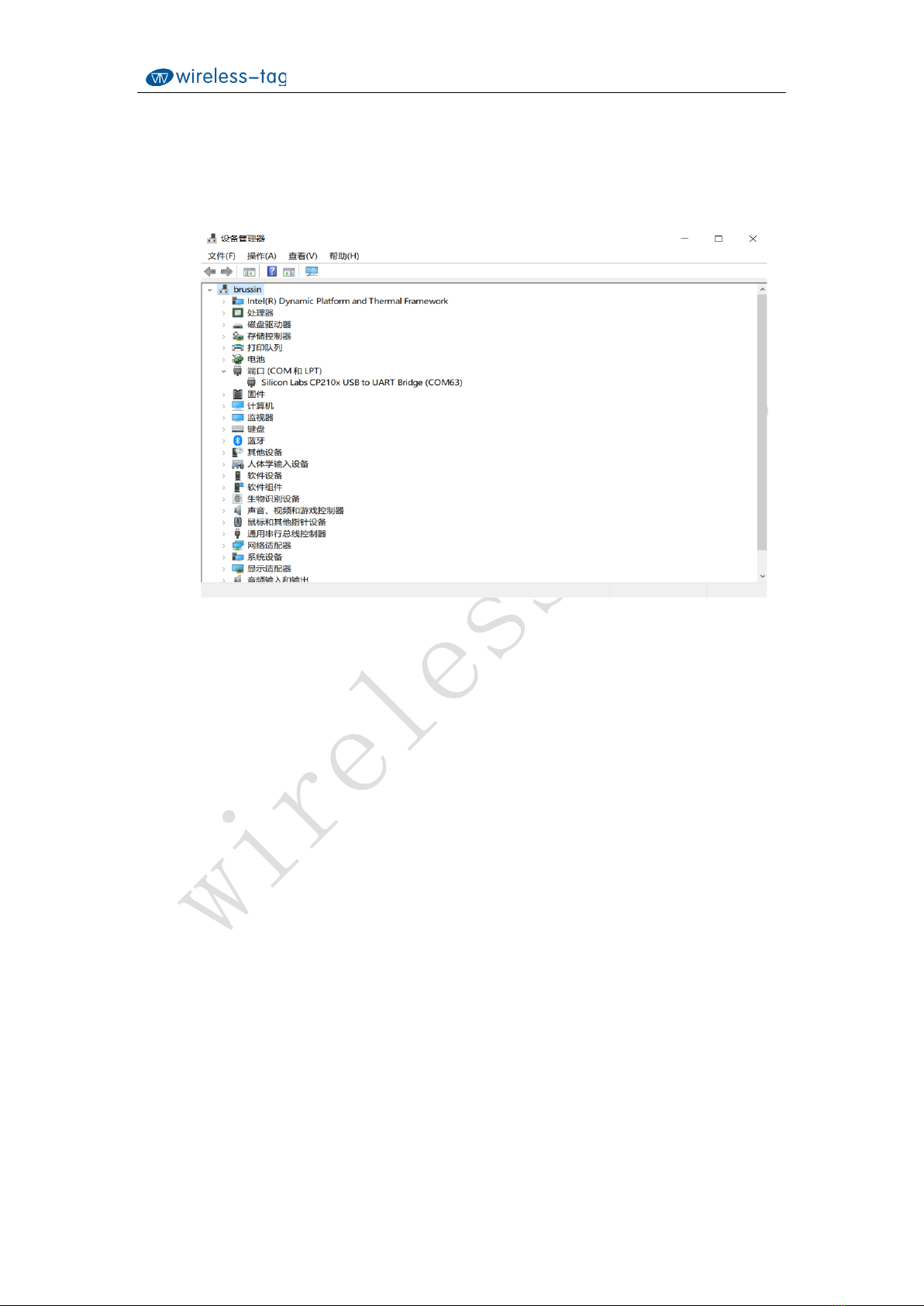

⚫Check the PC port. If a new port appears, it indicates the serial port connection is normal.

As shown below:

WT5105-M1-DK

8 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

4. Software Burning preparation

⚫Open the sample project in the SDK, select “build” and wait for the compilation to complete.

⚫The compiled hex file is saved in the bin directory of the current directory.

WT5105-M1-DK

9 / 11

Wireless-Tag Technology Co., Limited http://www.wireless-tag.com

5. Burning

⚫Open the burning tool WT51- RFtools.exe. Check the “UART setting” option. Select the correct

port and the appropriate baud rate, 115200 by default. Then select “connect” to connect to the

DK.

⚫After pressing the TM button on the DK and then pressing the RST button, the module will enter

the burning mode. Before burning, erase the chip by “Erase”.
