Infrared Thermometer

User Manual

WBS-T007

Production Introduction

Thank you for purchasing Wielion product. In order to use this product correctly, please

read the product manual carefully before use, and keep it well.

Product name: Wiselion Infrared Thermometer

Product model: WBS-T007

Attention

1. Never use the thermometer for anything other than its original design. This product is

suitable for professional or home use.

2. The thermometer is not waterproof, please do not put it into water or other liquid,

cleaning and disinfection according to "Maintenance and Storage" Section.

3. Store the thermometer away from direct sunlight, in a clean, dry place.

4. Do not touch the probe inside the nozzle with finger.

5. Sweat stains on the forehead, coverings such as hair, hats, or scarves may cause the

measurement temperature to be low, so please use it correctly to ensure accurate

measurement results.

6. Do not drop, disassemble, repair and modify the product by yourself.

7. Do not approach strong electrostatic field or strong magnetic field to avoid affecting the

accuracy of measurement data.

8. If any problems, please do not continue to use, please contact the seller, do not repair by

yourself.

9. If the battery and product cannot be used, please comply with local regulations.

10. Do not open the battery door during the test to avoid touching the live part and the

patient at the same time.

11. Please use the thermometer in a stable ambient temperature. If there is a sudden

change in the environment temperature of the thermometer, please pay attention to

whether the probe is fogged. If yes, please follow the operation method in "Maintenance

and Storage" to remove the mist before reuse to ensure the accuracy of the

measurement.

12. Remove battery for storage if the device is not being used for a prolonged period of time

to prevent the battery from leaking when it expires.

13. Do not mix old and new batteries to avoid inconsistent battery discharge characteristics,

which may cause harm or damage the product.

Contraindication

Measuring inflammation, trauma or postoperative lesions.

Warning

A. Please keep the thermometer out of reach of children

B. Do not put the thermometer or battery into the fire.

C. Use of a thermometer is not a substitute for medical treatment.

Advantages

1. Convenient and fast: the measurement accuracy can reach ±0.2 ℃, and the

measurement speed is less than 2 seconds

2. Clean and sanitary: non-contact forehead temperature measurement, measuring

distance of 3-5cm, no contact with skin to prevent cross-infection.

3. Simple and practical: one-button measurement, one-button conversion mode,

one-button check memory, easy to operate.

4. Audible and visual warnings: green, orange and red backlights indicate whether the

body temperature is normal, and low or high fevers have a sound alarm.

5. Multi sets of memory: 32 sets of measurement data can be stored for easy analysis and

comparison.

6. Correction setting: The setting parameters can be modified to suit different races of

human skin, or human bodies with different characteristics.

Symbol

Intended use and application

This infrared thermometer is used to measure human body/object temperature by absorbing

infrared energy from forehead of human or object surface.

Accessories

WBS-T007 device x1 User Manual x1 QC Card x1

Note:

Overseas sales version does not equip with batteries.

Product Component

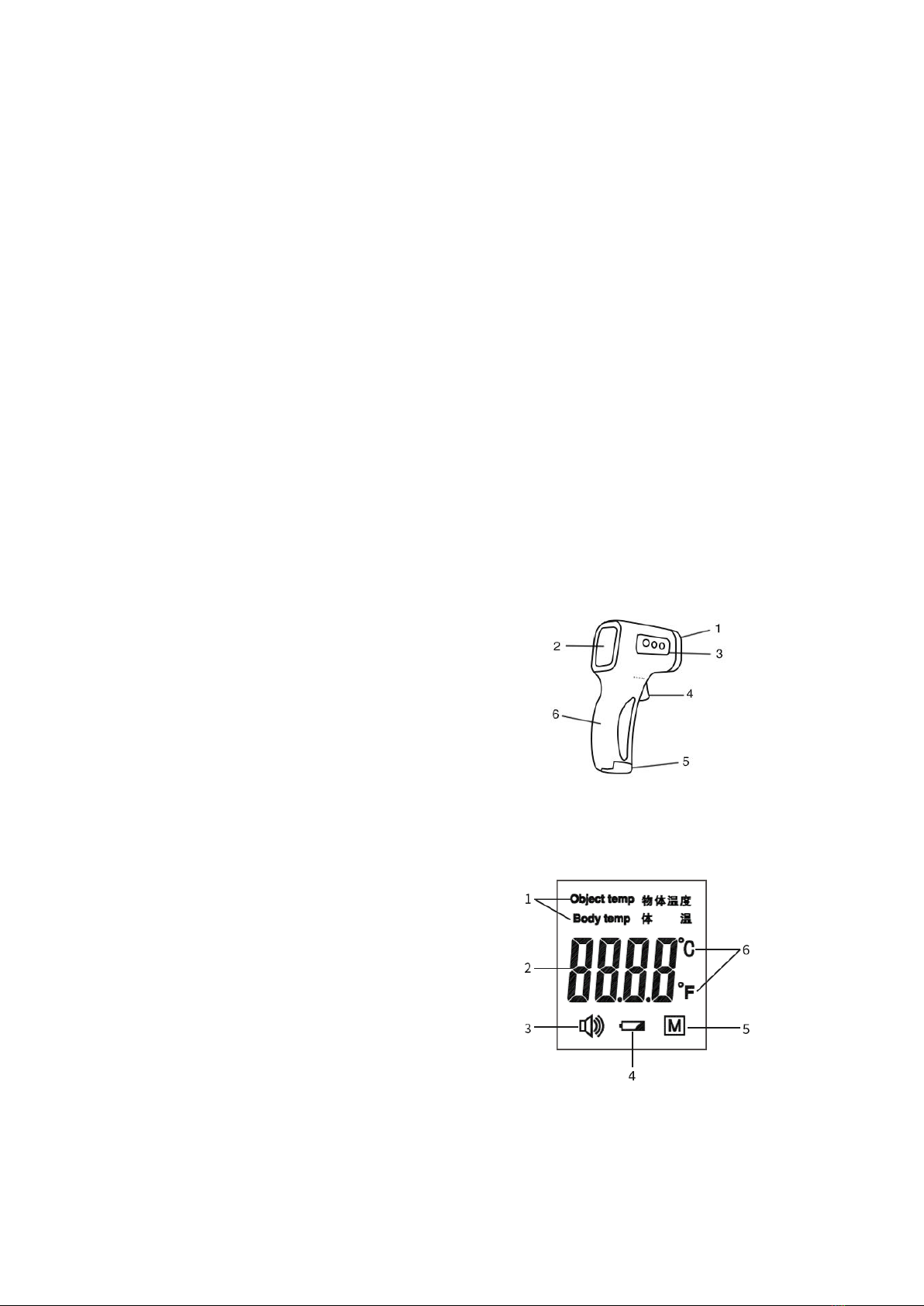

Product Structure

1. Infrared Probe

2. LCE Display

3. Multi-function Button (SET / + / -)

4. Start/Measure Button

5. Battery Door

Display Description

1. Object/Body Temperature

2. Measurement Data

3. Sound

4. Battery voltage

5. Memories

6. Units

Specification

Operating Environment: 16.0℃~35.0℃, Humidity:85%

Size: 149.5*94.2*42.2mm

Power Supply: 3.0VDC 2*AAA batteries

Weight: 115g (Without batteries)

Measuring Range: Object Temp 0℃~100℃, Body Temp 32.0℃~42.9℃

Measuring Accuracy: 35.0℃~42.0℃:±0.2℃, Out of 35.0℃~42.0℃:±0.3℃

Measuring Distance:3-5cm

Measuring Time:<2s

Tri-color backlight: Object Temp: Green

Body Temp: 32.0~37.3℃(Set value):Green

37.4~38.0℃: Orange

38.1(Set value) ~42.9℃: Red

Auto Power off:18s

Storage and transportation: -20.0℃~55.0℃, Humidity:93%

If necessary, the company can provide technical information such as circuit diagrams,

component lists, etc. for technicians to repair and use.

Instruction

Battery Installation

Open the battery door, put 2 AAA batteries into the battery

house. Please check the positive and negative signs on the

inside of the battery cover carefully during installation.

Ready to measure

The correct use method is the key to test accurately, otherwise it may cause measurement

errors. To avoid incorrect measurement, please follow the tips below:

1. When measuring body temperature, point the thermometer at the center of the forehead

and keep it vertical. The distance is 3 to 5 cm. Press the START/MEASURE button; the

result will display immediately.

2. Before measuring, make sure that there is no hair, sweat, makeup or hats on forehead.

3. Stay in the test environment for more than 5 minutes, and wait until the environment

temperature is consistent.

4. A cold compress on the forehead of a fever patient and other cooling measures will

cause the measurement data to be low, and measurement should be avoided in this

case.

5. The environment temperature around the measured target should be stable, and it

cannot be tested in places with large air flow such as fans and air outlets of air

conditioners.

6. When the thermometer is taken out from a place with a large difference from the

temperature of the operating environment, the thermometer should be left in the new

operating environment for 30 minutes before measuring.

7. Do not use the thermometer under the strong sunlight.

8. It is recommended to measure about three times at a time, whichever is the most

displayed data set.

9. If forehead temperature is low for some reason, you can try to measure behind the ear.

10. For measuring the forehead temperature of the human body, please select the "Body

temperature" mode; for measuring the temperature of other objects such as liquids and

food, please select the "Object temperature" mode.

Start to measure

1. Aim at the measured target and press the START/MEASURE button, the LCD screen

will display all numbers and characters. When the power is turned on, the thermometer

will self-check. This screen is displayed for about 2 seconds.

2. After the full dila, a Bee ond ill be head, indicaing ha he oe-on

measurement has been completed, the temperature value of the current target is

displayed on the LCD screen, and the backlight will display the green, orange, and red

colors according to the corresponding settings.

Note:

When the temperature exceeds the set value, the backlight of

the LCD screen is orange; when it exceeds the set value of the

high fever temperature, the backlight is red and accompanied

by an alarm sound. This is to warn the patient that a fever may

occur.

To ensure the accuracy of the measurement, please wait at

least 30 seconds after 5 consecutive measurements.

Memories Check

Press the START/MEASURE button, and then press the function button "+" and "-" on the

side of the product to switch to view the measured values.

1. The thermometer can store up to 32 sets of recent measured values.

2. The memory serial number gradually increases with the number of measurements. After

reaching the 32 sets, it returns to the 1 set and is stored cyclically.

3. When in he e a, he LCD ceen ill dila he   icon.

Setting Modification

This product can modify the default setting parameters to adapt to people with different skin

colors or human bodies with different characteristics, as well as people at different

environment temperatures. The default settings have been made before leaving the factory.

If it is not necessary, it is recommended not to modify the factory defaults. If there is a need

to modify, please modify it as follows.

1. Temperature unit setting -F1 (Default is Celsius)

In the power-on status, press and hold the "SET" button to enter F1, and press the

function button "+" or "-" to switch between Celsius and Fahrenheit.

2. High fever warning setting-F2 (Default is 38.1 ℃)

In the F1 status, press the "SET" button to enter F2, press the function button "+" to add

0.1 ℃, press the function button "-" to decrease 0.1 ℃, and long press to quickly increase

or decrease the temperature value of the high fever warning.

3. Temperature offset setting-F3 (Default is 0.0℃)

In the F2 status, press the "SET" button to enter F3, press the function button "+" to add

0.1 ℃, press the function button "-" to decrease 0.1 ℃, and long press to quickly increase

or decrease. The adjustment range of F3 parameters is: -5 ℃~ 5 ℃.

4. Sound switch setting -F4 (Default is On)

In the F3 status, press the "SET" button to enter F4, and press the function button "+" or

"-" to turn ON or OFF.

5. Exit the setting mode

In the F4 status, press the "SET" button to exit the setting mode automatically.

Trouble-shooting

Change Batteries

The thermometer uses 2 AAA batteries. When the thermometer indicates that the battery is

low, please refer to the "Battery Installation" section of the manual to replace the battery.

Precautions:

1. When opening the battery door to replace the battery, pay special attention to the polarity

of the battery. Misplacement may cause damage to the product.

2. When not in use for a long time, please remove the battery to prevent damage to the

thermometer due to battery leakage.

3. Do not use when the battery is leaking or moldy.

4. Do not place the battery near a fire source or throw it into a fire to prevent the battery from

exploding.

5. Do not store the battery in a high temperature and high humidity environment.

6. To avoid a short circuit, do not put the battery together with metal objects such as coins or

keys in the same pocket or other container that may short the battery.

Maintenance and Storage

1. The part of the infrared probe is the most precise part of the product. Do not touch or

press with your fingers or other objects, you must be careful to protect it, otherwise it will

affect the accuracy of the measurement value.

2. Cleaning and disinfection methods:

A. Surface cleaning: Please wipe the outer shell of the thermometer with a soft cotton

cloth or cotton swab moistened with 70% -80% alcohol, and do not let liquid enter

the inside of the thermometer.

B. Clean the inner cavity of the sensor probe: Please wipe the inner cavity of the probe

or the top of the sensor with a soft cotton cloth or cotton swab moistened with 70%

-80% alcohol, and use it after the alcohol has completely evaporated.

C. Never use aggressive cleaners, thinners or benzine to clean it, and never immerse

the product in water or other liquids.

3. Carefully protect the surface of the LCD screen.

4. Keep the thermometer in a dry place to avoid dust, pollution and direct sunlight.

5. It is recommended to maintain at least once every six months.

Knowledge of body temperature

The temperature of human body belongs in a range and the range may vary among people.

Temperature if individuals may also vary from time to time. The following table 1 indicates

the temperature range of the majority people for your reference.

Human body temperature varies with time within a day, and is also affected by other external

conditions, such as age, gender, skin color, skin thickness, etc. Refer to table 2 below for

changes in body temperature with age.

Place

Normal Temp

Range Reference

Ear

35.8~38.0℃

Oral

35.5~37.5℃

Armpit

34.7~37.3℃

Anus

36.6~38.0℃

Table 1

Age

Normal Temp

Range Reference

0-2 years

36.4~38.0℃

3- 10 years

36.1~37.8℃

11-65 years

35.9~37.6℃

>65 years

35.8~37.5℃

Table 2

Women's body temperature is different from men's, generally about 0.3℃higher than men's,

body temperature during ovulation will rise by 0.3℃~ 0.5℃than usual, so use this to know

whether women are in ovulation period, which is conducive to fertility or contraception.

The usual method is to use a thermometer to measure the basal body temperature of a

female individual every day, and then draw a graph of the basal body temperature change.

The ovulation period can be clearly seen from the figure.

Andere Handbücher für WBS-T007

Inhaltsverzeichnis

Andere Wiselion Thermometer Handbücher

Wiselion

Wiselion WBS-T007 Bedienungsanleitung

Beliebte Thermometer Handbücher anderer Marken

Delton

Delton 981A Bedienungsanleitung

Baker

Baker MM2P Bedienungsanleitung

Tarmo

Tarmo 320281 Bedienungsanleitung

Citizen

Citizen CTD 504 Bedienungsanleitung

TFA

TFA 14.1500 Bedienungsanleitung

Vive

Vive DMD1010 Bedienungsanleitung

Gotemp

Gotemp THB4002 Bedienungsanleitung

GREISINGER

GREISINGER G 1202 Bedienungsanleitung

Amprobe

Amprobe TMD-53W Bedienungsanleitung

Trotec

Trotec BP10 Bedienungsanleitung

Radiance instruments

Radiance instruments RT616 Series Bedienungsanleitung

Eurolec

Eurolec IR151 Bedienungsanleitung

Scaneo

Scaneo TS42B Bedienungsanleitung

Sper scientific

Sper scientific 800043 Bedienungsanleitung

Microlife

Microlife NC 200 Bedienungsanleitung

Motorola

Motorola MBP69SN Konfigurationshandbuch

The MeatStick

The MeatStick The MeatStick Bedienungsanleitung

Hama

Hama TH35-A Bedienungsanleitung
