Wiznet AX1 Bedienungsanleitung
1. What is AX1
AX1 Program is a Windows-based PC Program in order to evaluate the performance
of iinChip™, WIZnet’s Hardwired TCP/IP Chip.
AX1 is connected with iinChip™ Evaluation Board(EVB B/D) and TCP/IP Protocol
through Internet. First of all, connected Internet TCP/IP Protocol transmits optional
Packet or Files to iinChip™™ EVB B/D. Secondly, it checks the meeting point between
returned Packet or Files from TCP/IP Protocol and transmitted Packet or Files. Finally,
it measures the transmission and the reception speed
AX1’s functions are like below.
y TCP Protocol Test
y UDP Protocol Test
2. Installation
You can install AX1 through Software CD included in iinChip™ EVB B/D Product
Package or WIZnet ‘s homepage (http://www.wiznet.co.kr)
AX1 Program installation process is like below.
○
1 Execute “AXInstallVX.X.exe”
‘VX.X’ of the file name means the Version of AX1 Program. Until now, the latest
version is 3.1. You can get the latest version from WIZnet’s homepage.

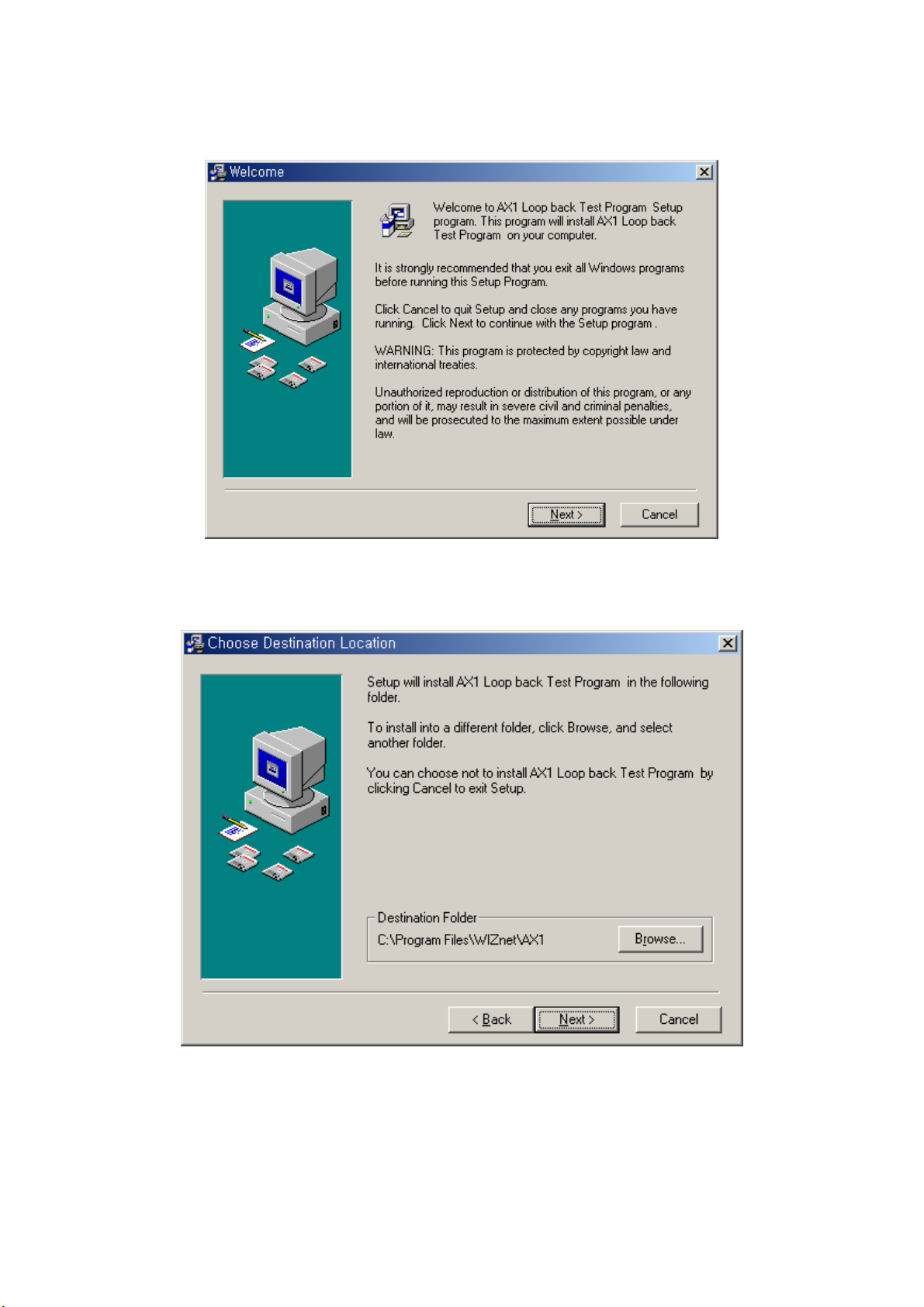

<Fig 2.1> AX1 install Program’s execution
○
2 Appoint Directory for the install of AX1 Program
<Fig 2.2> AX1 Program 설치 Directory 지정
○
3 Select registered name in “Program Manger Group”

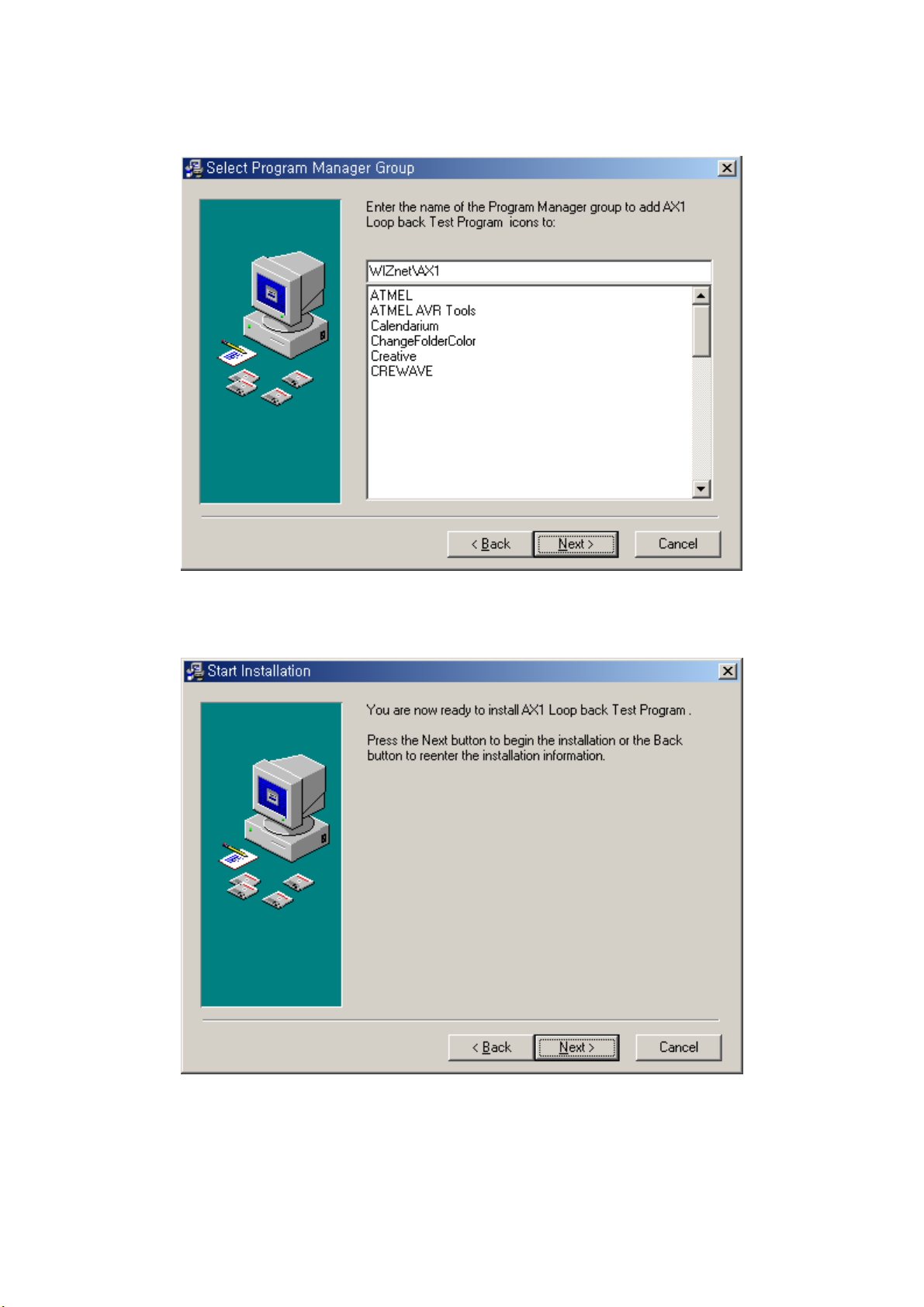

<Fig 2.3> Select Program Manager Group
○
4 If you finish preparations for AX1 Program installation, start installation.
<Fig 2.4> Start installation
○
5 AX1 Program’s installation complete
<Fig 2.5> AX1 Program’s installation complete
3. How to use
3.1. System Configuration
Let’s look around Test PC installed AX1 Program and system composition of iinChip™
EVB B/D.
Test interface consists of two types like below.
y LAN (Local Area Network) interface
y WAN (Wide Area Network) interface
First of all, LAN interface is build up in the same Segment Network. You can connect
Test PC to iinChip™ EVB B/D as one-to-one directly or indirectly through HUB. In the
case of direct connection, the usage of Cross UTP Cable is essential. If you use HUB,
Direct UTP Cable is needed. <Fig 3.1>is a System composition example in LAN
interface.
Test PC
AX1
iinChipTM EVB B/D
Cross UTP Cable
HUB
iinChipTM EVB B/D
Test PC
AX1
Direct UTP Cable
<Fig 3.1> System composition example in LAN interface
The same Segment Network in LAN means the Network information between Test PC
and iinChip™ EVB B/D is same. That is to say, if Source IP Address of iinChip™ EVB
B/D is ‘192.168.0.2’, Gateway IP Address is ‘192.168.0.1’ and Subnet Mask Value is
‘255.255.255.0’, the Gateway IP Address of Test PC and Subnet Mask Value should be
same with iinChip™ EVB B/D.
In other words, the Source IP Address of iinChip™ EVB B/D is endowed with
‘192.168.0.2’, Gateway IP Address is settled to the same Segment Network with LAN
through
WAN interface means connected environment through internet in remote area, where
WAN Test PC and iinChip™ EVB B/D are not located in the same Segment Network
<Fig 3.2> is a System composition example in WAN interface.
Test PC
AX1
Internet
Gateway
HUB
HUB
iinChipTM EVB B/D
Gateway
<Fig 3.2> System composition example in WAN interface
3.2. How to Test
If Test environment is composed, execute AX1 Program in Test PC. <Fig 3.3>is AX1
Program execution window
<Fig 3.3> AX1 Program execution
Refer to <Table 3.1> and <Table 3.2> for understanding AX1 Program’s various
functions.
Menu Sub-Menu Description
Open Open the file for Loopback
About Select Version information
File
Exit Exit Program
Listen Wait iinChip™ EVB B/D’s connection to TCP Server Mode
Connect Try iinChip™ EVB B/D’s connection to TCP Client Mode
Send Send random Packet once through connected TCP Channel
TCP
Close Close connected TCP Channel
Open Open UDP Channel
Send Send random Packet infinitely to iinChip™ EVB B/D through
opened UDP Channel
UDP
Close Close opened UDP Channel
CPUTICK CPUTICK Calculate CPU Trick for exact Loopback speed measurement.
This process spends 5 seconds.
<Notice>
Only support INTEL interrelated CPUs.
In case of AMD’s CPU, we do not guarantee exact Loopback
speed.
<Table 3.1> AX1 Program Menu description
Tool Icons Description
Ts File Loopback one time through connected TCP Channel
Us File Loopback one time to User selected destination through opened Open
UDP Channel
TR File Loopback User appointed times through connected TCP Channel
UR File Loopback User appointed times through opened UDP Channel
∞ File Loopback repeat infinitely through TCP or UDP Channel
∅ Stop Loopback repeat test
<Table 3.2> AX1 Program Tool Icons description
3.2.1. TCP Server Test
TCP Server is working like below.
y AX1 Program: TCP Loopback Server
y iinChip™ EVB B/D: TCP Loopback Client
○
1 Click Menu [TCP > Listen]
<Fig 3.4> TCP Server Listen
○
2 Select Waiting Server Listen Port
<Fig 3.5> Server Port Selection
○
3 Wait the time when iinChip™ EVB B/D connects to Listen Port appointed in
advanced ○
2 step
○
4 Operate iinChip™ EVB B/D in TCP Loopback Server
Refer to iinChip™ EVB Manual for iinChip™ EVB B/D’s operating setting.
○
5 Complete connection with iinChip™ EVB B/D
<Fig 3.6> Complete TCP connection between Test PC and iinChip™ EVB B/D
○
6 Packet or File Loopback through connected TCP Channel
3.2.1.1. TCP Packet Loopback
Random Packet Loopback one time to iinChip™ EVB B/D through connected TCP
Channel.
○
1 Click Menu [TCP > Send]
<Fig 3.7> TCP Packet Loopback
○
2 Create TCP Packet’s Size and Value
<Fig 3.8> TCP Packet creation
○
3 Created TCP Packet Loopback to iinChip™ EVB B/D
<Fig 3.9> TCP Packet Loopback execution
3.2.1.2. TCP File Loop-back
Random File Loopback to iinChip™ EVB B/D through connected TCP Channel
○

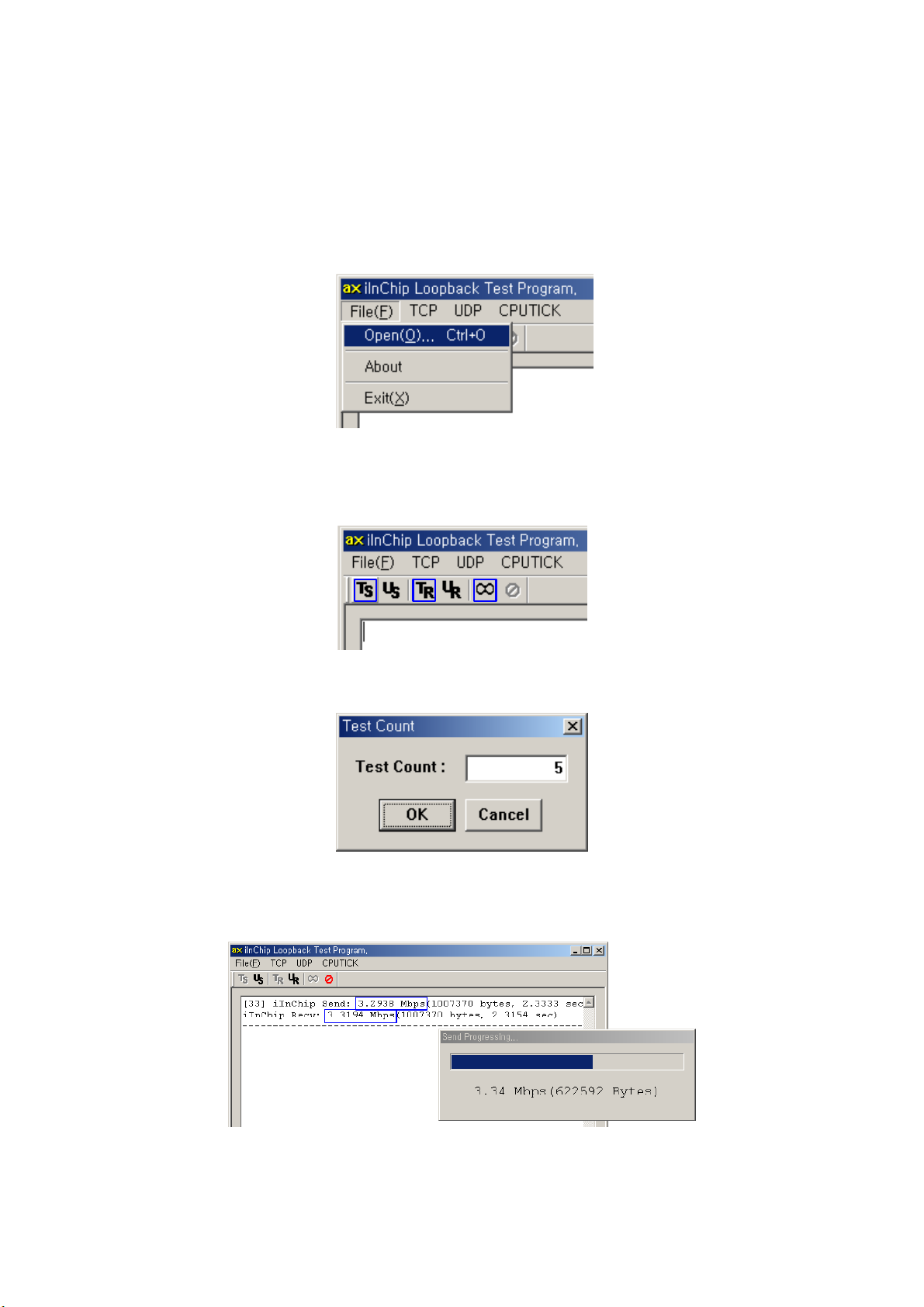

1 Click Menu [File > Open] and Open Loopback File
<Fig 3.10> TCP Loopback File Open
○
2 Click a Tool Icon of [Ts], [TR], and [∞]. And then, Opened File Loopback
<Fig 3.11> TCP File Loopback Tool Icons
If you select the Tool Icon, “[TR]”, appoint TCP File Loopback repeat times.
<Fig 3.12> TCP File Loopback Test Count creation
○
3 TCP File Loopback Test
Transmit Speed
Receive Speed
<Fig 3.13> TCP File Loopback 실행
