M2M PRO4 MODEM®

Installation Guide

v0.92

_________________________________________

2020-02-17

Document specifications

This document was made for the M2M PRO4 MODEM®

device

and it contains all relevant

installation steps of the device.

Document category:

Installation Guide

Document subject:

M2M PRO4 MODEM

Author:

WM Systems LLC

Document version No.:

REV 0.92

Number of pages:

Hardware version:

BE008x

Linux Kernel:

4.14.23

OpenWRT software version:

202002071

Document status:

FINAL

Last modified:

17 February, 2020

Approval date:

17 February, 2020

Table of contents

1. WIRING AND PREPARATION........................................................................ 4

1.1 Description of interfaces ..................................................................................................... 4

1.2 Safety declaration .............................................................................................................. 4

1.3 Mounting, fixation .............................................................................................................. 8

1.4 Cabling, wiring................................................................................................................... 9

1.5 Important notes ................................................................................................................. 12

1.6 Understanding the LED signals............................................................................................ 13

2. INSTALLING THE MODEM ............................................................................ 14

2.1 The very first startup.......................................................................................................... 14

2.2 Normal startup................................................................................................................... 14

2.3 Local access via USB .......................................................................................................... 17

2.4 Web user interface and Login ............................................................................................. 18

2.5 SSH access ........................................................................................................................ 20

2.6 Wireless access.................................................................................................................. 20

2.7 LED indication.................................................................................................................... 22

2.8 Power On / Supercap Charging mode .................................................................................. 24

2.9 Service features ................................................................................................................. 25

2.10 Alternative installation of the OpenWrt®system ................................................................. 26

3. MODEM CONFIGURATION (MAIN IMPORTANT SETTINGS) ............................ 29

4. SUPPORT..................................................................................................... 31

5. DEVICE DATA, CERTIFICATION ................................................................... 32

5.1 Datasheet of the device...................................................................................................... 32

5.2 Wireless module certification ............................................................................................. 33

6. LEGAL NOTICE ............................................................................................ 34

1. Wiring and Preparation

1.1 Description of interfaces

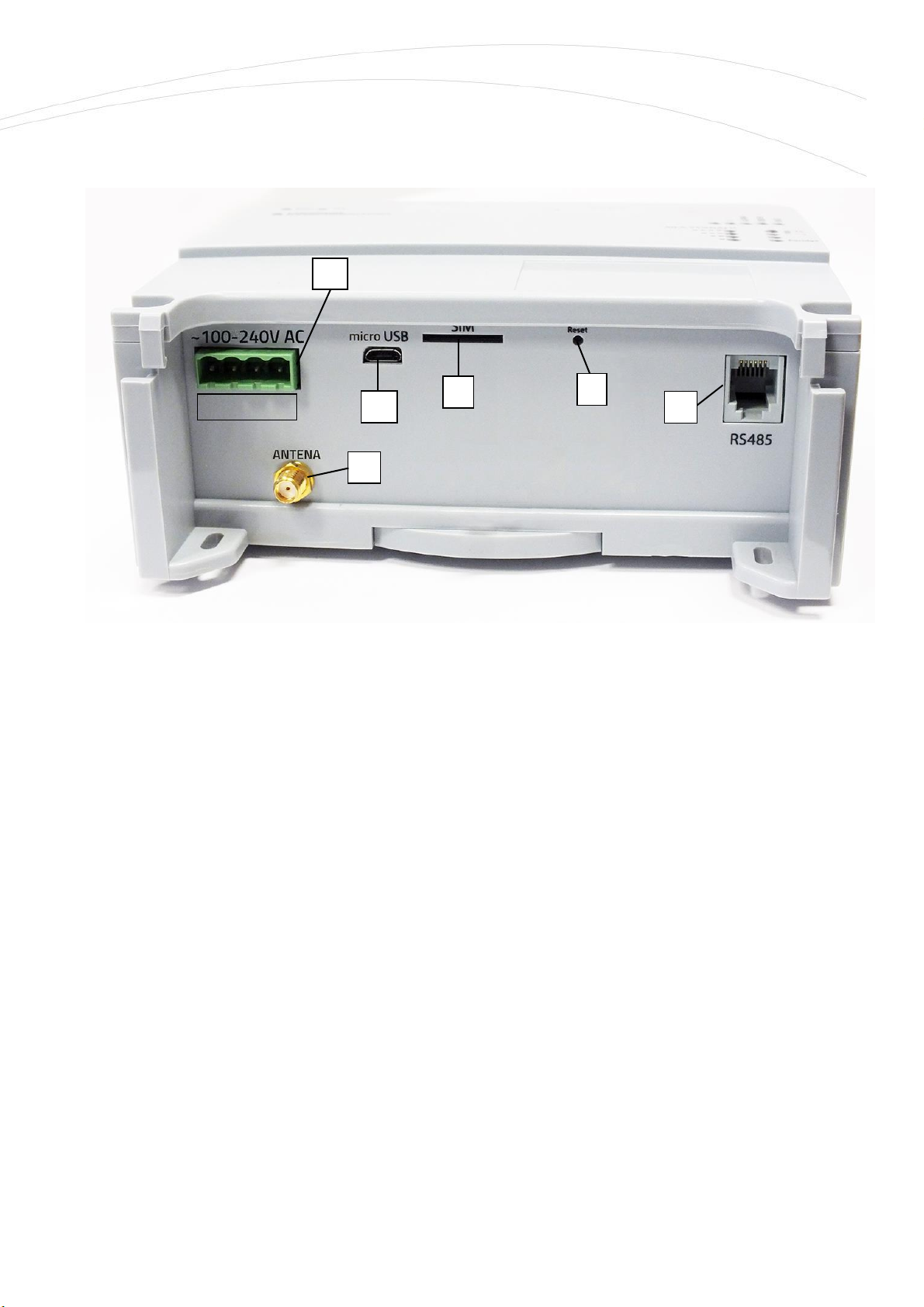

1 –~100 - 240V AC power input plug (4-pins terminal block), the pinout from left-to-right

is the following: L, N, -, PE

2 –micro USB connector (PC connection - for configuration, alternative DC power input)

3 –SIM (2FF-type mini SIM card slot, push-insert SIM holder)

4 –RS485 port (isolated RS485, half-duplex data interface, RJ12 connector), for up to 31

meter connection

5 –Reset button (hole) –has multiple features, see

Reset

features

chapter later

6 –ANTENA –Antenna connector for 4G LTE wireless network usage, SMA-M, 50 Ohm

1.2 Safety declaration

The device must be used and operated according to the related user manual.

The installation can be carrying out only by a responsible, instructed and skilled

person by the service team, who has enough experience and knowledge about

carrying out the wiring and installing a modem device.

Its prohibited to touch or modify the wiring or the installation by the user. It is prohibited to

open the device enclosure during its operation or under power connection.

L N PE

It is also prohibited to remove or modify the device PCB. The modem and it’s parts must not be

changed by other items or devices.

Any modification and repairation is not allowed without the permission of the manufacturer. It

all causes the loss of product warranty.

Caution!

Only a certified expert or the manufacturer is allowed to open the enclosure!

By general the device is using AC mains. 100-240V AC, 50Hz, electric shock

hazard inside the enclosure! DO NOT open the enclosure and DO NOT touch

the PCB.

(Consumption: Min. 2W / Average: 3-4W / Max: 10W

The IP51 immunity protection will be effective only in case of under normal usage

and operation conditions with unharmed hardware conditions by using the device in

the provided enclosure/chassis.

Deliberate damage or occing casualty of the device means the loss of product

warranty.

To ensure general safety, please follow the following guideline!

■Keep the chassis area clear and dust-free during and after installation.

■Keep tools and chassis components away from walk areas.

■Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf and

roll up your sleeves.

■Wear safety glasses when working under conditions that might be hazardous to your eyes.

■Do not perform any action that creates a hazard to people or makes the equipment unsafe.

Safety with Electricity

Follow this guideline when working on equipment powered by electricity.

■Read all the warnings in Safety Warnings.

■Locate the emergency power-off switch for your installation location. If an electrical accident

occurs, you can quickly turn off the power.

■Disconnect all power before:

–Installing or removing a chassis

–Working near power supplies

■Look carefully for possible hazards in your work area, such as moist floors, ungrounded power

extension cables, frayed power cords, and missing safety grounds.

■Do not work alone if hazardous conditions exist.

■Never assume that power is disconnected from a circuit. Always check.

■Never open the enclosure of the modem’s internal power supply.

■If an electrical accident occurs, proceed as follows:

–Use caution; do not become a victim yourself.

–Turn off power to the device.

–If possible, send another person to get medical aid. Otherwise, assess the victim’s condition

and then call for help.

–Determine if the person needs rescue breathing or external cardiac compressions; then take

appropriate action.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. It may occur

if electronic printed circuit cards are improperly handled and may cause complete or intermittent

failures. Always follow ESD prevention procedures when removing and replacing modules:

■Ensure that the modem chassis is electrically connected to earth ground.

■Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the

clip to an unpainted surface of the chassis frame to channel unwanted ESD voltages safely to

ground. To guard against ESD damage and shocks, the wrist strap and cord must operate

effectively.

■If no wrist strap is available, ground yourself by touching a metal part of the chassis.

Caution: For the safety of your equipment, periodically check the resistance value of the

antistatic strap. It should be between 1 and 10 megohms (Mohm).

Warning!

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before

you work on any equipment, be aware of the hazards involved with electrical circuitry and be

familiar with standard practices for preventing accidents. Use the statement number provided at

the end of each warning to locate its translation in the translated safety warnings that

accompanied this device.

SAVE THESE INSTRUCTIONS

Warning: Before working on equipment that is connected to power lines, remove jewelry

(including rings, necklaces, and watches). Metal objects will heat up when connected to power

and ground and can cause serious burns or weld the metal object to the terminals. Statement

Warning: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be

located at a minimum of 7.9 inches (20 cm) or more from the body of all persons. Statement

332

Warning: Do not work on the system or connect or disconnect cables during periods of lightning

activity. Statement 1001

Warning: Before performing any of the following procedures, ensure that power is removed from

the DC circuit. Statement 1003

Warning: Read the installation instructions before you connect the system to its power source.

Statement 1004

Warning: This product relies on the building’s installation for short-circuit (overcurrent)

protection. Ensure that the protective device is rated not greater than: 20A. Statement 1005

Warning: This unit is intended for installation in restricted access areas. A restricted access area

can be accessed only through the use of a special tool, lock and key, or other means of security.

Statement 1017

Warning: The plug-socket combination must be accessible at all times, because it serves as the

main disconnecting device. Statement 1019

Warning: This equipment must be grounded. Never defeat the ground conductor or operate the

equipment in the absence of a suitably installed ground conductor. Contact the appropriate

electrical inspection authority or an electrician if you are uncertain that suitable grounding is

available. Statement 1024

Warning: This unit might have more than one power supply connection. All connections must be

removed to de-energize the unit. Statement 1028

Warning: Only trained and qualified personnel should be allowed to install, replace, or service

this equipment. Statement 1030

Warning: Ultimate disposal of this product should be handled according to all national laws and

regulations. Statement 1040

Warning: To prevent the system from overheating, do not operate it in an area that exceeds the

maximum recommended ambient temperature of: Statement 1047

Warning: Installation of the equipment must comply with local and national electrical codes.

Warning: To prevent airflow restriction, allow clearance around the ventilation openings to be at

least: 3 inches (7.6 cm). Statement 1076

Warning: Hot surface. Statement 1079

Caution: This metering modem can only be accessed by service personnel or by users who have

been instructed about the reasons for the restrictions applied to the location. Access is through

the use of a tool or lock and key, or other means of security, and is controlled by the authority

responsible for the location.

Caution: Be aware of the size and weight of the metering modem when mounting. Ensure that

the mounting location has a stable flat surface and can safely support the weight of the device.

1.3 Mounting, fixation

The device enclosure (unit) contains a DIN-Rail fixation due its case, which is to be intended to

mount to DIN-35 rail or using a 3-point fixation by screws, or using the hook (in hanging

position).

You can also mount the enclosure to wall, place into server rack or similar fixation opportunity.

The unit must be mounted inside a cabinet by the listed fixation points, in vertical orientation.

Please note that close metal parts, the cabinet metal material and the industrial conditions as

the usage of high rate power or other external gained radio frequency signals can cause radio

signal disturbance and could cause weak wireless signal at reception or data transmitting or

could cause less effective signal reception, weak wireless fidelity. In any of these, we recommend

you to test the wireless signal reception and quality and if it is necessary use external, magnetic

mount antenna which is leaded outside of the cabinet and placed onto the cabinet’s surface –

to ensure enough reception.

Figure of bottom side of the unit enclosure

A –Device housing case back plate

B –Hook for fixation to wall/mount

C –DIN-rail sleede for fixation

D –DIN-rail position holder (release/fixate)

E –Additional hooks for fixation to wall/mount

1.4 Cabling, wiring

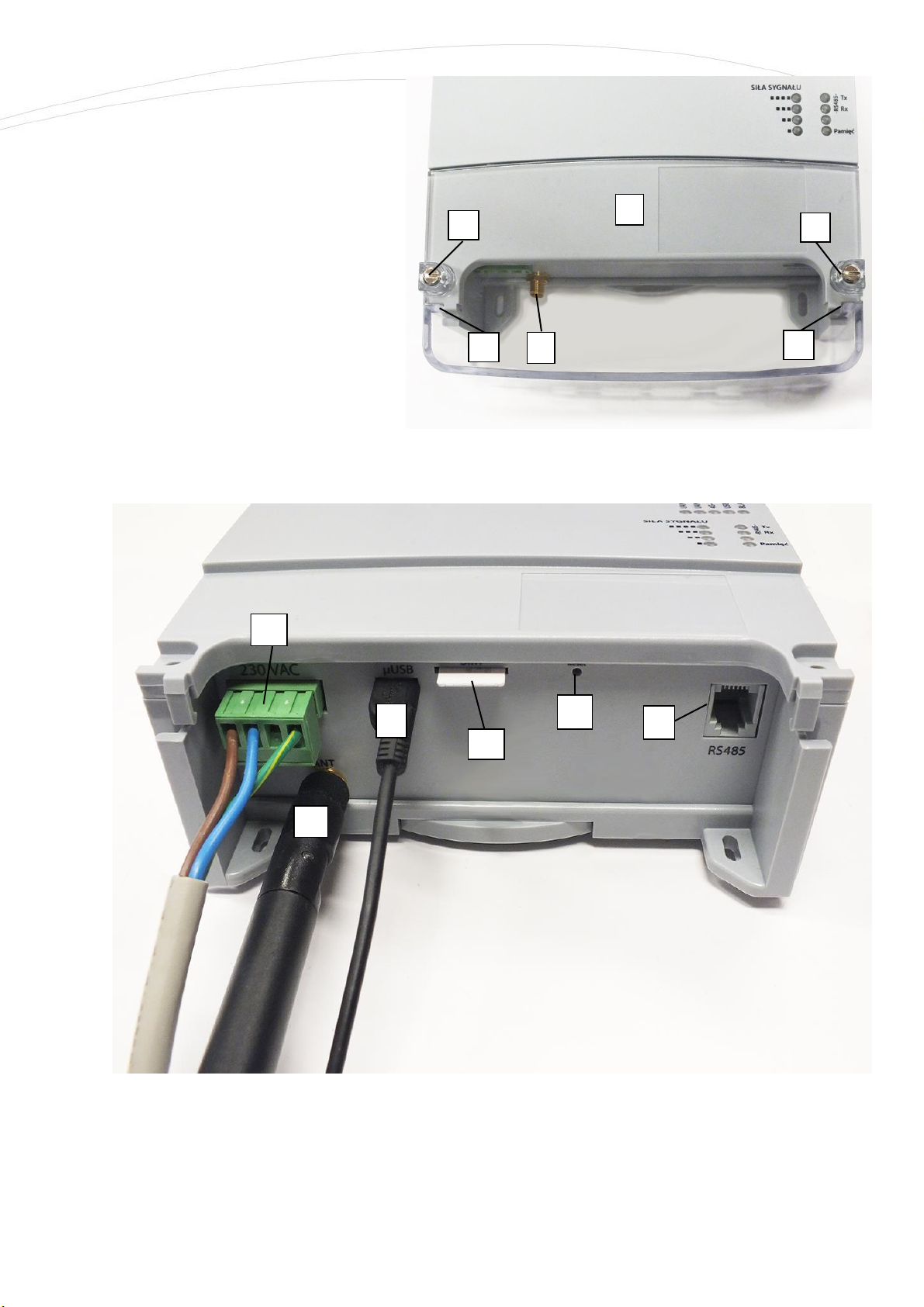

1. Remove the plastic, transparent port protector part (No. 8) by releasing the two screws

(No. 7) from the top of the enclosure and slide up the plastic part carefully from the

protector’s rails (No. 9), then remove it from upside direction.

Now you can free to connect wires and cables to the ports and interfaces.

2. Mount a 4G LTE antenna to the ANTENA titled (no. 6) SMA antenna connector. Twist the

antenna to the connector until it is fastened.

You can use 4G LTE wireless

antenna with 3-6dB, 9dB or more

gained versions. RG174 cable SMA

antenna with magnetic mount can

be used for external usage.

The antenna must be placed and

oriented that it should has a some

clearance in any direction.

3. Insert and push an activated

mini SIM card to the SIM titled

card holder (No. 3), top SIM

holder. Insert by following the

hints of SIM card figure for the proper orientation. (The SIM chip-side will be face down and

the cutted edge towards to inside and push until it sleeves).

4. You can use the micro USB (No. 2) connector with a

microUSB-to-USB

cable connection as

USB LAN - instead for configuring or access the device.

5. You can use the micro USB port (No. 2) to power the modem by DC power (5V) instead

of using the

100-240V AC

power (as an alternative way for powering).

Andere Handbücher für M2M PRO4 MODEM

Inhaltsverzeichnis

Andere WM Systems Modem Handbücher

WM Systems

WM Systems WM-E3S Bedienungsanleitung

WM Systems

WM Systems M2M PRO4 DCU Bedienungsanleitung

WM Systems

WM Systems WM-E3S 4G CI Bedienungsanleitung

WM Systems

WM Systems WM-E2S Bedienungsanleitung

WM Systems

WM Systems WM-E2S Bedienungsanleitung

WM Systems

WM Systems Universal Industrial RS485 Modem Bedienungsanleitung

WM Systems

WM Systems WM-E1S Bedienungsanleitung

WM Systems

WM Systems M2M PRO4 MODEM Bedienungsanleitung

WM Systems

WM Systems WM-I2 Bedienungsanleitung

WM Systems

WM Systems WM-E1S Bedienungsanleitung

WM Systems

WM Systems WM-E8S Bedienungsanleitung

Beliebte Modem Handbücher anderer Marken

Davicom

Davicom DM562AP Bedienungsanleitung

EpiValley

EpiValley TATA indicom SXC-1080 Bedienungsanleitung

Zte

Zte WiMAX Bedienungsanleitung

Intelimax

Intelimax MA-2060 Bedienungsanleitung

SMC Networks

SMC Networks D3CM1604V Gebrauchs- und Pflegehandbuch

Telstra

Telstra Wi-Fi 4G Advanced Pro X Bedienungsanleitung

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Bedienungsanleitung

Samsung

Samsung AceLink SAM-335A Bedienungsanleitung

Enfora

Enfora Enabler-G Kurzanleitung zur Einrichtung

iRZ

iRZ ATM2-232 Bedienungsanleitung

Zhone

Zhone 6310 Bedienungsanleitung

Paradyne

Paradyne Hotwire 7976 Bedienungsanleitung

US Robotics

US Robotics 3453C Bedienungsanleitung

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Bedienungsanleitung

Zte

Zte MF823 Bedienungsanleitung

Four-Faith

Four-Faith F1403 Bedienungsanleitung

Sierra Wireless

Sierra Wireless AIRLINK MP595W Bedienungsanleitung

Gemtek

Gemtek WiMAX WIXFBR-103 Bedienungsanleitung
