WOERLEIN CTV-3702 DVB-T Bedienungsanleitung
1

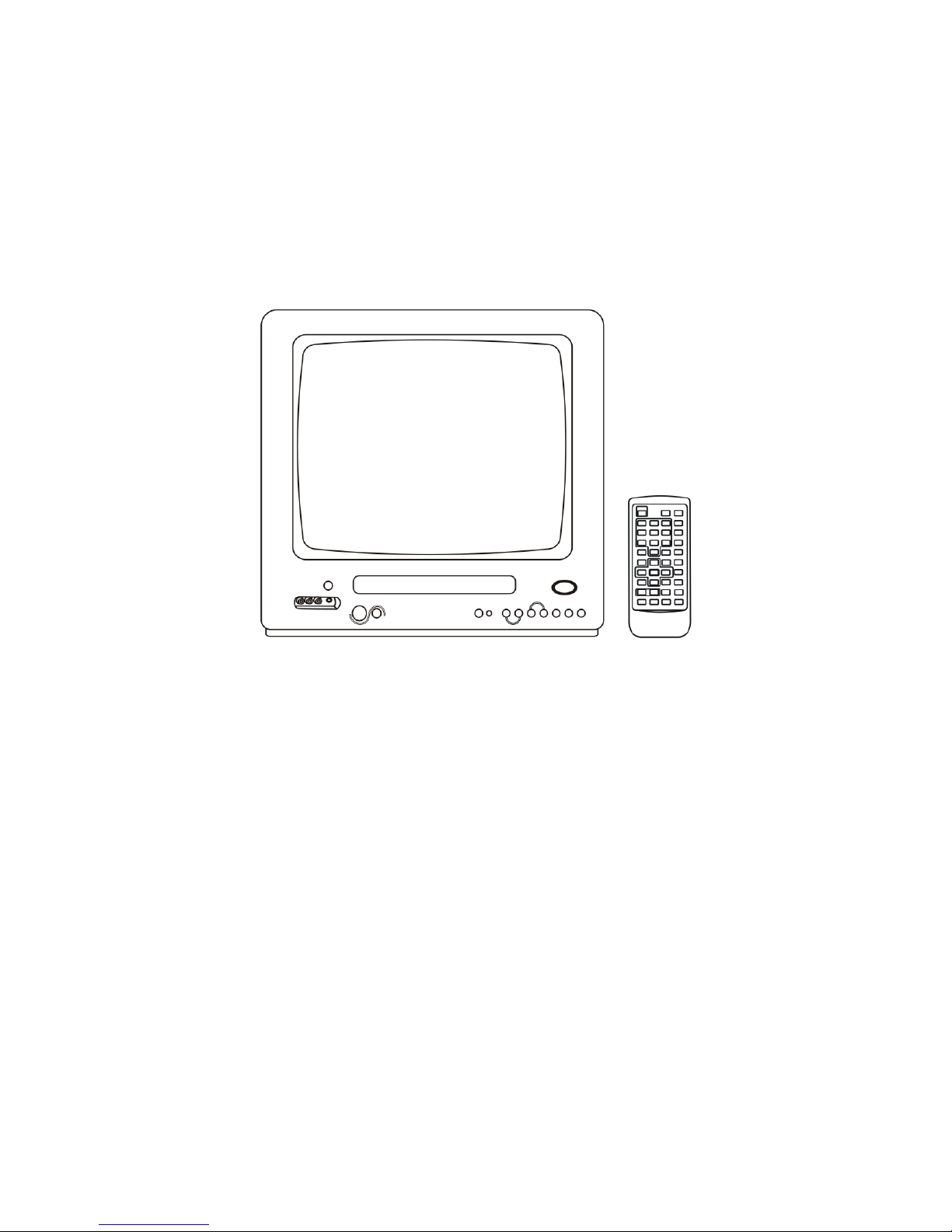

14” COLOR TELEVISION WITH DVD PLAYER
Instruction Manual
2
3

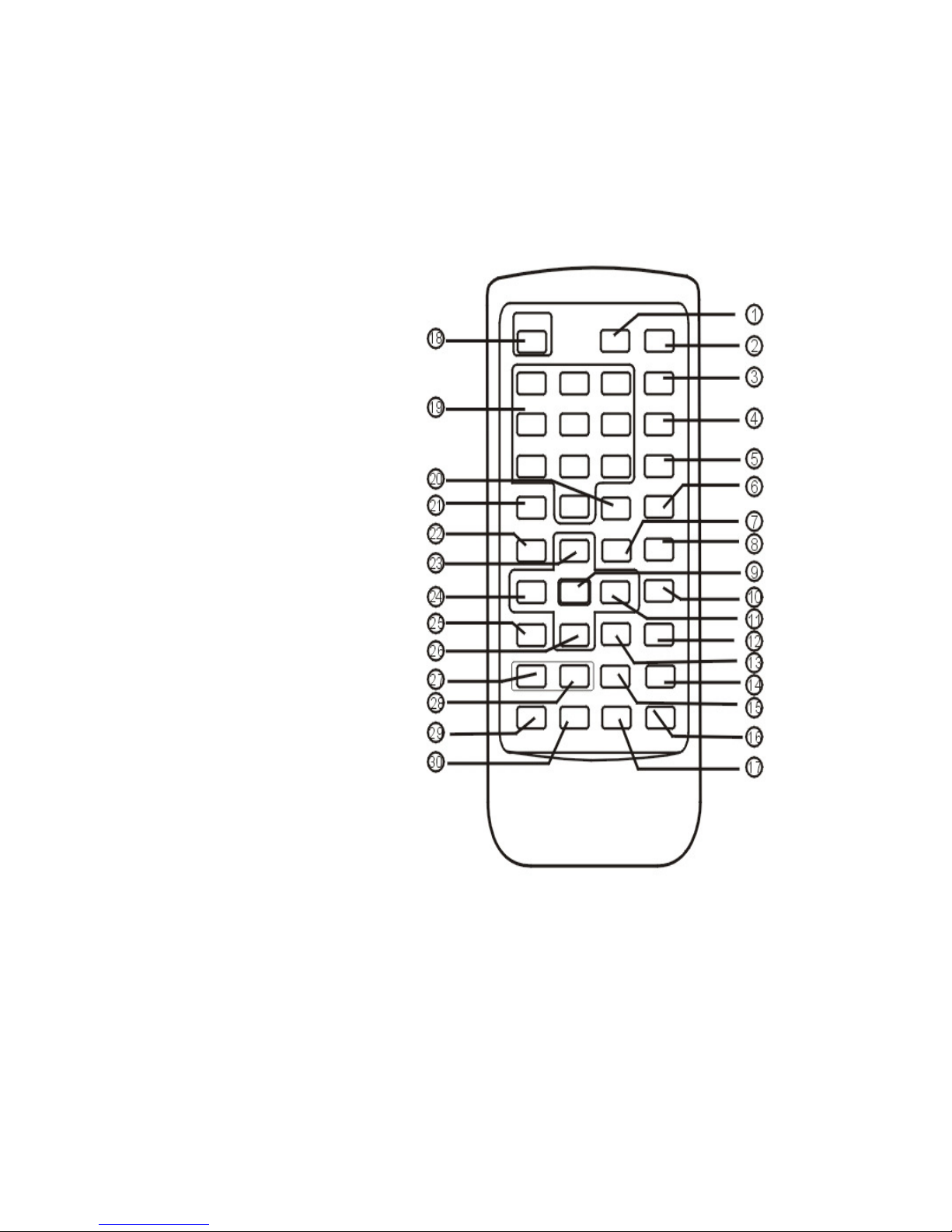

Remote Control Panel
1. ATV/DTV/DVD/AV
2. Open/Close
3. Mute
4. Display
5. Picture
6. DTV/RADIO
7. Guide
8. Stop
9. Menu
10. OK
11. Right
12. Angle
13. Back/Forward
14. Setup/View
15. Repeat
16. TEXT
17. Pause
18. POWER ON/OFF
19. Number Area
20. A-B
21. 10+
22. INFO/Back Forward
23. UP/CH+
24. LEFT
25. EXIT/
26. DOWN/CH-
27. VOL-
28. VOL+
29. ZOOM
30. AUDIO
4
DIGITAL TV PART:

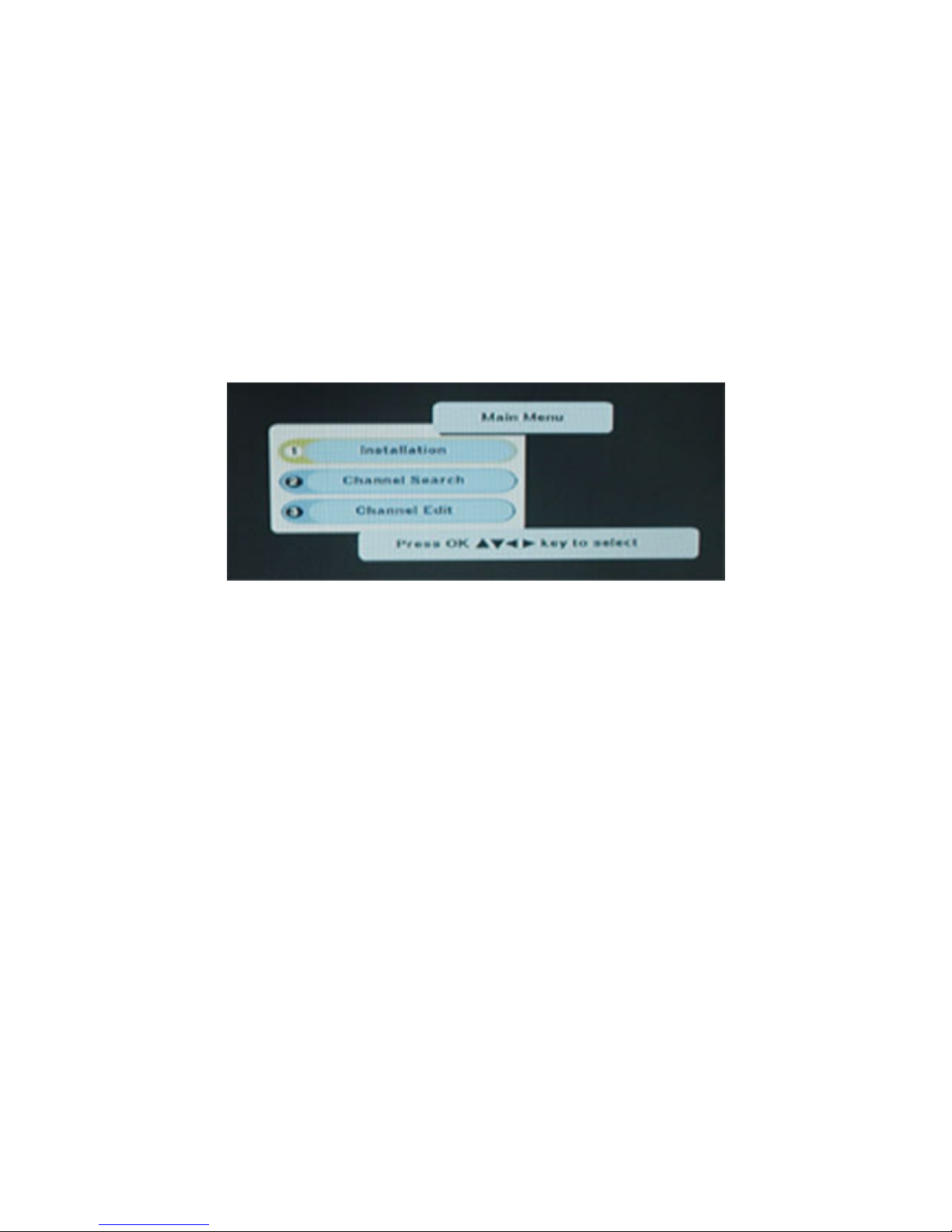

Main Menu
Once the installation is done, switch the receiver on and press the MENU button on the remote
control unit, the following main menu options will be displayed. All the important setting and
features of your receiver can be operated from the main menu. The main menu consists of several
sub-menus such as “Installation”, “Channel Search” and “Channel Edit”.
Using the menu ---- buttons in the center of the remote can move between the menus.
1. Press MENU to display the Main Menu.
2. Press to navigate through the menu.
3. Press OK on your selected item from the menu.
4. Press EXIT to terminate an operation.
5. Press EXIT until you to back to the Main Menu.
Note: When the receiver asks you to enter your PIN code, enter ‘0000’ by pressing the
numeric buttons.
5

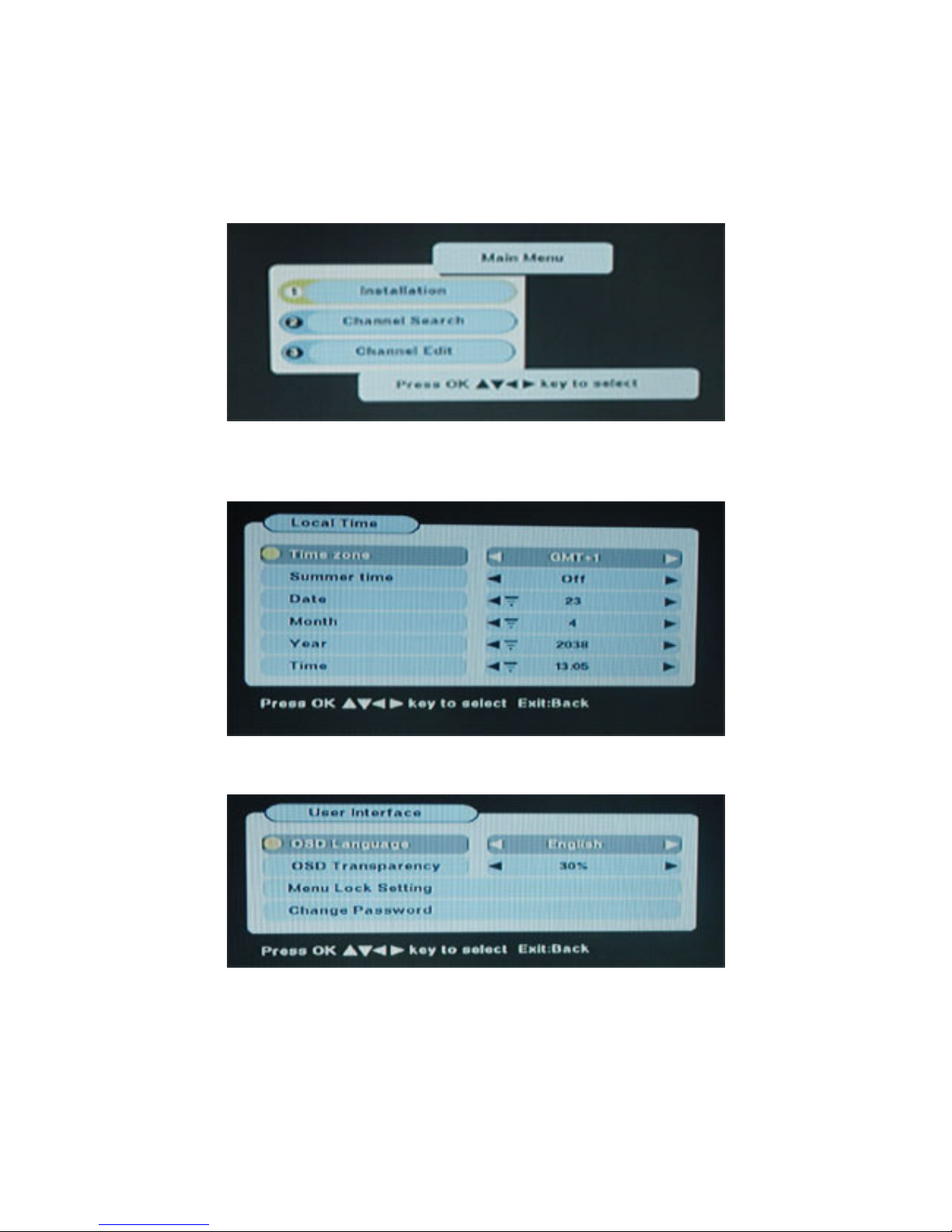

1. Installation
All setting that are related to TV, Dish is within this menu. The installation menu contains several
sub menus such as “Antenna Active”, “Channel Search”, and “System Setup”.
1.1.1 Local Time
You may press ---- to setup the time you want in the receiver.
1.1.2 User Interface
OSD language: control the language as to your preference.
OSD Transparency: customize the OSD transparency.
Menu Lock Setting: use this function if you want to lock access to each of the menus. The
password for this function is 0000. Then you are able to access and set up it.
6

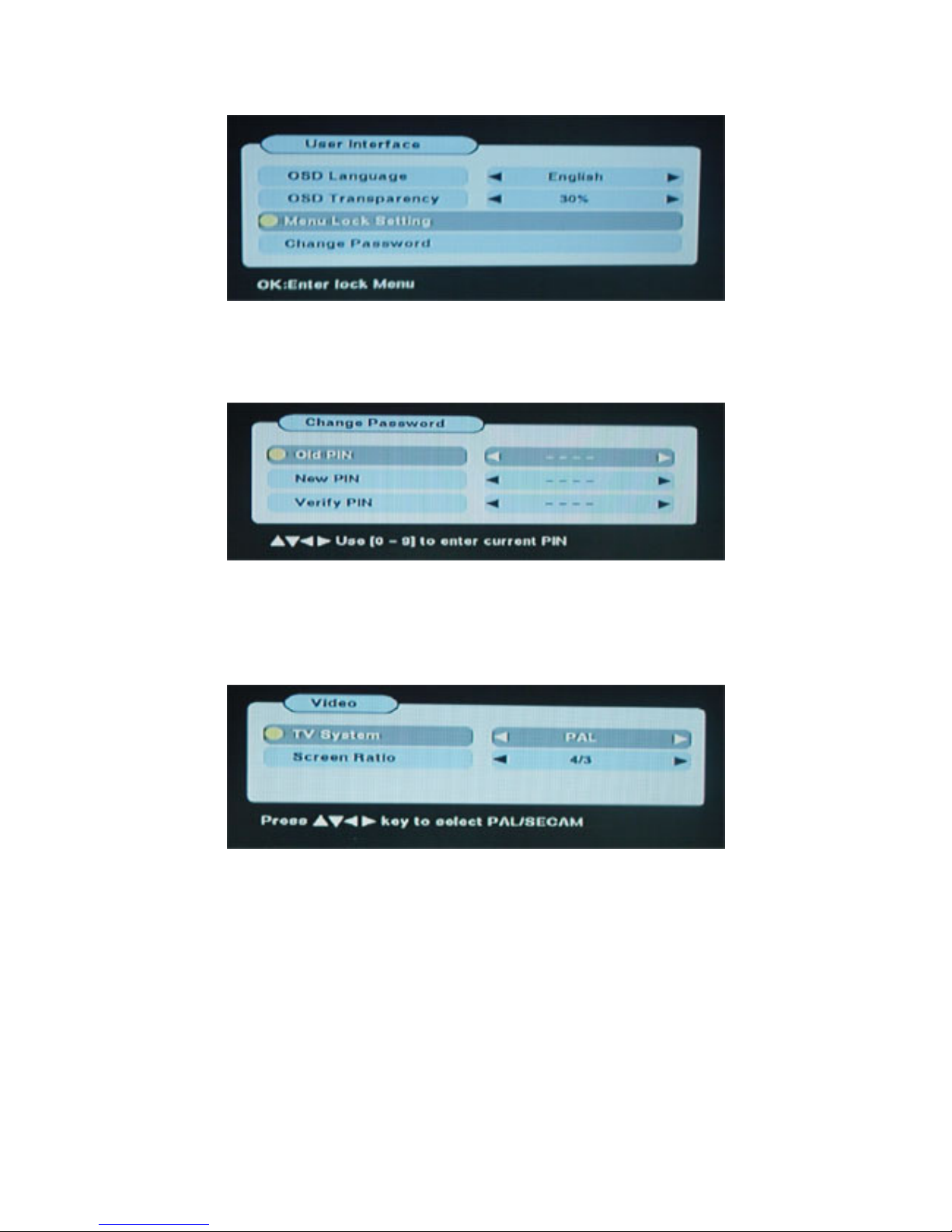

Change Password: for your user’s desired privacy, you can change the current password (PIN)
settings ‘0000’ to a new password for security purposes. The password is consisted of four
numbers, and you must input new password twice to ensure it correctly.
Note: Store the password in a safe place in case you forget.
1.1.3 Video
Video output: there are four video output modes:
△NTSC △PAL △SECAM
Scart screen ration: There are two video ratio:
△4:3 △16:9 (normal / windscreen)
7
1.2 Antenna active
If you select “Enable” in antenna setting submenu, the tuner can provide 5V power supply if you
use the amplifier. And you may select frequency in the list.
1.2.1 Factory Reset
After you input PIN code “0000”, you will be invited to continue the reset by pressing OK, Press
EXIT to deselect if you are unsure.
Note: this action will erase all the data you have stored in the receiver and restore it to its
‘cleared’ condition. Be sure that you want to perform this function before you proceed.
8

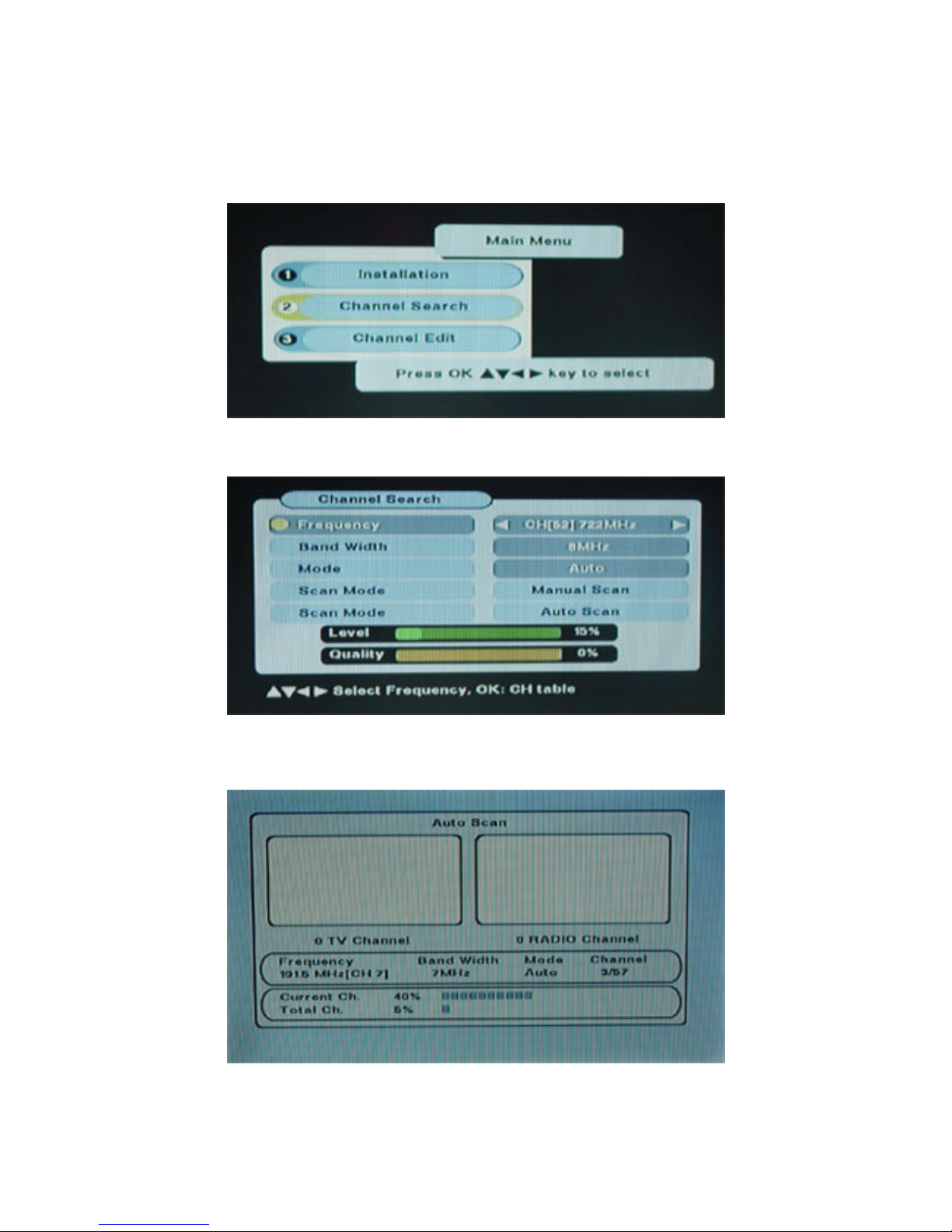

2. Channel Search
2.1.1 Channel Search
In this menu, you can search the channels you want, and you may setup as follows.
Move the cursor to channel scan and use the left or right key to select “Auto scan” or “Manual
scan”, and then press OK to search auto scan or manual scan.
Please wait for a little while till the search is finished
9

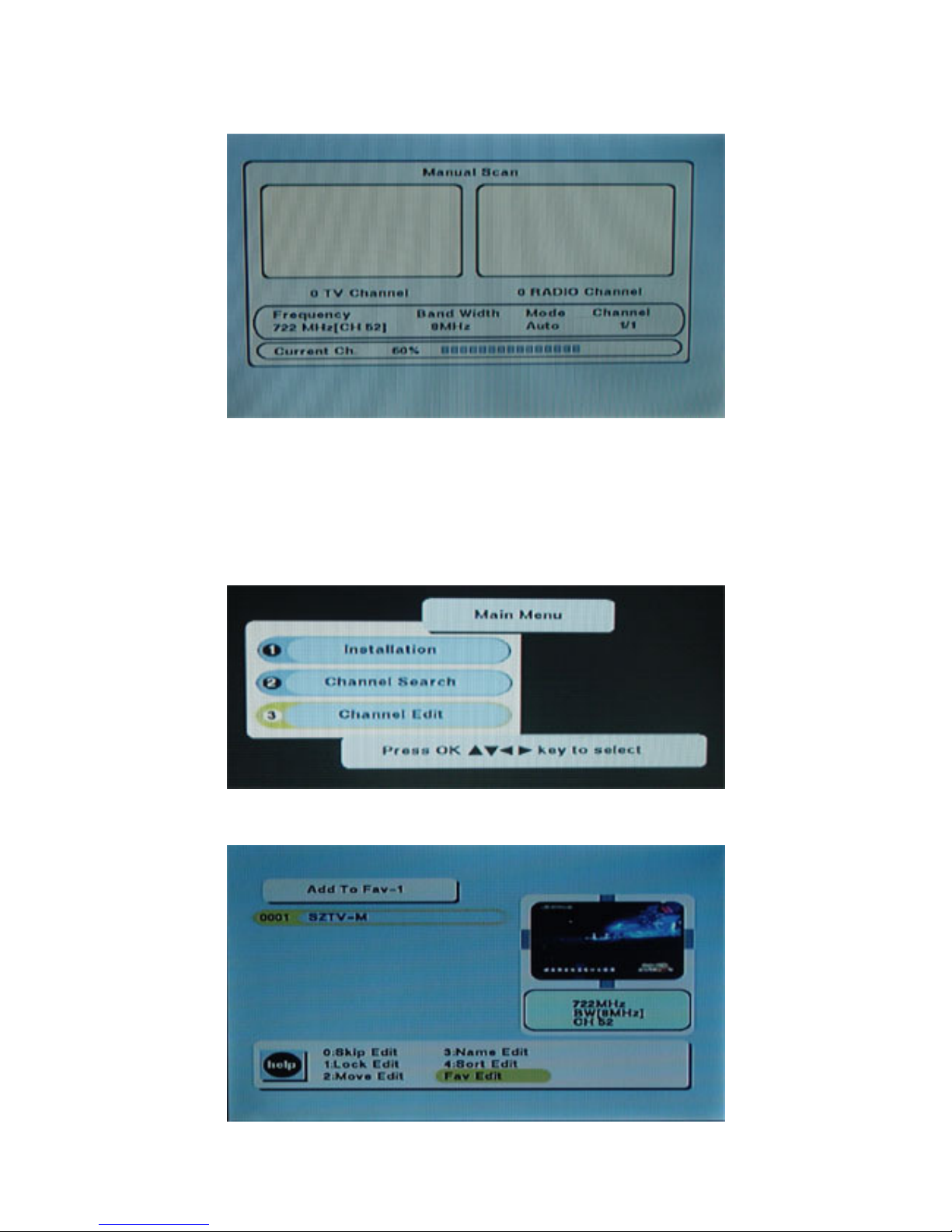

Please wait for a little while till the search is finished
3. Channel Edit
This menu enables you to setup the channel of DVB-T, such as move channels, make your own
favorite channels list, skip channel and delete channels from the list.
3.1 TV Channel
10
3.1.1 Skip
Press 0 in this menu, you may select the program you want to skip by pressing OK, and then a
logo will display beside the program. Press OK again to remove this logo. When you press
in no-menu state, the program will skip. You can press exit key to exit and save.
3.1.2 Lock
Press 1 in this menu and input the password, you can select the program you want to lock by
pressing OK, than a logo will display beside the program. Then press the key “EXIT”,
press “OK” to exit. If you want to unlocked this program, you can press 1 in this menu and input
the password, press OK again and remove this logo . then press the key “EXIT” , use
“ “ direction key to select “OK”, press “OK” to save unlock state. When you are watching the
locked program, you must input password.
3.1.3 Move
Press 2 in this menu, you may select the program you want to move by pressing OK, and then a
logo ---- will display beside the program. Move the cursor to the position you want and press OK,
the program move to the currently place. You can EXIT key to exit and save.
3.1.4 Delete
Press 3 in this menu, you may select the program you want to delete by pressing OK, and then a
logo ---- will display beside the program. And after you exit the menu, the program you selected
will be deleted. Press OK again to remove this logo. You can press EXIT key to exit and save.
3.1.5 Name
You can rename the current program.
Press 4 in this menu, and press OK, a keyboard is shown.
Press UP/DOWN/LEFT/RIGHT to select a letter, and the OK button to overwrite the current letter
by another letter. Press OK to confirm the changed name when you have finished. If change done,
press “SAVE”.
