808744 - Wolf 30'' (762) Microwave Trim Kit

Installation Instructions

808662 / Rev D / May, 2009Page 1 of 2

CONTAINS: QTY DESCRIPTION

1 Ductwork, MW24

2 Screw, #8-15x1/2 Truss Hd

1 Assemblied Trim Kit

6 6-18x1 Tpg Screw Type A

2 Trim, MW24 Polycarbonate

QTY DESCRIPTION

4 Self Tapping Screw - #8-18x1/2

1 Mtg Brkt, RT - MW

1 Mtg Brkt, LT - MW

1 Installation Instructions

INSTALLATION PROCEDURE:

1. Locate properly grounded 3-prong receptacle 4''

(102) from right side and 4'' (102) up from

bottom of microwave oven cabinet (See Cabinet

Dimensions).

NOTE: You must have a properly grounded, 3-

prong outlet installed by a qualified electrician. Do

not use a GFCI outlet, as this may cause product

operation interruptions.

2. The floor of the opening should be constructed of

plywood strong enough to support weight of oven

and floor load (about 100lbs./ 45 kg). The floor

should be level for proper operation of oven.

NOTE: Be sure to check local building code as it

may require that the opening be enclosed with

sides, ceiling and rear partition. The proper func-

tioning of the oven does not require the enclosure.

*17"

(432)

20" (508)

MIN.

*1-1/4

(32)

27-1/2"

(699)

Dimensions in brackets are in millimeters unless otherwise specified

* Dimensions may vary by +/- 1/8 (.3mm)

MICROWAVE

PLATFORM

1" (2.5) MIN.

DECORATIVE

CABINET RAIL

1-1/4" (32) MIN.

*1-1/4"

(32)

Cabinet Dimensions

NOTE: This Microwave trim kit is designed only for Wolf Microwave Ovens specifying 801527, 807056 or

808744 on rating label on the left side wall of oven cavity.

NOTE: Before begining remove turn table from microwave cavity.

TO AVOID ELECTRICAL SHOCK, SHUT OFF POWER BEFORE BEGINING INSTALLATION.

The Wolf Microwave Trim Kit (MWTRIM/5) is used only with the Wolf Microwave Model MW24. This model can

also be installed above a Wolf SO30.

The cabinet or wall opening must be the following dimensions:

Height: 17'' (432)

Width: 27-1/2'' (699)

Depth: 20'' (508) min.

This kit includes metal parts that have sharp edges, handle with care to avoid possible injury.

808744 - Wolf 30'' (762) Microwave Trim Kit

Installation Instructions

808662 / Rev D / May, 2009

Mounting

Bracket

Screws

Mounting

Brackets

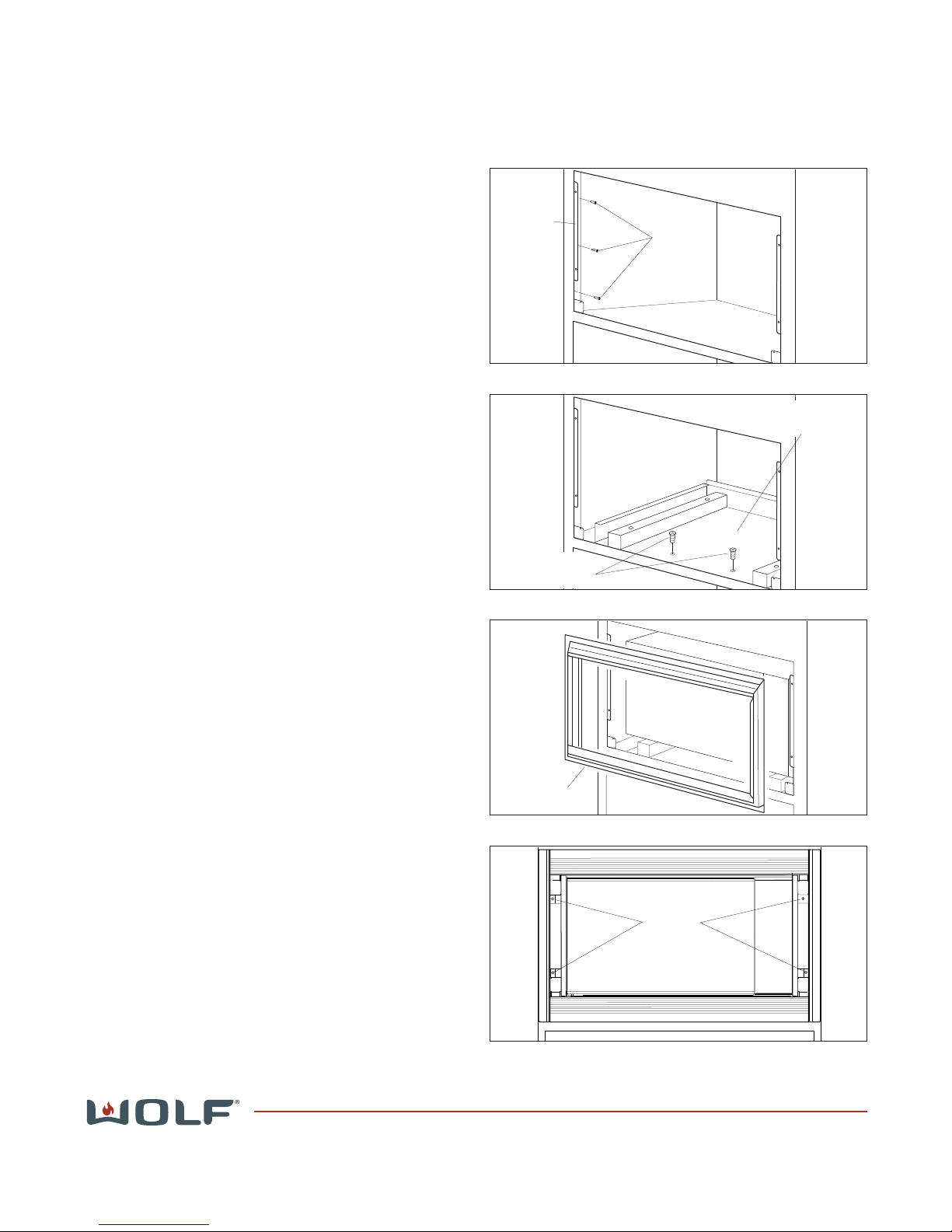

Figure 1. Mounting Brackets

Frame Assembly

Figure 3. Frame Assembly

Exhaust Duct

Assembly

Exhaust Duct

Mounting Screws

Figure 2. Exhaust Duct Assembly

3. Locate mounting brackets. Pre-drill pilot holes

before installing screws to avoid damage to cabinet

or trim kit hardware. Attach mounting brackets with

supplied screws, making sure brackets do not

extend beyond front surface of cabinet

(See Figure 1).

4. Center exhaust duct assembly in opening. When

centered correctly, its flanges will be tightly against

lower front edge of opening. Secure with mounting

screws (See Figure 2).

5. Place oven adjacent to wall or cabinet opening,

then plug power supply cord into electrical outlet.

6. Carefully guide oven into opening. Slide oven onto

exhaust duct assembly.

NOTE: Avoid pinching power cord between oven

and wall.

7. Position frame assembly to be square with oven.

Carefully place frame assembly on oven. Check

that it is level (See Figure 3).

8. Secure frame assembly with mounting screws

(See Figure 4).

9. Snap the polycarbonate trim pieces into place cov-

ering the screw holes.

Page 2 of 2

Trim Kit

Mounting

Screws

Figure 4. Trim Kit Screws
