Wolf MWD30-2F/S Bedienungsanleitung

30" Drawer Microwave Ovens

Model MWD30-2U/S shown.

Model MWD30-2F/S

Framed Trim S yle

As true cooking instruments, Wo f

microwave ovens have features that make

fast mea s better mea s. With easy access

to the food, drawer microwaves can be

bui t in undercounter or be ow a Wo f E

Series oven. They are designed to match

the trim sty e of Wo f E Series ovens and

can be insta ed in a standard or f ush

inset app ication.

Features

Classic stainless steel finish.

Trim styles match Wolf framed and

unframed E Series ovens.

Can be built in to fit below a Wolf

E Series oven.

Can be installed in a standard or flush

inset application.

950 watts of power with one cu ft of

interior drawer space.

Interior easily accommodates a

9" x 13" pan.

Easy-to-operate control panel has 11

programmable power levels.

Sensor cooking to monitor and adjust

settings.

Micro warm allows you to keep food warm

up to 30 minutes.

Interactive display—99 minutes,

99 seconds.

Window in drawer allows you to view food

as it cooks.

One-touch pads to open and close the

drawer.

Control panel can be deactivated or

locked.

Mode MWD30-2F/S MWD30-2U/S

Trim Style Framed Unframed

Model MWD30-2U/S

Unframed Trim S yle

Classic

Control Panel

287/16"(722)

OPENING WIDTH

231/2"min (597)

OPENING DEPTH

33" rec (838)

30" min (762)

CABINET WIDTH

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

2" (51)

24" min (610)

CABINET DEPTH

31/2"(89) x 2"(51)

ANTI-TIP BLOCK

143/4"(375)

OPENING

HEIGHT

Dashed lines represent profile of unit.

FRONT VIEWSIDE VIEW

5/8"(16) PLATFORM

36" rec (914)

33" min (838)

CABINET WIDTH

303/8"(772)

FLUSH INSET WIDTH

281/2"(724)

OPENING WIDTH

1"(25)

SIDE CLEATS

7/16"(11) PLATFORM

7/16"(11) TOP CLEAT

SIDE CLEATS

243/4"min

(629)

FLUSH

INSET

DEPTH

11/4"

(32)

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

19/16"(38)

25" min (635)

CABINET DEPTH

15" (381)

OPENING

HEIGHT

1515/16"

(405)

FLUSH INSET

HEIGHT

31/2"(89) x 2"(51)

ANTI-TIP BLOCK

Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

TOP VIEW

30" Drawer Microwave Ovens

Insta ation Notes

Wolf drawer microwave ovens may be used

in a standard installation, where the face trim

overlaps stiles and rails, or in a flush inset

installation with the front of the oven flush

with surrounding cabinetry.

30" drawer microwaves can be built in to fit

below a Wolf E Series oven.

Complete installation specifications can be

found on our website, wolfappliance.com.

Uni dimensions may vary by ±1/8".

Specifications

Overall Width 297/8"

Overall Height 157/16"

Overall Depth 233/8"

Oven Interior Capacity 1 cu ft

Oven Interior Dimensions

173/8" W x 57/8" H x 171/8"D

Recommended Cabinet Width 33"

Minimum Cabinet Depth Standard 231/2"

Flush Inset 243/4"

Opening Width 287/16"

Min Flush Inset Width 303/8"

Opening Height 143/4"

Min Flush Inset Height 1515/16"

Minimum Base Support 100 lbs

Power 950 W

Electrical Rating 1.5 kW

Electrical Requirements 120 AC, 60 Hz

15 amp circuit

Power Cord 4' cord with grounded plug

Shipping Weight 96 lbs

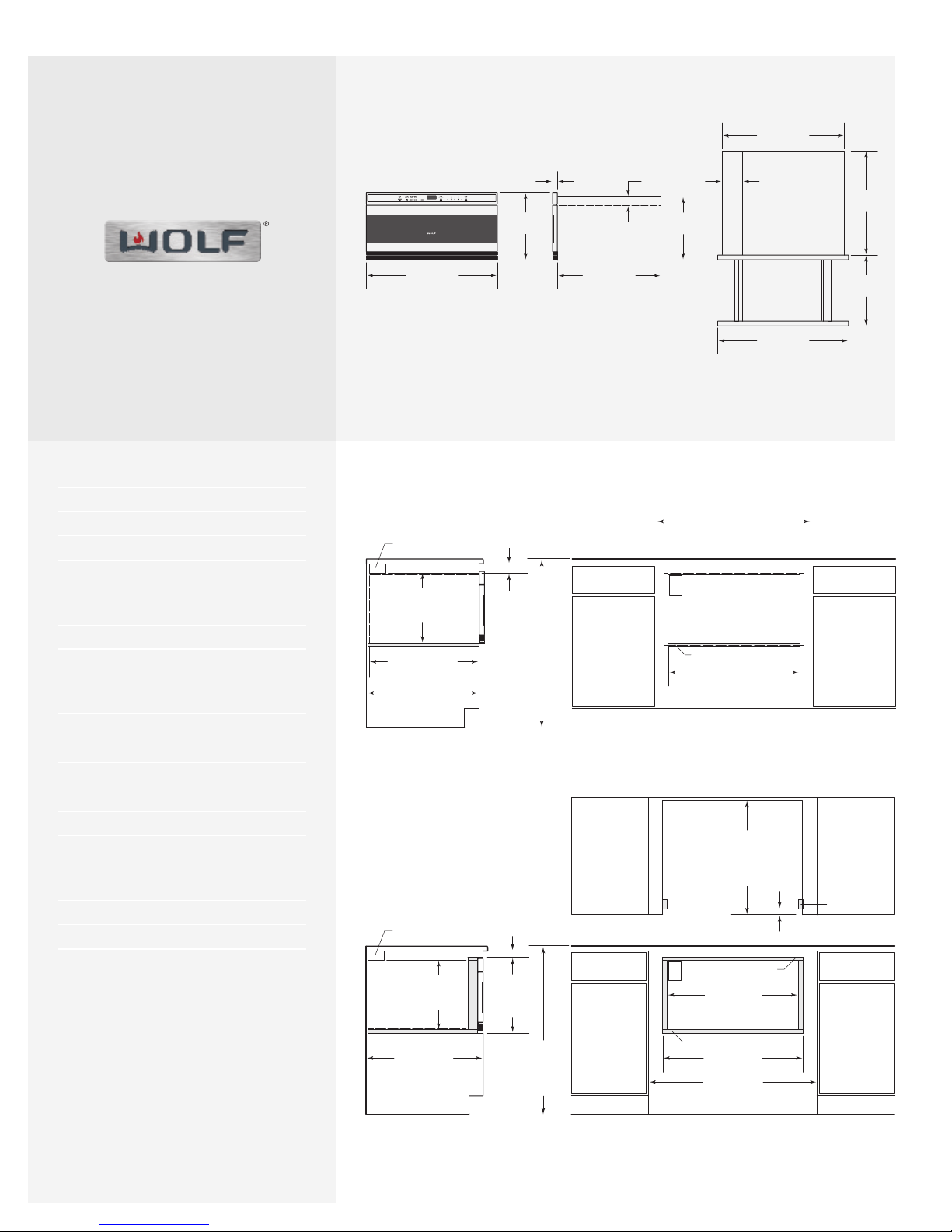

Insta ation Specifications

Standard Installation

Overa Dimensions

233/8"(594)

BEHIND FRAME

157/16"

(392)

297/8"(759)

281/8"(714)

POWER

CORD

CHANNEL

11/4"

(32)

411/16"

(119)

(51)

149/16"

(370)

233/8"

(594)

161/2"

(419)

297/8"(759)

Flush Inset Installation

Dimensions in paren heses are in

millime ers unless o herwise specified.
