WolfPack HE23U Bedienungsanleitung

ITEM NO.: HE23U 4K2K 60Hz HDMI (HDBaseT) CAT5e Extender

with USB/IR/RS232

HE23U HDMI CAT5 Extender is using only one cost effective CAT.5e/6 cable to extend your

UHD display up to 100 meters at 4K2K 60Hz. With USB, Bi-directional RS232 and IR function

to delivers significant value to the entire home and commercial entertainment system.

HE23U 4K2K 60Hz HDMI (HDBaseT) CAT5e Extender with USB/ IR/RS232

Features:

Extends HDMI, USB,RS232 and IR signal over one CAT5e/6 cable.

HDBaseT 2.0, HDCP 2.2 & DVI Compliant.

Uncompressed high definition video up to 4K2K@60hz (YCbCr 4:2:0).

Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA

Transmission range up to 100 meters at 4K2K resolution.

Bi-directional IR, support 30-60khz.

Bi-Directional RS232.

USB support USB 2.0 and USB 1.0 and 1.1.

Perfect for 4K2K touch panel application.

Installation view:

Cable:

Link cable recommend use high quality CAT.5e、CAT.6、CAT.6a、CAT.7 UTP / STP or FTP cable.

Poor quality cable or network connection or improper construction will cause unstable

connection, video or sound disruptions, picture noise appears.

HDMI (HDBaseT) CAT5 Extender Series

HDBaseT Distance chart by different cable:

If connection through the wall socket, the cable length must less 100 meters between HDMI

extender and wall jack, as below drawing:

Panel view:

HE23UT

HE23UR

LED Instruction:

Switch Function:

1. RS232 ON : Firmware Update ,OFF : RS232 Extension

2. LINK MODE ON : Low Power ,OFF : Long Reach

3. IR MODE ON : Polarity Reverse ,OFF : Default

4. IR RX TYPE ON : Pinout Exchange ,OFF : Default

Remark: IR mode and IR RX type is for 3rd Party IR system which use different

polarity and pinout, please check with your IR system supplier.

Cable Type

Range

Pixel Clock Rate

Video Data Rate

Supported Video

CAT5e

100M

<=225Mhz

<=5.3Gbps

(HD Video)

Up to 1080p, 60 Hz, 36 bpp

(data rates lower than 5.3

Gbps or below 225 MHz

TMDS clock).

90M

>225Mhz

>5.3Gbps

(Ultra HD Video)

1080p 60 Hz 48 bpp, 1080p

60 Hz 3D, 4K2K/30Hz/4:4:4

and 4K2K/60Hz/4:2:0 video

formats

CAT5e/CAT6a/C

AT7

100M

Color

Status

HE23UT

HE23UR

GREEN

ON: Power on

BLUE

LINK

ON: HDBaseT Linking

RED

HDCP

OFF: HDMI unlink, ON: HDCP enable , Flash: HDCP disable

Color

Status

HE23UT

HE23UR

GREEN

STATUS

ON: IR Polarity Reverse (third party IR system)

BLUE

IR RX

ON: Receiving IR signal

RED

IR TX

ON: Sending IR signal

Transmitter

Wall Jack

Receiver

MAX 100M

< 5M

1 2 3 4

RS232 Define:

DB9(F)/3.5mm STEREO PHONE JACK DB9(M)/3.5mm STEREO PHONE JACK

RS232

3.5 mm Phone Jack

RS232

3.5 mm Phone Jack

Footprint

Define

Footprint

Define

Footprint

Define

Footprint

Define

Pin 2

Pin 1

Pin 2

Pin 1

Pin 3

Pin 2

Pin 3

Pin 2

Pin 5

GND

Pin 3

GND

Pin 5

GND

Pin 3

GND

RJ45 Define:

Video Link (TIA/EIA-568-B)

1. Orange-white DATA0 +

2. Orange DATA0 -

3. Green-white DATA1 +

4. Blue DATA2 +

5. Blue-white DATA2 -

6. Green DATA1 -

7. Brown-white DATA3 +

8. Brown DATA3 -

Caution:

1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone,

microwave, radio equipment, fluorescent lamp, high voltage power lines.

2. The cable must pull in straight to avoid any crosstalk interference and the transmission

stability.

3. This device HDBaseT port is not general Ethernet signal; do not connect with Network

devices to avoid damage.

4. IR transmitter do not put near from receiver to avoid mutual interference.

Package Include:

HE23UT HDM Transmitter x 1 pcs

HE23UR HDMI Receiver x 1 pcs

IR Blaster Cable x 1 pcs

IR Receiver Cable x 1 pcs

USB A/B cable x 1 pcs

DB9 (M)/3.5mm STEREO PHONE JACK x 1

DB9 (F)/3.5mm STEREO PHONE JACK x 1

Mounting Screw pack x 2 bags

DC5V 2Amp Power Adapter x 2 pcs

DB9(F)/3.5mm STEREO PHONE JACK

DB9(M)/3.5mm STEREO PHONE JACK

Specification:

Rev. A

ITEM NO.

HE23UT

HE23UR

HDMI Connector

HDMI Type A x 1

HDMI Video Support

1080p @ 60Hz @ 48bits、3D、4K x 2K(YCbCr 4:2:0)

HDMI Audio Support

Up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA

HDBaseT Connector

RJ45 x 1

HDBaseT Distance

100M

RS-232 Interface

DB9(F)/3.5mm STEREO PHONE JACK

DB9(M)/3.5mm STEREO PHONE JACK

RS-232 Baud Rate

115200 bps / full duplex

IR Input/Output

3.5mm Phone Jack x 2

IR Carrier

Frequency/Angle/Distance

20~60KHz / T：± 10° / R：± 55° / 5M /Bi-directional

USB input/output

USB Type B x 1

USB Type A x 1

Power Consumption

800mA

1200mA

Power Adapter

DC 5V 2A

Temperature

Operation: -10 to 45℃, Storage: -30 TO 75℃, Humidity: up to 95%

Dimensions mm

109.6 x 109.5 x 30

Weight g

280

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere WolfPack Extender Handbücher

WolfPack

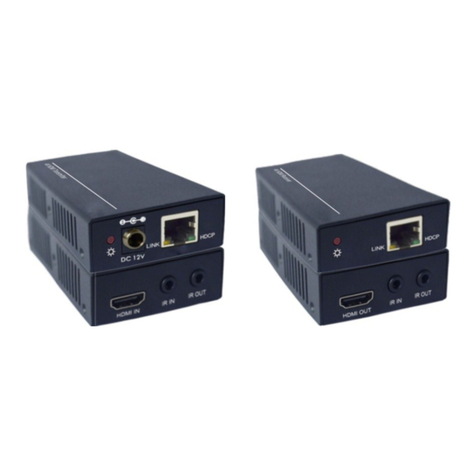

WolfPack TPHD-BYE Bedienungsanleitung
