Wood Stone PHOENIX 3030 Bedienungsanleitung

PHOENIX OVEN

Gas-Fired Stone Hearth Oven

Revised September 2009

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

www.woodstone-corp.com

PHOENIX 3030

WS-PX-3030-RFG

PHOENIX 4343

WS-PX-4343-RFG, WS-PX-4343-RFG-W

PHOENIX 4355

WS-PX-4355-RFG, WS-PX-4355-RFG-W

Installation and

Operation Manual

TABLE OF CONTENTS

PHOENIX OVEN --------------------------------------------------------------------------------- 2

WS-PX-3030 SPECIFICATIONS ------------------------------------------------------------------ 4

WS-PX-4343 SPECIFICATIONS ------------------------------------------------------------------ 5

WS-PX-4355 SPECIFICATIONS ------------------------------------------------------------------ 6

INSTALLATION CLEARANCES -------------------------------------------------------------------- 7

MOVING THE OVEN ----------------------------------------------------------------------------- 8

EXPLODED PARTS VIEW------------------------------------------------------------------------ 11

ASSEMBLY ------------------------------------------------------------------------------------ 12

ASSEMBLY-CONNECTIONS --------------------------------------------------------------------- 18

DISASSEMBLY--------------------------------------------------------------------------------- 20

VENTING -------------------------------------------------------------------------------------- 23

OVEN STARTUP-------------------------------------------------------------------------------- 24

DAILY OPERATION ----------------------------------------------------------------------------- 25

DAILY MAINTENANCE -------------------------------------------------------------------------- 26

SAFETY CONSIDERATIONS --------------------------------------------------------------------- 27

CONTROLLER --------------------------------------------------------------------------------- 28

120 V ELECTRICAL DIAGRAM ------------------------------------------------------------------ 29

240 V ELECTRICAL DIAGRAM ------------------------------------------------------------------ 30

LIMITED WARRANTY --------------------------------------------------------------------------- 31

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

TABLE OF CONTENTS

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

WS-PX-4343-RFG-(NG OR LP), WS-PX-3030-RFG-(NG OR LP),

WS-PX-4343-RFG-(NG OR LP)-W, WS-PX-3030-RFG-(NG OR LP)-W

INSTALLATION AND OPERATION MANUAL

FOR THE WOOD STONE PHOENIX

THIS APPLIANCE IS FOR PROFESSIONAL USE BY QUALIFIED PERSONNEL. THIS APPLIANCE

MUST BE INSTALLED BY QUALIFIED PERSONS IN ACCORDANCE WITH THE REGULATIONS

IN FORCE. THIS APPLIANCE MUST BE INSTALLED WITH SUFFICIENT VENTILATION TO

PREVENT THE OCCURRENCE OF UNACCEPTABLE CONCENTRATIONS OF SUBSTANCES

HARMFUL TO HEALTH IN THE ROOM IN WHICH IT IS INSTALLED. THIS APPLIANCE NEEDS

AN UNOBSTRUCTED FLOW OF FRESH AIR FOR SATISFACTORY COMBUSTION AND MUST

BE INSTALLED IN A SUITABLY VENTILATED ROOM IN ACCORDANCE WITH CURRENT

REGULATIONS. THIS APPLIANCE SHOULD BE SERVICED BY QUALIFIED PERSONNEL AT LEAST

EVERY 12 MONTHS, OR SOONER IF HEAVY USE IS EXPECTED.

NATURAL GAS OR PROPANE FUELED STONE HEARTH OVEN

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

PHOENIX OVEN

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

PHOENIX OVEN

WARNING: This product must be installed by a Licensed Plumber or Gas Fitter when installed within the

Commonwealth Of Massachusetts.

WOOD STONE PHOENIX GAS OVEN INSTALLATION AND OPERATING INSTRUCTIONS

DO NOT THROW THIS MANUAL AWAY

RETAIN THIS MANUAL FOR FUTURE REFERENCE: Additional copies of this manual and prompt responses to

service/maintenance questions are available from Wood Stone @ 1-800-988-8103.

IMPORTANT: Consult your local gas supplier for a statement outlining a procedure to be followed in the event

you smell gas. Post the statement in a prominent location.

FOR YOUR SAFETY: Do not store or use gasoline or other ﬂammable vapors or liquids in the vicinity of this

or any other appliance. Also, always keep the area under and around this appliance free and clear of any

and all combustible materials.

IT IS RECOMMENDED THAT THIS OVEN BE INSTALLED, MAINTAINED AND SERVICED BY AUTHORIZED

PROFESSIONALS.

WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property

damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before

installing or servicing this equipment.

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

PHOENIX OVEN

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

Electrical

Specify AC Voltage, 1 amp, 50/60 Hz

See Data Plate on oven.

All utility connections made on the

back of the oven control box. Remove

front or rear panel for access, use

utility knockouts (provided) to route

gas and electrical supplies.

VENTING INFORMATION

The Phoenix should be vented using an approved

chimney, or an exhaust hood constructed and

installed in accordance with all relevant local and

national codes. Phoenix models with a -W in the

model number must be vented in accordance with

all regulations pertaining to solid fuel appliances.

Top View

Side View

Front View

Rear View

Unit Shipping Weight:

499 Kg

UTILITIES SPECIFICATIONS

Gas-3/4 inch gas inlet (female threaded)

42,000 BTU Natural Gas Supply OR

35,000 BTU Propane (LP) Supply

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

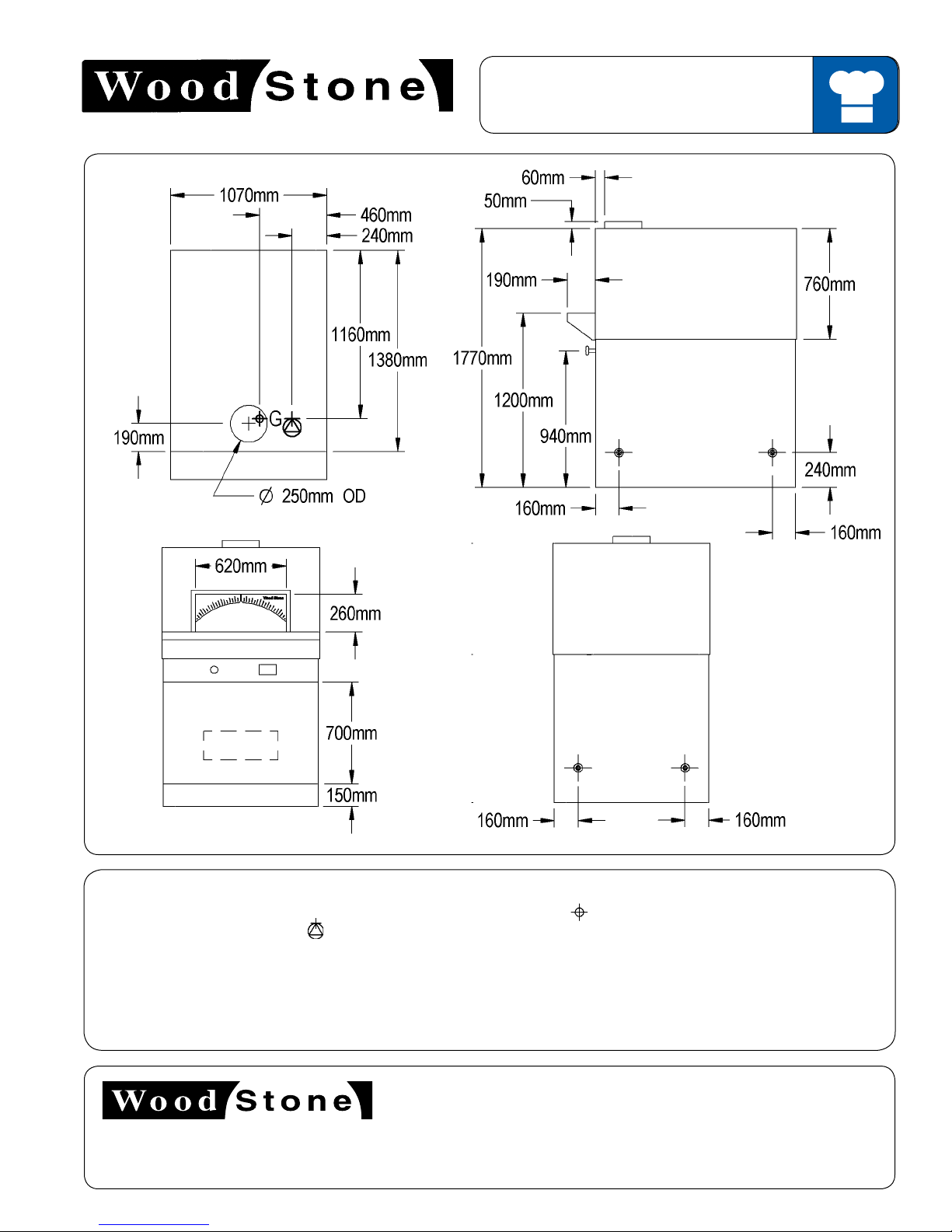

WS-PX-3030 SPECIFICATIONS

Unit Shipping Weight:

953 Kg

UTILITIES SPECIFICATIONS

Gas-3/4 inch gas inlet (female threaded)

80,500 BTU Natural Gas Supply OR

68,000 BTU Propane (LP) Supply

Electrical

Specify AC Voltage, 1 amp, 50/60 Hz

See Data Plate on oven.

All utility connections made on the

back of the oven control box. Remove

front or rear panel for access, use

utility knockouts (provided) to route

gas and electrical supplies.

VENTING INFORMATION

The Phoenix should be vented using an approved

chimney, or an exhaust hood constructed and

installed in accordance with all relevant local and

national codes. Phoenix models with a -W in the

model number must be vented in accordance with

all regulations pertaining to solid fuel appliances.

Top View

Side View

Front View

Rear View

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

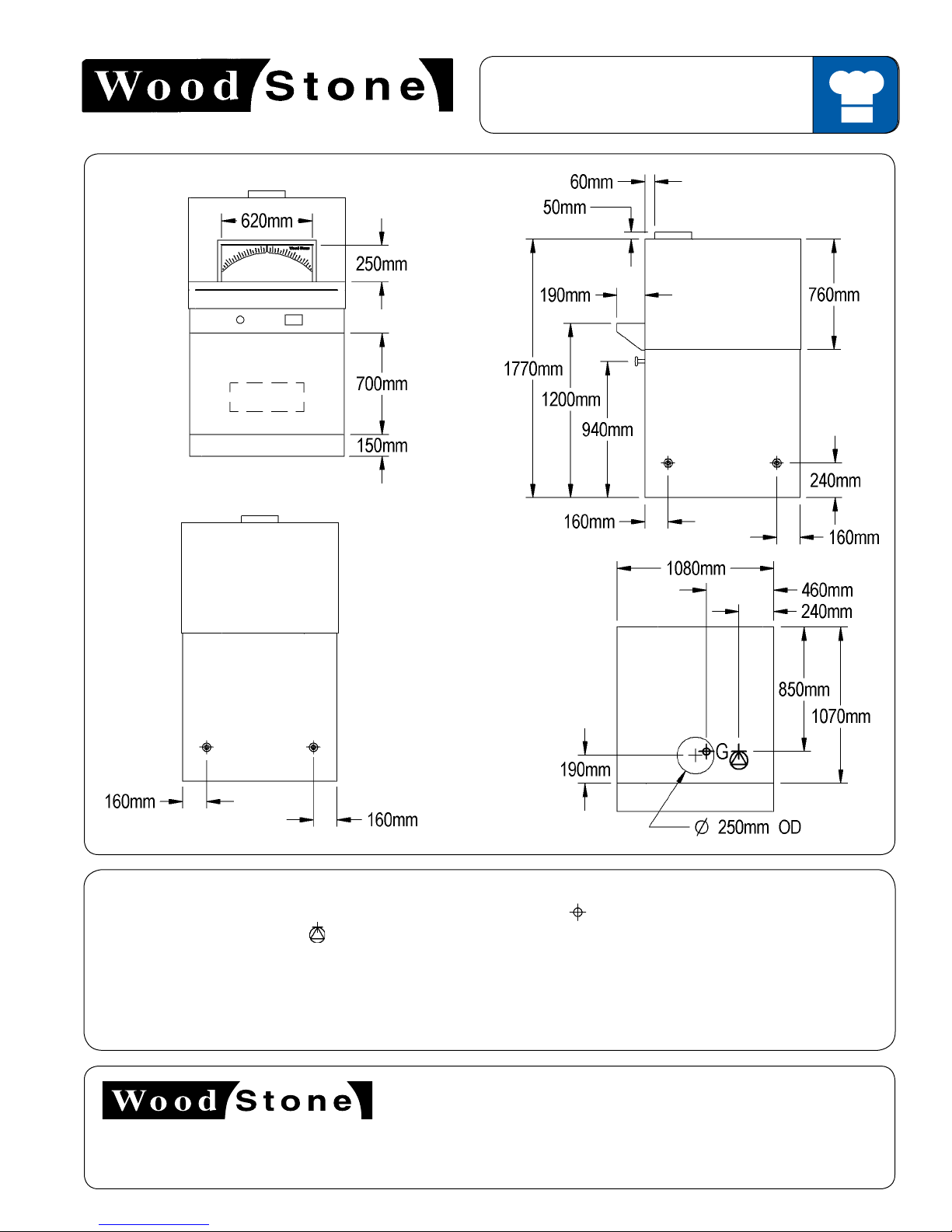

WS-PX-4343 SPECIFICATIONS

Top View

Front View

Side View

Rear View

Unit Shipping Weight:

1134 Kg

UTILITIES SPECIFICATIONS

Gas-3/4 inch gas inlet (female threaded)

80,500 BTU Natural Gas Supply OR

68,000 BTU Propane (LP) Supply

OG models see Equipment Data Plate

Electrical

Specify AC Voltage, 1 amp, 50/60 Hz

See Data Plate on oven.

All utility connections made on the

back of the oven control box. Remove

front or rear panel for access, use

utility knockouts (provided) to route

gas and electrical supplies.

VENTING INFORMATION

The Phoenix should be vented using an approved

chimney, or an exhaust hood constructed and

installed in accordance with all relevant local and

national codes. Phoenix models with a -W in the

model number must be vented in accordance with

all regulations pertaining to solid fuel appliances.

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

WS-PX-4355 SPECIFICATIONS

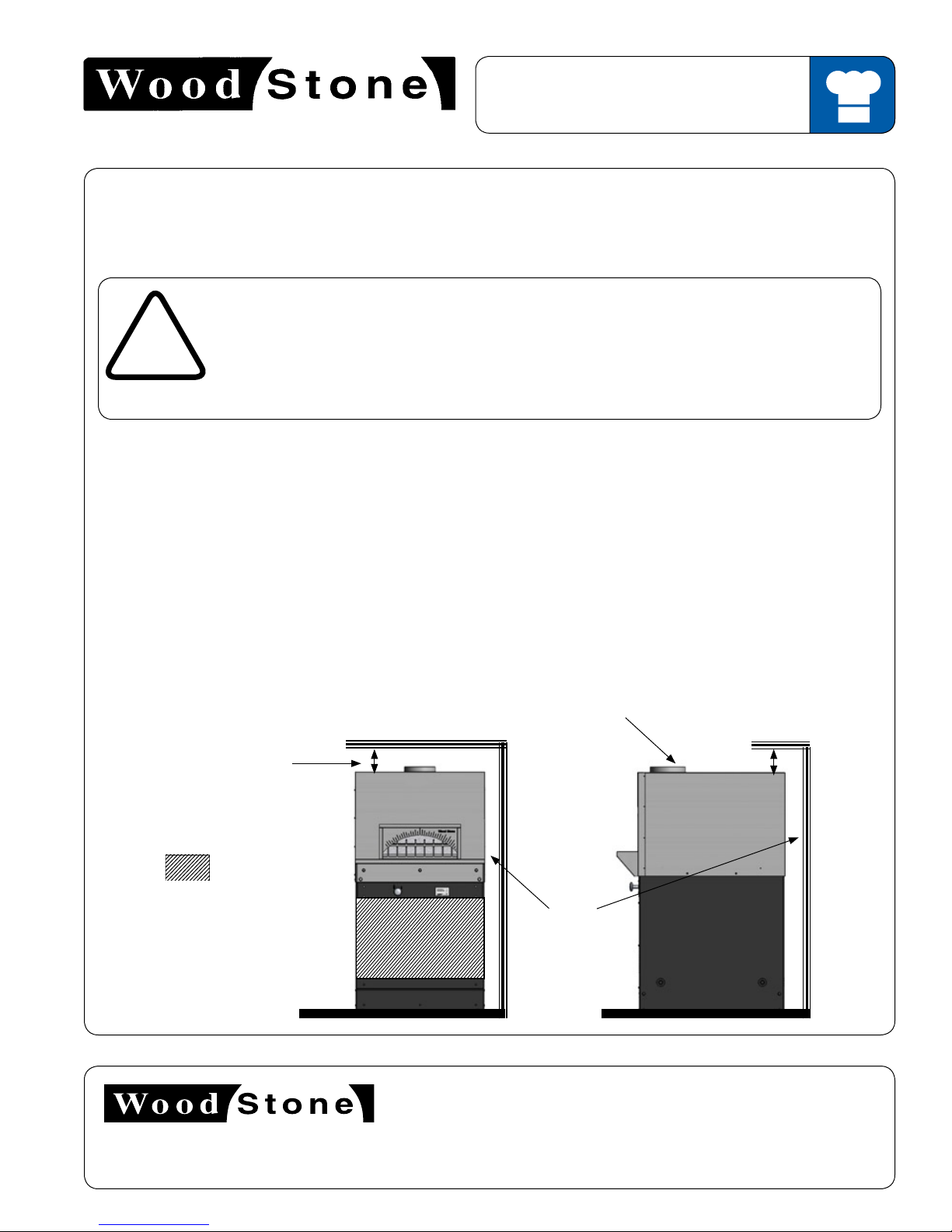

CLEARANCES

a. The Wood Stone Phoenix oven should have a minimum 1-inch (2.54 cm) clearance to combustibles from all sides,

6-inch (15.2 cm) clearance to combustibles from the top, and 6-inch clearance (15.2 cm) from the ﬂue collar.

If building a facade that will contact the oven, use completely non-combustible materials. Any facade wall built above or

6-inches (15.2 cm) to either side of the doorway must be of non-combustible construction. Please note that standard drywall

(or sheet rock) is considered a limited combustible. Any walls perpendicular to the front of the oven in the area 30 inches

(76.2 cm) to either side of the doorway and 36 inches (91.4 cm) in front of the oven should have a non-combustible surface.

b. The oven should be installed on a non-combustible ﬂoor surface. The non-combustible ﬂoor surface must extend 36

inches (91.4 cm) in front of and 30 inches (91.4 cm) to either side of the oven doorway.

IF THIS OVEN IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THESE

INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED

CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF THE UTMOST IMPORTANCE THAT THIS OVEN

BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.

WARNING: Installation and servicing of this product could expose you to glasswool/ceramic

ﬁbers as well as Calcium Silicate dust. ALWAYS WEAR RESPIRATORY AND EYE PROTECTION

WHEN INSTALLING OR SERVICING THIS APPLIANCE. Please read this entire manual before you

install the oven. Failure to follow instructions may result in property damage, bodily injury

or even death. Contact your local building or ﬁre ofﬁcials about restrictions and installation

inspection in your area.

6-inches

(15.2 cm)

Hatched area must be left

accessible and unobstructed

after installation for air

intake and routine service

of the oven burner.

6-inches

(15.2 cm)

1-inch (2.54 cm)

minimum side

clearance to

combustible

construction

Maintain 6-inch

(15.2 cm) clearance

from the exhaust

transition.

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

INSTALLATION CLEARANCES

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

INSTALLATION CLEARANCES

If you received your Phoenix oven disassembled, go to page 12.

If you received your Phoenix oven fully assembled, but need to disassemble the oven to move it through a narrow door

or passageway, go to page 20.

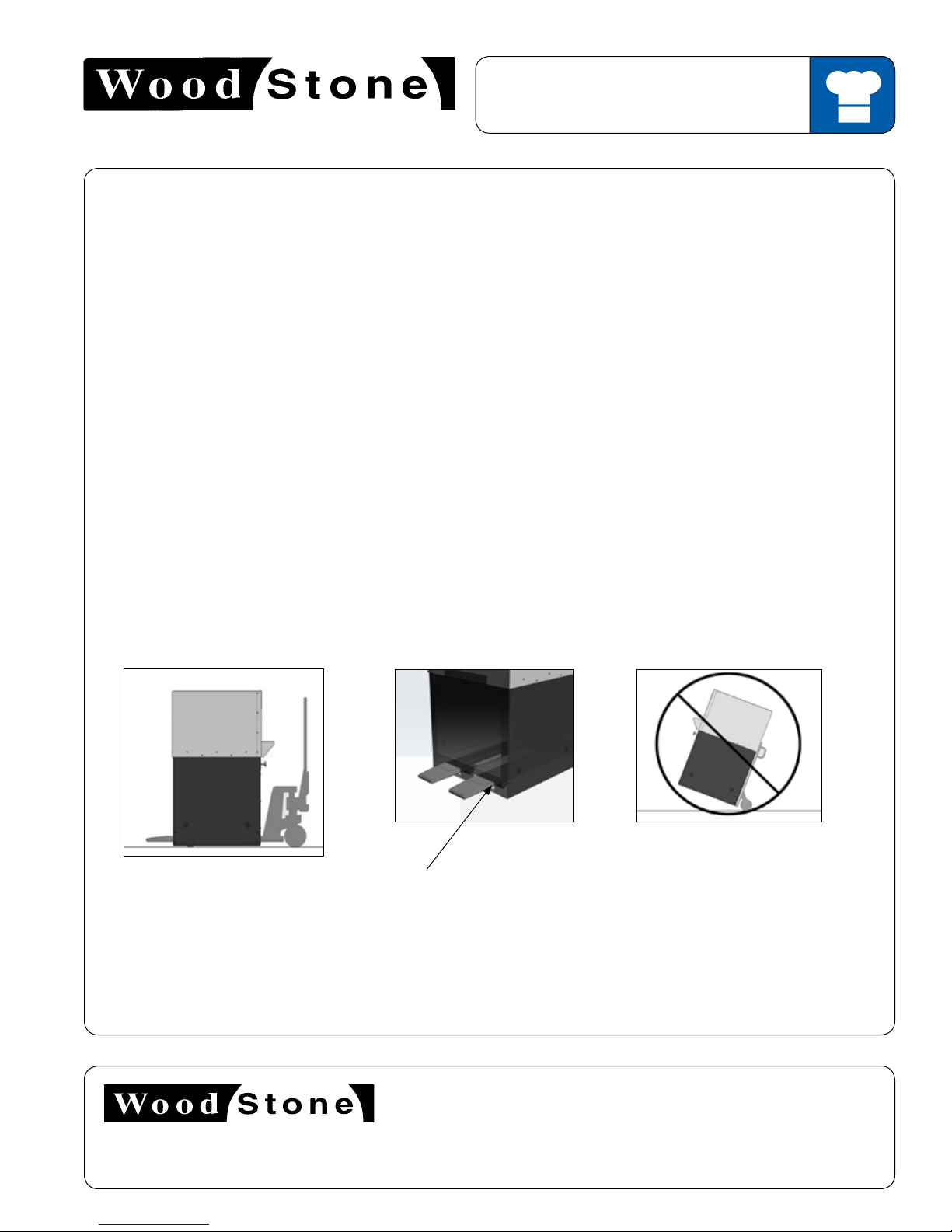

If you received your Phoenix oven fully assembled, the oven can be moved into place with a pallet jack using

the LOWER forklift pockets. If the oven is to be installed against a wall, you may need to leave access to the

back of the oven to complete the utility connections.

CAUTION: The 3030 model Phoenix oven weighs approximately 499 kg. The 4343 model Phoenix oven weighs

approximately 953 kg. The 4355 model Phoenix oven weighs approximately 1134 kg. The oven is very top-heavy.

IF THE OVEN TIPS IT CAN CAUSE SEVERE INJURY OR DEATH! NEVER ATTEMPT TO USE A HAND TRUCK TO MOVE

THE OVEN! The oven should only be moved using a Pallet Jack on a LEVEL FLOOR. If the oven must be moved

over an inclined surface, a forklift or other suitable means should be employed. If the installer does not have

the equipment or experience required to move the oven safely, we recommend you secure the services of a

qualiﬁed rigging company.

Make sure the pallet jack wheels do not contact the underside of the fork pocket when lifting to avoid damaging

the stand.

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

MOVING THE OVEN

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

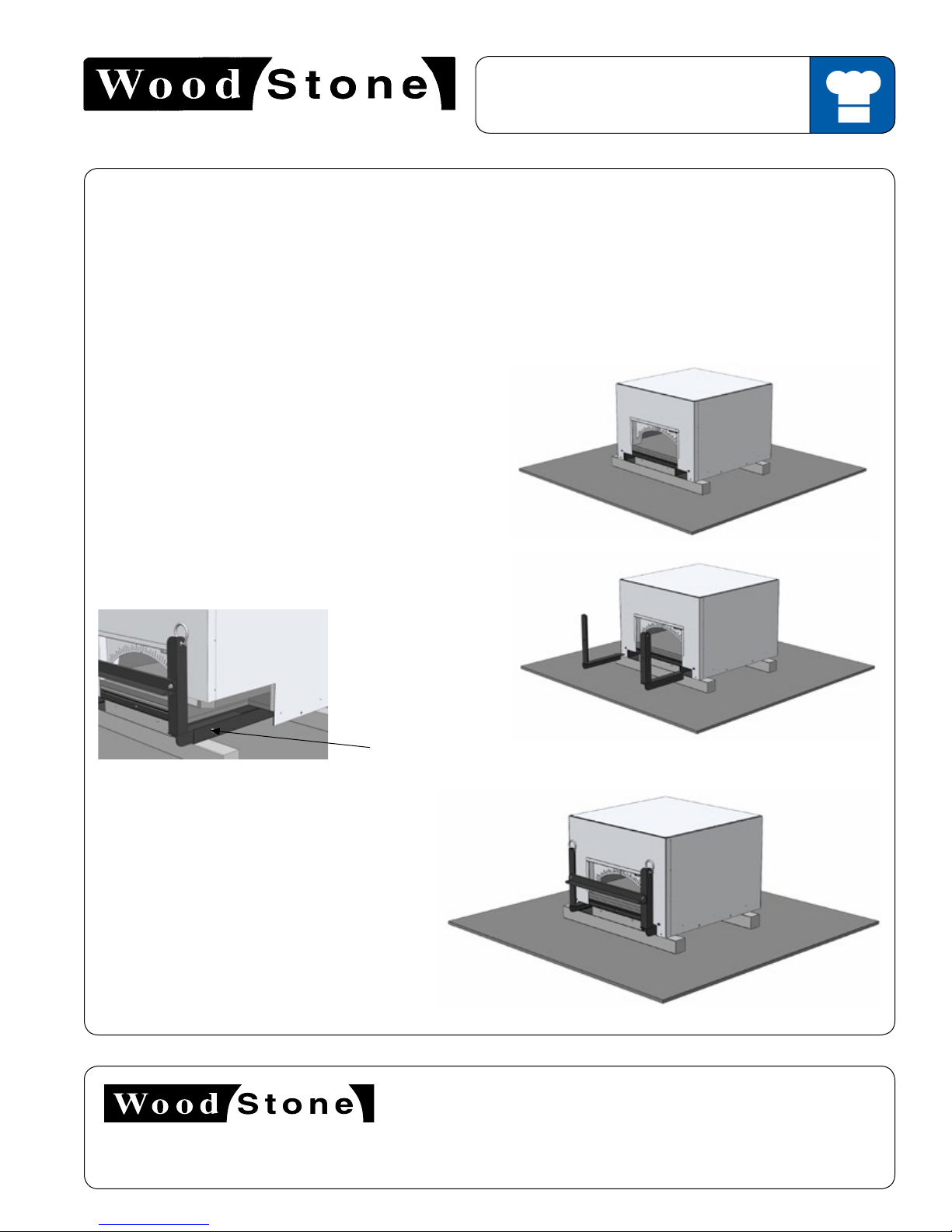

MOVING THE OVEN

1. Use a forklift or other suitable lifting means to

set the oven body onto blocks as shown. If the

oven has the optional decorative logset, remove

it before tipping the oven.

2. Install the side pieces of the tipping

assembly.

3. Bolt the side piece to the oven as shown,

and attach the cross-piece using the hardware

provided.

Install a clevis ring in the top hole of each side

piece of the tipping assembly. Use these for

attachment of a lifting strap or chain.

If you received your oven disassembled, and you don't need to tilt the oven to move it through a door or narrow passageway,

refer to the exploded parts diagram on page 11, and go to page 12 for assembly instructions.

If you received the oven disassembled and need to move it through a narrow door or passageway, follow the instructions

below...

Cut away view

bolt

If your oven was originally shipped assembled, the optional lifting system is available from Wood Stone.

WOOD STONE CORPORATION

1801 W. Bakerview Rd.

Bellingham, WA 98226 USA

Toll Free (800) 988-8103

Tel (360) 650-1111

Fax (360) 650-1166

Info@www.woodstone-corp.com or visit www.woodstone-corp.com

Phoenix Installation and Operation Manual

MOVING THE OVEN

An ongoing program of product improvement may require us to change

speciﬁcations without notice.WS-PX-3030, WS-PX-4343, WS-PX-4355

Revised September 2009

Andere Handbücher für PHOENIX 3030

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Wood Stone Ofen Handbücher

Wood Stone

Wood Stone MOUNTAIN MT. CHUCKANUT Series Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK 6045 Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK 11260 WS-FD-11260-CL Bedienungsanleitung

Wood Stone

Wood Stone TRADITIONAL Series Bedienungsanleitung

Wood Stone

Wood Stone TRADITIONAL Series Bedienungsanleitung

Wood Stone

Wood Stone WS-GFT-31 Bedienungsanleitung

Wood Stone

Wood Stone CS-REC-11 Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK CE Series Bedienungsanleitung

Wood Stone

Wood Stone WS-TS-5-RFG-(IR)-(W) Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK Series Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK 8645 Bedienungsanleitung

Wood Stone

Wood Stone 4048 Bedienungsanleitung

Wood Stone

Wood Stone WS-FD-9690 Series Bedienungsanleitung

Wood Stone

Wood Stone MT. CHUCKANUT WS-MS-4-W-IR Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK 9660 Bedienungsanleitung

Wood Stone

Wood Stone MOUNTAIN CE Series Bedienungsanleitung

Wood Stone

Wood Stone WS-CBO-2628 Bedienungsanleitung

Wood Stone

Wood Stone MOUNTAIN Series Bedienungsanleitung

Wood Stone

Wood Stone WS-GFT-31-CE Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK 6045 WS-FD-6045-CE Bedienungsanleitung

Wood Stone

Wood Stone PHOENIX 4343 PITA OVEN WS-BL-4343-RFG-LR Bedienungsanleitung

Wood Stone

Wood Stone BISTRO 3030 Bedienungsanleitung

Wood Stone

Wood Stone WS-GFT-31 Bedienungsanleitung

Wood Stone

Wood Stone FIRE DECK Series Bedienungsanleitung

Beliebte Ofen Handbücher anderer Marken

Bosch

Bosch HVA531NS0 Bedienungsanleitung

Electrolux

Electrolux EOF6P46X Bedienungsanleitung

NEFF

NEFF B44S32 5GB Series Bedienungsanleitung

Combi

Combi BLODGETT BC142GDS Bedienungsanleitung

AEG

AEG COMPETENCE 311704300 Bedienungsanleitung

Falcon

Falcon DOMINATOR PLUS G3106 Series Benutzerhandbuch

Rational

Rational SCC WE 61G Bedienungsanleitung

Smeg

Smeg DOSPA38X Installations- und Betriebshandbuch

Electrolux

Electrolux air-o-convect 20 GN 2/1 Bedienungsanleitung

Miele

Miele HR 1954-2 Bedienungsanleitung

KHIND

KHIND OT50 Bedienungsanleitung

Henny Penny

Henny Penny Smoker Box Bedienungsanleitung

Lang

Lang ECOD-AP Bedienungsanleitung

AEG

AEG BEK455310M Bedienungsanleitung

Frigidaire

Frigidaire FNGE90JGR Bedienungsanleitung

Hotpoint

Hotpoint FE9 S831 JSH IX Bedienungsanleitung

GE Advantium SCB2000 Bedienungsanleitung

AEG

AEG DE401301DM Bedienungsanleitung
