Woodson WTOVx Betriebsanleitung
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster
–
WTOVx
WOODSON VERTICAL TOASTER
Models WTOV5 & WTOV6
FEATURES
Switch allows user the choice of 2, 4 or all slice operation
Stainless steel construction
Operates with element timer
Toast stays warm ready for lift up
Easy-clean removable crumb tray
Heavy duty commercial elements for durability and long life
Supplied with chrome wire guides to locate bread in correct
Option for 5 or 6 slice models
Suits 135mm x 120mm slices
Wide toasting slots take product up to 20mm thick
Ideal for the toasting of bread and similar products
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 1
Table of Contents
General Recommendations................................................................................3
General Safety.................................................................................................................3
Service................................................................................................................3
Sharp Edges ........................................................................................................3
Power Cables.......................................................................................................3
Introduction ....................................................................................................................4
Product Overview.................................................................................................4
Specifications...................................................................................................................5
Technical Specifications ........................................................................................5
Technical/Connection Diagram ..............................................................................6
Rating Plate.........................................................................................................8
Installation.......................................................................................................9
General Precautions .........................................................................................................9
Setting Up.....................................................................................................................10
Handling............................................................................................................10
Site Preparation .................................................................................................10
Unpacking .........................................................................................................10
First Time Operation...........................................................................................10
Electrical Connection......................................................................................................11
Operation.......................................................................................................12
General Recommendations .............................................................................................12
Operating Instructions....................................................................................................13
Operation..........................................................................................................13
After Hours........................................................................................................13
Cleaning Procedure........................................................................................................14
External Surfaces ...............................................................................................14
Maintenance...................................................................................................14
Maintenance...................................................................................................15
Routines........................................................................................................................15
Schedules..........................................................................................................15
Log Books..........................................................................................................15
Inspection .........................................................................................................15
Faults................................................................................................................15
Stainless Steel Protection................................................................................................16
Cleaning............................................................................................................16
Corrosion Protection...........................................................................................16
Surface Finish....................................................................................................16
Water Damage ..............................................................................................................17
Information .......................................................................................................17
Access to Electrical Wiring and Mechanical Parts ...................................................17
Replacements................................................................................................................18
Electrical Parts ...................................................................................................18
Mechanical Parts................................................................................................18
Servicing and Replacement Information Line....................................................................18
Troubleshooting..............................................................................................19
Electrical Diagrams .........................................................................................20
WTOV5.........................................................................................................................20
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 2
WTOV6.........................................................................................................................21
Spare Parts/ Assembly Diagram .......................................................................22
WTOV6.........................................................................................................................22
Warranty........................................................................................................23
Appendix 1 – Australian Warranty and Importer/Distributor Contact Details ........................23
Australian Warranty Policy & Procedure............................................................................23
WARRANTY REQUEST FORM...........................................................................................26
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 3
Disclaimer:
The manufacturer cannot be held responsible or liable for any in
j
uries or dama
g
es
of any kind occurred to persons, appliances or others, due to lack of conformity
with the instructions indicated in this documentation.
The manufacturer also cannot be held responsible or liable for abuse, misuse and
lack of conformity with the instructions indicated in this documentation in re
g
ards
to installation, un-installation, operation, servicing or maintenance.
All appliances made by the manufacturer are delivered assembled and ready to
install. Any installation, un-installation, servicing, maintenance and access or
removal of any parts, panels or safety barriers that is not permitted, does not
comply in accordance to this documentation, or not performed by a TRAINED AND
AUTHORISED SPECIALISTS will result in the IMMEDIATE LOSS OF THE
WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized
modifications. All modifications must be approved by the manufacturer in writing
before initiating. All modifications or works performed to this appliance must be
performed at all times by a TRAINED AND AUTHORISED SPECIALISTS.
General Recommendations
ATTENTION
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and
maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service
technicians.
Do not store or use gasoline or other flammable vapours or liquids in the vicinity of this or any other appliance.
Qualified personnel, specifically trained in the following instructions, can perform installation and service of the
machine:
General Safety
Service
Stoddart, one of our agents, or a similarly qualified person(s) should carry out any and all repairs, maintenance
and services. Any repair person(s) should be instructed to read the safety warnings within this manual before
commencing work on these units.
Do not remove any cover panels that may be on the appliance.
Sharp Edges
Steel cutting processes such as those used in the construction of this appliance result in sharp edges. Whilst any
such edges are removed to the best of our ability it is always wise to take care when contacting any edge.
Particular care should be taken to avoid contact with any steel edge, and warnings should be given in regards to
the danger of such contact to any repair or maintenance person(s) prior to commencement of any servicing.
Power Cables
Ensure that any damaged power cord is replaced before further use.
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 4
Introduction
The Woodson Vertical Toaster has been specifically designed to meet the rigorous demands of a busy food service
operation. The Woodson WTOV5 and WTOV6 Vertical Toasters are ideal for use in toasting bread and similar
products.
Each Woodson Vertical Toaster has been assembled and tested according to Stoddart’s strict quality standards.

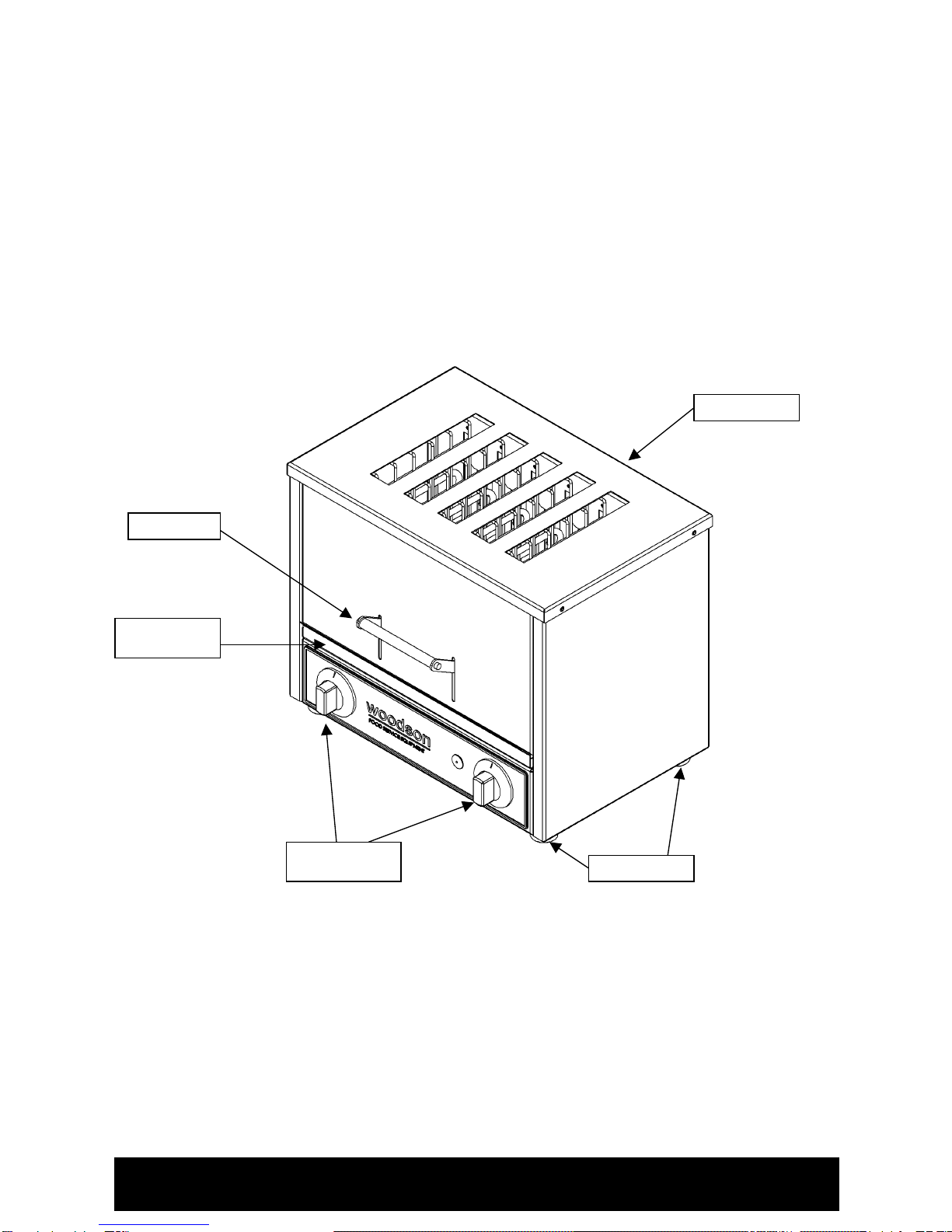

Product Overview
Configuration may vary according to model.
Unit Controls
Br
ead
S
l
ots
H
a
n
d
l
e
Crumb Tray
R
ubbe
r F
eet
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 5
Specifications
Technical Specifications
SPECIFICATIONS
Model WTOV5 WTOV6
Height 289mm 289mm
Width 351mm 351mm
Depth 259mm 259mm
Voltage 220-240V, 50Hz
Power 2400W 2800W
Connection 10A Plug and Lead 15A Plug and Lead
Amps 10A 15A
Elements 6 @ 400W 7 @ 400W
Capacity 5 Bread Slices 6 Bread Slices
SHIPPING
Height 400mm 400mm
Width 500mm 500mm
Depth 400mm 400mm
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 6

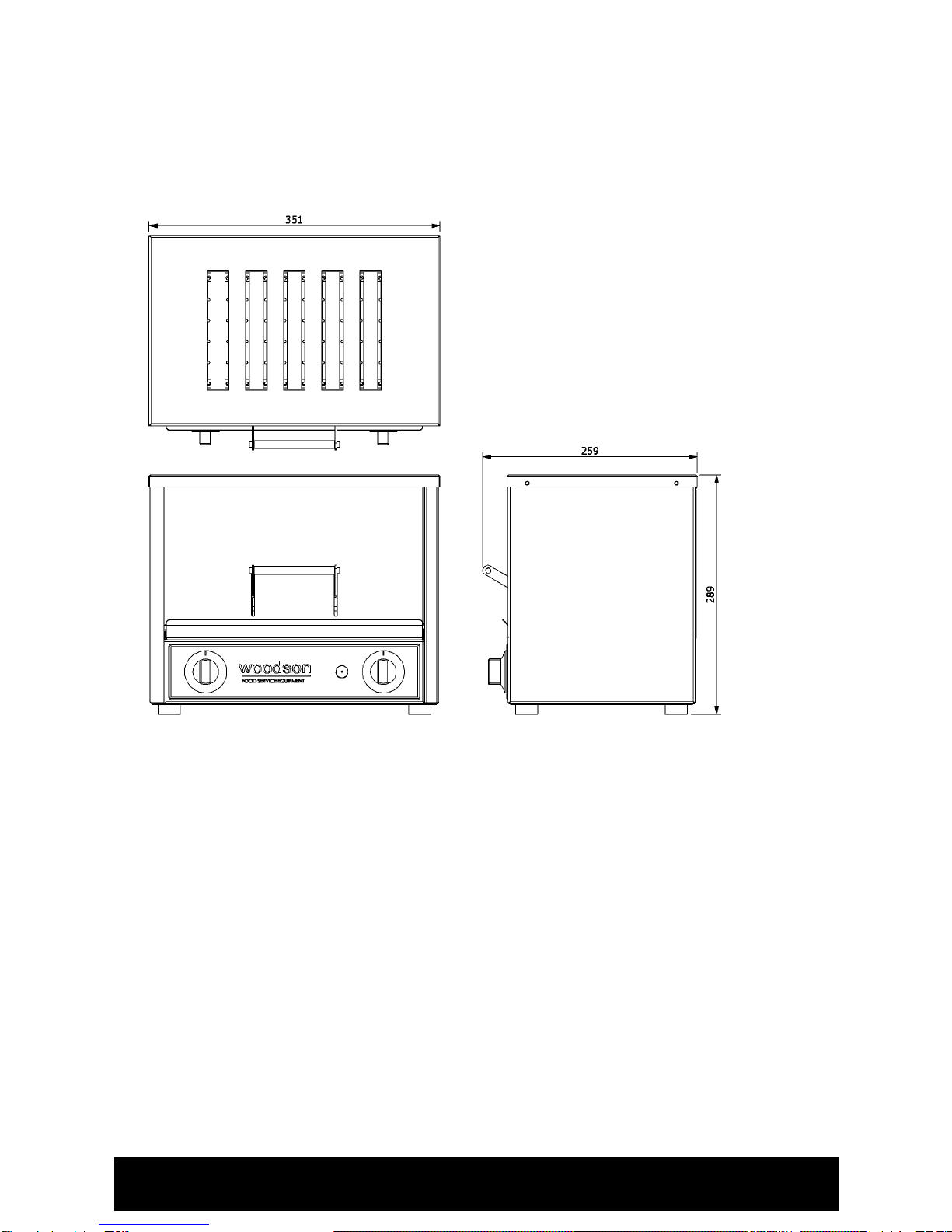

Technical/Connection Diagram
WTOV5
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 7
WTOV6
INSTALLATION,OPERATION & MAINTENANCE
Woodson Vertical Toaster– WTOVx
Due to continuous product research and development, the information contained herein is sub
j
ect to chan
g
e without notice
Page 8

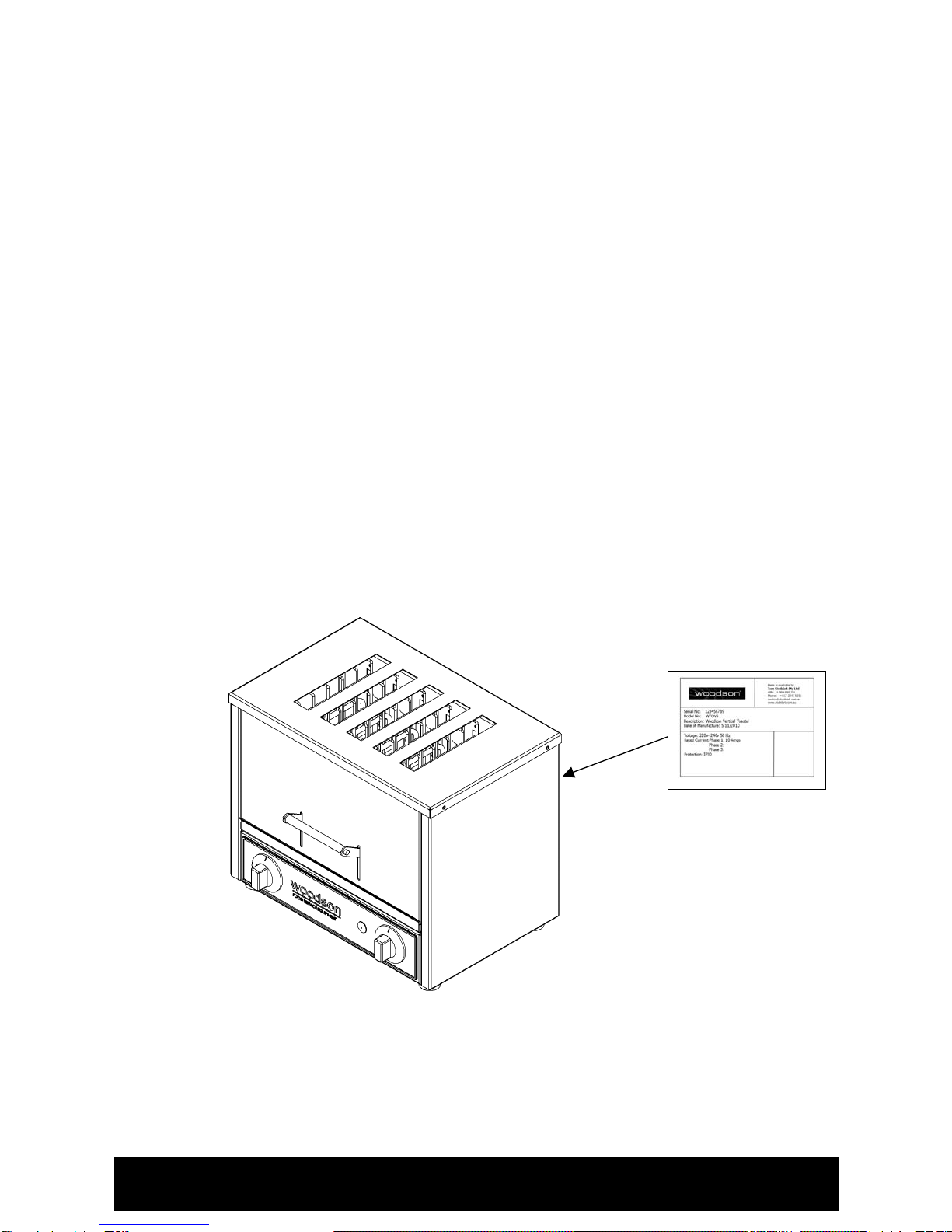

Rating Plate
The rating plate of the appliance contains identification and technical data and is located on the unit as shown
below.
Sample Only
