Model D4792

Mobile Base Extension Kit

Instruction Sheet

Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in USA

#19526TK

Specifications

• Minimum Extension Length ................ 18"

• Maximum Extension Length ................ 44"

• Maximum Weight Capacity ........... 400 lbs.

Items Needed for Assembly

• Open-End Wrench or Socket 13mm..........1

• Open-End Wrench or Socket 17mm..........1

• Measuring Tape..................................1

• Hacksaw or Metal-Cutting Bandsaw .........1

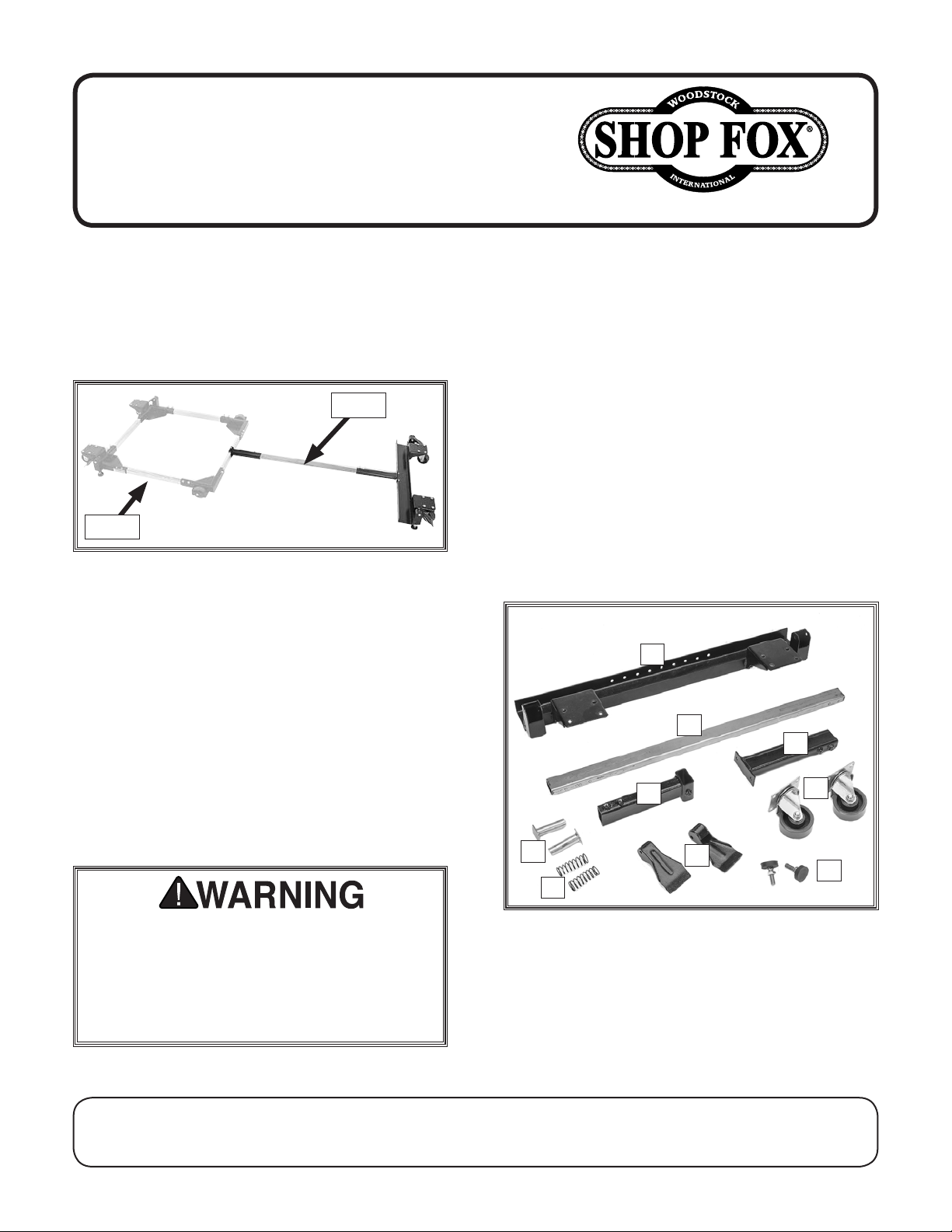

Introduction

This Model D4792 Mobile Base Extension Kit

installson the Model D4666 Mobile Base to

provide a stable support platform for a machine

with an extension table, such as a table saw.

Figure 1. Assembled D4792 Extension Kit

attached to D4666 Mobile Base.

D4666

D4792

Description ....................................... Qty

A. Leg Support Channel Bracket................ 1

B. Extension Bar................................... 1

C. Adapter Bracket ............................... 1

D. Extension Bar Bracket ........................ 1

E. Foot Pedal Plungers ........................... 2

F. Foot Pedal Springs............................. 2

G. Foot Pedals ..................................... 2

H. Rubber Feet w/Hex Nuts M10-1.5 .......... 2

I. 3" Swivel Casters .............................. 2

J. Hardware (Not Shown)

—Hex Bolts M8-1.25 x 16 ................... 15

—Lock Nuts M8-1.25.......................... 12

—Shoulder Screw M8-1.25 x 8, 8 x 50 ...... 2

—Flat Washers 8mm ........................... 2

Inventory

Figure 2.Inventory.

Operating machinery on an unsecured

mobile base may allow machine to shift

unexpectedly, which could result in kickback

or accidental contact with blade, cutter, or

other moving parts. Always secure all parts

of mobile base before operating machine.

-2-

D4792 Mobile Base Extension Kit (Mfd. 1/18)

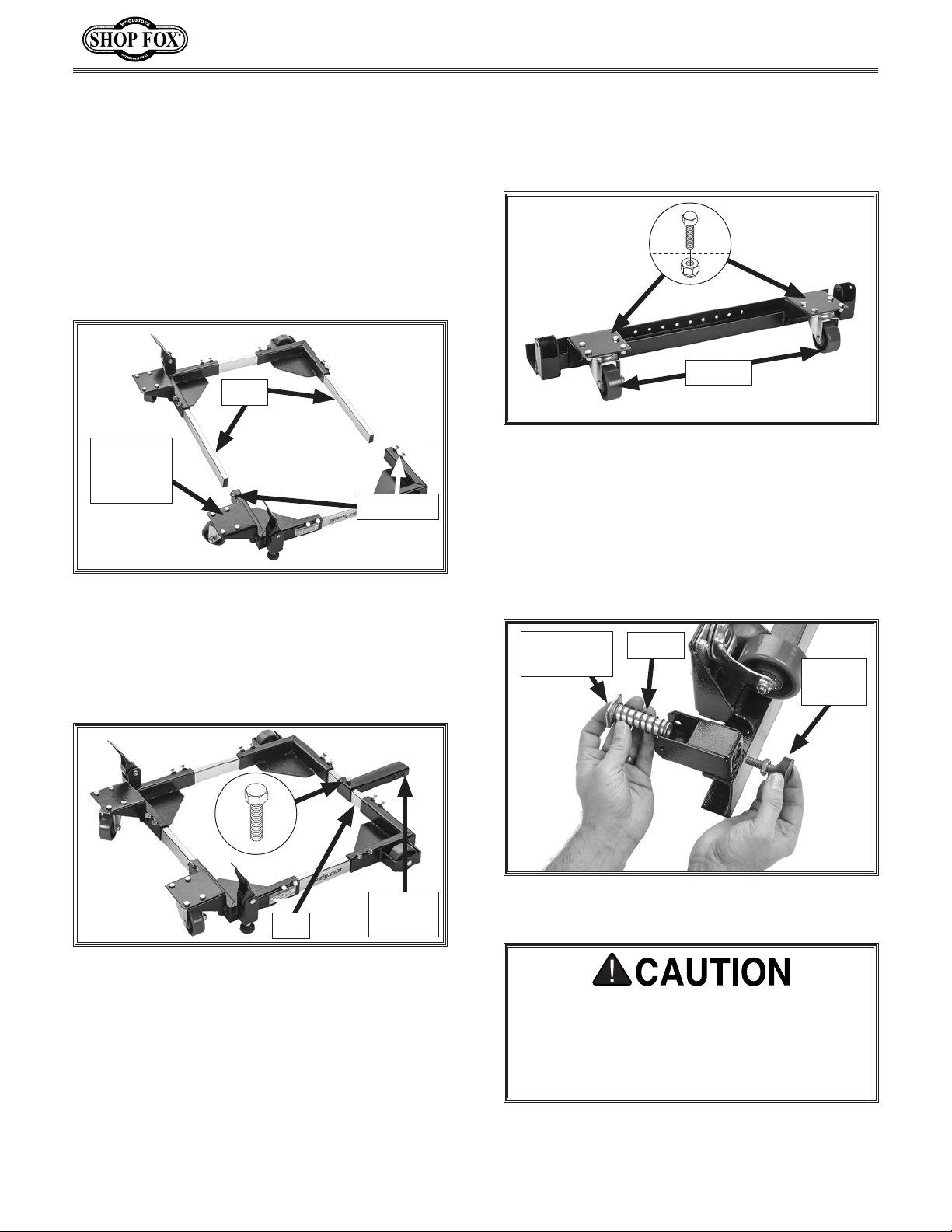

5. Attach swivel casters to each side of leg

support channel bracket using (8) M8-1.25 x

16 hex bolts and (8) M8-1.25 lock nuts

(see Figure 5).

6. Install foot pedal plunger and foot pedal

spring into each side of support bracket

(see Figure 6), and attach a rubber foot

with M10-1.5 hex nut to the bottom of each

foot pedal plunger.

Assembling Extension Kit

Follow the assembly instructions that came with

your Model D4666 Mobile Base before preparing

and assembling the D4792 Extension Kit.

To assemble extension kit, do these steps:

1. Loosen (4) hex bolts to separate D4666

Mobile Base bracket assembly from side

rails (see Figure 3).

Figure 6.Installing foot pedal plunger, spring,

and rubber foot.

Spring

Rubber

Foot

Figure 5.Swivel casters attached to leg support

channel bracket.

x 4

2. Slide adapter bracket over rail between

fixed wheels, then center and secure

bracket with M8-1.25 x 16 hex bolt

(see Figure 4).

4. Place machine on mobile base without

extension table. Refer to Model D4666

Instruction Sheet for details.

3. Re-assemble Model D4666 base and secure

hex bolts from Step 1.

Figure 4.Adapter bracket attached to rail

between fixed wheels.

Adapter

Bracket

Rail

Figure 3.Model D4666 frame separated.

Rails

Base

Bracket

Assembly

Casters

Do not load machine onto mobile base until

all bolts are tightened. Improper tightening

or only using one bolt can lead to collapse

or tipping, resulting in crushing injuries or

property damage.

Hex Bolts

Foot Pedal

Plunger

-3-

D4792 Mobile Base Extension Kit (Mfd. 1/18)

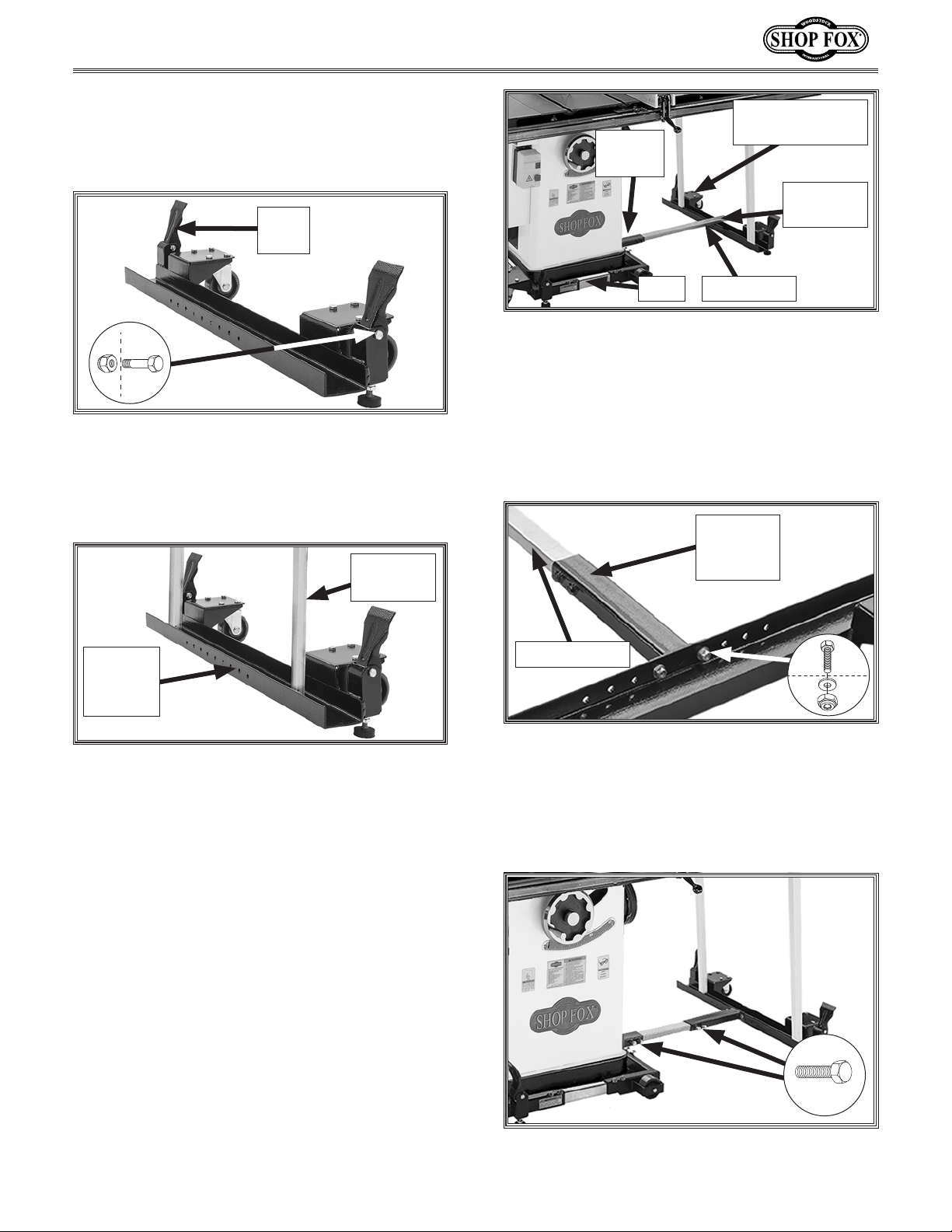

7. Attach foot pedal to each side of support

bracket using (1) M8-1.25 x 50 shoulder

screw and (1) M8-1.25 lock nut (see

Figure 7).

8. Install extension table onto machine. Place

legs into channel bracket and center legs

along length of channel (see Figure 8).

9. Slide extension bar into adapter bracket

and lay it towards (or over the top of) leg

support channel bracket to determine if

you need to cut the extension bar (see

Figure 9).

— If extension bar does not overlap leg

support channel bracket, proceed to

Step 10.

— If extension bar does overlap leg support

channel bracket, then it is too long and

must be cut to length. To do this, mark

and cut the bar exactly where it crosses

the channel support bracket. Leave

enough length so both ends of bar engage

bolts in adapter bracket and extension

bar bracket.

Figure 8.Extension table legs placed in support

channel bracket.

Extension

Table Leg

Support

Channel

Bracket

Leg Support

Channel Bracket

Mark & CutBase

Extension

Bar

Figure 7.Pedals attached to support brackets.

x 2 10. Slide extension bar bracket over extension

bar, then attach bracket to center of leg

support channel bracket with (2) M8-1.25 x

16 hex bolts, (2) 8mm flat washers, and (2)

M8-1.25 lock nuts (see Figure 10).

11. Center extension bar between both

brackets and attach with (4) M8-1.25 x 16

hex bolts. The extension kit should now

look like the one shown in Figure 11.

Figure 11.Extension kit attached to Model

D4666 Mobile Base.

x 4

Figure 9.Extension bar and bracket placed

between base and leg support channel bracket.

Figure 10.Extension bar bracket attached.

Extension Bar

Extension

Bar

Bracket

x 2

Foot

Pedal

Adapter

Bracket

-4-

D4792 Mobile Base Extension Kit (Mfd. 1/18)

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 XD4792001 LEG SUPPORT CHANNEL BRACKET 8 XD4792008 COMPRESSION SPRING 1.5 X 22 X 61

2 XD4792002 EXTENSION BAR BRACKET 9 XD4792009 FOOT M10-1.5 X 30 (RUBBER)

3 XD4792003 ADAPTER BRACKET 10 XD4792010 HEX BOLT M8-1.25 X 16

4 XD4792004 EXTENSION BAR 11 XD4792011 LOCK NUT M8-1.25

5 XD4792005 SWIVEL CASTER 3" 12 XD4792012 SHOULDER SCREW M8-1.25 X 8, 8 X 50

6 XD4792006 FOOT PEDAL 13 XD4792013 HEX NUT M10-1.5

7 XD4792007 FOOT PEDAL PLUNGER

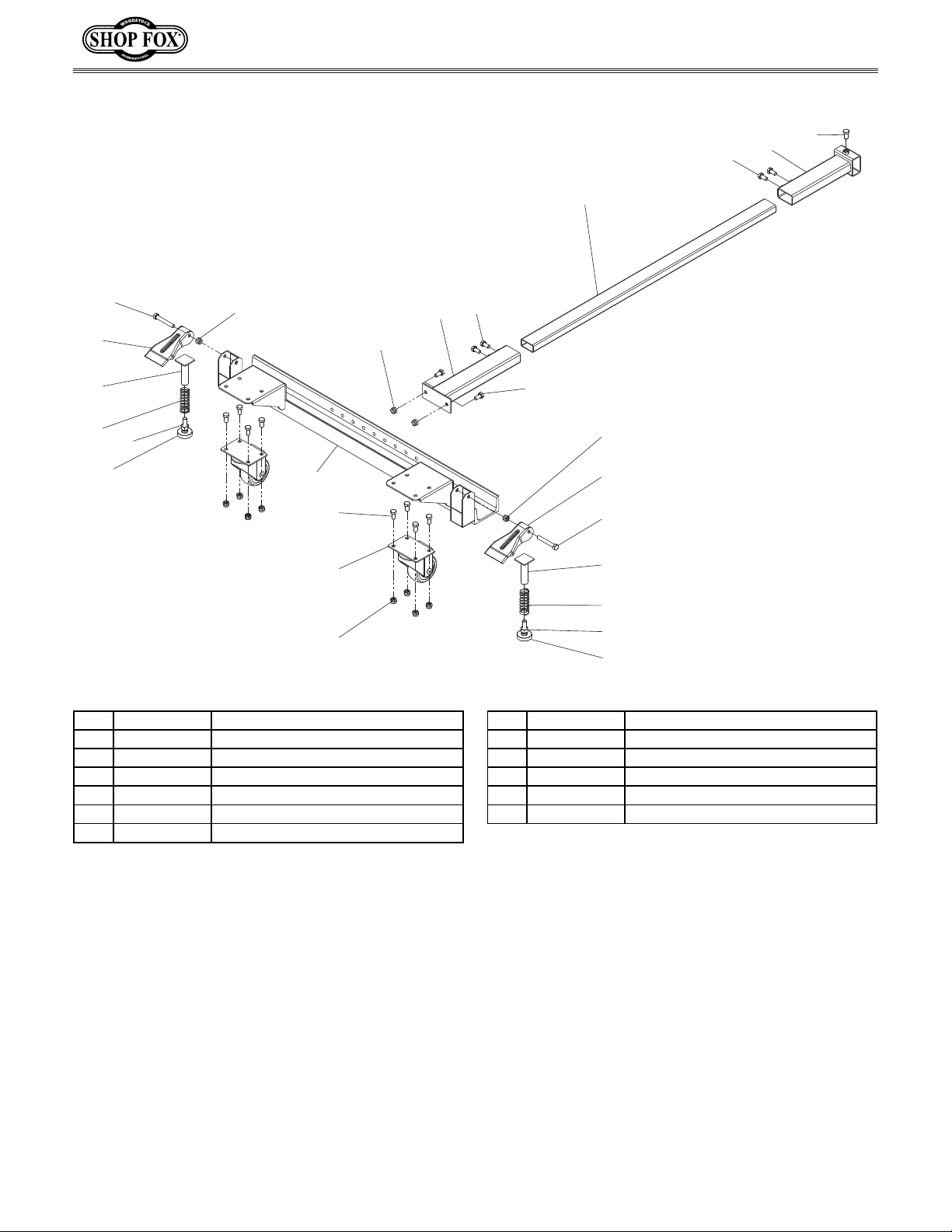

Parts Breakdown & List
