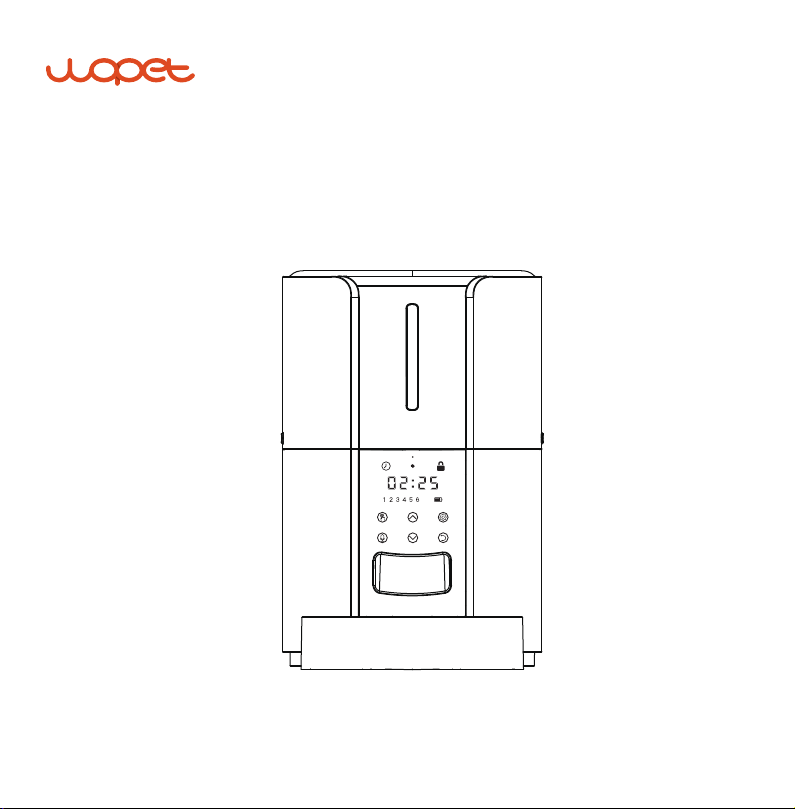

WOPET FT70 Plus Benutzerhandbuch

QUICK OPERATION GUIDE

Automatic Pet Feeder

Model: FT70 Plus

DISPLAY OVERVIEW:

Buzzer

Time Setting Icon

Indicator

Number

Increase/

Decrease

Meal Number

Manual

Recording

Child lock

Timing/Portions

Battery Level Icon

Setting/Save/Unlock

Return/Cancel

BUTTONS OVERVIEW:

NOTE: Child lock mode automatically after 2 mins without operation.Hold for 2s to unlock

Button Description

Set /Save

Unlock button

Return /

Cancel button

Number

Increase button

Number

Decrease button

Manual button

Recording button

Press to save and move to the next

Operable Mode Function

Press and hold for 2s to lock/unlock other buttons and screen

Return to the previous step

Return to interface after seting up

Press to increase the value

Press to decrease the value

[Unlocking Status] Press to feed 1 portion

[Unlocking Status] Hold for 3s and start recording after

a beep is heard {max 10s}

Recoding saved after a double beep is heard

SCREEN PANEL INTRODUCTION:

ICON Function of ICON

Child lock Hold button for 2 seconds to unlock

Locked automatically after 2 min without operating

Clock indicator

Battery Level

Meal

Note: when flashing, press button to set up/modify the

current time.

Flash Indicates:

Local time

Timing

【24-hours format】

Number of meals

Light up when powered only by batteries.

Turn red when low battery

Example: 9:00AM = 9:00; 10:00PM = 22:00 More as below:

12-hour clock 24 hours clock comparison chart

00:00

(Midnight)

(noon)

(End of the day)

00:00

(Beginning of the day)

01:00AM

02:00AM

03:00AM

04:00AM

05:00AM

06:00AM

07:00AM

08:00AM

09:00AM

10:00AM

11:00AM

12:00AM

01:00

01:00PM

02:00PM

03:00PM

04:00PM

05:00PM

06:00PM

07:00PM

08:00PM

09:00PM

10:00PM

11:00PM

12:00PM

13:00

02:00

14:00

03:00

15:00

04:00

16:00

05:00

17:00

06:00

18:00

07:00

19:00

08:00

20:00

09:00

21:00

10:00

22:00

11:00

23:00

12:00

24:00

INSTRUCTION MANUAL:

Clock Icon flashes when powered as shown in fig.(01)

[Locking Status]

Press and hold for 2s to unlock screen

as shown in fig.(02)

STEP 1 —Ready to Setup

STEP 1.1

[ Unlocking Status ]

Press to set up current

time. Use the to set

the current time, then press

to save

STEP 1.2

Press to modify if needed

Note:

00:00 00:03 08:30

fig.(01) fig.(02)

TIP: Please note the conversion between 24-hour format and 12-hour format

Press then "1" flashes

to set up the first meal

Press to modify if needed

Note:

Press to set up feeding

time, press to set

every single digit then

press button to save

and move to set up portion

Press to set up portion

then press button to save

STEP 2 —First Meal Setting

STEP 2.1 STEP 2.2 STEP 2.3

00:00 10:00 P-:02

Press to set up

portion,press to save.

Press to set up feeding

time, press to set

every single digit then

press button to save

and move to set up portion.

Repeat the step above to

set up the other meals if

needed.

Press then "2" flashes

to set up the second meal

Press move to flashing

meal number digit then

press to modify if needed

Note:

STEP 3 —Other Meals Setting

STEP 3.1 STEP 3.2 STEP 3.3

00:00 P-:0311:00

Press to modify, local time,

feeding time and portion if needed

Press to return to interface when setting

up as shown in fig.(01)

(Numbers NOT displayed when portion set to 0

as shown in fig.(02))

Press to return to interface when

setting up,press for 2s to lock the

screen,lock icon display

(Note: Locking automatically in

2mins without operation )

Lock:

STEP 4 —Return to Interface

STEP 5 — Lock & Unlock

STEP 4.1 STEP 4.2

08:45 08:45 09:00

Press and hold for 2s to unlock the

screen, lock icon disappear

Unlock:

09:05

fig.(01) fig.(02)

09:05

Hold for 3s and start recording after

a beep is heard (max 10s)

Press to feed 1 portion

[ Unlocking Status ]

STEP 6 —Record

[ Unlocking Status ]

Recoding saved after a double beep is heard

STEP 7 —Manual Feed

09:25

09:30

Press and hold and at the

same time for 3s until a beep is heard

[ Unlocking Status ]

STEP 8 —Reset to Factory Default

09:30
