WWAlarm IPC2203 Bedienungsanleitung
Add-On Device Quick Start Guide
Add-on Device
Quickstart Guide
Model No. IPC2203
What’s inside:
1x Mini Outdoor Full HD Camera
Mounting
Accessories
1x Wrench Power Waterproof Cases1x Power Adapter
Cable Waterproof Cases
Mini Outdoor
Full HD Camera
All WWAlarm add-on devices have to work with WWAlarm systems
Step 1: Assemble your device and accessories
1-10 ft
1 . Unpack your camera and accessories.
2. Pair the device with the Security Shuttle within 1-10
feet to make sure the connection is working well.
9
8
10
11
Power supply interface
Ethernet interface
* Ethernet cable is not included.
1
Step 2: Power on the Camera and connect it to
the system
1 . Insert the microSD* card into the Camera Card Slot
before powering up the Camera. You can also
purchase a microSD Card at a later time.
2. There are two methods for powering and connecting.
Please review the two options and decide which option
you would like to use:
microSD Card Slot
WPS/RESET
* NOTE - microSD Card not included.
FAT32 format.
2
Router
Network data
Electrical Power

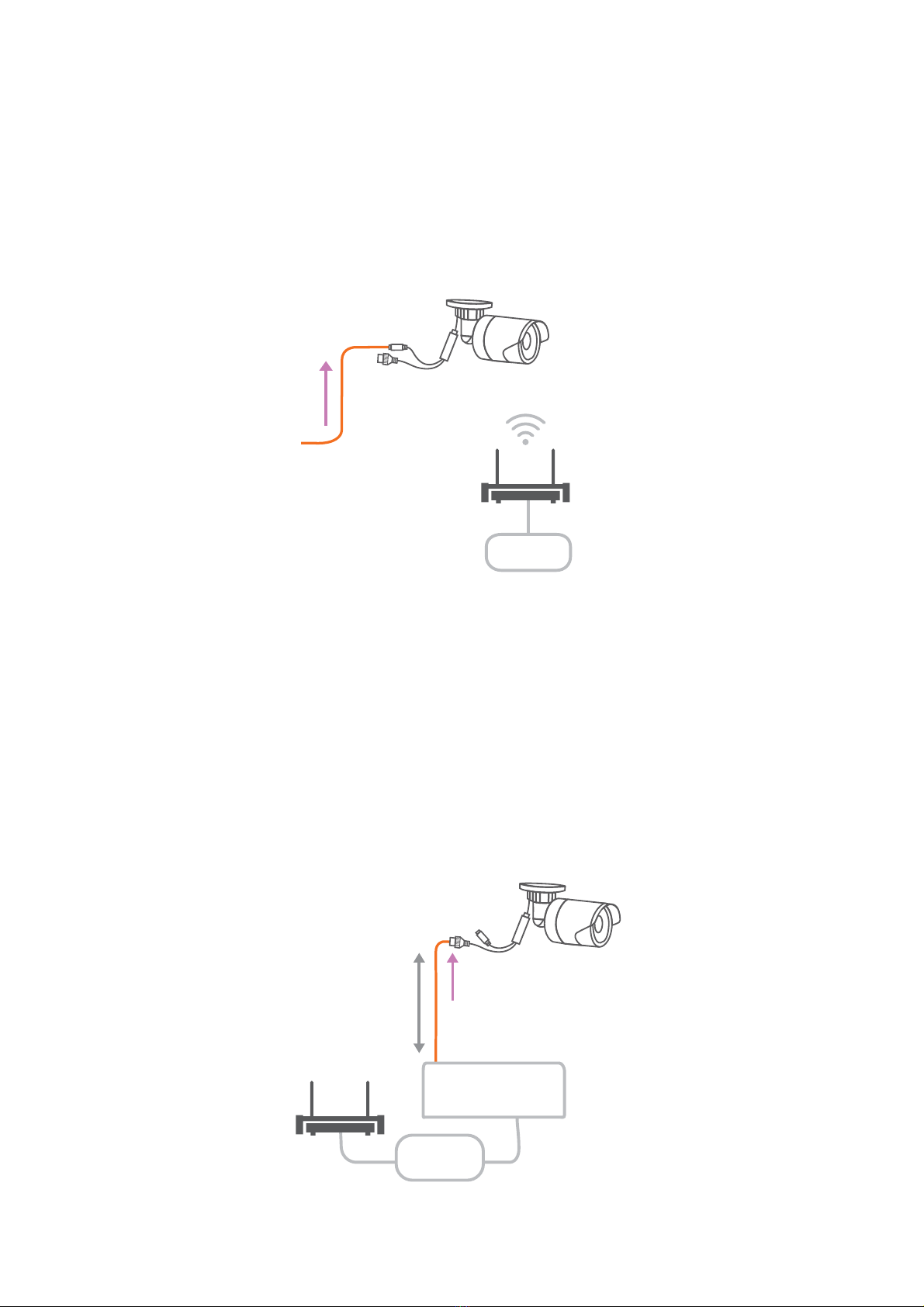

Option 2: Wired
Option 1: Wireless
Router
PoE Injector
(Not Included)
Network data Electrical Power
Connect the included power adapter to the Camera’s power
supply interface.
Connect the PoE Injector to your home router with an Ethernet cable.
Using the other Ethernet cable, connect the PoE Injector to the
Camera's Ethernet interface.
Power on the PoE Injector.
* Note: PoE Injector and Ethernet cables are not included in the package.
3
Add-On Device Quick Start Guide
Step 3: Add a device
1 . Open the WWAlarm app, tap on the the menu button
" " and select “Device Management”.
2. Press the add button ‘+’ next to Camera List.
3. Follow the app instructions to scan the QR code
located on the device.
Note: If the scan is incomplete, you will be asked to enter the serial number
(SN) of the device.
4
1 . Before mounting your camera, see if it is within
Security Shuttle's range by taking
the Camera to the place where you want it to be
mounted and plug it in.
2. Wait until you see live streaming video from the
WWAlarm app before mounting.
Step 4: Before mounting your device
Step 5: Installation
Both wall mounting and ceiling mounting are suitable
for the Camera. Wall mounting will be taken as an
example in this section. If you decide to go with the
ceiling mounting as your method of installation, then
you can use the wall mounting steps as a reference.
1. Drill the screw holes into the wall according to
the drill template.
Ceiling Mounting
Hole
Hole
Hole
Mounting
5
4. Adjust the surveillance angle.
•Loosen the adjusting nut.
•Adjust the pan direction [0° to 360°].
•Adjust the tilt direction [0° to 90°].
•Rotate the camera [0° to 360°] to adjust the lens
to the surveillance angle.
•Tighten the adjusting nut to complete the installation.
2. Route the corresponding cables.
3. Secure the camera to the wall with the supplied
screws.
Secure the Camera to the Wall
0°~90°
AdjusƟng Nut
0°~360°
0°~360°
axis Adjustment
Adjusting Nut
6
Troubleshooting Tips
If you’re having trouble adding your device, you may
need to reset it.
• Use the wrench to open the cover which is located
on the bottom of the camera.
• Make sure the camera is powered off first. Press
down and hold the RESET button for around 10
seconds until the IR LED goes off, and then power
on the camera.
• Return to the app and follow the onscreen
instructions.
7
