Wyse X class thin clients.

All you need to know. Here.

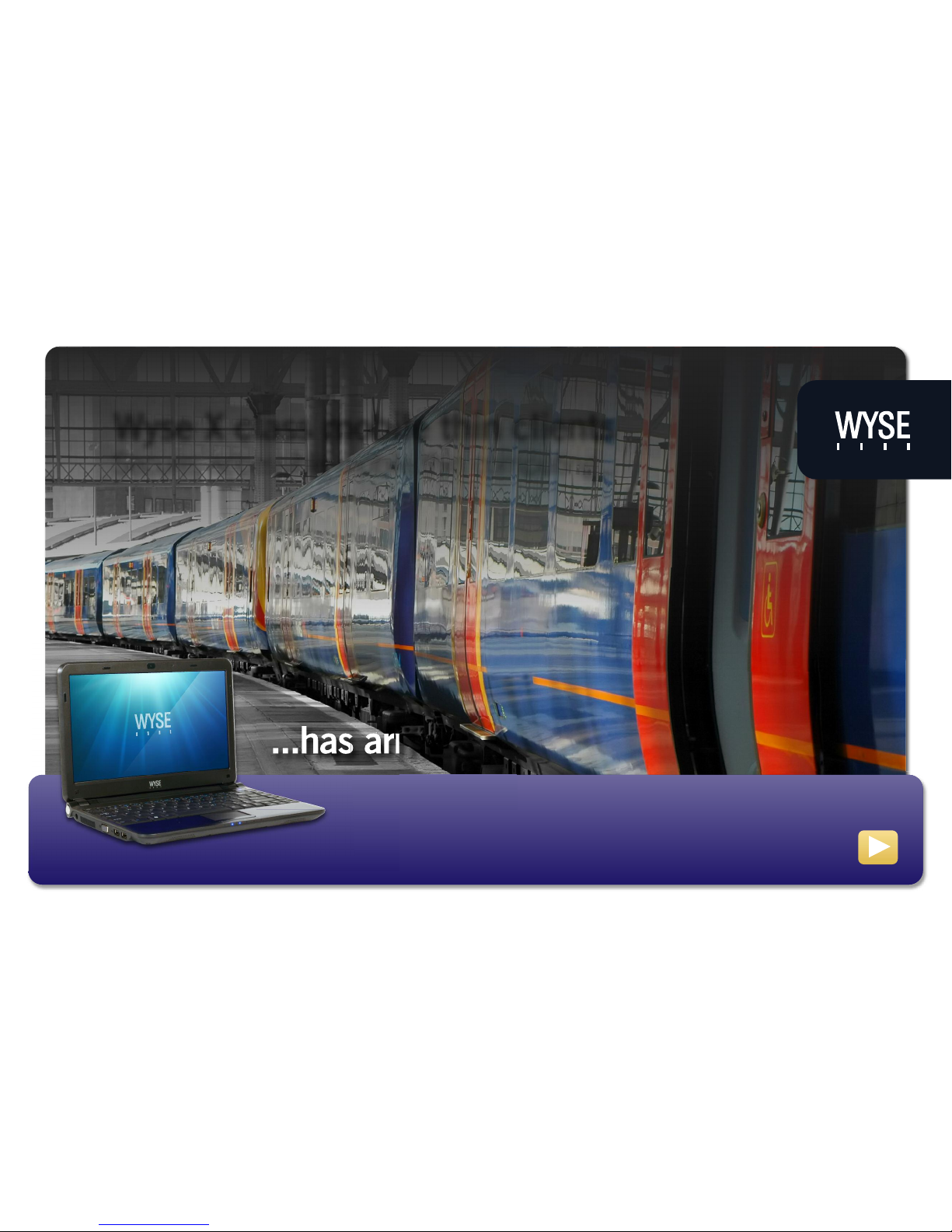

...has arrived

Wyse X class mobile thin clients

Secure, accessible mobile thin computing...

tart Features TechnicalModels Print

Introducing the Wyse X class mobile thin clients

Now you can get all of the security you crave – with all the access you

need. Wherever you choose to work.

Choose from two equally slim-line versions; the new Wyse X90CW mobile thin client

with its compact 11.6” LED backlit display, and the Wyse X50L, X90LW and

X90LeW mobile thin clients with stunning 15.4” widescreen displays - ideal for

presenting rich multimedia.

Featuring the power of Microsoft Windows XP Embedded & Windows Embedded

Standard, and the security and flexibility of Wyse Enhanced SUSE Linux

(Wyse X Class L Family only).

Here’s the full range pictured below:

Wyse X50L

15.4" screen mobile

thin client with Wyse

Enhanced U E Linux.

Wyse X90LeW

15.4" screen mobile

thin client with

Windows Embedded

tandard. Built-in

martcard reader and

BlueTooth networking.

Wyse X90CW

mall form factor,

high performance

mobile thin client

with Windows

Embedded tandard.

Wyse X90LW

15.4" screen mobile

thin client with

Windows Embedded

tandard.

Wyse X90L

15.4" screen mobile

thin client with

Windows XP

Embedded.

Wyse X90Le

15.4" screen mobile thin

client with Windows XP

Embedded. Built-in

smartcard reader and

BlueTooth networking.

Features Wyse X class thin clients

Wyse X class mobile thin clients feature all the benefits of other Wyse thin clients

in the range including the absence of hard drives. Which is of particular benefit

to mobile workers who regularily work with sensitive data in insecure

environments because with Wyse, they can work on the move with all their data

safely stored and accessed from secure virtual servers - eliminating the risk of

data-loss from stolen or mislaid laptops.

tart Features TechnicalModels Print

Performance X class C Family

Connectivity

X class L Family

Connectivity Green

Management

oftware

Microsoft Windows

XP Embedded

Microsoft

Windows Embedded

Wyse Enhanced

U E Linux

Take a tour of the

Wyse X class range features here

Visit: wyse.com

Learn more:

imply click the Wyse X class

feature icons below.

Virtualization

oftware

Virtualization

oftware

Continue tour

tart Features TechnicalModels Print

Performance ecure. Accessible. Fast mobile thin clients

The Wyse X class mobile thin clients feature high-performance energy conserving

processors: Intel Atom Z520 in the Wyse X class C Family and Via C7-M ULV in the

X class L Family, giving your mobile users all the processing power and flexibility

they need including rich multimedia playback.

Choose between the Wyse X class C family with a crisp 11.6" widescreen display, and the

Wyse X class L Family with their larger 15.4" widescreen displays. Both delivering

excellent on-screen performance for graphics applications and multimedia presentations.

No hard drives. No worries.

Their hard drive-free design contributes to a far longer lifespan than other

comparative laptops. And of course no hard drive means no data whatsoever is

lost or compromised if a Wyse X class is stolen or mislaid.

Finally, Wyse X class mobile thin clients pack all these features and

functionality into slim, robust designs, ideal for today’s hard working and

pressurized mobile workers.

Intel Atom Z520

1.33GHz processor

Intel's smallest and lowest

power processor to date, the

Intel®Atom™processor has

been specifically designed for

the new wave of compact,

lightweight, high performance

internet devices like the

Wyse X class C Family.

VIA C7-M ULV

1.2GHz processor

With its extreme power

efficiency for full computing

on the go, the VIA C7-M

ULV processor has been

specifically designed for

next generation mobile thin

clients such as the

Wyse X class LFamily.

Continue tour

tart Features TechnicalModels Print

X class C Family Connectivity Wyse X90CW thin client

Well connected

Integrated wireless 802.11 b/g/n

One VGA-type video output

Two U B 2.0 ports

Kensington Lock lot

Audio In: 1/8-inch mini jack,

8 bit stereo microphone

Media slot 4-in-1 (M /M -Pro/ D/MMC) for

additional storage

Audio Out: 1/8-inch mini jack, full 16 bit stereo

One U B 2.0 port

10/100 Base-T Ethernet port

Built-in 1.3 Mega Pixel Camera and Microphone

Continue tour

tart Features TechnicalModels Print

X class L Family Connectivity

Wyse X50L, X90L, X90Le, X90LW and X90LeW mobile thin clients

Well connected

Built-in WiFi 802.11 b/g/n

Audio Out: 1/8-inch mini jack, 16 bit stereo

Internal mono speaker

Audio In: 1/8-inch mini jack,

8 bit stereo microphone

Three External USB 2.0 ports (right)

10/100/1000 Base-T Gigabit Ethernet port

One VGA-type video output

D Card lot

ExpressCard slot

Kensington Lock Slot

One DVI-D Port

One external

USB 2.0 port (left)

Continue tour

tart Features TechnicalModels Print

Mobile computing Without compromise

Going Green

with Wyse Thin Computing

Through our EarthSmart Computing initiative we are committed

to helping organizations implement a greener computing

strategy - one that delivers a more efficient and productive

computing experience for your users with a positive effect on

energy wastage, heat and carbon emissions.

Green Power

All Wyse X class mobile thin clients pack a considerable punch

with their green credentials. From reduced manufacturing

impact and end-of-life recycling waste, to as little as 18 watts

energy consumption, deploying Wyse X class mobile thin clients

to your mobile and remotely based workers will enable your

organization to achieve a lighter carbon footprint.

Learn more

Download carbon calculators, fact sheets and white papers

from here: www.wyse.com/green

That’s Wyse

Earth mart

Computing

Management oftware Wyse Device Manager

Thin computing remote management. Made easy.

Wyse Device Manager (WDM) provides comprehensive, enterprise-wide management for Wyse X class mobile thin clients. A licence for

WDM Workgroup Edition is included with every Wyse X class model. This may be upgraded to WDM Enterprise Edition for an additional

charge. Key features include:

tart Features TechnicalModels Print

Continue tour

• TTPS Based Imaging / Updates

• Fully Encrypted Network Traffic

• Multi-user Admin Access (MS AD) Support

• Complete Device Imaging / Patching / Updates

• Bandwidth Throttling for Efficiency / Reliability

• Software Updates and Add-ons

• Device ealth Status / Reporting

• Remote Shadowing / Control

• Default Device Configuration

• Distributed Architecture

• SQL / MSDE Support

• Multiple Remote Repository Support

• Automated Discovery

• Detailed ardware Asset information

• Installed Software Asset information

ecurity

No-Hassle Deployment

Device Administration

and Monitoring

calability

Complete Asset Visibility

Virtualization oftware Wyse TCXTM uite with Collaborative Processing ArchitectureTM

Wyse TCX delivers an amazing user experience in one software suite.

Wyse TCX is our new software suite which enriches the user experience by removing the limitations previously associated with thin clients. It enhances, not replaces,

key protocols like ICA/ DX and RDP adding key features to make each more valuable. With Wyse TCX users receive the best PC experience available on a thin

computing platform.1, 2

Wyse TCX

Multi-display

Ensures application

windows and dialog

boxes are multi-monitor

aware when using more

than one monitor.

Wyse TCX

Rich ound

Enables bi-directional

audio in virtual desktop

environments, enabling

solutions such as VOIP,

digital dictation or voice

recognition to be

deployed.

tart Features TechnicalModels Print

Wyse TCX

U B Virtualizer

Enables plug and play peripheral

support for virtual desktop

environments.

• Redirect and use local USB

devices in virtual desktops.

• Deploy virtual desktops to

knowledge workers with special

device access needs.

• Enable a broad set of USB

peripherals including webcams

and headsets.

Wyse TCX Multimedia

Streamlines the delivery of the

multimedia stream to the local client

for a rich user experience within a

thin computing architecture.

• Accelerates Mpeg1, Mpeg2, WMV,

Mpeg4 Part 2, AC3, AAC, MP3,

WAV, WMA media types.

• Collaborative Processing

Architecture enhances server

scalability, and network utilization

by off-loading multimedia

rendering to the client. Continue tour

Wyse TCX

Flash Acceleration

Wyse TCX Flash Acceleration helps

thin client users to experience

improved Flash video performance.

While the Flash player continues to run

server-side, the resulting images are

transcoded and redirected to the client

for fast rendering. The technology

allows for greater control of frame rate

and compression and supports

enhanced playback of youtube style

flash videos in Internet Explorer.

1 Subject to licence fee.

2 Support is dependant

on host Operating System.

WTCXS / C R X / 100110

Removing the barriers of network latency

Wyse Virtual Desktop Accelerator (VDA) enables virtualized desktop and thin

computing environments to be deployed to areas where network latency has, to date,

presented operational barriers. Now, with Wyse VDA, more users can receive the full

benefits of Wyse thin computing – with the best PC experience over virtualized

desktops.

Wyse VDA is a software-only solution for Wyse thin clients

and supported PCs that delivers the best user

experience for the allocated network bandwidth by

neutralizing the effects of network latency and

packet loss. Making ‘thin’ suitable for more

remote-site, branch, or field-based users.

Wyse VDA works with instead of replacing

existing RDP and ICA protocols, accelerating

them by up to 20 times on networks faced with

latencies up to and beyond 300ms, and at

least 768kbps bandwidth.

At a glance features:

• Software-only acceleration of virtual desktops and applications

• Accelerates existing Citrix ICA and Microsoft RDP protocols

• Works on WANs and ‘fat, long pipes’

• Accelerates connections to Citrix XenApp, Citrix XenDesktop, VMware View

and Microsoft Terminal Server and Microsoft yper-V VDI

• Enhances Wyse TCX software suite functionality across wide-area networks

• Enables Wyse Collaborative Processing Architecture across

wide-area networks

• Administrator console provides control of maximum bandwidth per

connection

• Leverages built-in security of underlying protocols (128-bit encryption for

RDP and ICA).

Continue tour

tart Features TechnicalModels Print

Virtualization oftware Wyse Virtual Desktop Accelerator

WVDA / C R X / 181209

Dieses Handbuch passt für folgende Modelle

Andere Wyse Server Handbücher

Wyse

Wyse D90D7 Bedienungsanleitung

Wyse

Wyse V90 Bedienungsanleitung

Wyse

Wyse Z90DW Bedienungsanleitung

Wyse

Wyse Winterm 9450XE Bedienungsanleitung

Wyse

Wyse R00L Bedienungsanleitung

Wyse

Wyse Winterm 3150SE Bedienungsanleitung

Wyse

Wyse C90LE7 Bedienungsanleitung

Wyse

Wyse R50L Bedienungsanleitung

Wyse

Wyse 160 Bedienungsanleitung

Wyse

Wyse V10L Bedienungsanleitung

Wyse

Wyse Winterm S10 Bedienungsanleitung

Wyse

Wyse Winterm S10 Gebrauchs- und Pflegehandbuch

Wyse

Wyse V00LE Bedienungsanleitung

Wyse

Wyse X00m Bedienungsanleitung

Wyse

Wyse D00D Bedienungsanleitung

Wyse

Wyse Xenith Bedienungsanleitung

Wyse

Wyse R10L Bedienungsanleitung

Wyse

Wyse Winterm 9450XE Bedienungsanleitung

Wyse

Wyse Mobile Winterm 3820TX Bedienungsanleitung

Wyse

Wyse TM 9000 Series Bedienungsanleitung

Wyse

Wyse C10LE Bedienungsanleitung

Wyse

Wyse Rx0L Bedienungsanleitung

Wyse

Wyse R90L Bedienungsanleitung

Wyse

Wyse P25 Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
