XAVI Technologies Corp. X7868r Bedienungsanleitung

X7868r/X7868r+ User’sManual

Version 1.0

- 1 -

X7868r/X7868r+ User’sManual

Version 1.0

- 2 -

XAVi Technologies Corporation

Tel: +886-2-2995-7953

9F, No. 129, Hsing Te Road, Sanchung City,

Taipei County 241,

Ta i w an

Information in this manual is subject to change without notice. No part of this manual

may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying or scanning, for any purpose, without the written

permission of XAVi Technologies Corporation.

XAVi Technologies Corporation provides this documentation without warranty of any

kind, implied or expressed, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose.

X7868r/X7868r+ User’sManual

Version 1.0

- 3 -

–

I. Overview…………………………………….………….……….……… 5

II. Features…………………………………………………………..…….. 6

III. Packaging……………………………………….…….………………… 7

IV. Safety Guidelines………………………………………………………. 8

V. Appearance…………………………………..………………….……… 9

Front Panel…………………………………………………….……..… 10

Rear Panel………………………………………………………..…… 10

VI. Hardware Installation…………………………………………………. 11

VII. Management…………………..………………..…..…….…………... 12

VIII. Default Values…………….……..……………………………………. 13

IX. Software Upgrade……………………..……………………………… 14

–

I. Setup…………...…………….………….……………….….…..…….. 16

II. CLI Commands……...……………………………..…………………. 17

1. Main Menu Commands…………………………………………. 17

2. LAN Menu Commands…….…………..………………….…… 20

–

I. Overview……………………………………………………………………21

II. Preparation………………………………………………………………….21

1. Login………………………………………………………………. 22

2. Connection Settings………………….………………………….. 23

2.1 RFC 1483 Bridge……..……………..………….………….. 24

2.2 RFC 1483 Route………..………..……………….…………25

2.3 PPP over ATM (PPPoA)…………………………………… 27

2.4 PPP over Ethernet (PPPoE)…..………….……….……… 29

2.5 IP over ATM (IPoA).……….…………..…………..………. 31

3. Advanced Settings………………..………..………….………… 33

3.1 NAPT (Network Address Port Translation)……….……… 33

3.2 Static Routes……………………………………….……….. 35

3.3 DNS Relay…………………………………………………...36

X7868r/X7868r+ User’sManual

Version 1.0

- 4 -

4. System Settings…………………………………………………..37

4.1 Local LAN IP…………………………………………………37

4.2 DHCP Server……………………………………………….. 38

4.3 Management…………………………………………………41

4.3.1 Edit User……….…………….……………………...41

4.3.2 Add User..……………..…………………………….42

4.3.3 Delete User..………….………..…..………..……...43

4.4 ADSL….………………………………………………………44

4.5 Wireless Interface..………………………………………… 45

4.6 802.1x Authentication..…………………………………… 47

4.7 Switch..……………………………………………………… 52

5. Modem Status……………….……………………….…….…….. 53

6. Maintenance…………………..…………………………..………61

6.1 Error Log…………………………………………………….. 61

6.2 Modem Upgrade………….………………………………… 62

6.3 Backup/Restore………………..…………………………… 63

6.4 Restart……………………………………………………….. 64

6.5 Save…………………………………………………………..65

–

A1. Hardware Specifications..…………………………………….…………..66

A2. Software Specifications……….…………………………….…………….67

–

B1. Product Warranty……………………………..………………………….. 68

B2. Warranty Repair………………………………………………………….. 69

B3. Out-of-Warranty Repair…………………………………………………..69

–

C1. FCC Part 15 Notice…………………………………….………………..70

C2. IC CS-03 Notice………..………………………………..………………...71

C3. UL Safety Regulations...………………………………..………………...72

n……………………………………………………….…73

X7868r/X7868r+ User’sManual

Version 1.0

- 5 -

Chapter 1

Getting Started

I. Overview

The X7868r/X7868r+is a multi-mode ADSL/ADSL2/ADSL2+router

that complies with ANSI T1.413 Issue 2, ITU G.992.1

(X7868r/X7868r+), ITU G.992.2, G.992.3, G.992.4, G.994.5 (X7868r+

only), and X7868r+supports ADSL2+as well. The X7868r/X7868r+

provides a 10/100BaseTX Ethernet interface on the DTE side. The

broadband line interface supports ADSL Annex A. The

X7868r/X7868r+delivers broadband Internet access for enterprises,

telecommuters, home, and remote office workers with high-speed

data transmission requirements. It supports multiple protocols such

as PPP (RFC 2364), IP (RFC 2225/RFC 1577), and RFC 1483 over

ATM over ADSL, and PPP (RFC 2516) over Ethernet.

X7868r/X7868r+offers convenient configuration and management

locally by telnet, SNMP, and a Web-browser through the Ethernet

interface, and remotely through the ADSL interface.

X7868r/X7868r+ User’sManual

Version 1.0

- 6 -

II. Features

 High Speed Asymmetrical Data Transmission on Twisted

Copper Pair Wire

 Service providers can deploy ADSL rapidly over existing wire

infrastructure (POTS or ISDN line)

 Interchangeable between Bridge and Router mode

 RFC 1483 Bridge and Routing over ATM over ADSL

 PPPoE, and IPoA, and PPPoA Routing over ADSL

 Built-in four-port 10/100BaseTX Ethernet switch for PC or

LAN connection



802.11b/g WLAN supports up to 54Mbps



Allow/Deny Wireless MAC address list

 WEP and TKIP Cipher suits are supported:



64, 128, 256 bit WEP key lengths are supported:

 Supports Wi-Fi WPA

 High quality, simple operation, and low power consumption

 Compatible and interoperable with most central office side

ADSL DSLAM or Multi-service Access Systems

 Configuration and management with Telnet through the

Ethernet interface, and remote Telnet through ADSL

interface

 Firmware upgradeable through TFTP, HTTP

 Interoperability complies with TR-48

X7868r/X7868r+ User’sManual

Version 1.0

- 7 -

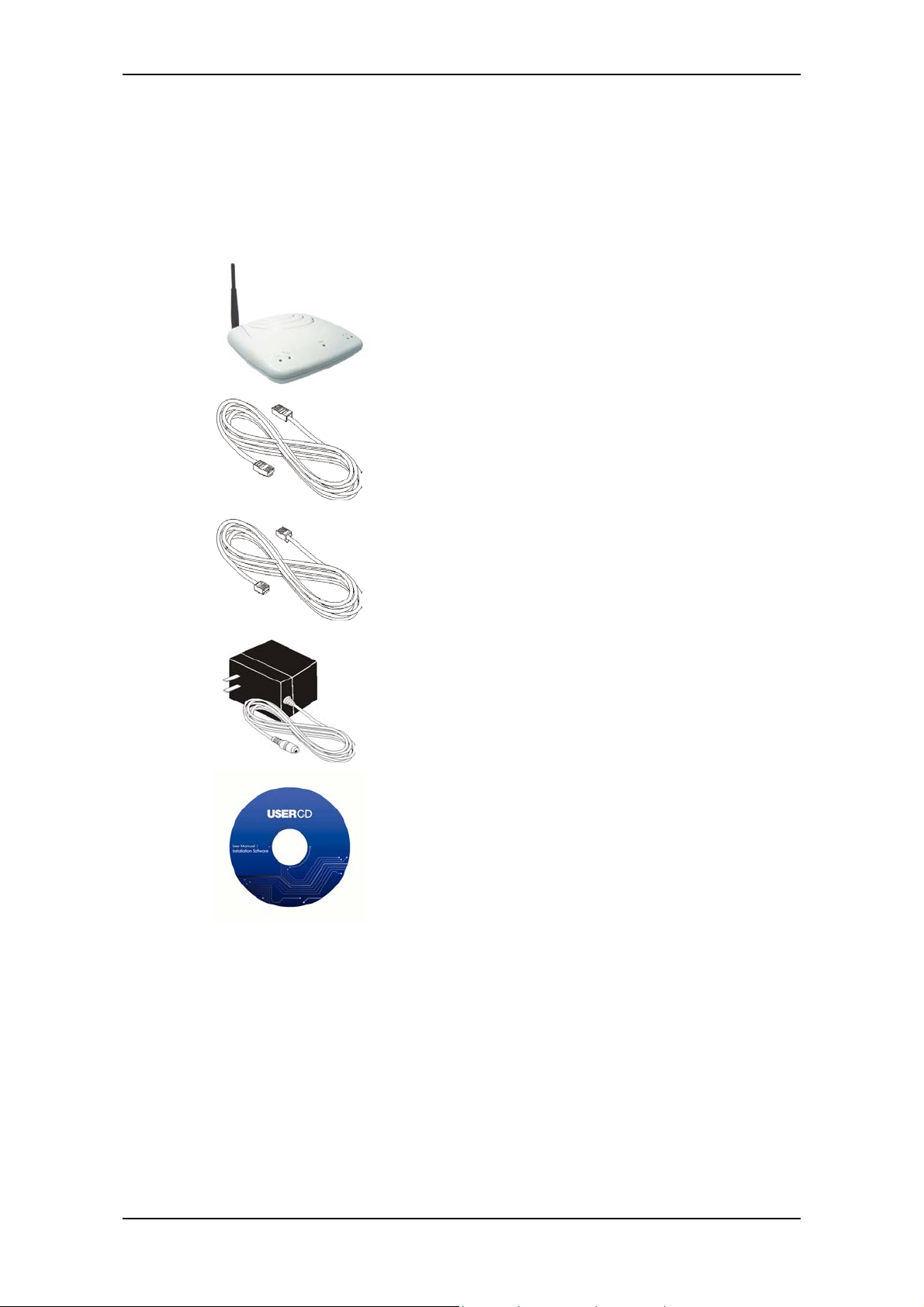

III. Packaging

This package consists of the following items:

X7868r/X7868r+ADSL device unit

RJ-45 Cable

RJ-11 Cable

AC Adapter

User’s Manual CD

X7868r/X7868r+ User’sManual

Version 1.0

- 8 -

IV. Safety Guidelines

In order to reduce the risk of fire, electric shock and injury, please

adhere to the following safety guidelines.

 Carefully follow the instructions in this manual; also follow

all instruction labels on this device.

 Except for the power adapter supplied, this device should not

be connected to any other adapters.

 Do not spill liquid of any kind on this device.

 Do not place the unit on an unstable stand or table. This unit

may drop and become damaged.

 Do not expose this unit to direct sunlight.

 Do not place any hot devices close to this unit, as they may

degrade or cause damage to the unit.

 Do not place any heavy objects on top of this unit.

 Do not use liquid cleaners or aerosol cleaners. Use a soft dry

cloth for cleaning.

X7868r/X7868r+ User’sManual

Version 1.0

- 9 -

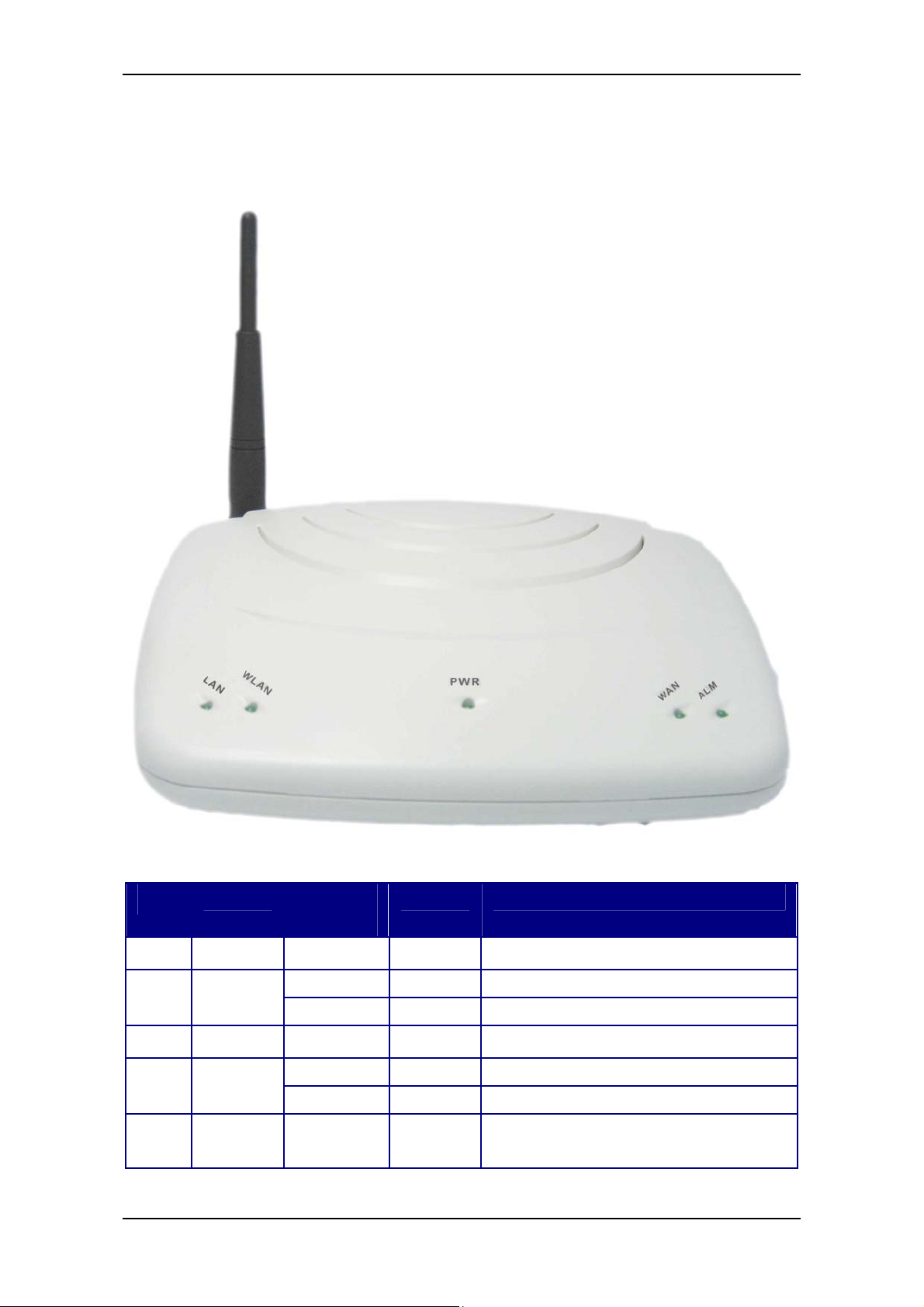

V. Appearance

Front Panel

Label LED

Status

Color Description

1LAN ON Green Ethernet transmitting.

Blinking Green WLAN transmitting.

2WLAN

ON Green WLAN port is active

3PWR ON Green Power supply is connected.

Blinking Green Training with DSLAM.

4WAN

ON Green ADSL link is ready.

5ALM Blinking RED Device Booting up. The LED

will turn-off after boot-up

12345

X7868r/X7868r+ User’sManual

Version 1.0

- 10 -

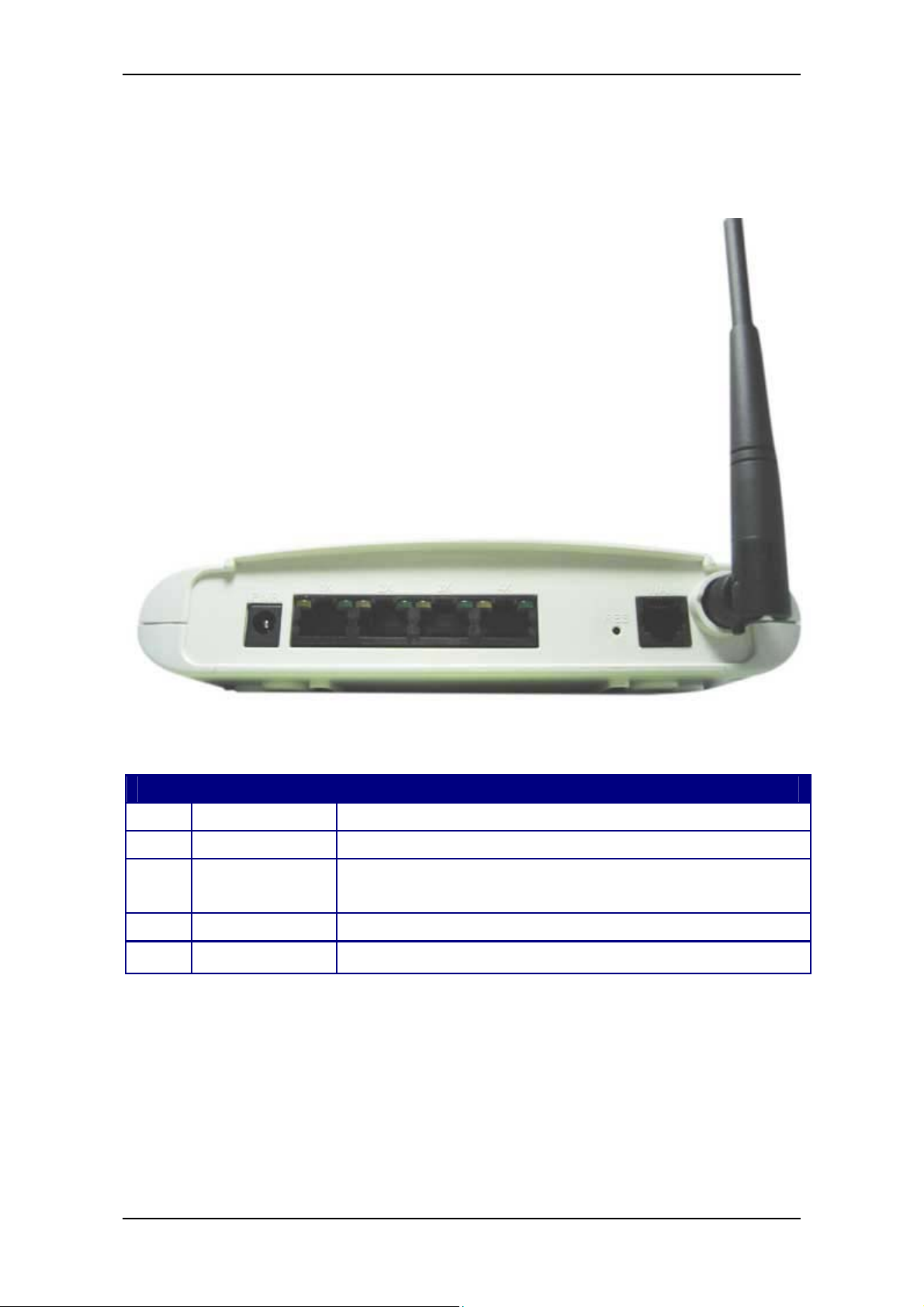

Rear Panel

Label Description

1PWR Power jack; connect to a power adapter.

2ETHERNET RJ-45 ports; connect to a PC or LAN.

3RESET Reset the modem back to factory settings by

holding down on this button.

4WAN RJ-11 port; connect to the ADSL outlet.

5Aerial External Dipole Antenna

1 2 3 4 5
