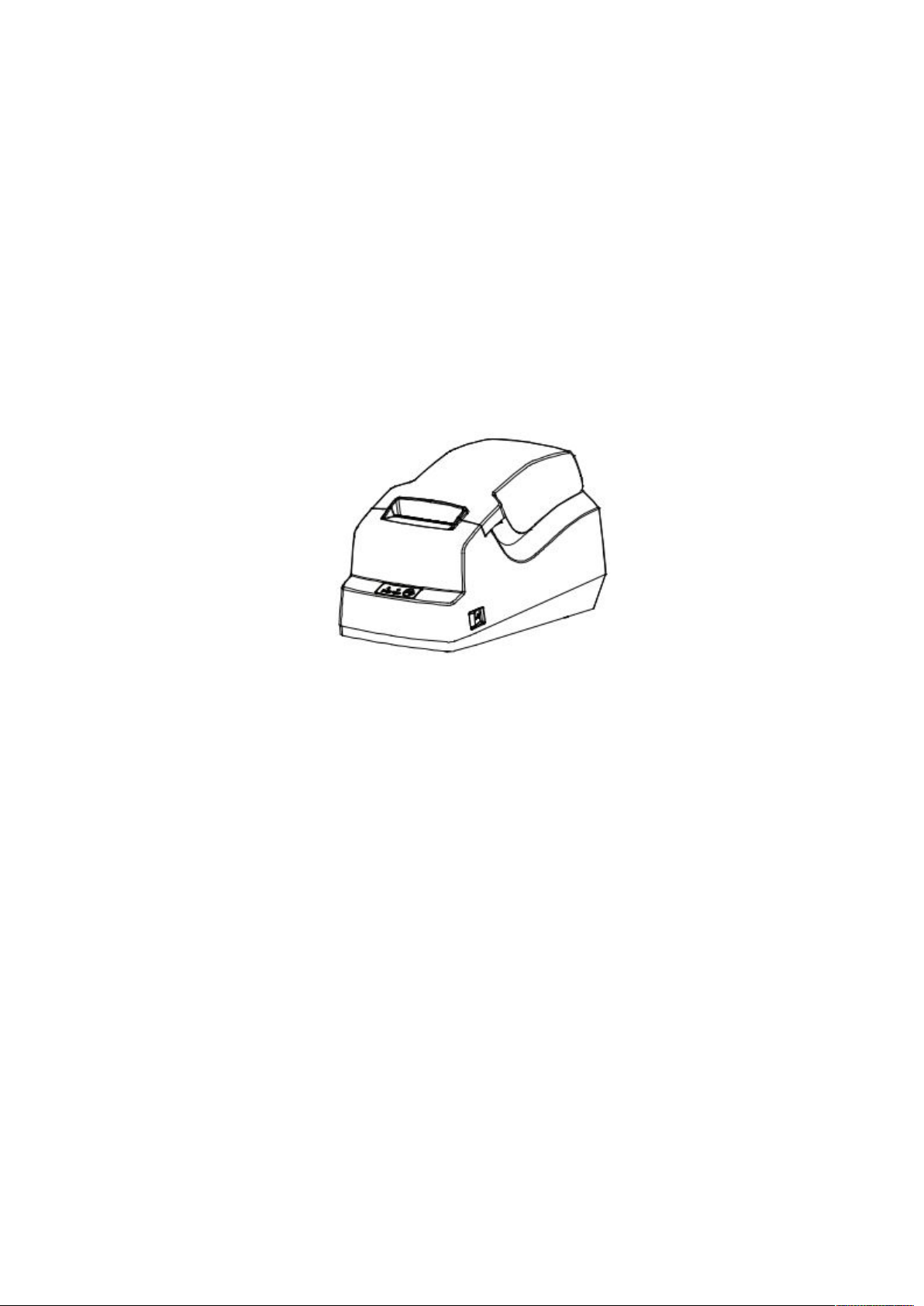

Desktop POS Printer

PPTII-B

Service Manual

Xiamen Hanin Electronic Technology Co.,Ltd.

ADD:

Room 305A, Angye Building, Pioneering Park,

Torch High-tech Zone, Xiamen, China 361009

Tel:

+86-(0)592-5885993

Fax:

+86-(0)592-5885992

Web:

www.hprt.com

PPTII-B Service Manual

Rev 1.0 www.hprt.com

CONTENTS

Statement.................................................................................................................... 1

Getting started............................................................................................................ 2

Caution Symbol........................................................................................................... 3

Safety Precautions.......................................................................................................3

Chapter 1 Specifications............................................................................................. 4

1.1 General specification.................................................................................... 4

1.2 Dimensions....................................................................................................6

1.3 Appearance................................................................................................... 7

1.4 Basic Operation............................................................................................. 9

Chapter 2 Disassembly..............................................................................................11

2.1 Removing the Lower Plate..........................................................................12

2.2 Removing the Control Board...................................................................... 13

2.3 Removing the Mechanism Assembly......................................................... 13

2.4 Removing the Platen Assembly.................................................................. 14

Chapter 3 Parts List................................................................................................... 15

3.1 Overall Exploded View................................................................................ 15

3.2 Parts List...................................................................................................... 16

Chapter 4 Troubleshooting guide............................................................................. 18

4.1 Printer Not Working....................................................................................18

4.2 LED Indicator on the Control Panel............................................................ 18

4.3 Troubles during Printing............................................................................. 18

PPTII-B Service Manual

Rev 1.0 www.hprt.com

Statement

This manual content may be altered without permission, and Xiamen Hanin

Electronic Technology Co., Ltd. reserves the rights to make changes without notice

in technology, spare parts, hardware and software of the products. If more

information is needed about the products, please contact Xiamen Hanin Electronic

Technology Co., Ltd. Without any written permission from the company, any

section of this manual is prohibited to be copied or transferred in any form.

This manual is printed in 2016, the copyright belongs to Xiamen Hanin Electronic

Technology Co. Ltd.

Printed in China

1.0 Version

PPTII-B Service Manual

Rev. 1.0 www.hprt.com

Getting started

This manual describes the printer PPTII-B.

It is designed for use as a reference for periodic inspections and maintenance

procedure to be executed by service personnel. It is not intended for the general

user. Users of this manual should have a basic knowledge and understanding of

the English language.

This manual is divided into the following sections:

CHAPTER 1 Specifications

CHAPTER 2 Disassembly

CHAPTER 3 Parts list

CHAPTER 4 Troubleshooting guide

Note the following precautions during work.

Note:

Always wear safety gloves to prevent an injury as well as to prevent rust

developing on the device.

Never start a service when your hands are wet.This will prevent an electric

shock as well as rust developing on the device.

Always wear a wristband to prevent a damage by electrostatic discharge.

Important Information

PPTII-B Service Manual

Rev. 1.0 www.hprt.com

Caution Symbol

This symbol is placed near the thermal head to indicate that it may be hot.

Never touch the thermal head immediately after the printer has been

used.

This must be complied with in order to avoid any damage to the human

body and to the equipment.

Safety Precautions

To use this product in safety, please follow the precautions given below.

1) Place the printer on a solid and even base so that it cannot fall.

2) Leave enough space around printer for operation and maintenance.

3) Keep all liquids away from the printer.

4) Do not expose the printer to high temperatures, direct sunlight or dust.

5) Protect the printer from shock, impact and vibration.

6) Ensure the printer is connected to a socket with the correct mains voltage.

7) Switch off the printer power supply when won’t use it for a long time.

8) To ensure the printing quality and reliability, suggest use the recommended

paper or the same quality paper.

9) Pls switch off the power supply when connect/disconnect all the ports or it

will cause damage to the printer control circuit.

10) Never carry out maintenance or repair work yourself. Always contact a

qualified service technician.

11) Keep this Service Manual in a place which is easily accessible at all times.

PPTII-B Service Manual

Rev. 1.0 www.hprt.com

Chapter 1 Specifications

1.1 General specification

Table 1 General Specifications

(1/2)

Items

Parameter

Printing

Printing method

Thermal line printing

Resolution

203dpi

Printing width

48mm

Printing speed

100mm/s

Interface(optional)

RS232/USB/Cash drawer/Ethernet/Parallel

(It depends on the different model)

Page mode

Nonsupport

Memory

RAM

20K Byte

Flash

2M Byte

Character

Chinese

GBK16x16, 24x24dots

Alphanumeric

ASCⅡ8×16,12×24dots

User-defined

Yes

Codepage

[PC437 (USA: Standard Europe)],[Katakana],[PC850

(Multilingual)],[PC860(Portuguese)],[PC863(Canadia

n-French)],[PC865(Nordic)],[PC857(Turkish)],[PC737(

Greek)],[ISO8859-7(Greek)],[WPC1252][PC866(Cyrilli

c#2)],[PC85(Latin2)],[PC858(Euro)],[KU42],[TIS11(Th

ai)],[TIS18(Thai)],[PC720],[WPC775],[PC855(Cyrillic)]

,[PC862(Hebrew)],[PC864(Arabic)],[ISO8859-2(Latin2

)],[ISO8859-15(Latin9)],[WPC1250],[WPC1251(Cyrilli

c)],[WPC1253],[WPC1254],[WPC1255],[WPC1256],[

WPC1257],[WPC1258],[MIK(Cyrillic/Bulgarian)],[CP7

55(EastEuropeLatvian2)],[Iran],[IranII],[Latvian],[ISO-

8859-1(WestEurope)],[ISO-8859-3(Latin3)],[ISO-885

9-4(Baltic)],[ISO-8859-5(Cyrillic)],[ISO-8859-6(Arabic)

],[ISO-8859-8(Hebrew)],[ISO-8859-9(Turkish)],[PC85

Barcode

UPC-A,UPC-E,EAN8,EAN13,CODE39,ITF,CODEBAR,CO

DE128,CODE93

Detection

Sensors

Paper out detection

PPTII-B Service Manual

Rev. 1.0 www.hprt.com

Table 1 General Specifications(Continued)

(2/2)

Items

Parameter

LED

indicator

Power indicator

Green

Status indicator

Red

Power supply

Input

12V 2A( External power adapter)

Paper loading

Paper type

Thermal paper

Paper width

58mm

Paper thickness

0.25mm Max.

Paper roll diameter

83mm Max OD

Paper loading

Easy loading

Recommended

paper

FD210,PD150R,PD160R

(OJI Paper CO.,LTD.)

Command

ESC/POS

Physical

characteristics

Working condition

0～40℃/20～85%RH

Storage condition

-20～70℃/5～95%RH

Dimension

196(L)*114(W)*124.5(H)mm

Weight

930g (without paper roll)

Reliability

TPH

150km

NOTE:

Pls. use the recommended thermal paper or same quality paper, otherwise it will

influence the printing quality and decrease the thermal printer head life.

PPTII-B Service Manual

Rev. 1.0 www.hprt.com

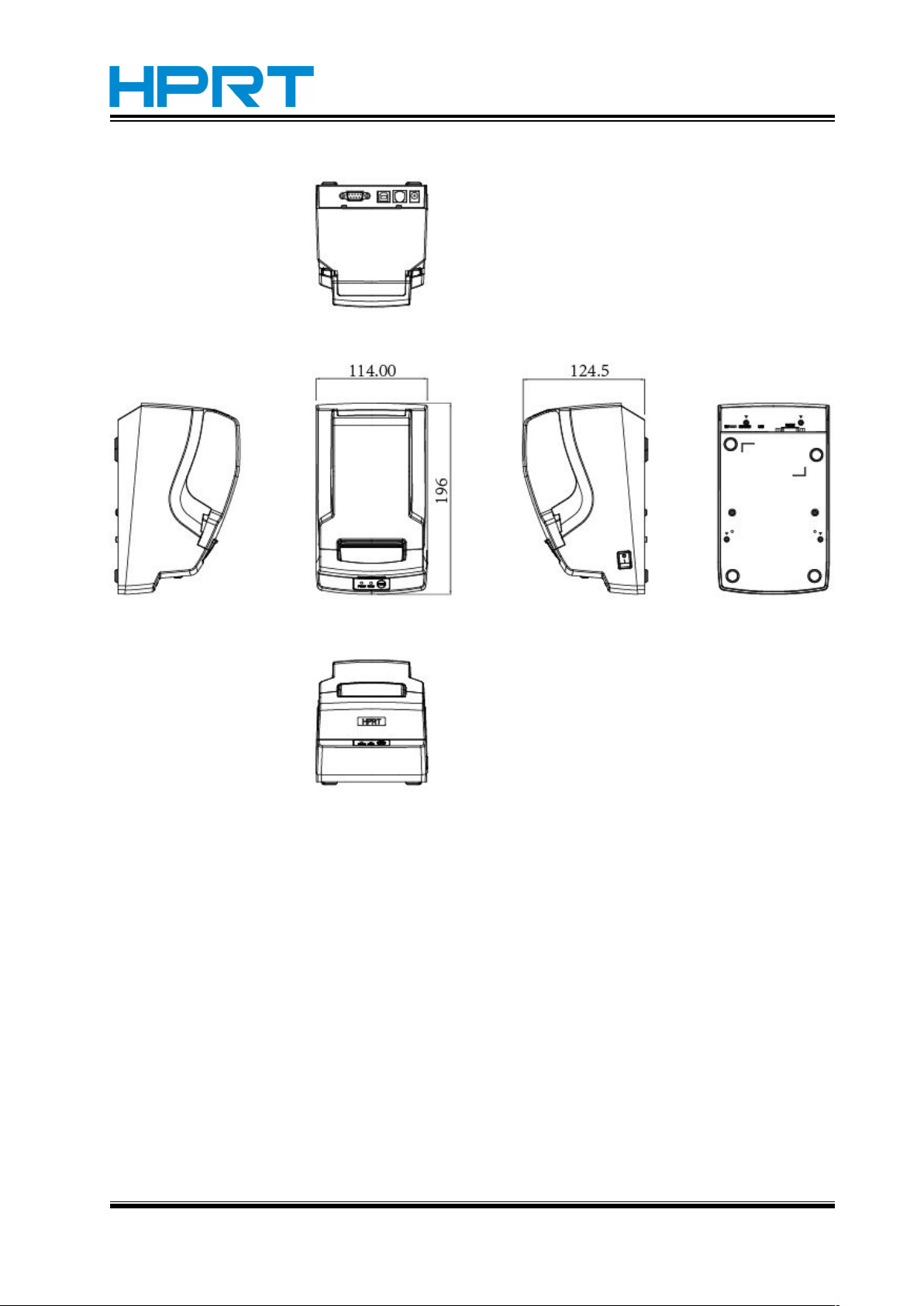

1.2 Dimensions

PPTII-B Service Manual

Rev. 1.0 www.hprt.com

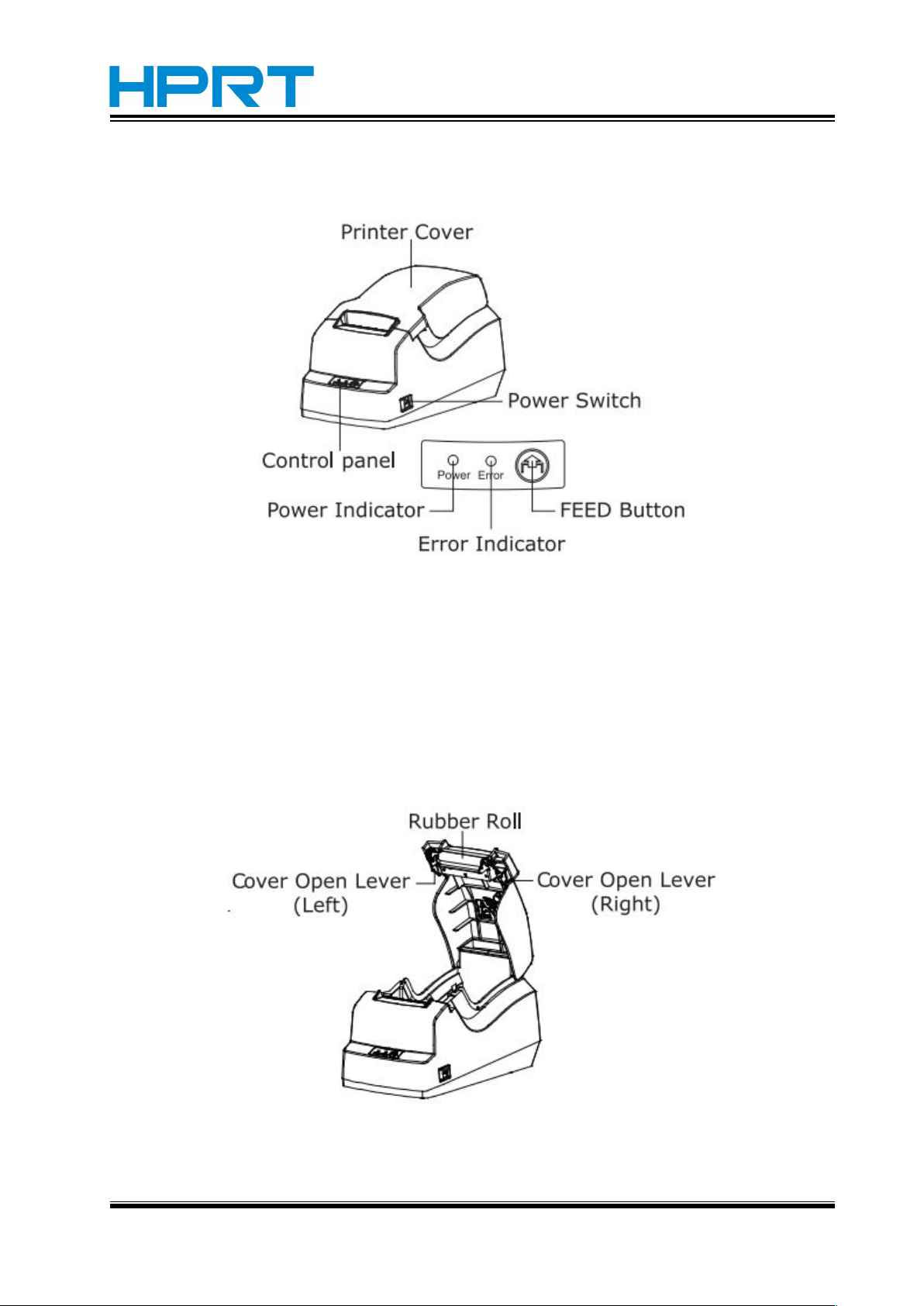

1.3 Appearance

Front

Insight

PPTII-B Service Manual

Rev. 1.0 www.hprt.com

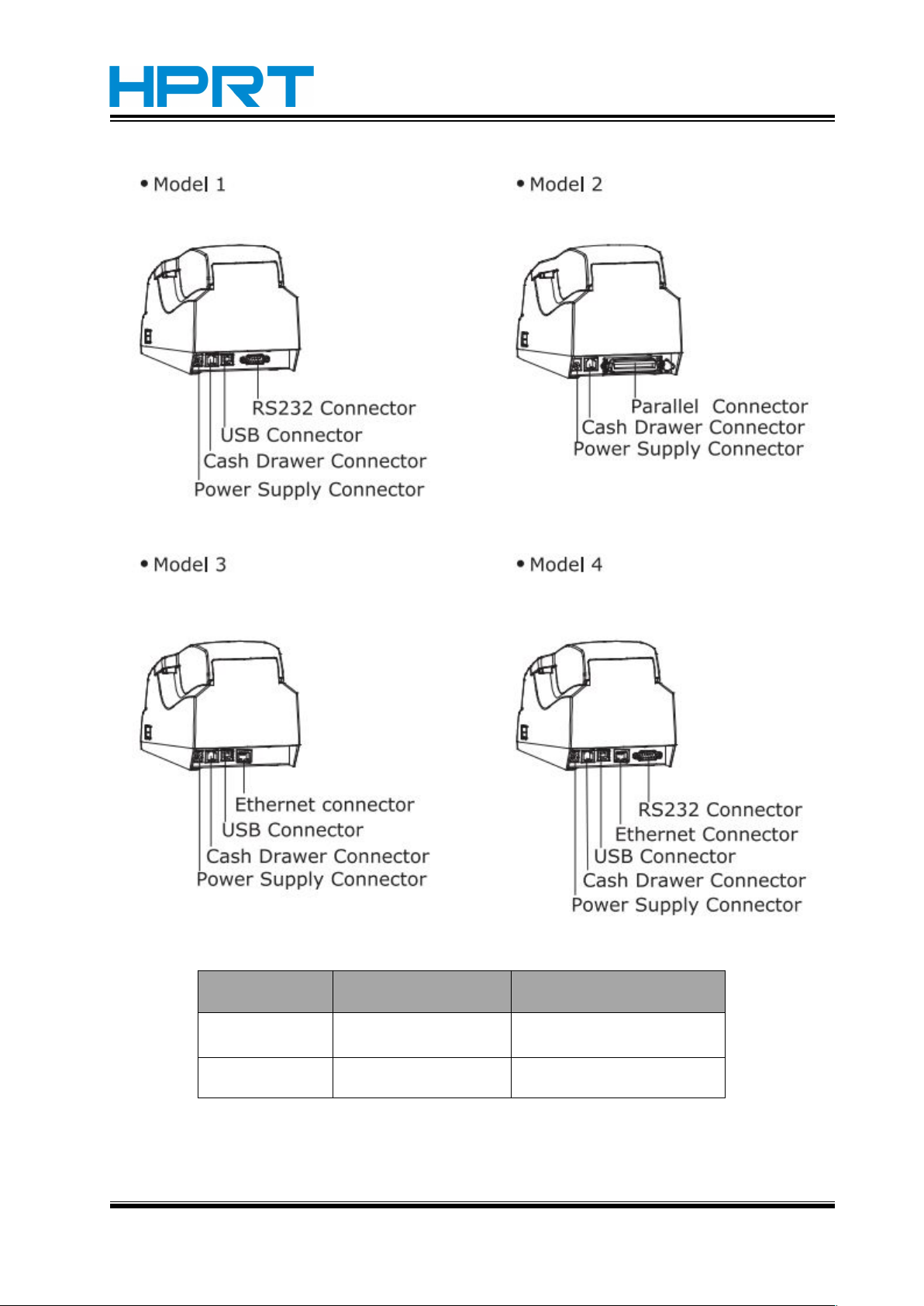

Rear

Indicator

Color

Description

Power

Green

Power is normal

Error

Red

Wrong condition
