Xiamen RP80VI Bedienungsanleitung

Thermal Label Printer

RP80VI

User Manual

Content

CONTENT.....................................................................ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

1．INSTRUCTION......................................................ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

1.1SAFTYWARNINGS...................................................................................................................................3

1.2NOTICES ..................................................................................................................................................3

2．SUMMARISATION...............................................ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

2.1MAIN FEATURES......................................................................................................................................4

3．SPECIFICATIONS.................................................ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

4. PRINTER INSTALLATION AND OPERATINGОШИБКА! ЗАКЛАДКА НЕ

ОПРЕДЕЛЕНА.

4.1THE DISMANTLE OF THE PRINTER.......................................................................................7

4.2 THE CONNECTOPM OF THE PRINTER....................................................................................................8

4.3 THE LOADING OF THE PAPER .................................................................................................................9

4.4THE BOOTFUNCTION OF THE PRINTER ...................................................................................................9

4.4.1 THE GAP SENSOR CALIBRATION.....................................................................................................9

4.4.2 PRINTER INITIALIZATION ...........................................................................................................10

5. INDICATORS AND KEYS..................................ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

5.1 INDICATORS .........................................................................................................................................10

5.2 FAULTCODE.........................................................................................................................................11

5.3 KEYS.....................................................................................................................................................11

6. THE SERIAL INTERFACE OF THE PRINTERОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

7. THE PARALLEL INTERFACE OF THE PRITNERОШИБКА! ЗАКЛАДКА НЕ

ОПРЕДЕЛЕНА.

8. THE ETHERNET INTERFACE OF THE PRINTERОШИБКА! ЗАКЛАДКА НЕ

ОПРЕДЕЛЕНА.

9. THE CASH PORT OF THE PRITNER ...............ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

10. THE FRIVER OF THE PRINTER.....................ОШИБКА! ЗАКЛАДКА НЕ ОПРЕДЕЛЕНА.

1. Instructions

RP80VI series is thermal barcode printer with high performance and reliability. It

is with high quality and competitive price and easy to use, so it is widely used in the

factory, logistics, restaurant, tea shop, etc.

Safety Notices

Please read the below warnings carefully and observe it strictly before operating

the printer.

1.1safety warnings

Warning: Do not touch the printer cutter or paper tearing cutter.

Warning: The print head is the head and the peripheral comp finishing the printing.

1.2 Notices

(1) The printer should be put on solid place. Don’t put printer on vibration and

shocking place.

(2) Don’t print or save printer in high-temperature, high-humidity and heavily polluted

place.

(3) Printer adapter should be connected to a properly grounded socket. Don’t use the

same socket together with large motors or other equipment that may cause voltage

fluctuations.

(4) Avoid water or conductive material (such metal) going into the inside of

the printer, once happen, should turn off the power immediately.

(5) If long time not uses printers, should disconnect the adapter power.

(6) Don't disassemble the printer for overhaul or transformation.

(7) Please only use the adapter, which is together with printer

(8) To ensure the quality and lifetime of printer, we recommend to use high-quality

thermal paper and ribbon.

(9) Make sure the printer power is turned off when Pull or plug connection lines.

(10) When Pull or plug power cord, please hold at the cord end, which is marked

with arrow (do not pull the soft part of the cord) .

(11) Please keep this manual for reference.

2. SUMMARISATION

2.1Main Features

● Support thermal paper roll/thermal sticker/thermal label

● 2-6inch/s high printing speed

● Support 2D printing (QRCODE)

● Paper width from16mm-82mm and easy to use

● Adjustable pressure of the printing head

● Paper automatic checking function

● Modular design to meet different application requirements

● Self-adaptive temperature control

● Low power consumption and low running costs

3. Technical parameters

● Printing method: Direct thermal printing

● Resolution: 203DPI

● Printing width: 80MM （max）

● Printing speed: 150mm/s (max); 127mm/s (normally)

● Memory: DRAM: 8M FLASH: 4M

● Interfaces

USB interface: General USB interface (standard type B).

Serial interface: DB9 female interface, baud rate of 4800bps, 9600bps,

19200bps or 38400bps optional (via DIP switch adjustments), data structures for no

parity, 8 data bits, 1 stop bit, supports RTS / CTS and XON / XOFF handshaking

meeting.

Ethernet interface: Standard RJ45-8P interface, 10M / 100M adaptive

transmission speed, 100M LED indicates network, data communication LED

indicator.

Cash drawer port: Standard RJ-11-6P socket, output DC 24V / 1A power supply

signal to drive the cash drawer action.

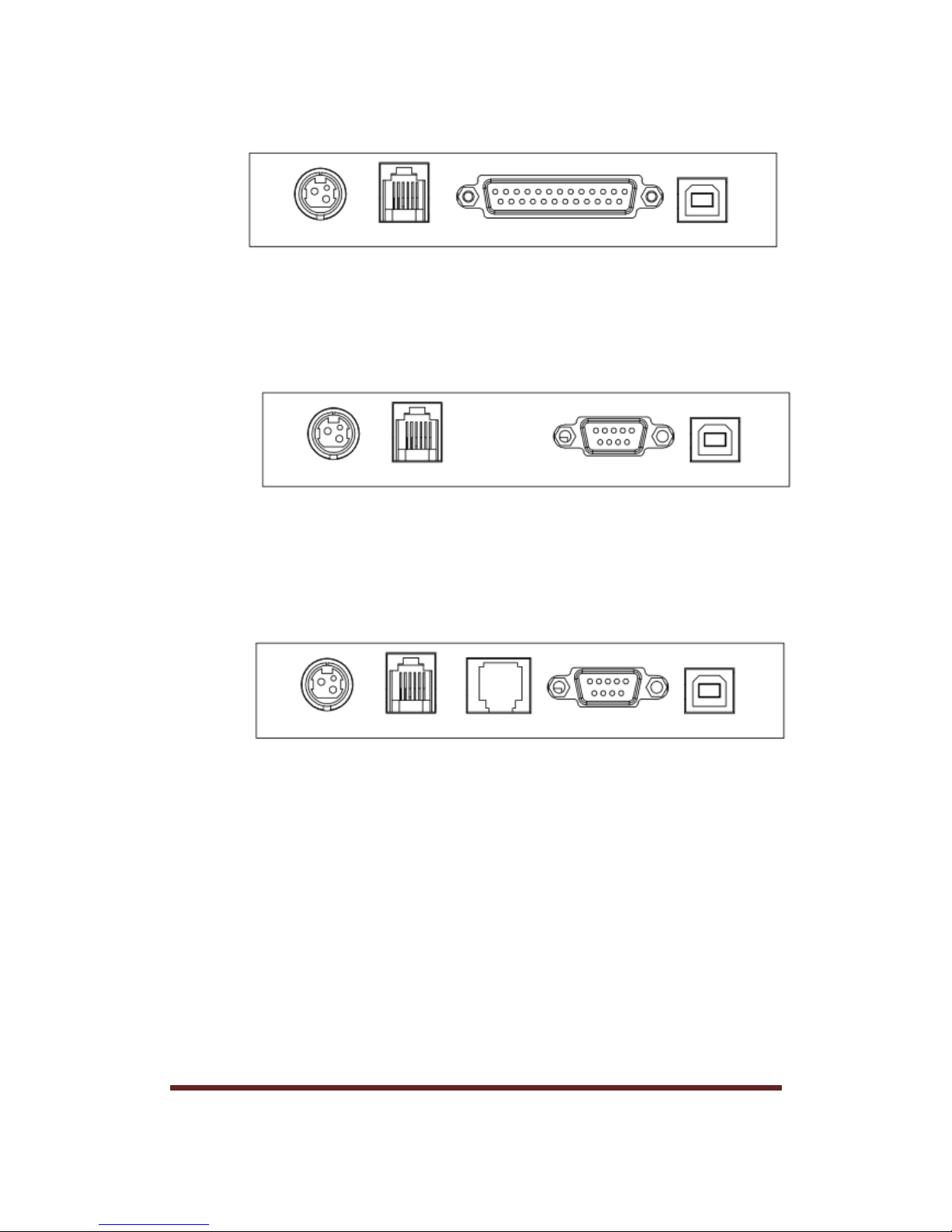

● Different type of interface panel are as following

RP80VI-UP:

Powerport Cash drawer Parallel interface USB

RP80VI-US:

Power port Cash drawer Serial interface USB

RP80VI-USE:

Power port cash drawer Ethernet interface Serial interface USB

● Barcode:

1D code: CODE128、EAN128、CODE39、CODE93、EAN13、EAN8、CODABAR、

UPCA、UPCE、MSI、MSIC、I25

2D code: QRCODE

● Medium

Paper type: thermal paper roll, stickers, etc.

Paper width: 16mm-82mm

Diameter of the outside paper roll: 85mm Max

Paper-out method: automatically stripped or peeled off

● Power adapter of the printer:

Adapter input voltage:AC 110V/220V，50〜60Hz

Adapter output voltage: DC 24V/2.5A

Printer input voltage: DC 24V/2.5A

● Weight of the Printer: 1.36kg (paper roll not included)

● Sizes:

237(L) x 146(W) x 130(H) mm

● Environment:

Working temperature: 5~45°C; Working humidity:20-80%RH(Non-condensing)

Storage temperature: -40〜55°C; Storage humidity: ≤90%(Non-condensing)

4. Printer installation and operation

4.1 The dismantle of the printer

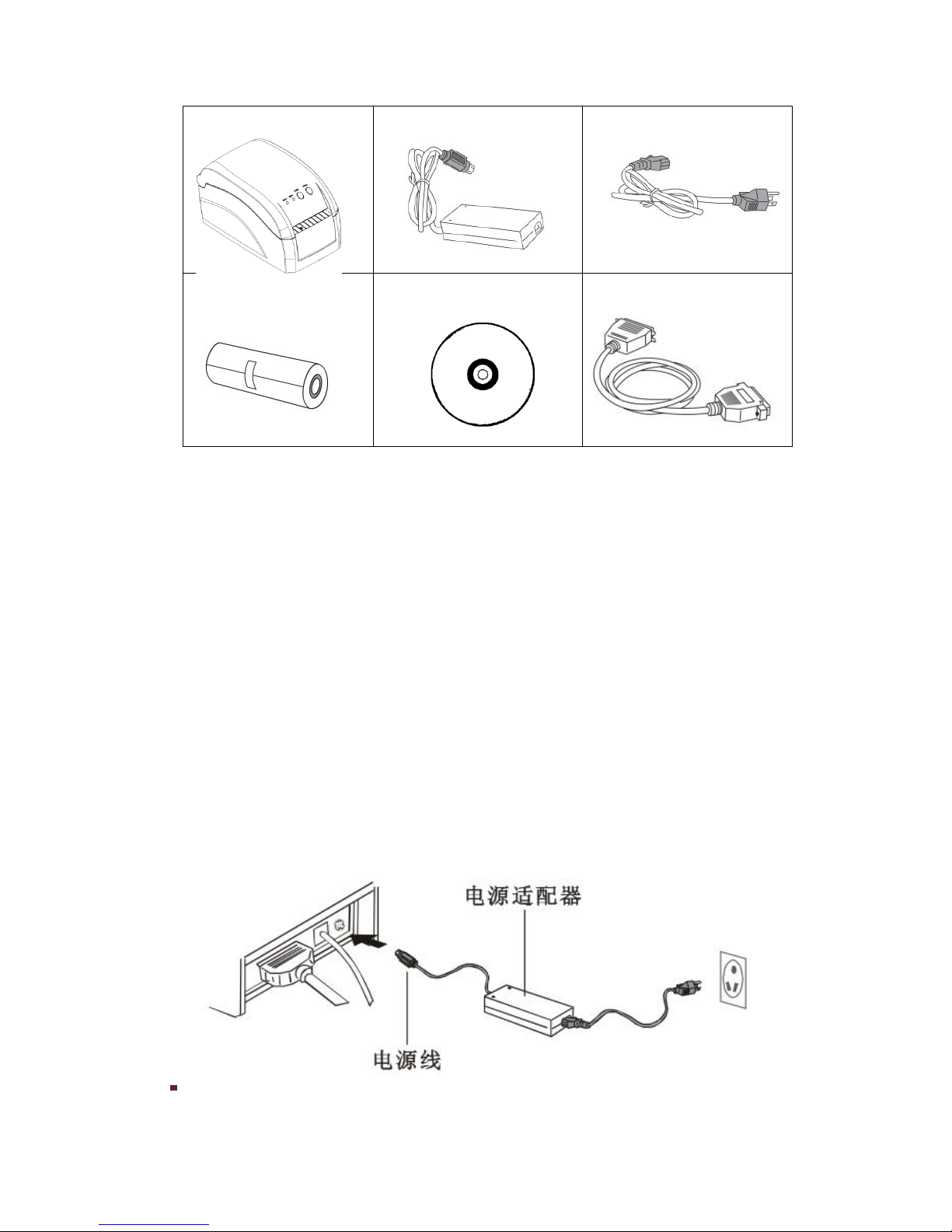

Check the spare parts

Please check the spare parts when opening the box, please contract the supplier or

factory if anything missed.

printer power adapter power cord

paper roll CD cable

4.2 The connection of the printer

(1) Make sure that the printer and PC are turned off, connect the cable to printer and

the interface (Serial/Parallel/USB/Ethernet) of the equipment.

(2) If the automatic cash drawer is available, then connect the RJ-11 of the cash

drawer to the cash drawer port of the printer.(the specification of the cash drawer must

coincide with the driver of the printer’s cash drawer)

(3) Connect the dedicated adapter of the printer

Please use the dedicated adapter of the printer. Connection diagram is shown below:

Attention:

(1) First plug the DC24V power cord of the printer, and then plug the AC220V power,

at last turns the power switch. Do not do that opposite way, or it will do harm to the

printer.

(2) Inappropriate use of the power adapter will lead to bad quality printing, or even do

harm to the printer.

(3) Do not connect the telephone line to the cash drawer port, or it will damage both

the printer and the telephone.

(4)When pull the power cord of the printer, please hold the pace where signed arrow

(Do not hold the soft cord to pull the power cord). Hold the soft cord and pull may

damage the printer or the power adapter.

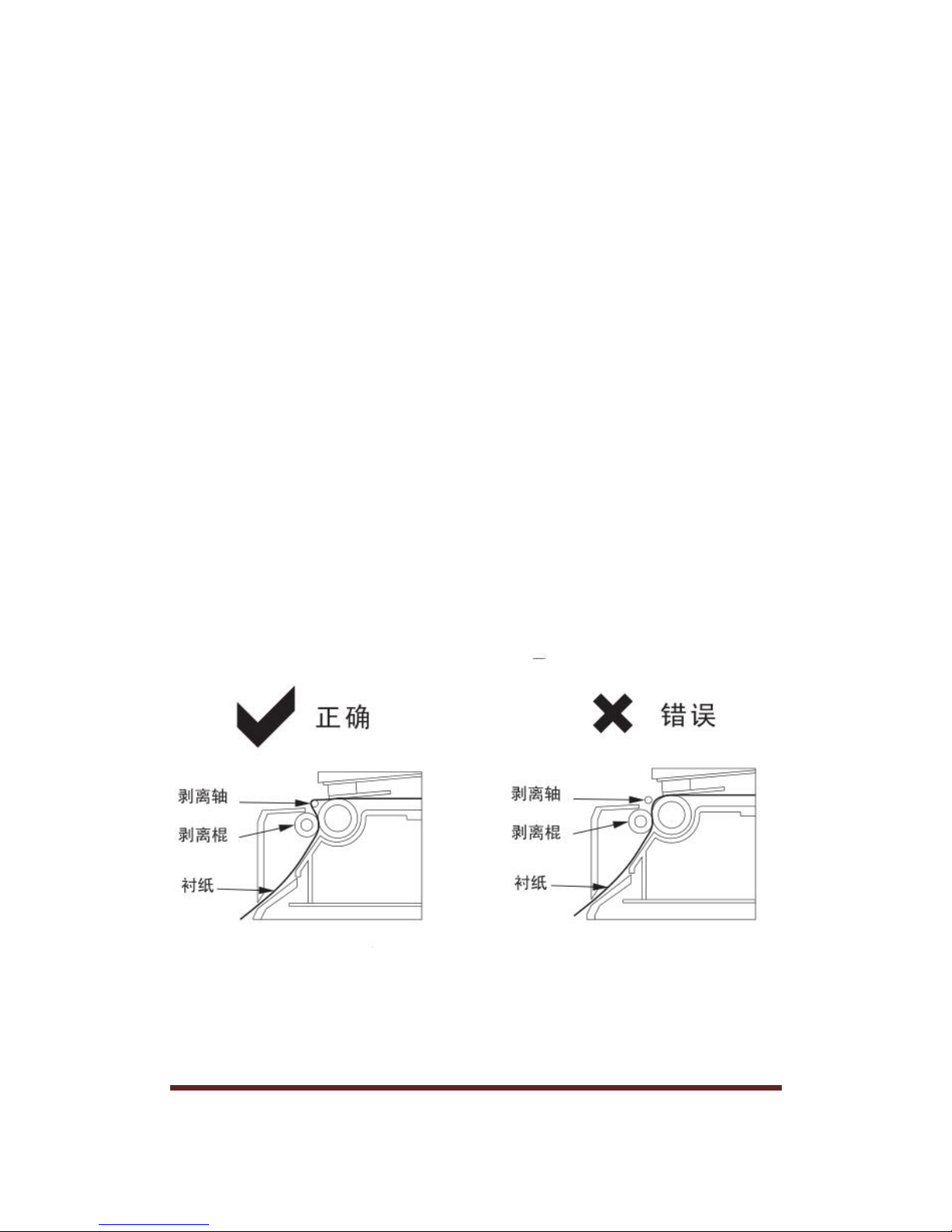

4.3 The loading of the paper roll

Detailed operation as shown below:

4.4 Function of Starting Up

4.4.1 Interval Sensor Adjusting

It is necessary to adjust sensitivity of interval sensor under the situation below:

1. new printer

2. change label

3. Printer initialization

This function is for testing sensitivity of interval sensor. When users change paper of

different specification or initialize printer, it needs to set up the interval sensor

adjusting.

Please follow up the steps below to adjust interval sensor:

1. turn off the power of printer

2. make sure the paper exists and cover is closed

3. press the PAUSE button and turn on the printer, when printer open interval sensor

adjustment, loosen PAUSE button.

4.4.2 Printer Initializing

This function is for clearing data downloaded in DRAM and resetting the printer.

Please start adjustment of interval sensor after initialization.

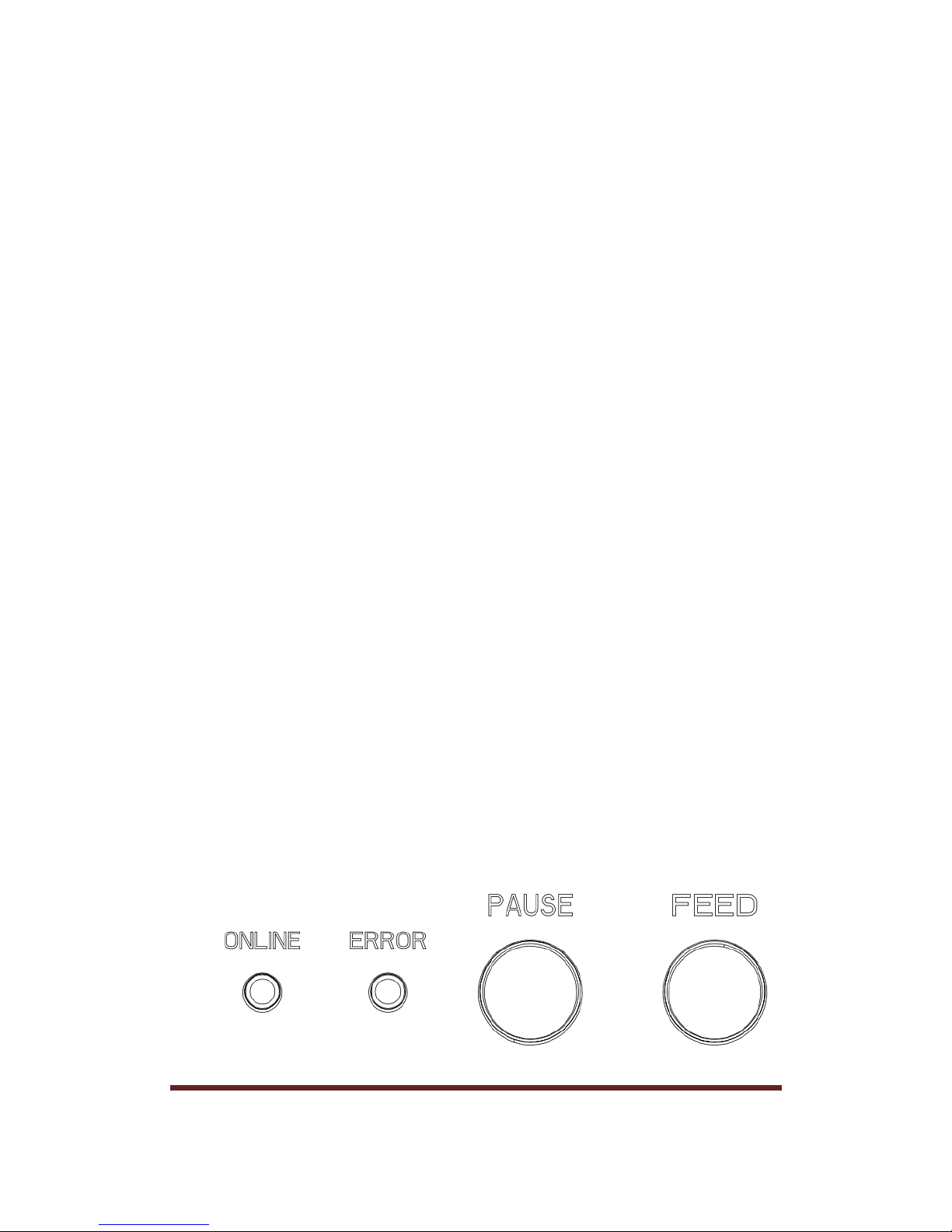

5.Indicator Light and Button

There is tow indicator lights: blue light for power and red light for error. Tow

button: PAUSE and FEED. Showed as follows:
