Xiaomi Mi TV 2 49’ Bedienungsanleitung
Mi TV 2 49’
Manual
1Take out components
2Take out TV according to the image
3Components
Bracket x2
-Left and right brackets. There are special set
crews on the rear side of the TV left and right.
Mi home speaker system (linear
loudspeaker)
It contains two linear loudspeakers and the
subwoofer. Linear loudspeakers connect up to
the TV and to the power supply only; subwoofer
connects up to the TV only. After you’re able to use
the speaker system.
Additional tools box
There is a screwdriver for brackets mount. Look at
the additional tools image below for details.
Screen
Now you can take out the screen. We recommend
you to put the screen on the soft area for
comfortable mounting of the brackets.
XIAOMI-MI.COM
44.Additional tools:
Remote controller Screwdriver Speaker
system cable
S/PDIF cable
(subwoofer)
Screws х5 3D glasses х2 Antenna
adapter
Antenna
disconnecting
switch
Elements that aren’t included to the standard set: Mi TV and Mi speaker system combined with special
wall holders, which you should separate.
5Brackets and speakers system mount
Brackets mount
On the rear side of the brackets indicated which is for left and
right sides of the TV.
Connect the speakers system to the TV
Using S/PDIF cable, connect Mi speakers system (linear
loudspeaker) to the Mi TV audio input.
Power AUX stereo input coaxial S/PDIF input
Supply TV and Mi speaker system
Supply a TV and Mi speakers system
First of all supply Mi speakers system (subwoofer), after connect TV and the speakers system (linear
loudspeaker).
Launching
With the rst launching use the manual for successful TV setting.
Due the brackets mount select the threaded hole for adjusting screw. If you choose bottom
threaded hole you can place the speaker system under the screen (linear loudspeaker),
amplier, DVD and other devices.
!
XIAOMI-MI.COM
6TV inputs and speakers system familiarization
HDMI: (ARC) with a feedback channel you can
connect an amplier for music playback
Computer Console Blu-ray DVD Digital console HD-player S/PDIF cable Loudspeakers/
subwoofer
HDMI input Computer connector AV input Internet Audio output
Computer AV cable Blu-ray DVD Ethernet Antenna
disconnecting
switch
TV antenna input
When you need to connect wired/wireless input or connect a device for F-input, you can choose appropriate connection method:
1.IEC input + wireless isolator + coaxial cable
2.IF input + wireless adapter isolator + coaxial cable
XIAOMI-MI.COM
7Sensor panel control
Launching: supply and touch the sensor panel of Mi TV for lunching.
Position: Mi sensor panel located in the bottom of the device.
Functions: touch the panel easily to manage TV functions: remote search.

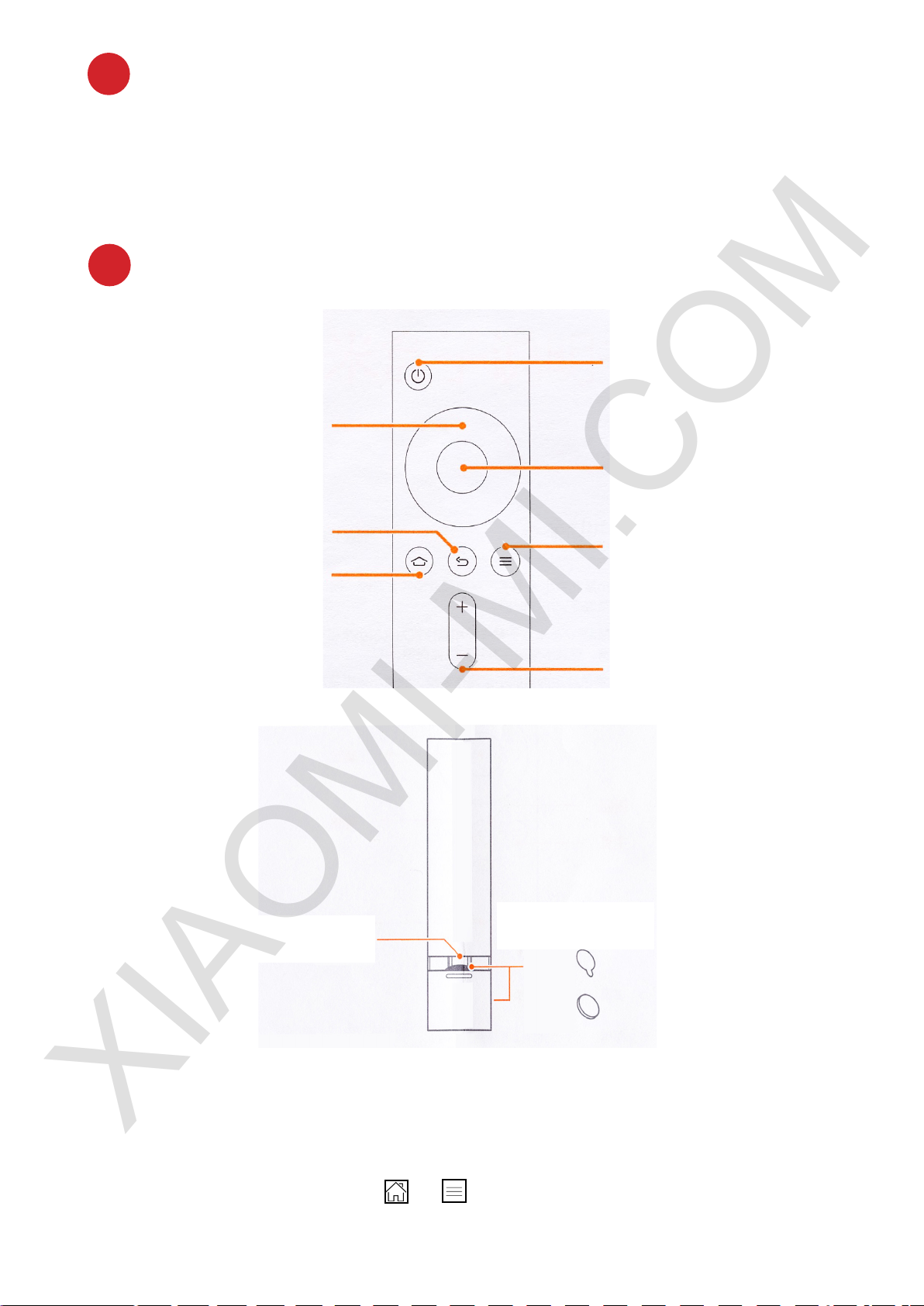

8Remote controller
Turn o/ on
Return to the main page
Menu
Return to the previous
step
Selection and movement
of the various options
Conrmation
Volume
Battery box
Isolating plate
Pay attention on two points
1.First of all you withdraw isolating plate. Push the cover of the battery compartment and put it down. Then
take the isolating plate located between batteries and close the cover of the remote controller.
2.TV and remote control. There is a special Bluetooth system, which is valid for 20 meters in the right
bottom corner of the TV. Push buttons and in the same time and hear the sound, after dismiss the
button (follow the signed distance, please) and a remote will contact the TV. Then the remote playbacks
two beeps, that means the conjugation is successful.
XIAOMI-MI.COM
Power: push the turn-o button, push and hold button for turn-o, reboot or set time of shutdown.
Main page: push the button for quick return on the main page. Push and hold the button for 2 seconds to watch
through the list of the valid applications.
Menu: demonstration of the interface and other functions. I n the online video interface enter the search, in the
interface of les
Choice controller (up, down, left, right). While video watching using this buttons you also can quickly rewind video
back and forward.
Choice conrmation: conrm your current choice. While video watching you can pause or playback a video.
Return (undo): returns a previous step.
Main parameters:
Screen: 49 inch
Resolution: 3840x2160 (4K)
Main components parameters:
Processor: Cortex A9.4, double channel processor,
Flash memory: 8 Gb ash memory eMMC
Graphic processor: Mali-450 MP4
Ports:
Input: HDMI x3; AV x1; VGA x1, analogue TV (DTMB) x1
Input: analogue audio input.
Interface
Antenna: 2-frequency 2.4 GHz, 5Ghz
Wi-Fi: (802.11 a/b/g/ac, support 2x2 MIMO)
Audio/Video formats:
Audio: FLAC/ AC3/ WMA/ MP3/ AMR/ DTS/ AAC/ OGG
Video: AVC/ MPEG2/4 / H.263, H.265. VP8, COOK
Sound eects: Dolby Audio x2 (steady volume and other control functions)
Multiscreen:
Support image, music and video on the main Millian technology, compatible with Air Play. DLNA, Miracast and WIDI.
3D available
Power
Requirements: rated power 180W
Standby mode <5W
Sound parameters: Crossower 170Hz
Mi speaker system (liner loudspeaker)
Interface S/PDIF port; AUX stereo port; power; Bluetooth
Frequency: range: 170-20000Hz
Components: 2-inch broadband speaker x6, high-frequency speaker x2
Mi speaker system (subwoofer)
Interface: Bluetooth
Frequency range: 20-170Hz
Size: 8-inch
9Parameters:
Xiaomi-mi.com
XIAOMI-MI.COM
