Xtreamer Prodigy Bedienungsanleitung

User Manual

Xtreamer Prodigy Ver.3.0.*

Introduction

Congratulations on your purchase of the Xtreamer Prodigy media player, a state-of-the-art

consumer electronic device that will enrich your home multimedia experience.

Xtreamer Prodigy is a new generation Realtek based media player equipped with

enhanced top quality hardware commonly used in high-end computing and consumer

electronic solution. It has an additional memory, USB 3.0 slave connection for high-speed

data transfer, GB LAN and can be equipped with one 3.5” HDD.

With Xtreamer Prodigy media player you can bring your movies, music and images to your

living room, get rid of that bulky DVD collection, access hundreds of internet feeds and

channels, check your favorite online services and social nets, browse the web, stream

from your iOS device via Airplay, use Android applications and so on.

This is the first media player that incorporates the full 3D support. Enjoy a full movie

theater experience at home.

In Xtreamer Prodigy we also introduce Android 2.2.1 support opening you to the wide

world of thousands of Android applications.

Using the DVB-T tuner module (pre-installed on Xtreamer Prodigy Black) Xtreamer Prodigy

supports Digital Broadcasting and has a built-in recording feature.

Due to the rapid development of our product we cannot possibly guarantee that this

Guide will include all its features. So if you have questions please feel free to browse the

Xtreamer Knowledge base or contact our staff.

Please make sure to visit our site www.xtreamer.net for the Xtreamer news, official

announcements and firmware upgrade.

Table of contents

Page 5 –Hard Drive installation and connections

Page 11 –Remote Control Functions

Page 15 –Main Menu and Settings

Page 29 –Basic Functions

Movie, music and image playback

Page 37–Advanced Functions

Internet, Android, Playlists etc

Page 47 –Network Setup

Page 51 –NFS Shortcut setup

Page 56 –Settings up Network Shares

Page 79 –Prodigy Bit-Torrent client

Page 83 –DVB-T Tuner

Page 92 –Android App installation

Page 97–Web UI

Page 104 –Firmware Upgrade and Emergency Procedure

Page 108 –Useful Links

Connections

Hard-Disk Installation

Open the hard disk cover on the

front panel

Connect the HDD guard to an HDD as shown

on the picture. Fasten the screws.

As shown here, slowly and carefully push the HDD

guard together with the HDD into the main body of

Xtreamer Prodigy.

01.

02.

03.

Video & Audio Output Connections

ㆍHDMI cable connection

Connections

ㆍComposite cable connection

Connect HDMI cable to HDMI terminal at the back of product. Connect the remaining cable

terminal to HDMI terminal at the back of a digital TV. Make sure to carefully distinguish

between input and output terminals.

Connect yellow cable for video signal to the terminal located at the back of side of TV. Then,

select external input of TV. Connect the remaining red and white terminal cables to the left/ right

and audio output terminal at the back of the device. Then, connect red and white cables to the

left/ right terminal of DTV input or component audio input located at the back of a digital TV.

Connection

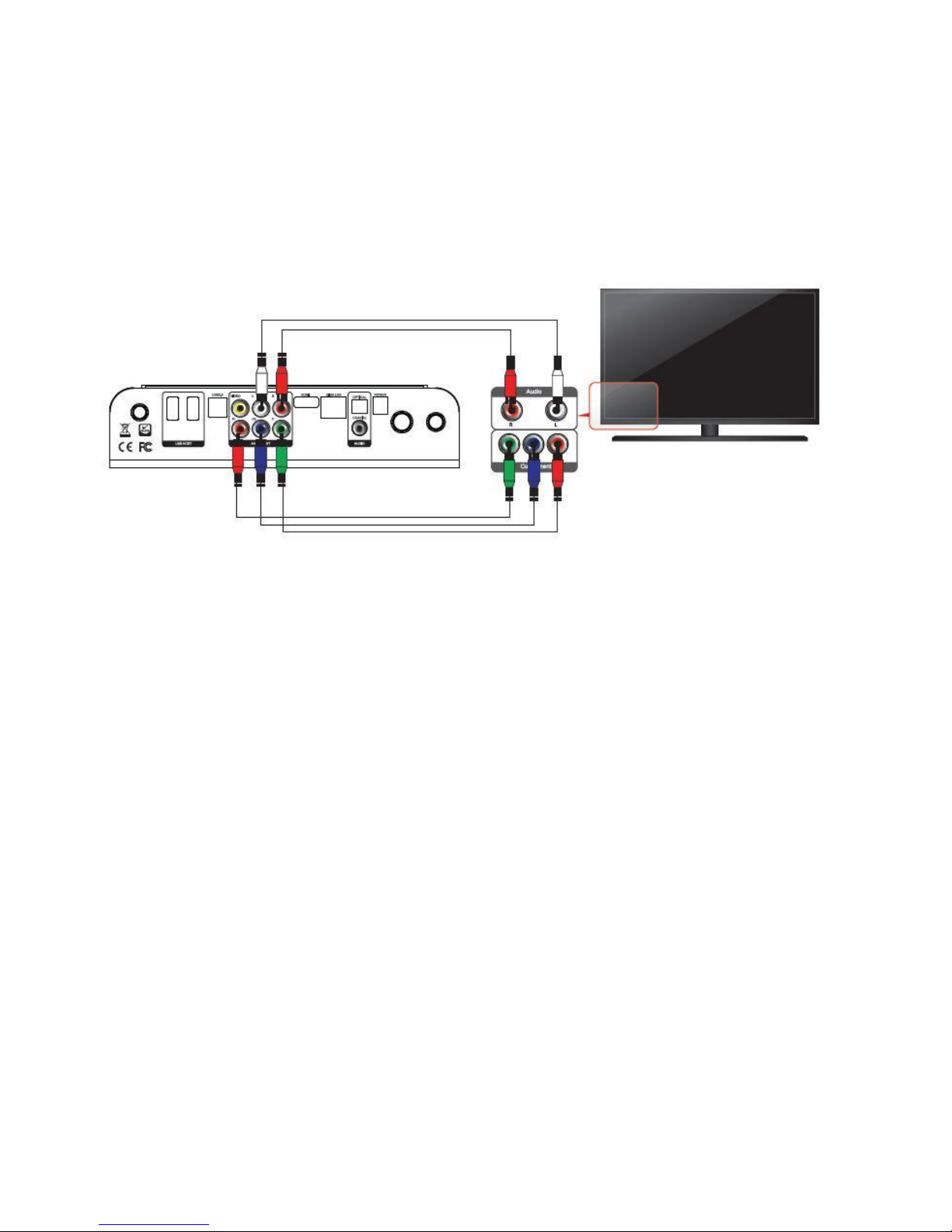

ㆍComponent cable connection

Connect the green, blue and red terminal cables to the Xtreamer Prodigy and TV in accordance with

the color scheme; connect white AV cable to L terminal, and red AV cable to R terminal.

(Component cable is an optional item)

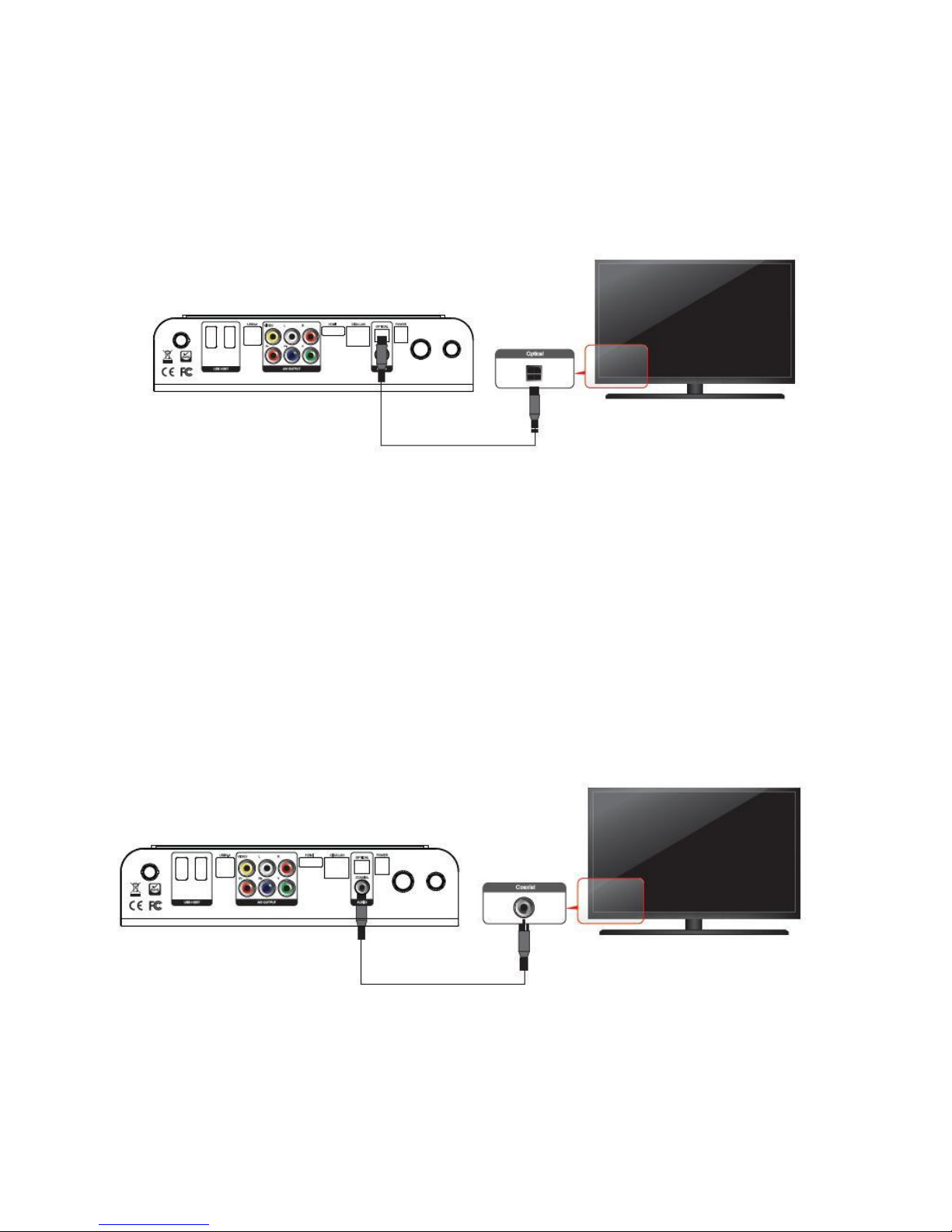

ㆍOptical cable connection

Connection

You can enjoy high-quality 5.1CH sound when connected to an amplifier or a receiver with

optical cable. Connect optical cable to Optical port on Xtreamer Prodigy as shown above. Then,

connect to an amplifier or a receiver. ( Optical cable is optional )

ㆍCoaxial cable connection

You can enjoy high-quality 5.1CH sound when connected to an amplifier or a receiver with

coaxial output cable. Connect coaxial cable to coaxial port on Xtreamer Prodigy as shown above. Then,

connect to an amplifier or a receiver. ( Coaxial cable is optional )

Connect to the Network

ㆍWired and Wireless Network

Connection

Wireless IP Sharing Router

To set up your network connection please check the Settings guide below.

To setup shared folders on your local network, please refer to this online guide or check

a dedicated section below.
