Xtreme Power Conversion XC-14A Betriebsanleitung
XC Portable Air Condioning
XC-14A, XC-22A, XC-30A Models
User & Installaon Manual
www.xpcc.com | © 2015 Xtreme Power Conversion Corporaon. All rights reserved. (Rev 1/26/15)
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 2
Portable Air Condioning
Table of Contents
Introducon.................................................................................................5
Product Descripon......................................................................................5
Assembly......................................................................................................6
Component Parts.............................................................................................................................6
Power Cord Holder...........................................................................................................................7
Rubber Stoppers..............................................................................................................................7
Discharge Ducts / Supply Air Duct...................................................................................................8
Installaon Guide.........................................................................................8
Moving the Unit.............................................................................................................................. 8
Plugging in the Unit.........................................................................................................................8
Operaon.....................................................................................................9
Control Panel...................................................................................................................................9
Maintenance..............................................................................................10
Filter Cleaning................................................................................................................................10
Spring Replacement.......................................................................................................................11
Troubleshoong.........................................................................................11
AlarmCodes...................................................................................................................................12
Troubleshoong Chart...................................................................................................................13
Specicaons.............................................................................................14
Shipping List.............................................................................................. 14
Opons......................................................................................................14
Obtaining Service.......................................................................................15
Xtreme Power Conversion Limited Warranty...............................................16
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 3
Portable Air Condioning
Thank you for selecng this Xtreme Cooling unit. It provides you with spot cooling for large areas where cooling of
an enre area is not praccal or possible. Please read this manual before installing the XC-14A, XC-22A, or XC-30A
as it provides important informaon that should be followed during installaon and maintenance of the Portable
Air Condioner, allowing you to correctly set up your system for the maximum safety and performance. Included
is informaon on customer support and service, if it is required. If you experience a problem with the UPS, please
refer to the Troubleshoong secon in this manual to correct the problem. If the problem is not corrected, please
collect informaon so that the Technical Support personnel can more eecvely assist you.
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 4
Portable Air Condioning
IMPORTANT SAFETY INSTRUCTIONS: (SAVE THESE INSTRUCTIONS)
Please read this manual carefully for instrucons on correct installaon and usage. Please read all safety instruc-
ons.
1. Transport and store the unit in an upright posion only. Leave the unit in an upright posion for at least 3
hours before use.
2. Always place the unit on an even, level surface.
3. Ensure the unit is connected to a grounded ulity of the correct rang / capacity.
4. The unit will cool when the room temperature is between 64.4°F - 113°F (18°C - 45°C) depending on the
thermostat seng.
5. DO NOT use this unit for funcons other than those described in this User’s Manual.
6. DO NOT lt the unit.
7. DO NOT cover or obstruct the unit’s inlet and/or outlet grilles.
8. DO NOT use the unit in areas where it will be exposed to rain or water.
9. NEVER unplug the unit while it is operang.
WARNING! DO NOT use the unit in wet environments, such as a laundry room, to avoid risk of electrical shock.
10. DO NOT place any foreign objects on the unit.
11. DO NOT operate the unit with wet or damp hands.
12. DO NOT allow chemical substances to come in contact with the unit.
13. DO NOT operate the unit in the presence of ammable substances or vapors such as alcohols, pescides,
gasoline, etc.
WARNING! DO NOT operate the unit in explosive or ammable environments.
14. DO NOT use the plug to start or to stop the unit. Always use the control panel to start and to stop the unit.
15. Always turn o the unit when it is not in use, and unplug the power plug from the electrical outlet.
16. Always turn the unit o and unplug the main power plug from the electrical outlet before cleaning, mov-
ing, or performing maintenance.
17. AVOID the use of adapter plugs or extension cords. If it is necessary to use an extension cord or an adapter
plug to operate the unit, ensure that they are correctly rated for the applicaon. Consult local qualied
electrician and all local electrical codes to ensure proper setup. Any extension cord used with the device
must be rated for a minimum of 15A.
18. DO NOT unplug the unit by pulling on the electrical cord. Keep the electrical code away from heat sources
and always completely unroll the cord to avoid overheang. If the power cord becomes damaged, a quali-
ed service agent, qualied electrician, or similarly qualied person must replace it, in order to avoid a
hazard or shock.
WARNING! DO NOT operate a unit with a damaged power cord.
19. The lters must be used with the product at all mes. When the lters are removed for cleaning, always
ensure that the unit has been turned o and unplugged from the electrical outlet.
20. Regularly clean the lters to maintain eciency. If the lters are not cleaned regularly, the units output
performance and eciency will decline and energy consumpon will increase.
21. DO NOT operate the unit with a damaged power cord or plug, aer it malfuncons, or if the unit has been
dropped or damaged.
22. Only use the unit in the upright posion on a even, at surface. Unit must be posioned at least 24 inches
(60 cm) from the nearest object in any direcon.
23. Stop operaon immediately if abnormal noise or odor is noced. Contact local service center.
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 5
Portable Air Condioning
Introducon
The informaon provided in this manual covers 13,200 – 29,000 BTU/HR Xtreme Cooling units, their basic func-
ons, operang procedures, opons available and emergency situaons. It also includes informaon on how to
ship, store, handle, and install the equipment. Only detailed requirements of the Cooling units are described
herein, and installaon must be carried out in accordance with this manual. Electrical installaon must also care-
fully follow local legislaon and regulaons. Only qualied personnel should conduct these installaons as failure
to acknowledge electrical hazards could prove to be fatal.
Product Descripon
Xtreme Cooling Portable Air Condioners feature spot cooling for large areas where cooling of the enre area is
not praccal or possible. A dedicated spot cooling thermostat controls the unit in this applicaon. These air condi-
oners can also be used in smaller areas for room cooling.
A control panel provides ease of use and contains self-diagnosc funcons and displays, showing operang modes,
room and set temperatures, and faults. If an abnormal operaon occurs, a visual display of the fault is shown.
Caster wheels are included for ease of portability.
Suitable applicaons include: factory or work place, industrial kitchen, computer room, emergency cooling, out-
door event, etc.
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 6
Portable Air Condioning
Assembly

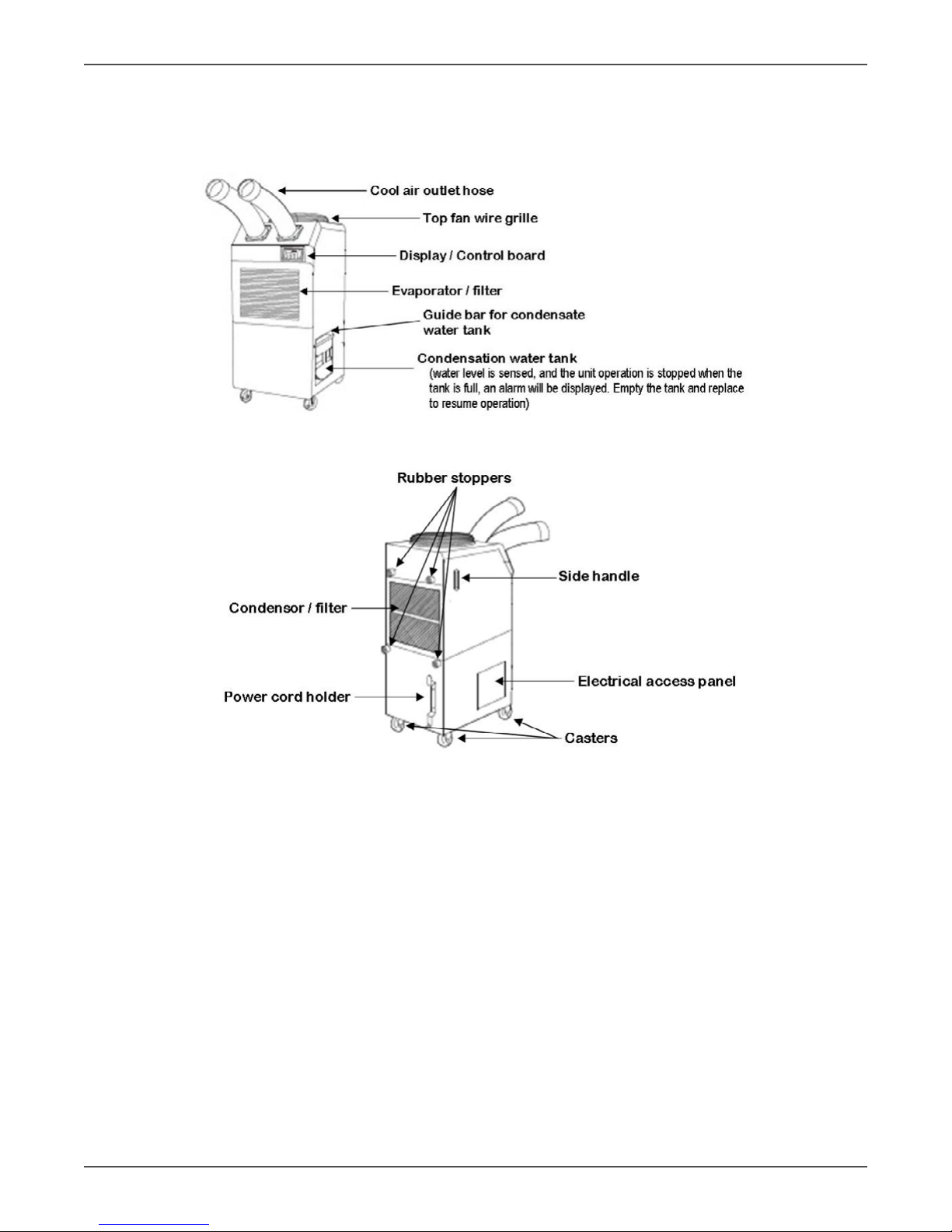

Component Parts
Front and Right Side View
Rear and Le Side View
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 7
Portable Air Condioning

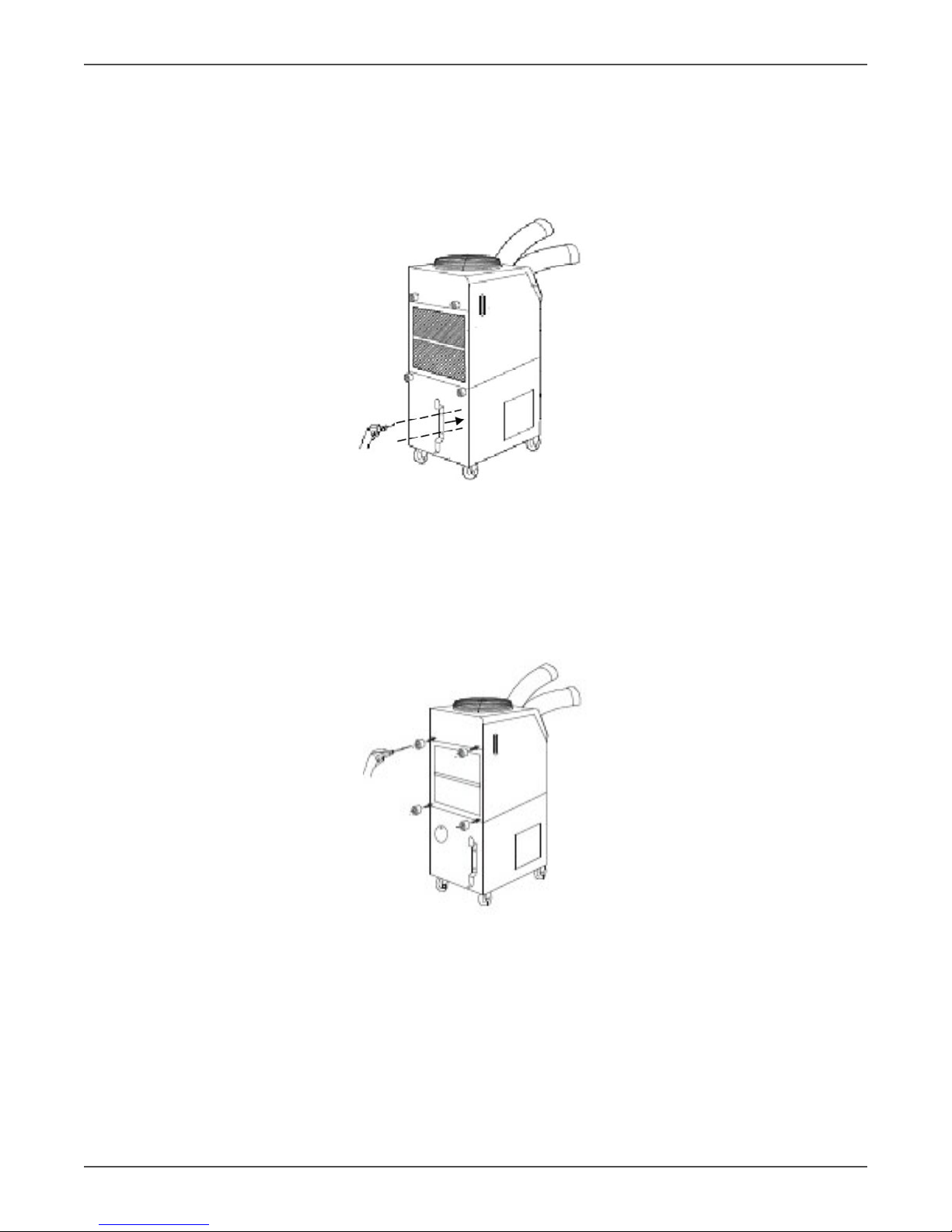

Power Cord Holder
1. Remove the Power Cord Holder from the accessory box
2. Place the Power Cord Holder on the rear of the unit as shown below
3. Use screws to install the Power Cord Holder to the rear of the unit (screws inside the accessory box)
Power Cord Holder aachment
Rubber Stoppers
1. Remove the Rubber Stoppers from the accessory box
2. Place the Rubber Stoppers on the rear of the unit as shown below
3. Use screws to install the Rubber Stoppers to the rear of the unit (screws inside the accessory box)
Rubber Stopper aachment
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 8
Portable Air Condioning

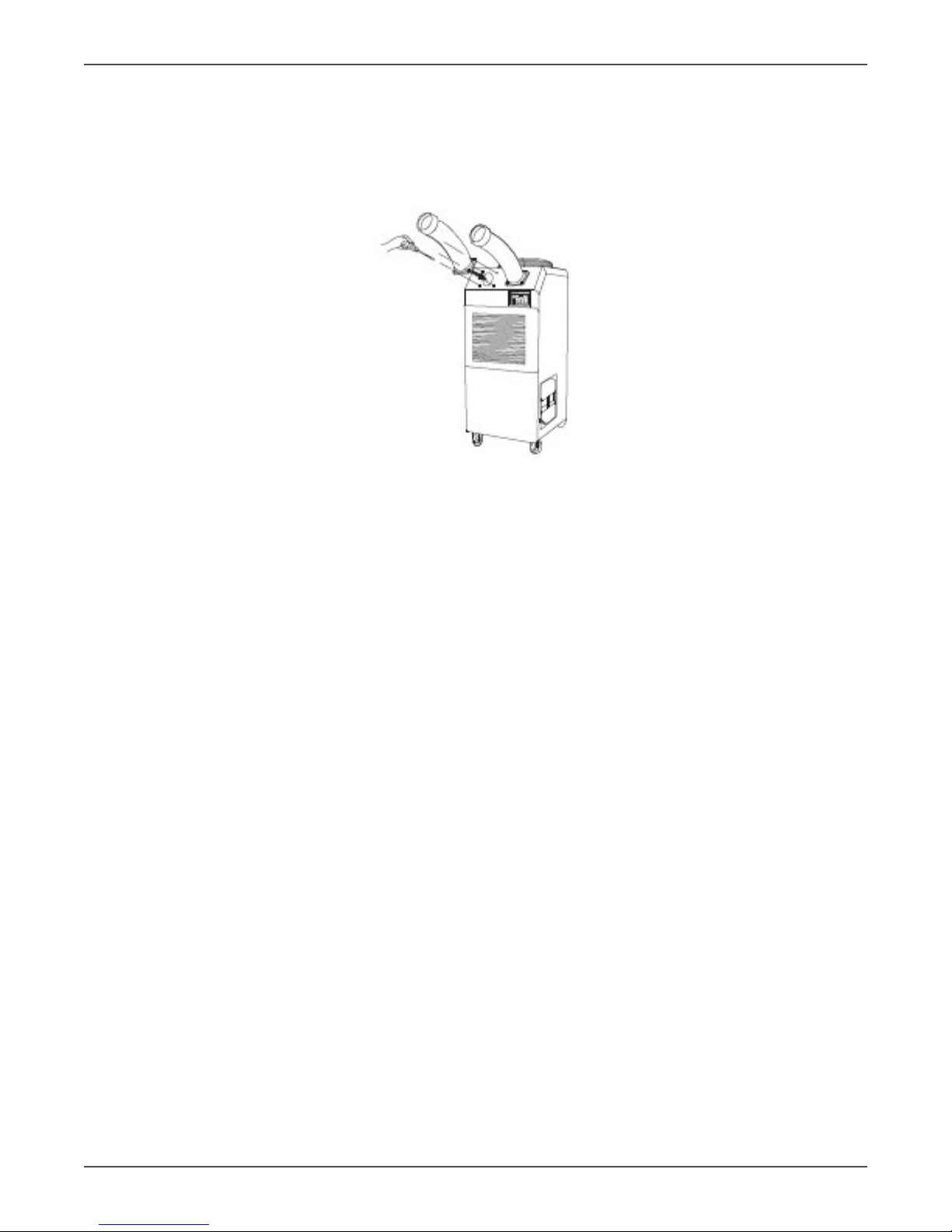

Discharge Ducts / Supply Air Duct
1. Remove the Cool Air Outlet Hose(s) from the box
2. Place the Cool Air Outlet Hose(s) on the front top of the unit as shown below
3. Use screws to install the Cool Air Outlet Hose(s) to the front of the unit (screws inside the accessory box)
Cool Air Outlet aachment
Installaon Guide
WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION
WARNING! DO NOT use the unit in explosive environments or in areas where ammable gas leakage may occur.
WARNING! DO NOT use the unit in areas where it will be exposed to rain or water.
WARNING! DO NOT use the unit in a corrosive atmosphere.
WARNING! DO NOT use the unit above 113°F (45°C)
Moving the Unit
Unlock the casters and push the unit using the side handles to a at, level surface and set the cater brakes to the
locked posion.
Plugging in the Unit
Check the prongs and surface of the power cord plug for dust/dirt. If dust and/or dirt are present, wipe o with a
clean, dry cloth.
Check the power cord, plug, and prongs for damage or excess play.
If any damage or excess play is found, contact a qualied repair technician or a qualied electrician to perform
replacement of repair of the power cord, plug, or prongs.
WARNING! If the power cord or plug are damaged, repair should only be performed by qualied electrical person-
nel.
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 9
Portable Air Condioning
WARNING! DO NOT connect / disconnect the power cord or aempt to operate buons with wet hands. This
could result in electrical shock.
NOTE: Make sure the AC outlet is free of dirt, dust, oil, water, or any other foreign material.
The unit is equipped with an approved NEMA plug conguraon (XC-14A = 5-15P; XC-22A = 6-15P; XC-30A =
6-20P). The appropriate outlet must be used for each plug type.
Operaon
Control Panel

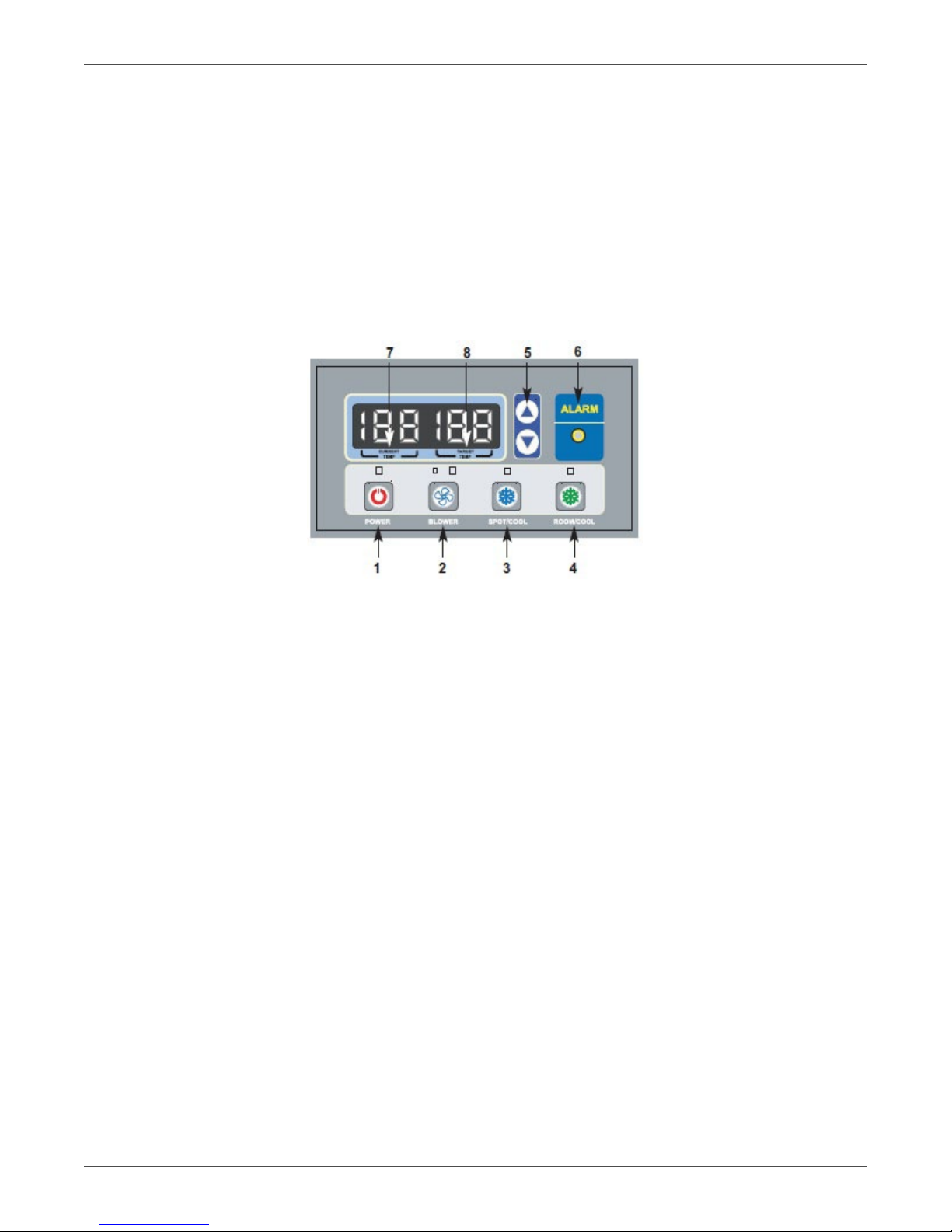

Control Panel
1. POWER BUTTON
• Acvates unit when POWER BUTTON is pressed.
• Fan starts on low speed.
• If POWER BUTTON is pressed during operaon, unit stops.
2. BLOWER BUTTON
• Changes fan speed from LOW to HIGH when pressed.
3. SPOT / COOL BUTTON
• Acvates compressor and begins producing cool air 2 minutes aer buon is pressed.
• Regulates temperature based on outlet cool air temperature.
4. ROOM / COOL BUTTON
• Acvates compressor and produces cool air 2 minutes aer buon is pressed.
• Regulates temperature based on inlet ambient air temperature.
5. SET TEMP BUTTON
• Change target temperature / data value by ± 1.
• Change data value by ± 10 by pressing connually.
• Press the SET TEMP BUTTONS to set temperature
• Upper buon is to heighten temperature and Lower buon is to lower temperature.
6. ALARM
• Alarm indicator light blinks and indicates abnormal system operaon.
• If Alarm occurs, compressor stops.
• System operaon stops when ALARM light is acvated / blinking longer than 3 minutes.
7. CURRENT TEMP
• Displays current room temperature in display in Fahrenheit (in ROOM COOL MODE only)
• SPOT / COOL Mode displays outlet (cool air) temperature during normal operaons.
• In order to change °F to °C, press SPOT / COOL and ROOM / COOL buons together for 2 seconds.
Xtreme Power Conversion Corporaon
XC User’s Manual
Page 10
Portable Air Condioning
• C will blink 2 mes and the gure will change to °C
• ALARM codes blink and are displayed when abnormal operaon occurs.
8. TARGET TEMP
• Displays the unit set temperature for ROOM COOL mode only
Maintenance
Filter Cleaning
There are two lters in the unit. The evaporator lter is located at the front of the unit. The condenser lter is
located in the rear of the unit.
Pull the lter frame forward to remove the back lter.
Removing Rear Filter
Remove dust from the lter using a vacuum cleaner hose aachment.
If required, was the lter in lukewarm water with a mild detergent. Leave to dry in a shaded area before reinstall-
ing.
Cleaning the Filter
1. To clean the evaporator lter, pull the front lter guard forward from the top unl the guard is open (in an
angled posion) and resng on the supporng cables.
2. Slide the lter up and use a vacuum cleaner to remove the dust from the lter.
3. If the lter is heavily covered with dust and dirt, warm water and mild soap or neutral detergent may be used
to wash the lter. Do not use any other chemicals to clean the lter, as they will likely damage the lter.
4. Dry the lter in a shaded area before replacing it. Do not operate the unit without the lter installed and the
lter guard in the closed posion.
