Yamaha Vmax VMX12N Bedienungsanleitung

EA”00002 INTRODUCTION

Congratulations on your purchase of the Yamaha VMX12/VMX12C. This model is

the result of Yamaha’s vast experience in the production of fine sporting, touring, and

pacesetting racing machines. It represents the high degree of craftsmanship and

reliability that have made Yamaha a leader in these fields.

This manual will give you an understanding of the operation, inspection, and basic

maintenance of this motorcycle. If you have any questions concerning the operation

or maintenance of your motorcycle, please consult a Yamaha dealer.

The design and manufacture of this Yamaha motorcycle fully comply with the emis-

sions standards for clean air applicable at the date of manufacture. Yamaha has met

these standards without reducing the performance or economy of operation of the

motorcycle. To maintain these high standards, it is important that you and your

Yamaha dealer pay close attention to the recommended maintenance schedules and

operating instructions contained within this manual.

..“.

SAFETY INFORMATION EAU00014

MOTORCYCLES ARE SINGLE TRACK VEHICLES. THEIR SAFE USE AND OPERATION ARE

DEPENDENT UPON THE USE OF PROPER RIDING TECHNIQUES AS WELL AS THE EXPERTISE

OF THE OPERATOR. EVERY OPERATOR SHOULD KNOW THE FOLLOWING REQUIREMENTS

BEFORE RIDING THIS MOTORCYCLE.

HE OR SHE SHOULD:

1. OBTAIN THOROUGH INSTRUCTIONS FROM A COMPETENT SOURCE ON ALL ASPECTS OF

MOTORCYCLE OPERATION.

2. OBSERVE THE WARNINGS AND MAINTENANCE REQUIREMENTS IN THE OWNER’S MANU-

AL.

3. OBTAIN QUALIFIED TRAINING IN SAFE AND PROPER RIDING TECHNIQUES.

4. OBTAIN PROFESSIONAL TECHNICAL SERVICE AS INDICATED BY THE OWNER’S MANUAL

AND/OR WHEN MADE NECESSARY BY MECHANICAL CONDITIONS.

Safe riding

1. Always make pre-operation checks. Careful checks may help prevent an accident.

2. This motorcycle is designed to carry the operator and a passenger.

3. The failure of motorists to detect and recognize motorcycles in traffic is the predominating cause of

automobile/motorcycle accidents. Many accidents have been caused by an automobile driver who

did not see the motorcycle. Making yourself conspicuous appears to be very effective in reducing the

chance of this type of accident.

Therefore:

Wear a brightly colored jacket.

Use extra caution when you are approaching and passing through intersections, since intersec-

tions are the most likely places for motorcycle accidents to occur.

Ride where other motorists can see you. Avoid riding in another motorist’s blind spot.

l-l

SAFETY INFORMATION

4. Many accidents involve inexperienced operators. In fact, many operators who have been involved in

accidents do not even have a current motorcycle license.

Make sure that you are qualified and that you only lend your motorcycle to other qualified opera-

tors.

Know your skills and limits. Staying within your limits may help you to avoid an accident.

We recommend that you practice riding your motorcycle where there is no traffic until you have

become thoroughly familiar with the motorcycle and all of its controls.

5. Many accidents have been caused by error of the motorcycle operator. A typical error made by the

operator is veering wide on a turn due to EXCESSIVE SPEED or undercornering (insufficient lean

angle for the speed).

Always obey the speed limit and never travel faster than warranted by road and traffic conditions.

Always signal before turning or changing lanes. Make sure that other motorists can see you.

6. The posture of the operator and passenger is important for proper control.

The operator should keep both hands on the handlebar and both feet on the operator footrests

during operation to maintain control of the motorcycle.

The passenger should always hold onto the operator, the seat strap or grab bar, if equipped, with

both hands and keep both feet on the passenger footrests.

Never carry a passenger unless he or she can firmly place both feet on the passenger footrests.

Never ride under the influence of alcohol or other drugs.

8. This motorcycle is designed for on-road use only. It is not suitable for off-road use.

l-2

SAFETY INFORMATION

Protective apparel

The majority of fatalities from motorcycle accidents are the result of head injuries. The use of a safety

helmet is the single most critical factor in the prevention or reduction of head injuries.

1. Always wear an approved helmet.

Wear a face shield or goggles. Wind in your unprotected eyes could contribute to an impairment of vi-

sion that could delay seeing a hazard.

3. The use of a jacket, heavy boots, trousers, gloves, etc., is effective in preventing or reducing abra-

sions or lacerations.

Never wear loose-fitting clothes, otherwise they could catch on the control levers, footrests, or wheels

and cause injury or an accident.

Never touch the engine or exhaust system during or after operation. They become very hot and can

cause burns. Always wear protective clothing that covers your legs, ankles, and feet.

6. A passenger should also observe the above precautions.

Modifications

Modifications made to this motorcycle not approved by Yamaha, or the removal of original equipment,

may render the motorcycle unsafe for use and may cause severe personal injury. Modifications may

also make your motorcycle illegal to use.

Loading and accessories

Adding accessories or cargo to your motorcycle can adversely affect stability and handling if the

weight distribution of the motorcycle is changed. To avoid the possibility of an accident, use extreme

caution when adding cargo or accessories to your motorcycle. Use extra care when riding a

motorcycle that has added cargo or accessories. Here are some general guidelines to follow if loading

cargo or adding accessories to your motorcycle:

l-3

SAFETY INFORMATION

The total weight of the operator, passenger, accessories and cargo must not exceed the maximum

load limit of VMX12: 476 lb (216 kg) /VMX12C: 474 lb (215 kg). When loading within this weight limit,

keep the following in mind:

1. Cargo and accessory weight should be kept as low and close to the motorcycle as possible. Make

sure to distribute the weight as evenly as possible on both sides of the motorcycle to minimize imbal-

ance or instability.

Shifting weights can create a sudden imbalance. Make sure that accessories and cargo are securely

attached to the motorcycle before riding. Check accessory mounts and cargo restraints frequently.

3. Never attach any large or heavy items to the handlebar, front fork, or front fender. These items, in-

cluding such items as sleeping bags, duffel bags, or tents, can create unstable handling or a slow

steering response.

Accessories

Genuine Yamaha accessories have been specifically designed for use on this motorcycle. Since

Yamaha cannot test all other accessories that may be available, you must personally be responsible

for the proper selection, installation and use of non-Yamaha accessories. Use extreme caution when

selecting and installing any accessories.

Keep the following guidelines in mind, as well as those provided under “Loading” when mounting

accessories.

Never install accessories or carry cargo that would impair the performance of your motorcycle. Care-

fully inspect the accessory before using it to make sure that it does not in any way reduce ground

clearance or cornering clearance, limit suspension travel, steering travel or control operation, or ob-

scure lights or reflectors.

l-4

SAFETY INFORMATION

Accessories fitted to the handlebar or the front fork area can create instability due to improper

weight distribution or aerodynamic changes. If accessories are added to the handlebar or front

fork area, they must be as lightweight as possible and should be kept to a minimum.

Bulky or large accessories may seriously affect the stability of the motorcycle due to aerodynamic

effects. Wind may attempt to lift the motorcycle, or the motorcycle may become unstable in cross

winds. These accessories may also cause instability when passing or being passed by large ve-

hicles.

Certain accessories can displace the operator from his or her normal riding position. This improp-

er position limits the freedom of movement of the operator and may limit control ability, therefore,

such accessories are not recommended.

Use caution when adding electrical accessories. If electrical accessories exceed the capacity of the

motorcycle’s electrical system, an electric failure could result, which could cause a dangerous loss of

lights or engine power.

Gasoline and exhaust gas

1. GASOLINE IS HIGHLY FLAMMABLE:

Always turn the engine off when refueling.

Take care not to spill any gasoline on the engine or exhaust system when refueling.

Never refuel while smoking or in the vicinity of an open flame.

Never start the engine or let it run for any length of time in a closed area. The exhaust fumes are poi-

sonous and may cause loss of consciousness and death within a short time. Always operate your

motorcycle in an area that has adequate ventilation.

3. Always turn the engine off before leaving the motorcycle unattended and remove the key from the

main switch. When parking the motorcycle, note the following:

l-5

SAFETY INFORMATION

The engine and exhaust system may be hot, therefore, park the motorcycle in a place where pe-

destrians or children are not likely to touch these hot areas.

Do not park the motorcycle on a slope or soft ground, otherwise it may fall over.

Do not park the motorcycle near a flammable source (e.g., a kerosene heater, or near an open

flame), otherwise it could catch fire.

4. When transporting the motorcycle in another vehicle, make sure that it is kept upright. If the motor-

cycle should lean over, gasoline may leak out of the carburetor or fuel tank.

5. If you should swallow any gasoline, inhale a lot of gasoline vapor, or allow gasoline to get into your

eyes, see your doctor immediately. If any gasoline spills on your skin or clothing, immediately wash

the affected area with soap and water and change your clothes.

1-6

SAFETY INFORMATION

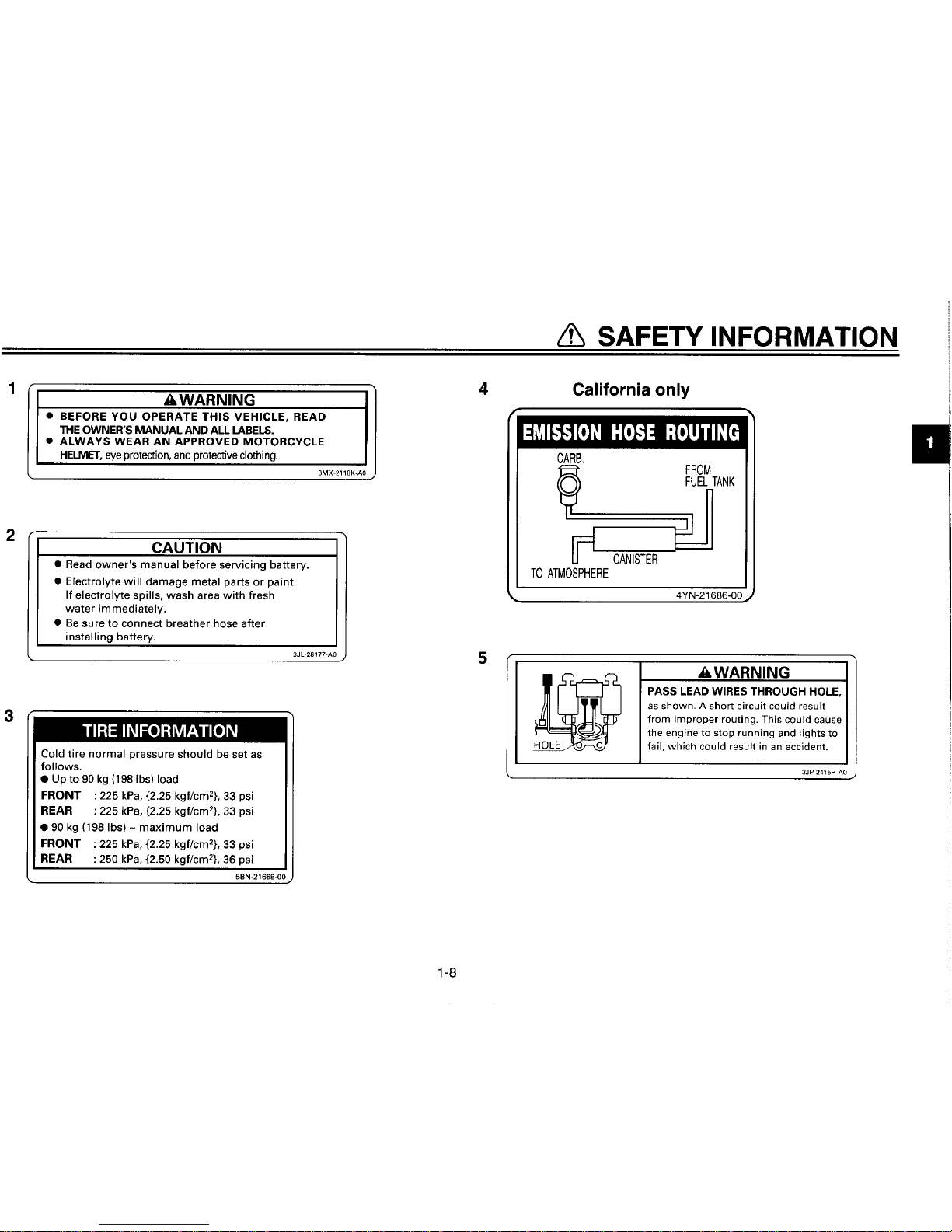

Location of important labels

Please read the following important labels carefully before operating this motorcycle.

2,3,4

-A
