Acoustic Electric Guitar

System66

Owner’s Manual

Thank you for choosing a Yamaha acoustic-electric guitar.

In order to make the most of the advanced features and performance provided by your guitar, please read this manual carefully

before using the instrument. Note that this manual covers only the electronic parts of this product.

For information on the other non-electronic parts, refer to the separate Acoustic Guitar Owner’s Manual.

SPECIFICATIONS



System:

System66



Pickup:

Bar Sensor (Piezo type)



Preamplifier Controls:

Vol., 3-Band EQ (HIGH, MID, LOW), AMF control, TUNER

Output Jack: Combination end pin/power switch Output Impedance: 1kΩ Batteries: Size AA alkaline battery (LR6) x2

Battery Life: Approx. 180 hours (Without tuner and using alkaline batteries. May differ due to operating conditions.)

Tuner: Chromatic type (12 semi-tones), A4=440Hz, Accuracy range +/– 3 cents

Accessories: Neck adjustment hex-wrench x1, Size AA alkaline battery x2, Sound hole cover x1

The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then

download the manual file.

2EN

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe and handy place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of

serious injury or even death from electrical shock, short-circuiting,

damages, fire or other hazards. These precautions include, but are not

limited to, the following:

• This instrument contains no user-serviceable parts. Do not open the instrument or attempt to

disassemble or modify the internal components in any way. If it should appear to be

malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha

service personnel.

• Do not expose the instrument to rain, use it near water or in damp or wet conditions, place it

on any containers (such as vases, bottles, or glasses) containing liquids that might spill into

any openings. If any liquid such as water seeps into the instrument, turn off the power

immediately and have the instrument inspected by qualified Yamaha service personnel.

• When one of the following problems occur, immediately turn off the power and remove all

batteries from the instrument, then have the instrument inspected by Yamaha service

personnel.

- It emits unusual smells or smoke.

- Some object has been dropped into the instrument.

- There is a sudden loss of sound during use of the instrument.

• Follow the precautions below. Failure to do so might result in explosion, fire, overheating or

battery fluid leakage.

- Do not tamper with or disassemble batteries.

- Do not dispose of batteries in fire.

- Do not attempt to recharge batteries that are not designed to be charged.

- Keep the batteries separate from metallic objects such as necklaces, hairpins, coins, and keys.

- Use the specified battery type only.

- Use new batteries, all of which are the same type, same model, and made by the same manufacturer.

- Always make sure all batteries are inserted in conformity with the +/- polarity markings.

PRECAUTIONS

Do not open

Water warning

If you notice any abnormality

Battery

3EN

- When the batteries run out, or if the instrument is not to be used for a long time, remove the

batteries from the instrument.

• Do not carry or store batteries with other metal objects such as necklaces, hairpins, metal

coins, or keys.

• If the batteries do leak, avoid contact with the leaked fluid. If the battery fluid should come in

contact with your eyes, mouth, or skin, wash immediately with water and consult a doctor.

Battery fluid is corrosive and may possibly cause loss of sight or chemical burns.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of

physical injury to you or others, or damage to the instrument or other

property. These precautions include, but are not limited to, the following:

• Before connecting the instrument to other electronic components, turn off the power for all

components. Before turning the power on or off for all components, set all volume levels to

minimum.

• Be sure to set the volumes of all components at their minimum levels and gradually raise the

volume controls while playing the instrument to set the desired listening level.

• Do not place the instrument in an unstable position where it might accidentally fall over.

• Do not rest your weight on, or place heavy objects on the instrument, and do not use

excessive force on the buttons, switches or connectors.

• Do not use the instrument/device or headphones for a long period of time at a high or

uncomfortable volume level, since this can cause permanent hearing loss. If you experience

any hearing loss or ringing in the ears, consult a physician.

Connection

* Yamaha cannot be held responsible for damage caused by improper use or

modifications to the instrument, or data that is lost or destroyed.

* Make sure to discard used batteries according to local regulations.

* Please read the instruction manual for the external audio device such as a

guitar amplifier, etc., prior to use.

Location

Handling caution

4EN

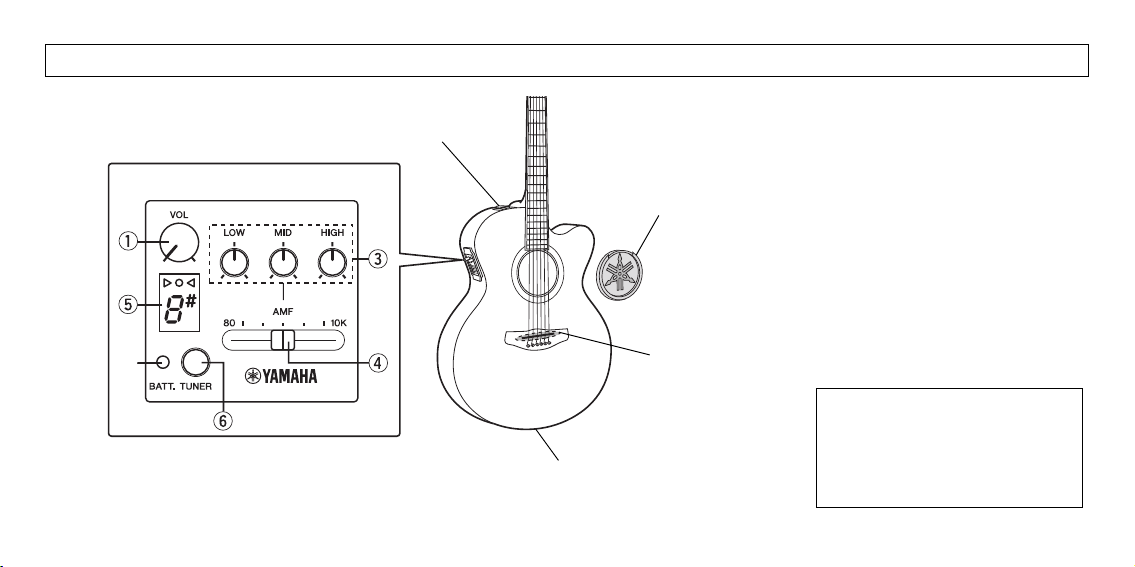

NOMENCLATURE/THE CONTROLS

Pickup Section

Battery Holder

Control Section

Output Jack

(with power switch function)

Sound Hole Cover

(supplied)

The built-in preamplifier is

automatically turned ON when

a guitar cable is connected to

the output jack. The tuner can

be turned on or off anytime.

5EN

qVOL Control

Controls the volume. Turning the knob fully counterclockwise

sets the volume to zero.

* Always set the volume to its minimum level when connecting or

disconnecting the cable.

wBATT. (Battery Check) Indicator

This indicator will light when the battery needs to be replaced.

Please replace the battery as soon as possible when the BATT.

indicator lights.

* The battery check indicator may light momentarily when the

TUNER switch is pressed. This is not a sign however, that the

battery power is low.

e3-Band Equalizer

The knob positions in the figure show the flat level setting. Turn

clockwise to boost, or counter clockwise to cut.

LOW: Boosts or cuts the level of the low frequencies.

MID: Boosts or cuts the level of the middle frequencies. The

AMF control radjusts the center frequency of the band

affected by this control.

HIGH: Boosts or cuts the level of the high frequencies.

rAMF (Adjustable Mid Frequency) Control

Sets the center frequency of the band of frequencies affected by

the MID equalizer control. The range is from 80 Hz to 10 kHz.

tTuner Display

Displays tuner information.

yTUNER Switch

Switches the tuner ON/OFF.

Using the Sound Hole Cover

If feedback occurs when playing at high volumes, the Sound Hole

Cover should be inserted into the sound hole. When inserted into

the sound hole, Sound Hole Cover effectively reduces feedback.

6EN

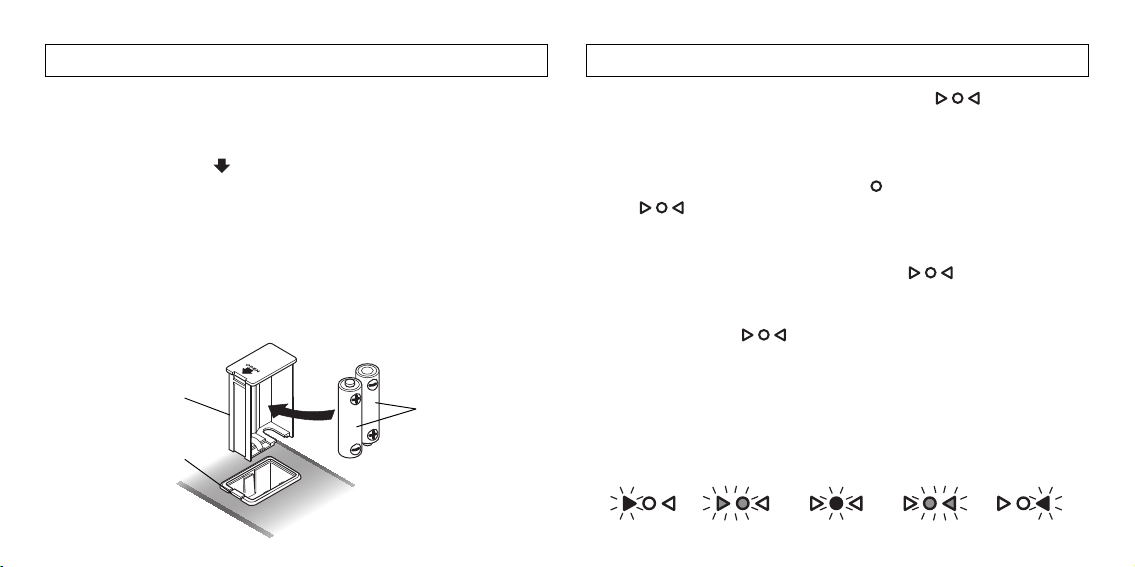

As battery power becomes low, the battery check indicator will light.

Replace the batteries as soon as possible.

Press the release lever on the battery case in the

direction indi-

cated by the arrow

in the illustration in order to unlock it, and

then slide out the battery holder.

wRemove the old batteries from the battery holder, and insert the

two new size AA alkaline batteries. Make sure that the poles on

the batteries are properly positioned as shown in the diagram

inside of the holder.

eSlide the battery holder back into the battery case and press

firmly so that the battery holder locks in place.

qPress and hold the TUNER switch until the display lights

to switch the tuner power ON.

wTune the guitar string until the note name of the desired pitch

appears in the display.

eThe string is in tune when only the lamp lights in the center of

the display.

Press the TUNER switch again to switch the tuner power OFF. Also,

if the note name is not shown in the display for more than 1 minute,

the power will automatically switch OFF. ( display goes off)

* It may take a few seconds before the tuner can detect pitches after

being switched ON.

* The note name and displays may have difficulty keeping up

with irregular pitch changes. Gradually change the pitch and check

when tuning.

* The tuner may not be able to detect notes rich with overtones or with

very short sustain.

* Sound output is not muted when the tuner is being used.

BATTERY REPLACEMENT

Battery Holder

Alkaline

battery x2

Release Lever

USING THE TUNER

Pitch is low  In Tune  Pitch is high
