Thank you for choosing a Yamaha outboard
motor. This Owner’s manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding
of these simple instructions will help you
obtain maximum en oyment from your new
Yamaha. If you have any question about the
operation or maintenance of your outboard
motor, please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
QThe Safety Alert Symbol means
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
w
Failure to follow WARNING instructions
could result in severe injury or death to
the machine operator, a bystander, or a
person inspectin or repairin the out-
board motor.
cC
A CAUTION indicates special precautions
that must be taken to avoid dama e to
the outboard motor.
NOTE:
A NOTE provides key information to make
procedures easier or clearer.
* Yamaha continually seeks advancements
in product design and quality. Therefore,
while this manual contains the most current
product information available at the time of
printing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this man-
ual, please consult your Yamaha dealer.
NOTE:
The F115TR and its standard accessories
are used as a base for the explanations and
illustrations in this manual. Therefore, some
items may not apply to every model.
EMU01448
TO THE OWNER
EMU01446
F115B, LF115B
OWNER'S MANUAL
©2002 by Yamaha Motor Corporation, USA
1st Edition, April 2002
All ri hts reserved.
Any reprintin or unauthorized use
without the written permission of
Yamaha Motor Corporation, USA
is expressly prohibited.
Printed in Japan
P/N LIT-18626-05-10
68V-9-13-1 3/5/02 9:29 PM Page 1
68V-9-13-1 3/5/02 9:29 PM Page 2
E
CONTENTS
GENERAL INFORMATION
BASIC COMPONENTS
OPERATION
MAINTENANCE
TROUBLE RECOVERY
INDEX
1
2
3
4
5
6
READ THIS OWNER’S MANUAL CAREFULLY
BEFORE OPERATING YOUR OUTBOARD MOTOR
EMU00003
68V-9-13-1 3/5/02 9:29 PM Page 3
68V-9-13-1 3/5/02 9:29 PM Page 4
E
EMU00004
Chapter 1
GENERAL
INFORMATION
IDENTIFICATION NUMBERS
RECORD ....................................................1-1
Outboard motor serial number...........1-1
Key number...........................................1-1
EMISSION CONTROL INFORMATION...1-2
SAFETY INFORMATION..........................1-4
IMPORTANT LABELS ..............................1-6
BASIC BOATING RULES .........................1-7
FUELING INSTRUCTIONS.....................1-11
Gasoline ..............................................1-12
Engine oil ............................................1-12
BATTERY REQUIREMENT ....................1-13
PROPELLER SELECTION .......................1-14
START-IN-GEAR PROTECTION ............1-1
1
2
3
4
5
6
68V-9-13-1 3/5/02 9:29 PM Page 5
1-1
E
EMU0000
IDENTIFICATION NUMBERS
RECORD
EMU00007
OUTBOARD MOTOR SERIAL
NUMBER
The outboard motor serial number is
stamped on the label attached to the port
side of the clamp-bracket.
Record your outboard motor serial num-
ber in the spaces provided to assist you in
ordering spare parts from your Yamaha
dealer or for reference in case your out-
board motor is stolen.
1Outboard motor serial number
EMU00008
KEY NUMBER
If a main key switch is equipped with the
motor, the key identification number is
stamped on your key as shown in the
illustration. Record this number in the
space provided for reference in case you
need a new key.
1Key number
000318
q
000319
123
YAMAHA
q
YAMAHA MOTOR CO , LTD
MADE IN JAPAN
PAYS D'ORIGINE JAPON
68V-9-13-1 3/5/02 9:29 PM Page 6
1-2
E
000320
q
w
EMU0138
EMISSION CONTROL
INFORMATION
EMU01387
NORTH AMERICAN MODELS
This engine conforms to U.S.
Environmental Protection Agency (EPA)
regulations for marine SI engines. See the
label affixed to your engine for details.
Approval label of Emission control
certificate
This label is attached to the bottom cowl-
ing.
1Emission control information label
New Technology ; (4-stroke) EM
Manufactured date label
This label is attached to the clamp brack-
et.
2Manufactured date label
EMISSION CONTROL INFORMATION
ENGINE FAMILY :
THIS ENGINE CONFORMS TO 2001 U.S. EPA REGULATIONS FOR MARINE SI ENGINES.
THIS ENGINE CONFORMS TO 2001 CALIFORNIA EMISSION REGULATIONS FOR SI MARINE ENGINES.
REFER TO THE OWNERS MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
FELs :
SPARK PLUG :
DISPLACEMENT :
ADVERTISED POWER :
IDLE SPEED :
SPARK PLUG GAP (mm) :
FUEL : GASOLINE
VALVE LASH (mm) : IN EX
cm
kw
g/kw-hr rpm IN NEUTRAL
3
EM
Manufactured:
68V-9-13-1 3/5/02 9:29 PM Page 7
E
1-3
EMU01389

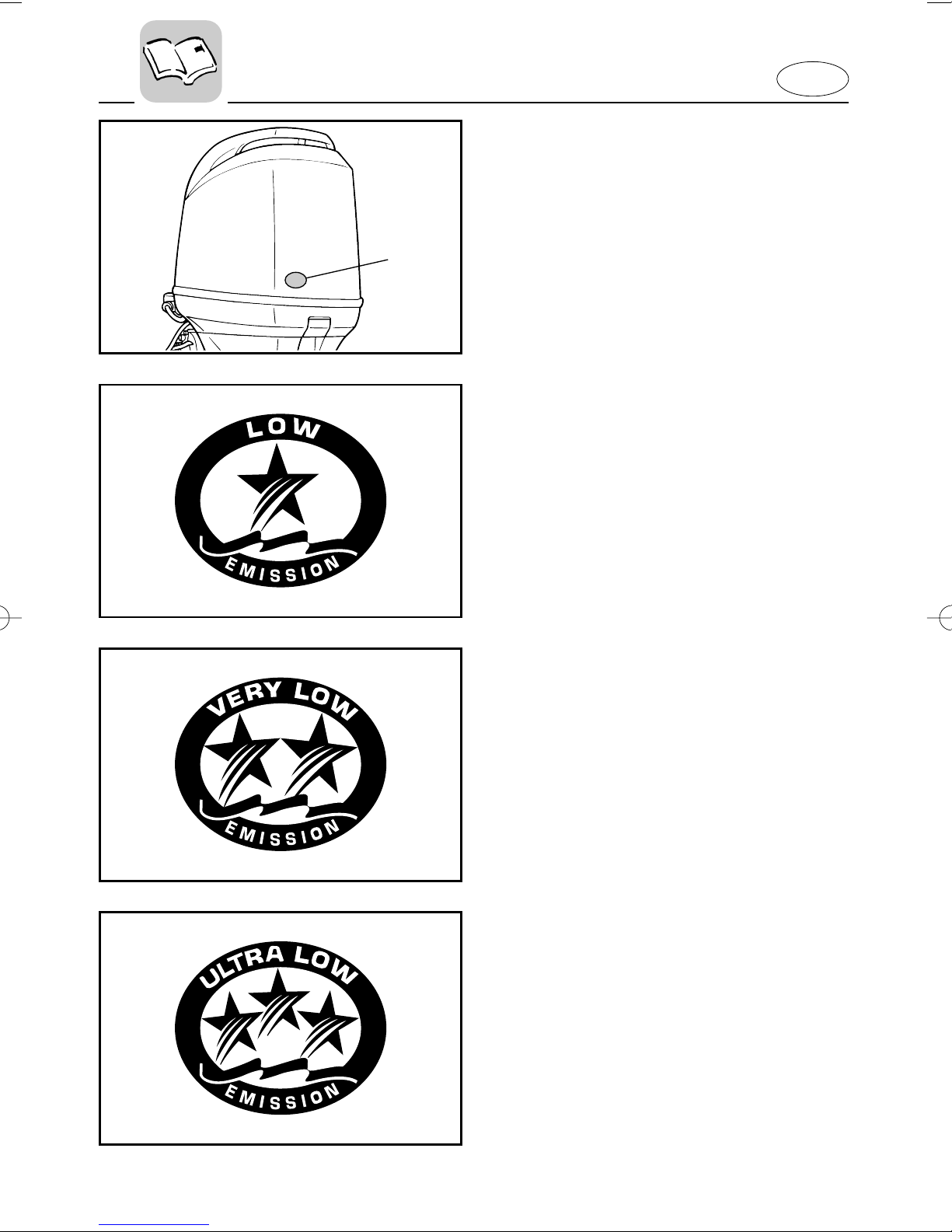

STAR LABELS
Your outboard motor is labeled with a
California Air Resources Board (CARB)
star label. See below for a description of
your particular label.
1Star label
One Star - Low Emission
The one-star label identifies engines that
meet the Air Resources Board’s 2001
exhaust emission standards. Engines
meeting these standards have 7 % lower
emissions than conventional carbureted
two-stroke engines. These engines are
equivalent to the U.S. EPA’s 2006 stan-
dards for marine engines.
Two Stars - Very Low Emission
The two-star label identifies engines that
meet the Air Resources Board’s 2004
exhaust emission standards. Engines
meeting these standards have 20% lower
emissions than One Star-Low-Emission
engines.
Three Stars - Ultra Low Emission
The three-star label identifies engines that
meet the Air Resources Board’s 2008
exhaust emission standards. Engines
meeting these standards have 6 % lower
emissions than One Star-Low-Emission
engines.
000848
q
68V-9-13-1 3/5/02 9:29 PM Page 8
