Yamaha F9.9B Bedienungsanleitung

F9.9B

T9.9B

OWNER’S MANUAL

U.S.A.Edition

LIT-18626-05-04

6G8-9-1L hyoshi 4/22/02 3:13 PM Page 1 (2,1)

www.reelschematic.com

6G8-9-1L hyoshi 4/22/02 3:13 PM Page 2 (1,1)

www.reelschematic.com

EMU01449

TO THE OWNER

Thank you for choosing a Yamaha outboard

motor. This Owner s manual contains infor-

mation needed for proper operation, mainte-

nance and care. A thorough understanding

of these simple instructions will help you

obtain maximum enjoyment from your new

Yamaha. If you have any question about the

operation or maintenance of your outboard

motor, please consult a Yamaha dealer.

In this Owner s Manual particularly impor-

tant information is distinguished in the fol-

lowing ways.

QThe Safety Alert Symbol means

ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

Failure to follow WARNING instructions

could result in severe injury or death to

the machine o erator, a bystander, or a

erson ins ecting or re airing the out-

board motor.

A CAUTION indicates s ecial recau-

tions that must be taken to avoid dam-

age to the outboard motor.

NOTE:

A NOTE provides key information to make

procedures easier or clearer.

* Yamaha continually seeks advancements

in product design and quality. Therefore,

while this manual contains the most cur-

rent product information available at the

time of printing, there may be minor dis-

crepancies between your machine and

this manual. If there is any question con-

cerning this manual, please consult your

Yamaha dealer.

NOTE:

The F9.9MH, T9.9ER, and their standard

accessories are used as a base for the

explanations and illustrations in this manual.

Therefore, some items may not apply to

every model.

EMU01446

F9.9B, T9.9B

OWNER'S MANUAL

1st Edition, A ril 2002

Any re rinting or unauthorized use

without the written ermission of

Yamaha Motor Cor oration, USA

is ex ressly rohibited.

Printed in Ja an

P/N LIT-18626-05-04

6G8-9-1L-1 3/26/02 11:56 AM Page 1

www.reelschematic.com

6G8-9-1L-1 3/26/02 11:56 AM Page 2

www.reelschematic.com

GENERAL INFORMATION

BASIC COMPONENTS

OPERATION

MAINTENANCE

TROUBLE RECOVERY

EMU00003

CONTENTS

INDEX

READ THIS OWNER’S MANUAL CAREFULLY

BEFORE OPERATING YOUR OUTBOARD MOTOR.

6G8-9-1L-1 3/26/02 11:56 AM Page 3

www.reelschematic.com

6G8-9-1L-1 3/26/02 11:56 AM Page 4

www.reelschematic.com

EMU00004

Cha ter 1

GENERAL

INFORMATION

IDENTIFICATION NUMBERS RECORD 1-1

Outboard motor serial number..............1-1

Key number...........................................1-1

EMISSION CONTROL INFORMATION ..1-2

Star labels.............................................1-3

SAFETY INFORMATION ........................1-4

IMPORTANT LABELS ............................1-6

BASIC BOATING RULES ......................1-7

FUELING INSTRUCTIONS...................1-11

Gasoline..............................................1-12

ENGINE OIL..........................................1-13

BATTERY REQUIREMENT...................1-14

PROPELLER SELECTION ...................1-15

START-IN-GEAR PROTECTION...........1-16

6G8-9-1L-1 3/26/02 11:56 AM Page 5

www.reelschematic.com

1-1

EMU00005

IDENTIFICATION NUMBERS

RECORD

EMU00007

OUTBOARD MOTOR SERIAL

NUMBER

The outboard motor serial number is

stamped on the label attached to the port

side of the clamp-bracket.

Record your outboard motor serial number

in the spaces provided to assist you in

ordering spare parts from your Yamaha

dealer or for reference in case your out-

board motor is stolen.

1Outboard motor serial number

EMU00008

KEY NUMBER

If a main key switch is equipped with the

motor, the key identification number is

stamped on your key as shown in the illus-

tration. Record this number in the space

provided for reference in case you need a

new key.

1Key number

YAMAHA MOTOR CO., LTD.

MADE IN JAPAN

PAYS D'ORIGINE JAPON

401012

000319

123

YAMAHA

6G8-9-1L-1 3/26/02 11:56 AM Page 6

www.reelschematic.com

1-2

001537

EMISSION CONTROL INFORMATION

ENGINE FAMILY :

THIS ENGINE CONFORMS TO 2001 U.S. EPA REGULATIONS FOR MARINE SI ENGINES.

THIS ENGINE CONFORMS TO 2001 CALIFORNIA EMISSION REGULATIONS FOR SI MARINE ENGINES.

REFER TO THE OWNERS MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.

FELs :

SPARK PLUG :

DISPLACEMENT :

ADVERTISED POWER :

IDLE SPEED :

SPARK PLUG GAP (mm) :

FUEL : GASOLINE

VALVE LASH (mm) : IN EX

g/kw-hr rpm IN NEUTRAL

Manufactured:

EMU01385

EMISSION CONTROL

INFORMATION

EMU01444

NORTH AMERICAN MODELS

This engine conforms to U.S. Environmental

Protection Agency (EPA) regulations for

marine SI engines. See the label affixed to

your engine for details.

A roval label of Emission control cer-

tificate

This label is attached to the bottom cowling.

1Emission control information label

New Technology ; (4-stroke/HPDI) EM

Manufactured date label

This label is attached to the clamp bracket.

2Manufactured date label

6G8-9-1L-1 3/26/02 11:56 AM Page 7

www.reelschematic.com

1-3

000852

EMU01389

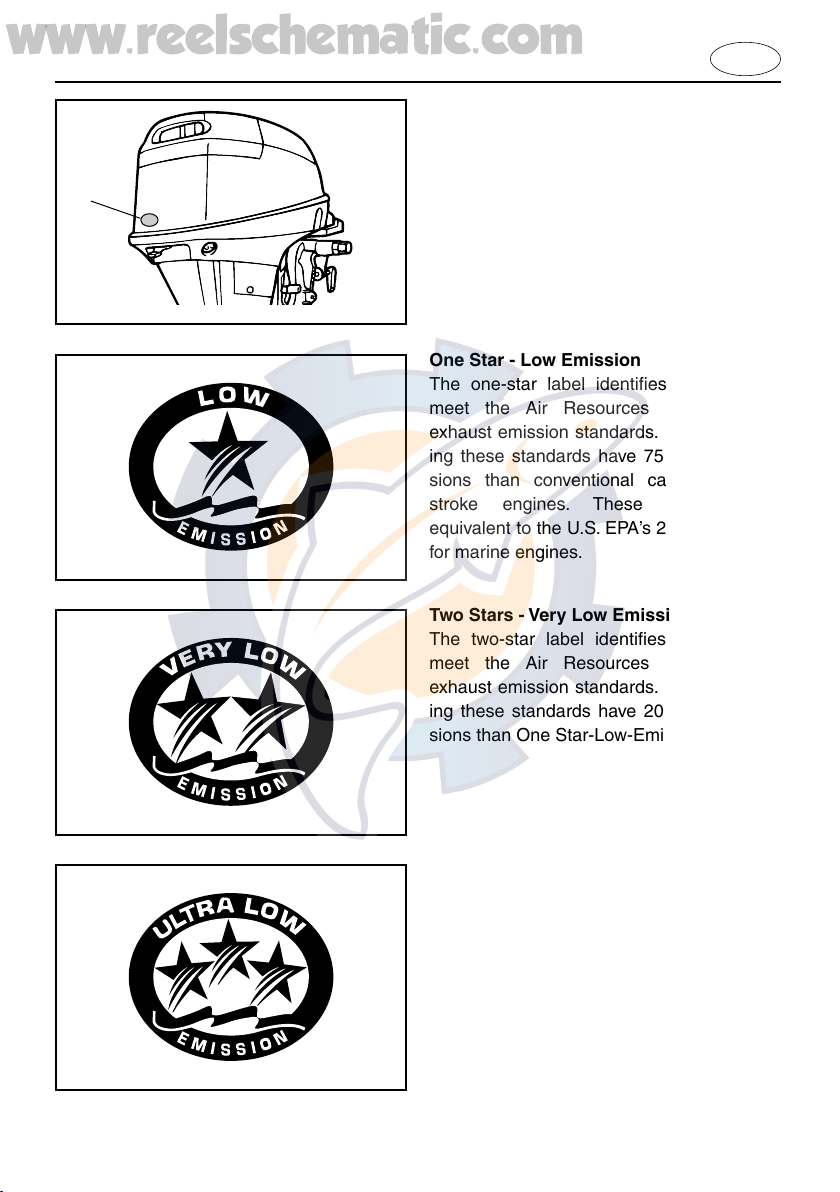

STAR LABELS

Your outboard motor is labeled with a

California Air Resources Board (CARB) star

label. See below for a description of your

particular label.

1Star label

One Star - Low Emission

The one-star label identifies engines that

meet the Air Resources Board s 2001

exhaust emission standards. Engines meet-

ing these standards have 75% lower emis-

sions than conventional carbureted two-

stroke engines. These engines are

equivalent to the U.S. EPA s 2006 standards

for marine engines.

Two Stars - Very Low Emission

The two-star label identifies engines that

meet the Air Resources Board s 2004

exhaust emission standards. Engines meet-

ing these standards have 20% lower emis-

sions than One Star-Low-Emission engines.

Three Stars - Ultra Low Emission

The three-star label identifies engines that

meet the Air Resources Board s 2008

exhaust emission standards. Engines meet-

ing these standards have 65% lower emis-

sions than One Star-Low-Emission engines.

6G8-9-1L-1 3/26/02 11:56 AM Page 8

www.reelschematic.com
