YASKAWA DS031 Bedienungsanleitung

Yaskawa Electric America, Inc – www.drives.com

02Y00025-0515 Page 1 of 3

Date: 08/28/01

Remote Digital Operator (NEMA 4/12) Option,

Model DS031 & DS033 for GPD 305/J7

Introduction

The remote digital operator kit allows a digital operator to be mounted up to 3 meters from the GPD305/J7. The

kit includes:

1. One remote operator interface attachment

2. One gasket

3. One Digital Operator membrane cover

4. Four screws & nuts

5. Eight rubber washers

6. One RS-232 remote operator interface

7. One cable either 1 meter (DS031) or 3 meter (DS033) in length.

Hardware Installation

WARNING

HAZARDOUS VOLTAGE CAN CAUSE SEVERE INJURY OR DEATH. LOCK ALL POWER

SOURCES DRIVE IN “OFF” POSITION.

1. Disconnect all electrical power to Drive.

2. Verify power has been disconnected by using a voltmeter to check for voltage at incoming power terminals

(L1, L2, and L3).

3. Wait for the DC bus capacitors to completely discharge.

4. Remove contents from package. Verify that the above mentioned parts are included:

5. install the RS-232 remote interface. First, remove the screw on the front cover of the drive. Next, remove the

small square cover located above the control terminals to access CN1. Install the RS-232 remote interface by

positioning the interface directly above the CN2 connector. Press down on interface until all three tabs snap

into place.

6. Re-attach the front cover and tighten the screw down.

Yaskawa Electric America, Inc – www.drives.com

02Y00025-0515 Page 2 of 3

Date: 08/28/01

Remote Digital Operator (NEMA 4/12) Option,

Model DS031 & DS033 for GPD 305/J7

Flush Mounting. Mount the Digital Operator as follows.

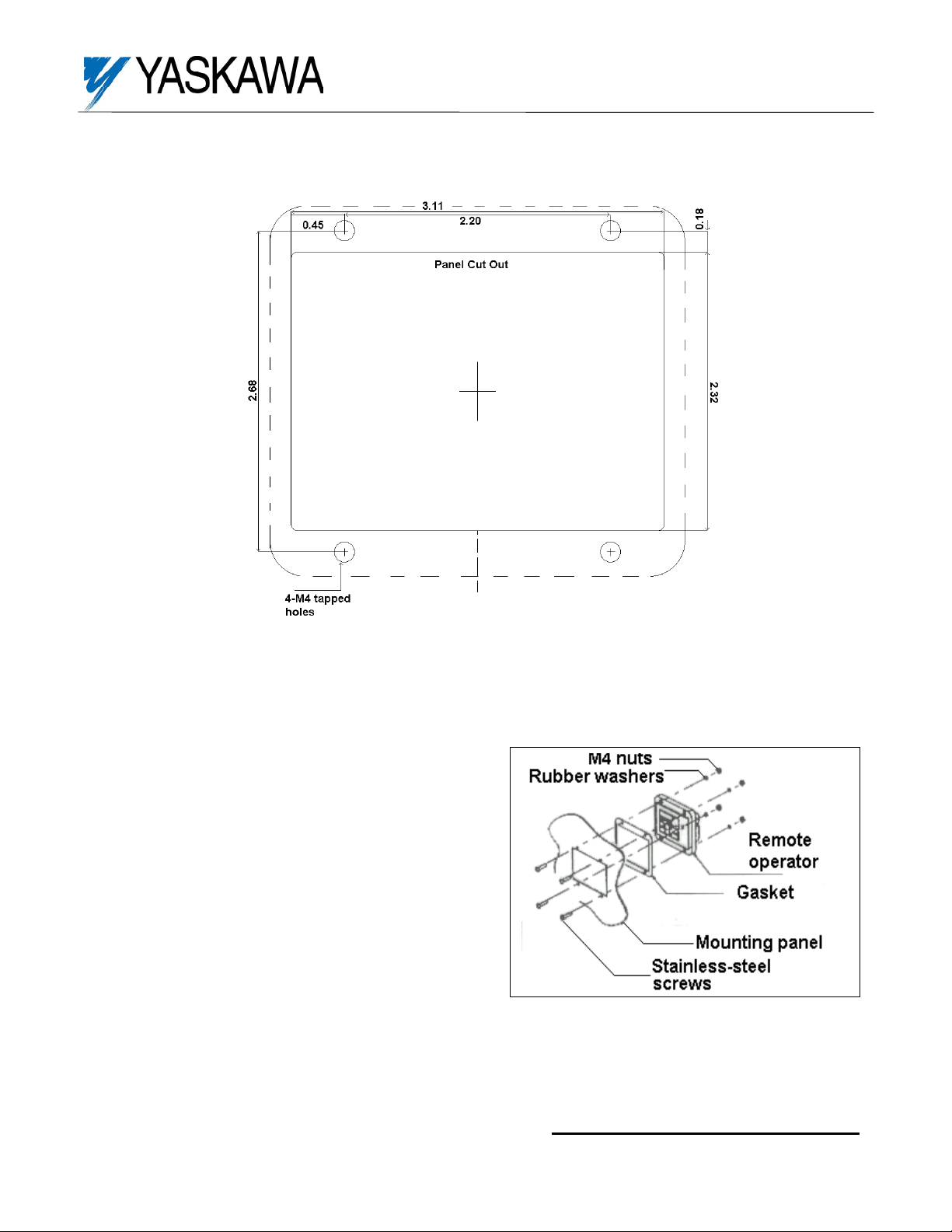

1. Cut the Remote Operator mounting panel as shown in Fig. 1.1

Figure 1.1 (Dimensions in Inches, not actual size)

2. Install the Remote Operator on the front side of the panel. Use four stainless screws and four rubber

washers (one rubber washer per screw). See Figure 1.2

FIGURE 1.2

Yaskawa Electric America, Inc – www.drives.com

02Y00025-0515 Page 3 of 3

Date: 08/28/01

Remote Digital Operator (NEMA 4/12) Option,

Model DS031 & DS033 for GPD 305/J7

Surface Mounting. Mount the Digital Operator as follows.

1. Cut the Remote Operator mounting panel as shown in Fig. 2.1

Figure 2.1

(Dimensions in Inches, not actual size)

2. Apply the gasket to the front side of the digital operator. Install the remote operator from the rear side of panel.

Insert the screws through the front side of the panel and then mount the washers and nuts to the rear side of the

panel. Tighten screws gradually from the front side of panel. Refer to figure 2.2 for further installation directions.

3. Connect one end of the cable to the CN1 connector on

the drive and the other end of the cable to the RJ-45

receptacle on the back of the Digital Operator.

This completes the installation process.
