Yealink UVC40 Bedienungsanleitung

USB Video Conferencing Endpoint

Quick Start Guide(V1.1)

www.yealink.com

English | 简体中文

UVC40

AAA Battery×2UVC 40

VCR20

Remote Control

Cable Tie×5 Quick Start Guide

We recommend that you use the accessories provided or approved by Yealink. The use of

unapproved third-party accessories may result in reduced performance.

Use the Yealink original power adapter (48V/0.7A) to charge the endpoint only. The use of the

third-party power adapter may cause the damage to the endpoint.

The USB cable in the MVC400/ZVC400 package is 2.5 meters long.

Mounting Bracket

and Accessories

Power Adapter

×4

×2

Silicone Pad×2

Put on a Flat Surface

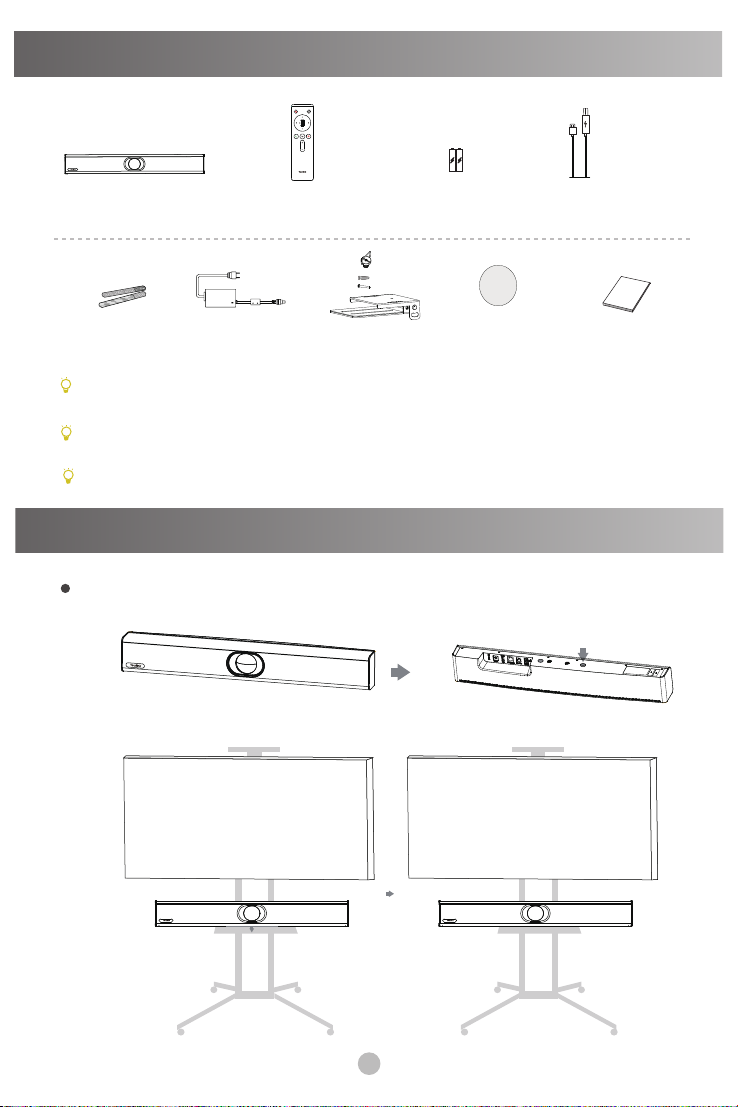

Package Contents

USB Cable

TV TV

UVC40 Installation

Wall Mounting

Use the bracket to mount your endpoint on a wall. The mounting height affects your

camera view. The recommended height is 1.1m above the ground.

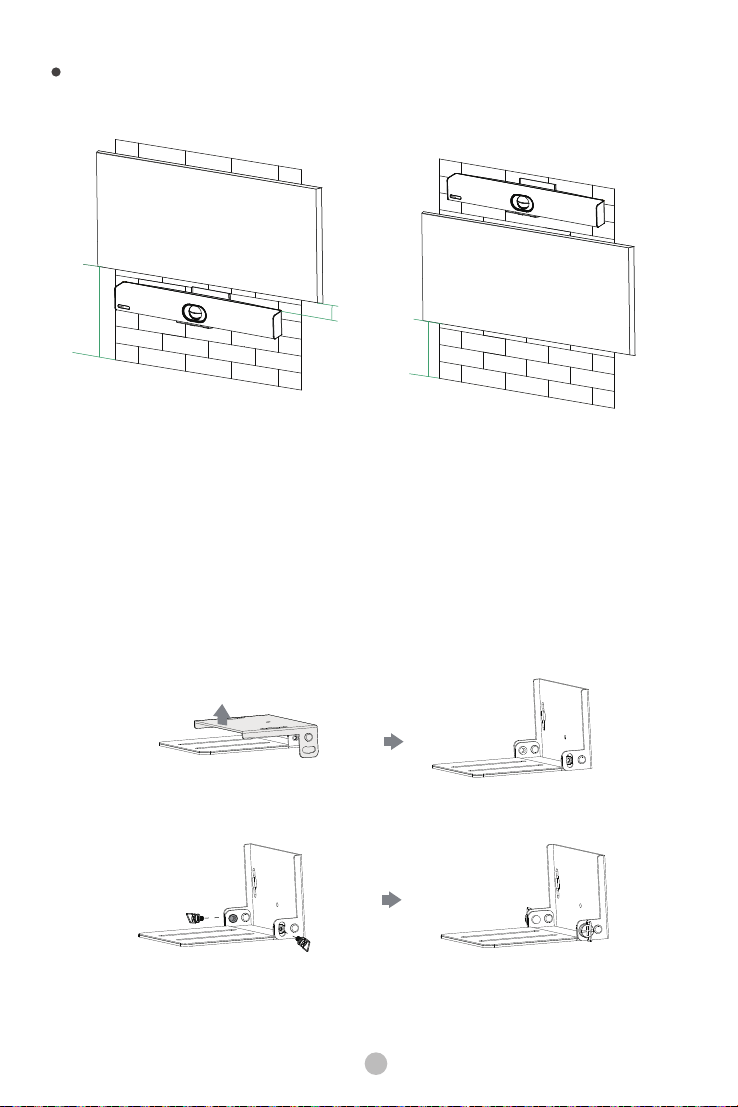

Placing UVC40

Mount the UVC40 below the TV when

the mounting height of the TV is higher than

120cm.

Mount the UVC40 above the TV when

the mounting height of the TV is lower

than 120cm.

Step1：Assemble the mounting bracket

Mount on a Wall

10cm

H>120cm

H<120cm

Hole depth: 30mm

Hole diameter: 6mm

118mm

T4×30 screws

15°

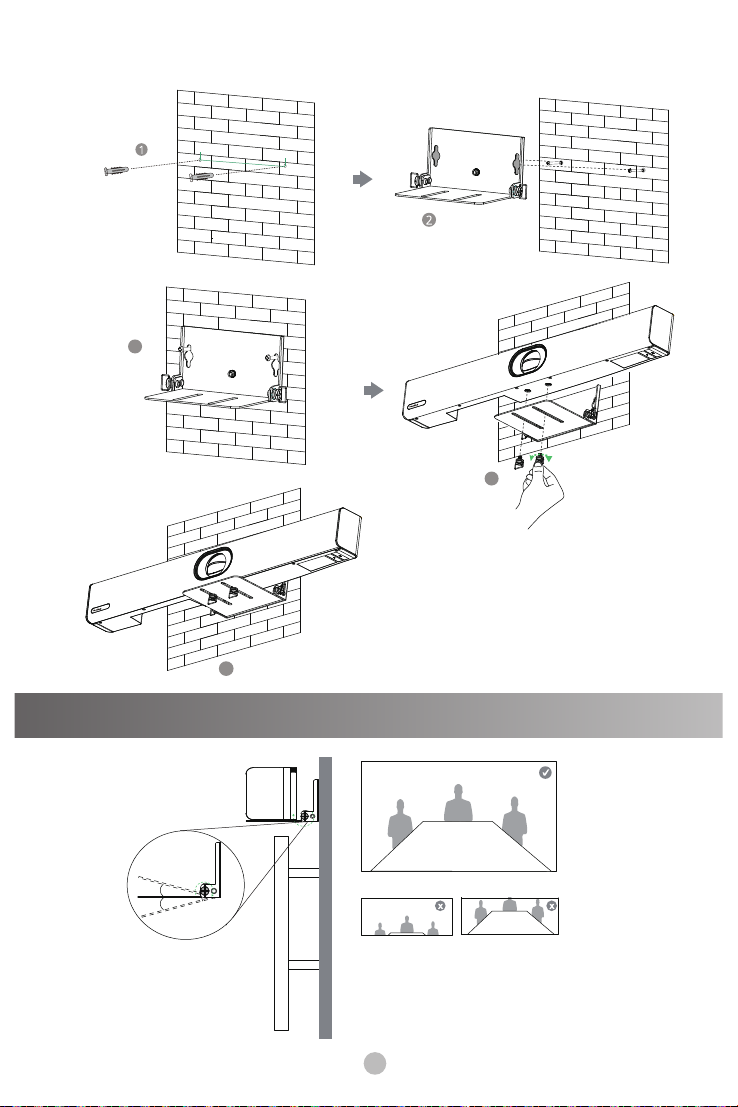

Step2：Mount the UVC40 to the wall

Adjusting the Camera Tilt

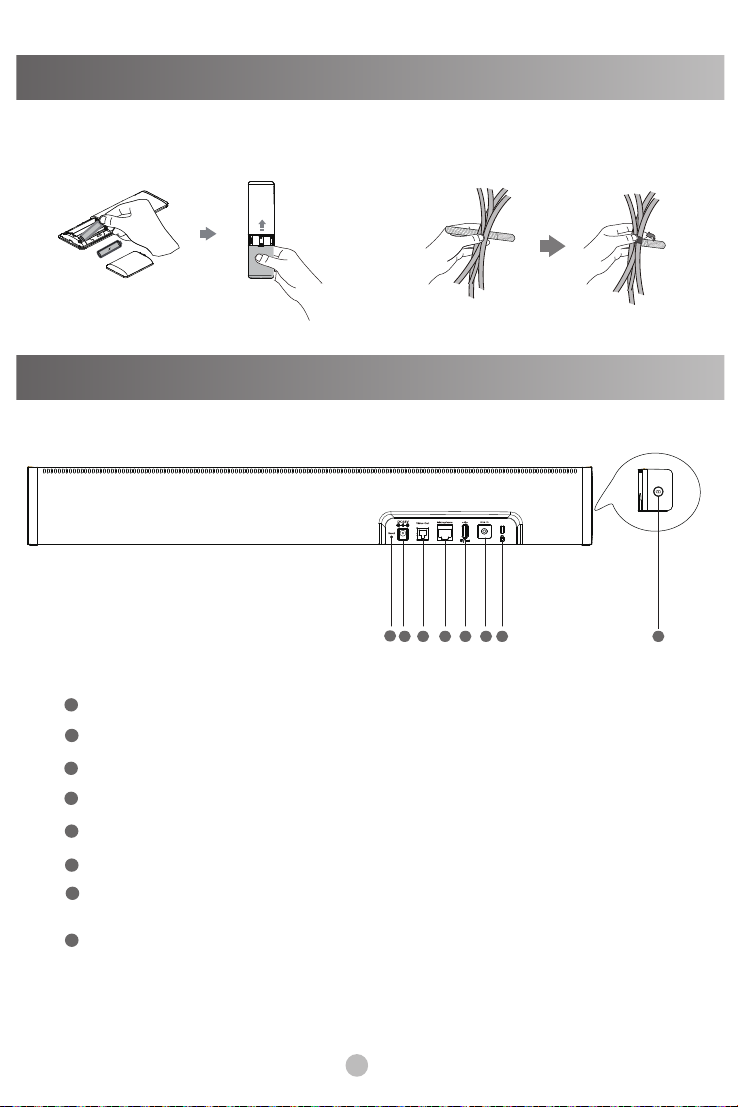

Remote Control Installation Cable Ties Installation

Remote Control and Cable Ties Installation

Hardware Interface Instructions

Line In: connect a 3.5mm audio connector to use the UVC40 as an audio output device.

USB: insert DD10 to connect to CPW90 if needed.

Video Out: connect to a PC as video output.

Microphone: connect to the microphone (for exmaple, VCM34).

DC48V: connect to the power adapter.

Reset: reset the UVC40 to factory defaults.

Security slot: connect a universal security cable to the UVC40 so that you can

lock the UVC40 down.

12 3 4 5 6 7 8

Pairing key: press the pairing key to pair the CPW90 wireless microphone.

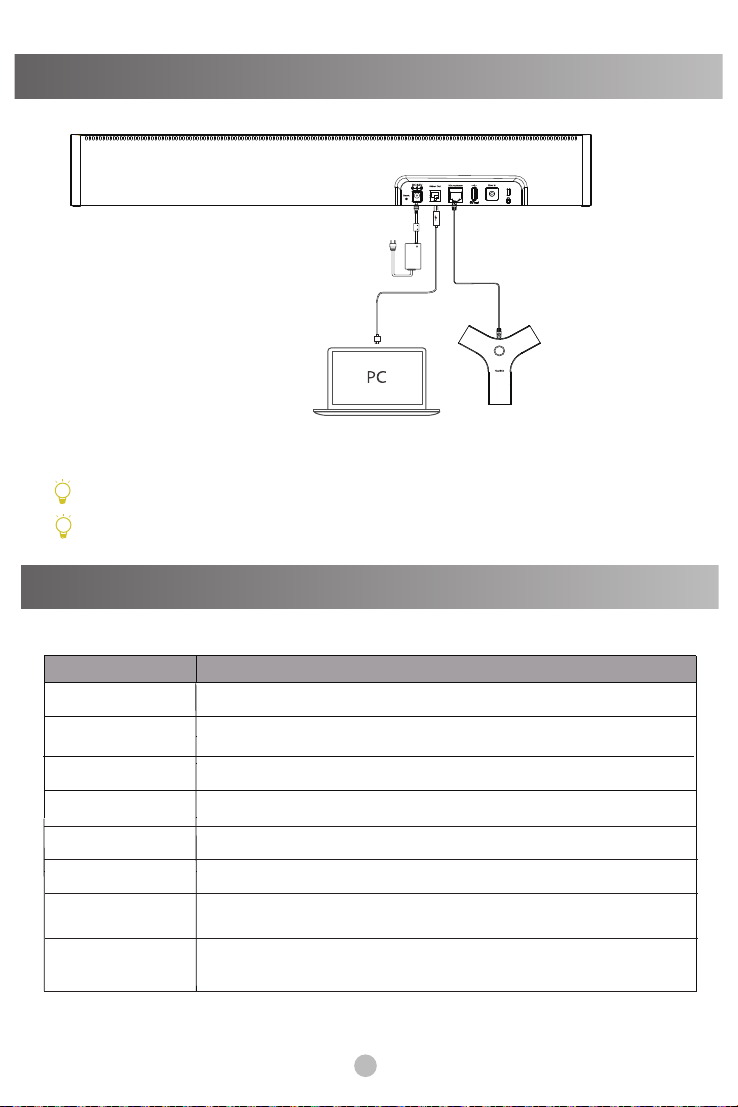

UVC40 Connection

LED Indicator Instructions

LED indicators on the UVC40:

LED Status

Description

Off

Flashing green

The UVC40 is not properly connected to the mini-PC.

Solid green

Flashing orange The UVC40 is upgrading firmware.

There is an incoming call.

The UVC40 is in recovery mode and the firmware has not been

upgraded.

The UVC40 is active.

Flashing red

Solid red The UVC40 is muted.

Flashing red and

green alternately The UVC40 is paired with the CPW90.

The UVC40 is initializing or in sleep mode.Solid orange

The cable should be replaced at once if its skin is broken.

The priority of audio input channel is：Microphone(VCM34) >USB(CPW90).

USB cable

Cat5e

Microphone

UVC40

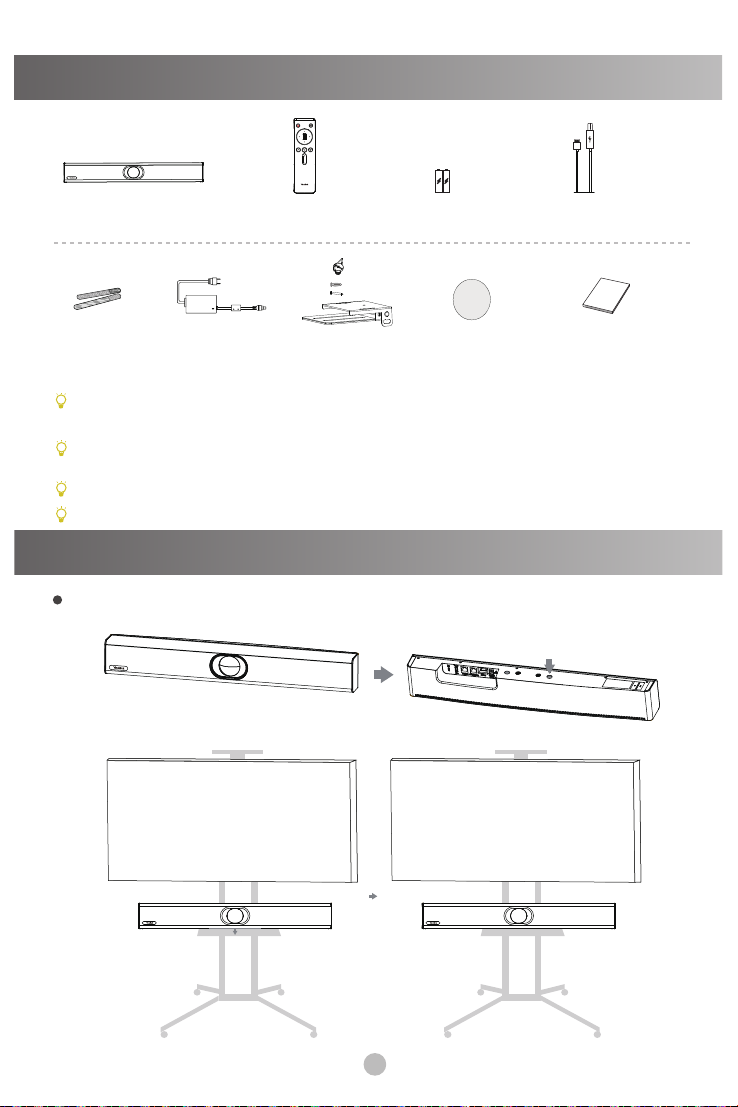

VCR20遥控器 7号电池x2UVC40 7米USB线

束线带x5

此为A级产品。在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需要用户对干扰采取

切实可行的措施。

我们推荐使用由Yealink提供或经Yealink认可的配件和线缆，使用未经认可的第三方配件和线缆可能会

导致性能的下降。

使用HDMI线前，请套上磁环用于抗电磁干扰。

MVC400/ZVC400产品组合包中标配的USB线长为2.5米。

UVC40

快速入门指南

支架配件

（用于安装主机）

电源适配器

×4

×2

硅胶垫x2

平放安装

包装清单

安装UVC40

TV TV

放置UVC40

螺丝规格：T4×30

打孔直径： 6mm

打孔深度： 30mm

118mm

步骤1：安装支架

步骤2：墙装

当电视高度高于120cm时，终端安装

在电视下方。

墙装

当电视高度低于120cm时，终端安装

在电视上方。

使用支架将终端安装在墙上。安装高度会影响你的视野，建议的高度为离地面1.1m。

墙装

10cm

H>120cm

H<120cm

调整倾斜角度

15°

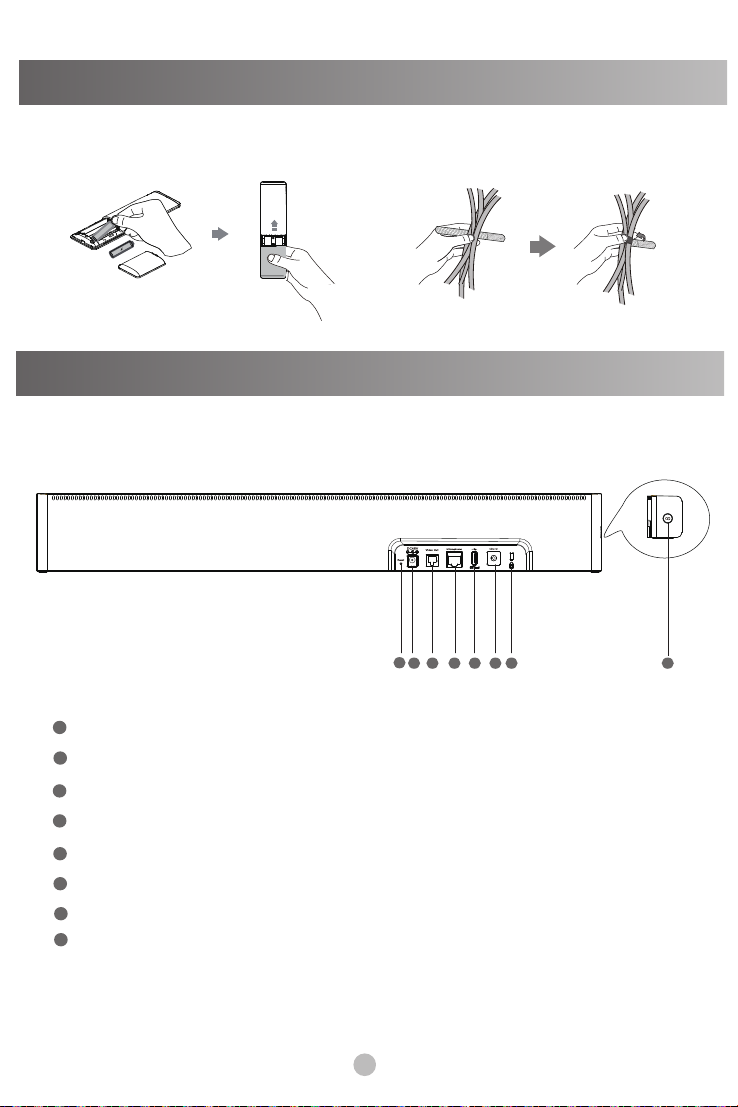

安装遥控器和束线带

安装遥控器电池安装束线带

音频线性输入: 连接3.5mm音频接头，将UVC40作为音频输出设备。

视频输出: 连接电脑作为视频输出。

USB: 可插入BT42，搭配CPW90-BT蓝牙麦使用。

麦克风：连接麦克风（例如：VCM34）。

电源接口: 连接电源适配器。

重置键：重置设备到出厂设置。

安全锁孔 : 将主机锁在固定位置。

硬件接口介绍

配对键：按配对键，进入配对蓝牙麦状态。

12 3 4 5 6 7 8
