Yealink UVC84 Bedienungsanleitung

Video Conferencing Camera

UVC84

Quick Start Guide(V1.2)

English | 简体中文 | Deutsch | Français | Español

CONTENT

English.........................................................1

简体中文 .......................................................................6

Deutsch.......................................................11

Français..................................................... ..16

Español........................................................21

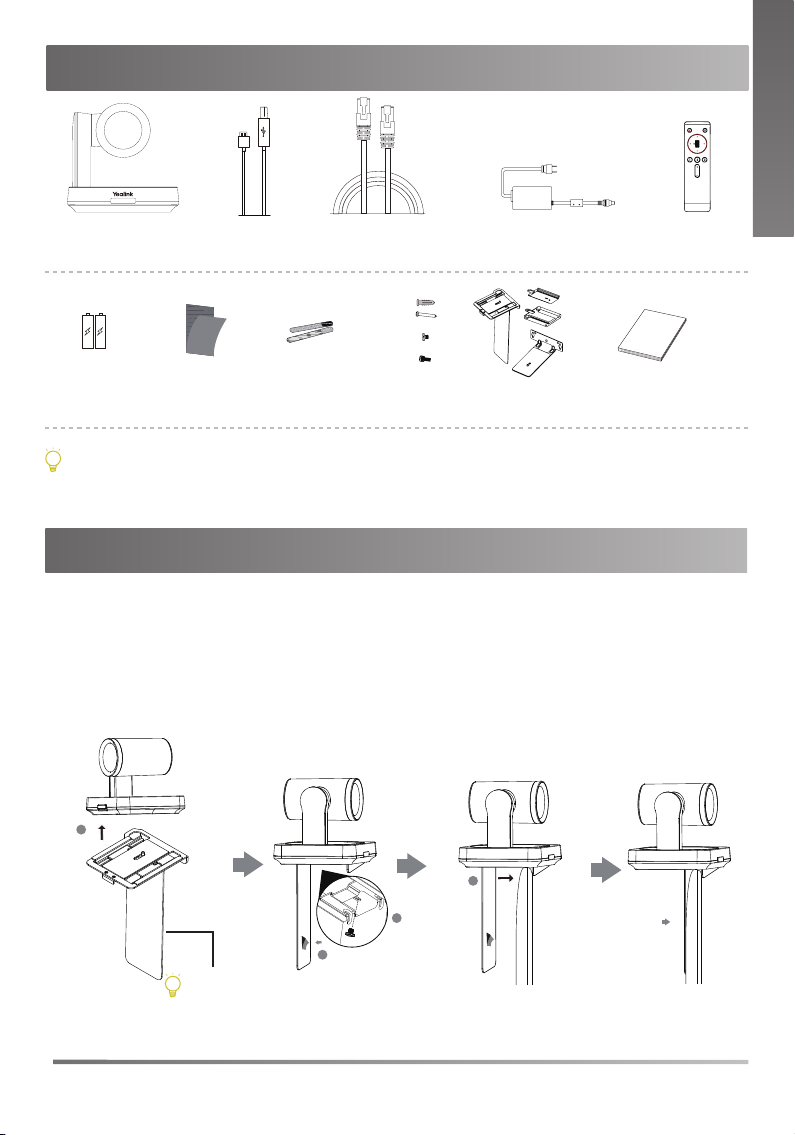

Package Contents

(T4×30 screw)

X 4

X 5

(1/4'' -20 UNC screw)

X 2

(M3×8 screw)

UVC84 7m

USB Cable

7.5m

Ethernet Cable

Power Adapter

48V/0.7A

VCR20

Remote Control

AAA

Battery×2 Cable Tie× 5

Velcro

(on the bracket)

Mounting Bracket

and Accessories

UVC84

Quick Start Guide

1. The USB cable is 7m in the UVC84 package, and 2.5m in the MVC room system package.

2. We recommend that you use the accessories provided or approved by Yealink. The use of

unapproved third-party accessories may result in poor performance.

UVC84 Installation

• Mount on top of a display

• Put on a Flat Surface

You can put the UVC84 on the conference table, and make sure that the angle of inclination of the

UVC84 is not more than 5 degrees to ensure proper operation.









Choose the following installation method when the thickness of the TV is between 0 mm and 70 mm.

Pay attention to the

direction of

L-shaped bracket.

Screw specication:

1/4'' -20 UNC

Velcro

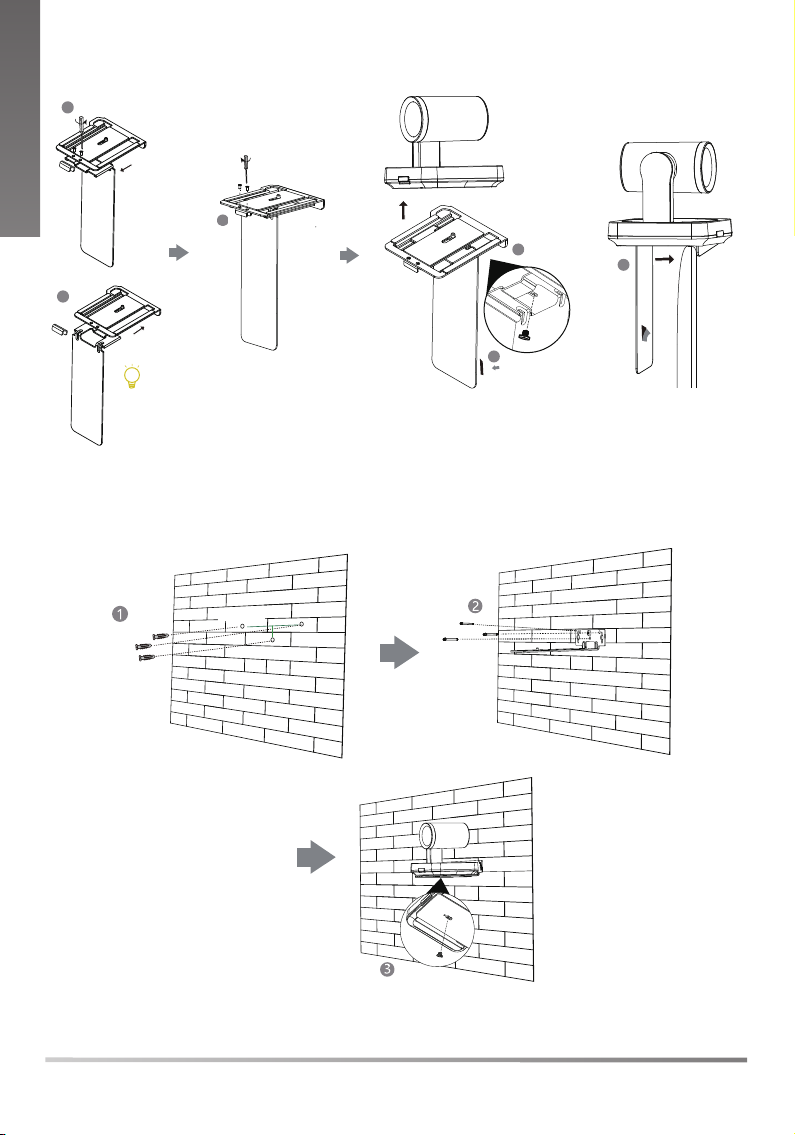

• Mount on the Wall

97mm

13.5 mm

48.5mm

Expansion screw

Hole depth: 30mm

Hole diameter: 6mm

Screw

specication:

T4×30

Screw specication:

1/4'' -20 UNC

Choose the following installation method when the thickness of the TV is between 46 mm and 146 mm.

Install the bracket in the

opposite direction.

Screw specication:

1/4'' -20 UNC

Velcro

The recommended height is 1.55 m-1.85 m above the ground.













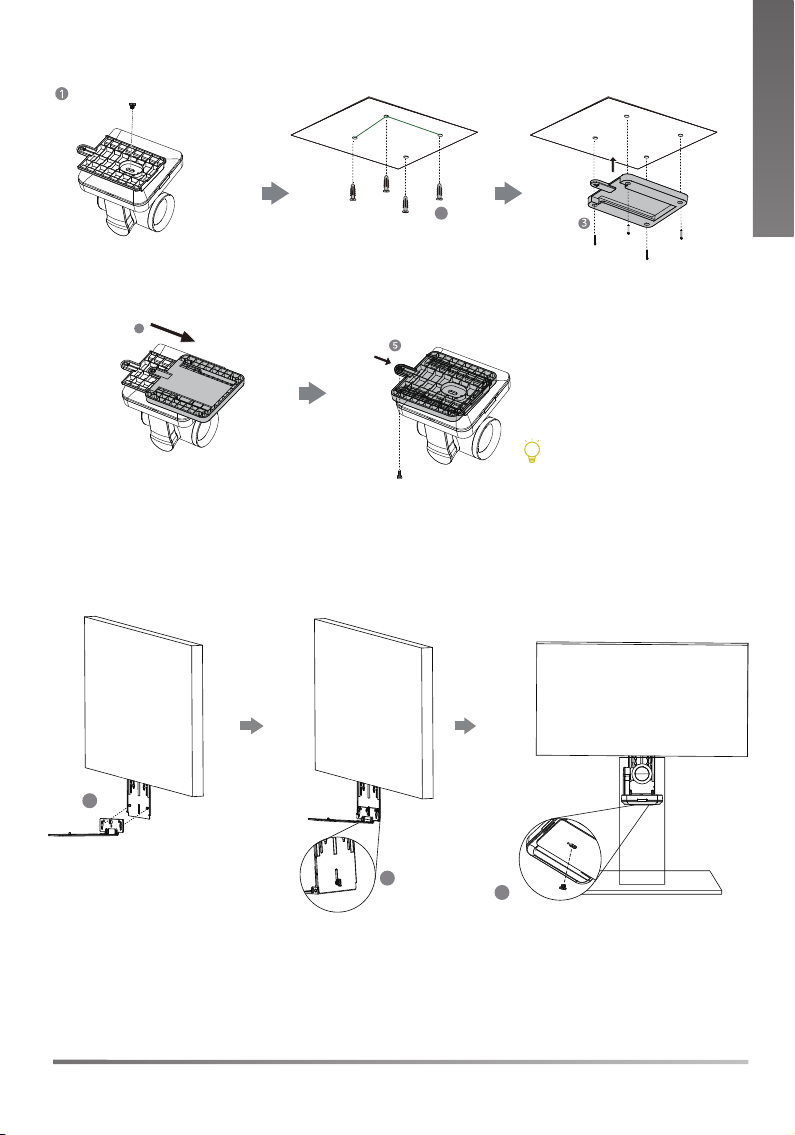

• Mount on the Ceiling





108mm

• Mount onto a TV Mount2

Screw specication: T4×30

You need to purchase a TV Mount2 separately.







Screw specication:

1/4'' -20 UNC

Screw specication:

1/4'' -20 UNC

Screw specication:

1/4'' -20 UNC

Expansion screw

Screw specication:

M3X8

Please tighten the screws with

a screwdriver to prevent the

camera from falling off.

Hardware Interface Instructions

   

DC48V: connect to the power adapter.

Security slot: connect a universal security cable to the UVC84 so that you

can lock the UVC84 down.

Line Out: connect to an audio output device using an audio cable (3.5mm).

USB Port: insert DD10 to connect to CPW90.

Video Out: connect to a PC as video output.

In MVC system, connect to audio device (for example: VCM34).

In video conference system, connect to the endpoint (for example:

MeetingEye 800).

VCH3 VCH2 VCH1 Display3 Display2 Display1 Internet

DC 48V

Line in Line out Video in

HDMI

PoE

GCH23



VCH

GCC91 GCC91 GCC91 GCC91

LED Indicator Instructions

LED indicators on the UVC84:

LED Status Description

Off The UVC84 is powered off.

Solid green The UVC84 is active.

Solid red The UVC84 is in sleep mode.

Flashing yellow The UVC84 is upgrading rmware.

Flashing red The UVC84 is in recovery mode.

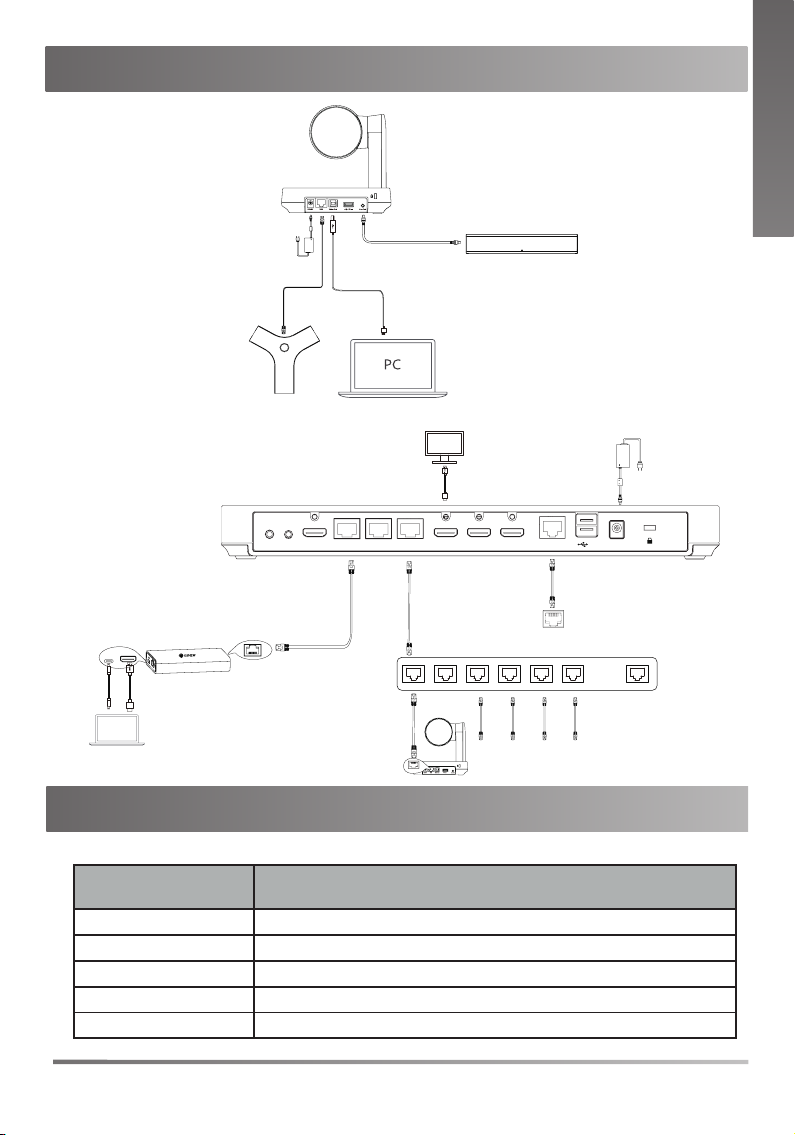

• Connect to the video conference system:

MeetingEye 800

UVC84 Connection

USB cable

Cat5e

Microphone

Soundbar

• Connect to PC:

0.6m USB

Type-C Cable

0.6m

HDMI Cable

Ethernet Cable

Internet

IEEE 802.3af compliant

PoE Switch

Display×3

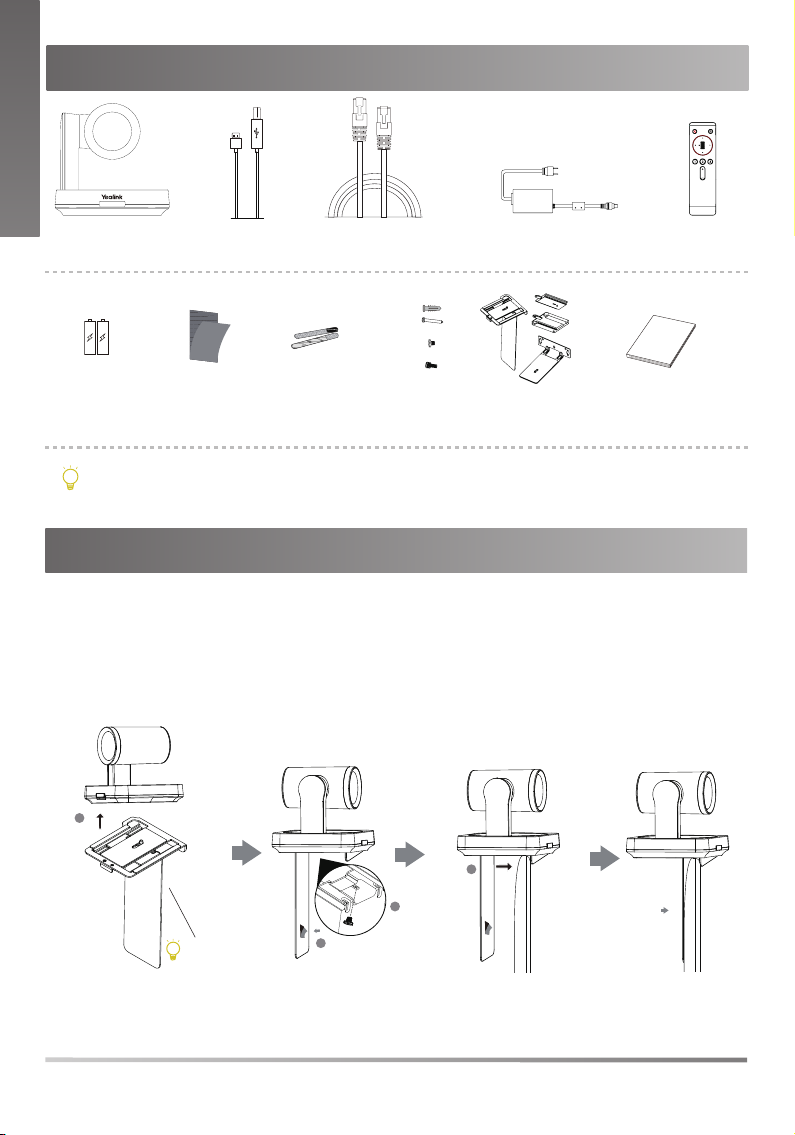

包装清单

(T4×30 screw)

X 4

X 5

(1/4'' -20 UNC screw)

X 2

(M3×8 screw)

UVC84 7米

USB 线

7.5 米

以太网线

电源适配器

(48V/0.7A)

VCR20

遥控器

7 号电池 ×2 束线带 ×5

魔术贴

（已粘在挂架上）支架配件 UVC84

快速入门指南

1. USB 线在 UVC84 单品包材中为 7 米，在 MVC 会议室系统包材中为 2.5 米。

2. 我们推荐使用由亿联提供或经亿联认可的配件，使用未经认可的第三方配件可能会导致性能

的下降。

安装 UVC84

• 挂装

当电视厚度范围为 0-70mm 时，进行以下步骤：

魔术贴

注意 L 型支架

方向

• 平放安装

将终端摆放在水平桌面。如果桌面略有倾斜，请保证倾斜角小于 5°，以保证终端的摄像机云

台正常运转。

简

体

中

文









螺丝规格：

1/4''-20UNC

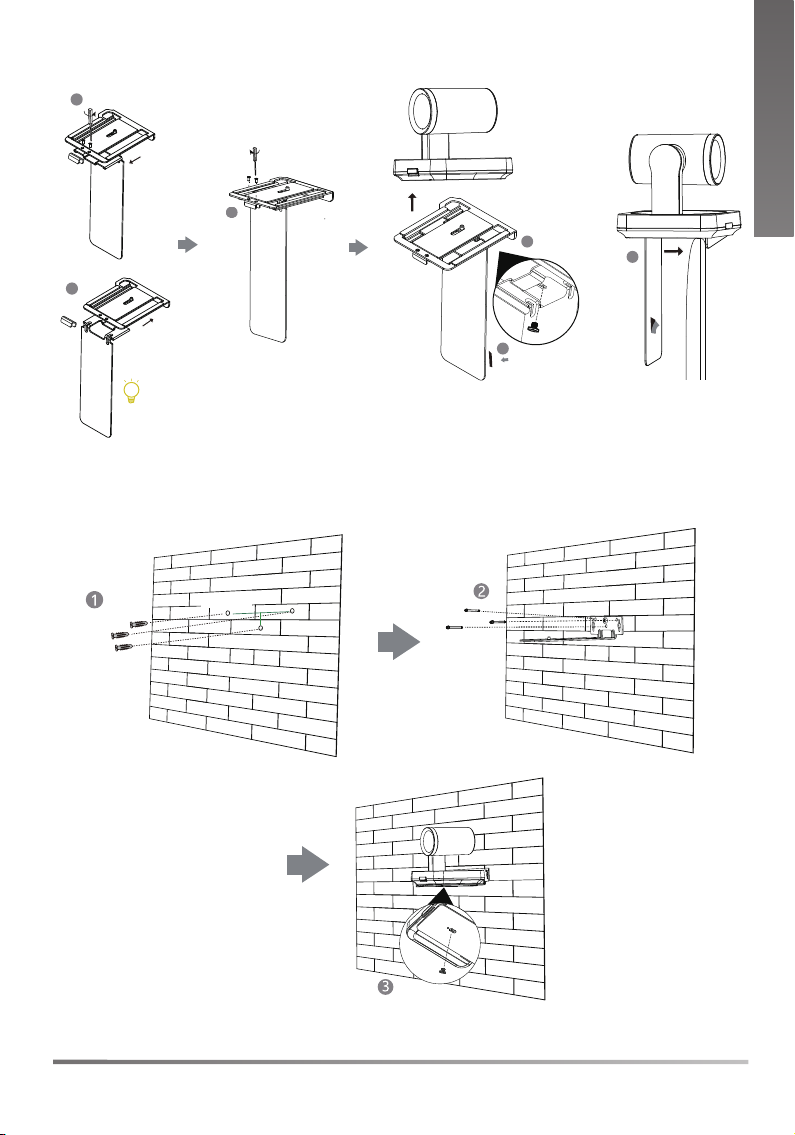

• 墙装

97mm

13.5 mm

48.5mm

膨胀螺丝

打孔深度：30mm

打孔直径：6mm

螺丝规格：

T4×30

螺丝规格：

1/4''-20UNC

魔术贴

当电视厚度范围为 46-146mm 时，进行以下步骤：

简

体

中

文

拧开螺丝反向安装

L 型支架

螺丝规格：

1/4''-20UNC













建议安装高度为距地面 1.55 米 -1.85 米。

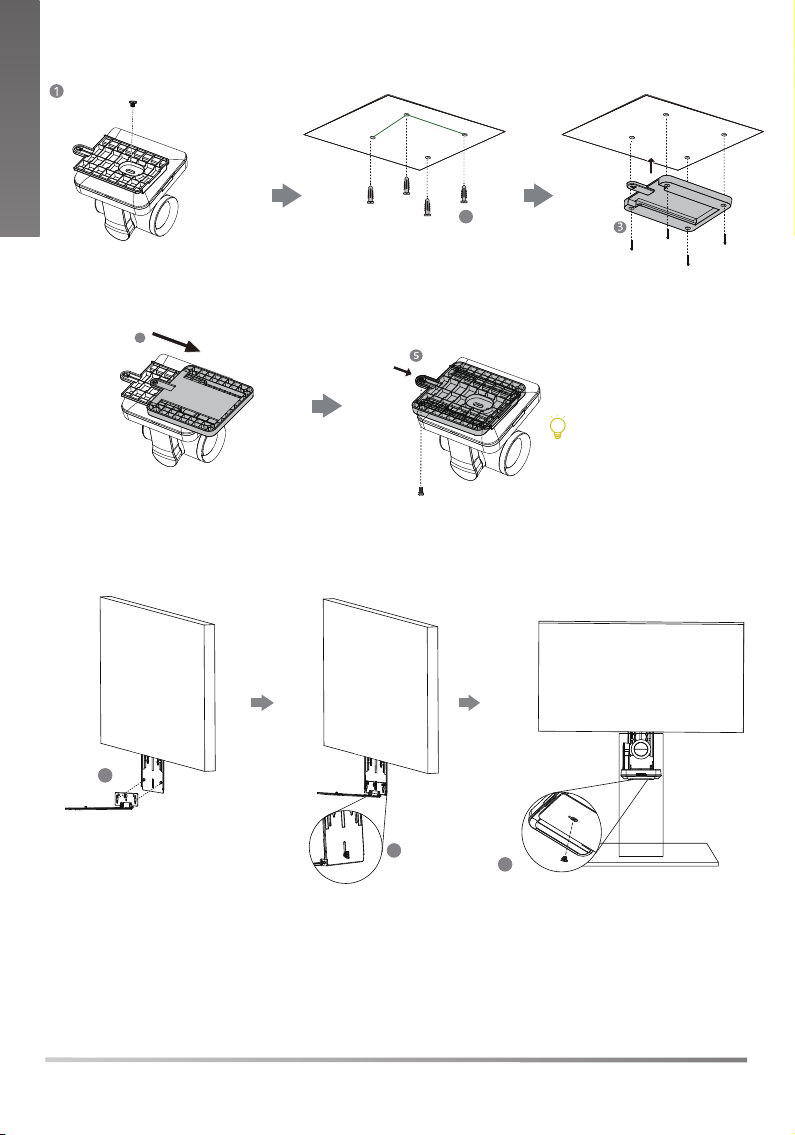

• 吊装





108mm

• 电视架安装

螺丝规格：T4×30

用户可以自行选购电视架。







螺丝规格：M3×8

螺丝规格：

1/4''-20UNC

螺丝规格：

1/4''-20UNC

螺丝规格：

1/4''-20UNC

简

体

中

文

用请螺丝刀锁紧螺丝，

否则摄像机会有脱落风险。

膨胀螺丝
