Yealink VC110 Video Conferencing Endpoint Quick Start Guide

Applies to 50.10.0.6 firmware version or laterV10.6

Cable Hub Connection Diagram

Table of Contents

Remote Control and Cable

Ties Installation

VC110-All-in-one Unit Installation

Packaging Contents

VC110-All-in-one Unit Connection

Troubleshooting

Main Screen

Network Deployment

Diagram

Packaging Contents

Please use the Yealink-customized DVI cable (only for VC110)

Quick Start Guide

AAA Batteries 2

Remote Control

DVI Cable VGA Cable (2m)

Ethernet Cable

HDMI Cable 1

VC110 All-in-one Unit

Cable Hub

Power Adapter Cable Ties 5

VCM30

Microphone Array Package

Wireless Microphone Package

Velcro 2

Video Conferencing Phone Package

Quick Start

USB CableDongle

VCM60 Power

Adapter

VCP40

Guide

VC110 Installation Accessories

Ethernet Cable

(7.5m)

Ethernet Cable

(7.5m)

VC110 all-in-one unit can work with the VCM60, VCP40 or VCM30. You can purchase

any combination according to your needs.

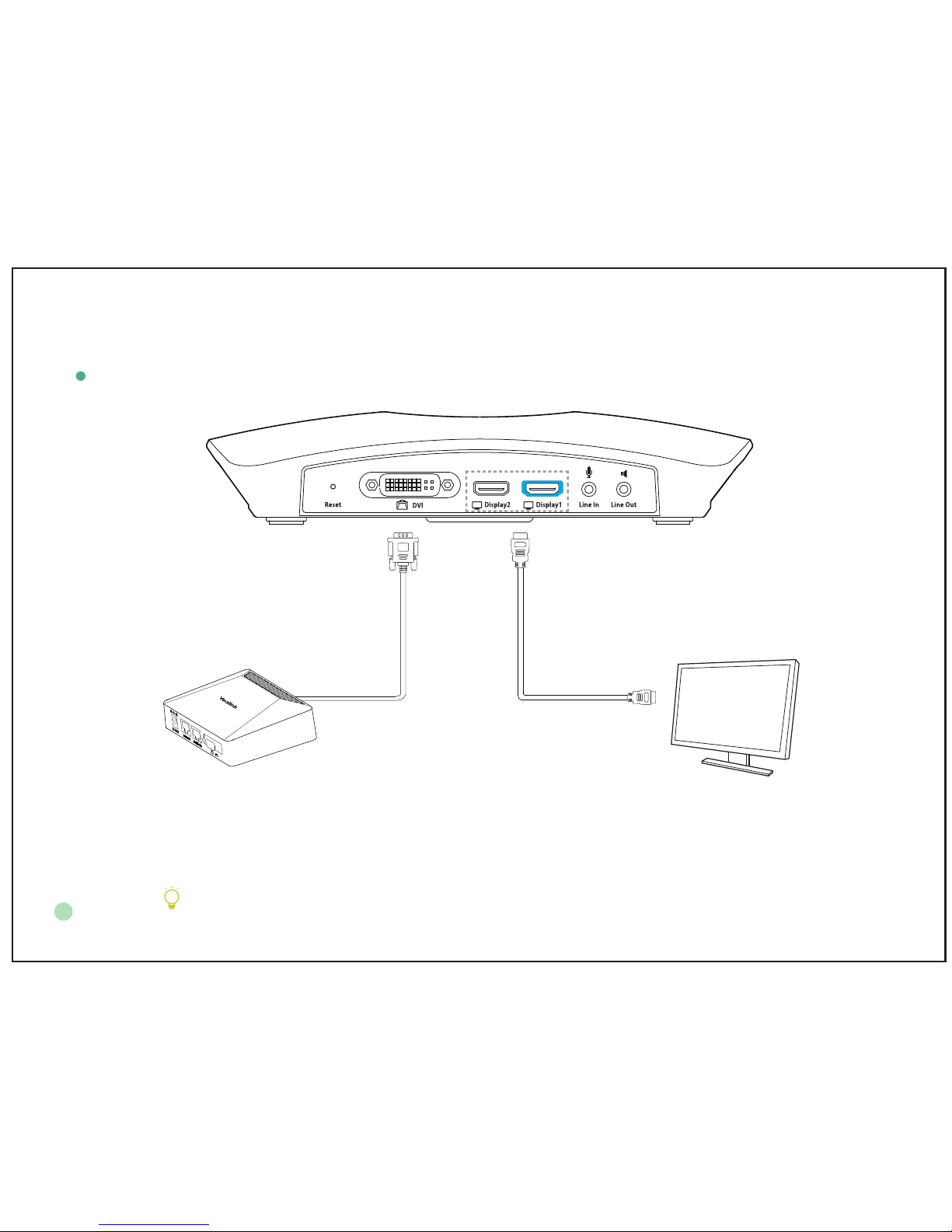

VC110 All-in-one Unit Connection Diagram

Please connect to Display1 port in blue color if you have only one display device

HDMI CableDVI Cable

Display 2

Cable Hub

The Back of the VC110

For more information, refer to Yealink VCM60 Video Conferencing Wireless Microphone Quick Start Guide

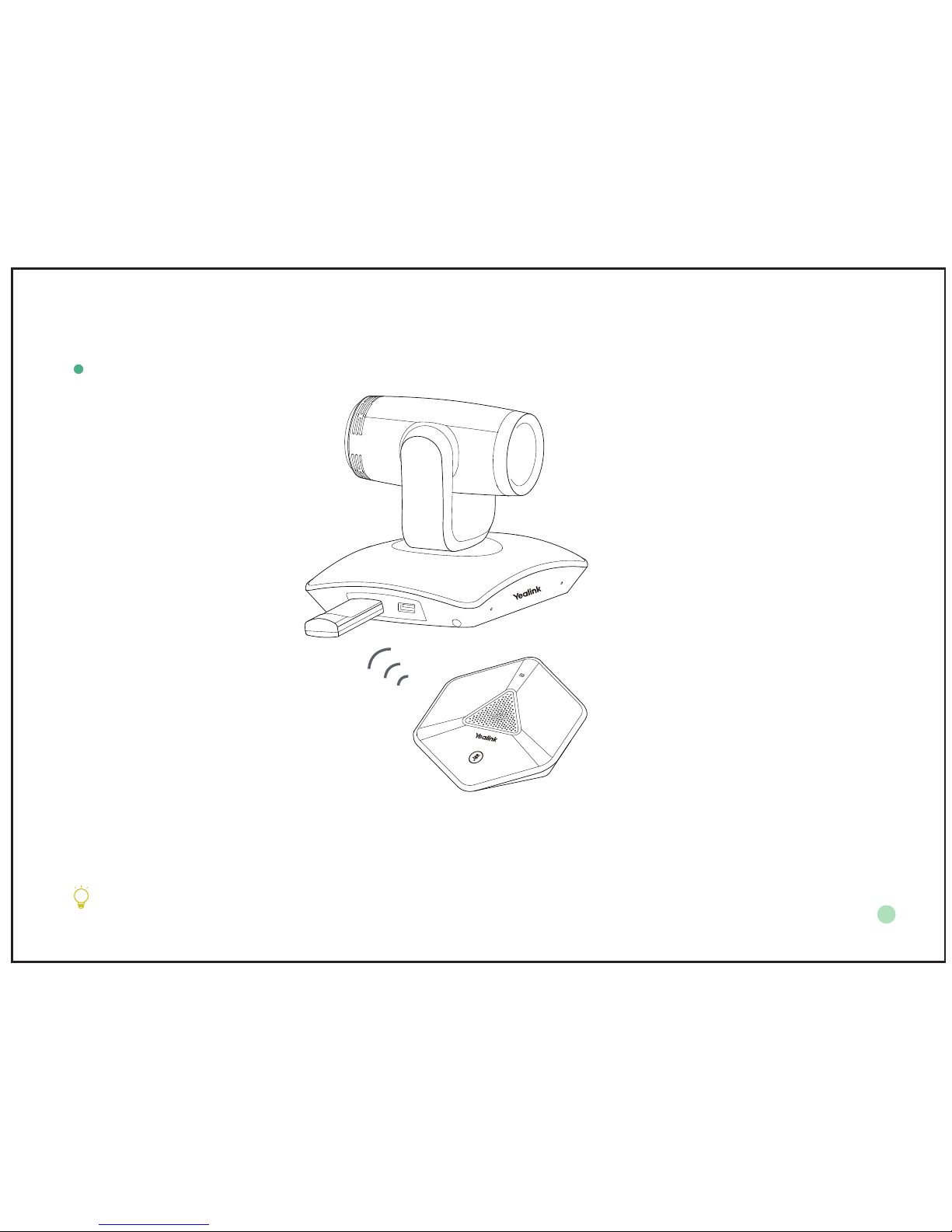

The VCM60 video conferencing wireless microphone and dongle are automatically ”paired” at the factory. All you need

to do is connect the dongle to one of the USB ports on the VC110 all-in-one unit. After the VCM60 is turned on, the VCM60

will register with the dongle automatically.

VCM60 Video Conferencing

Wireless Microphone

Dongle

The Right Side of the VC110

Remote Control and Cable Ties Installation

Fasten the cables with the cable tie

Install batteries

VC110 All-in-one Unit Installation

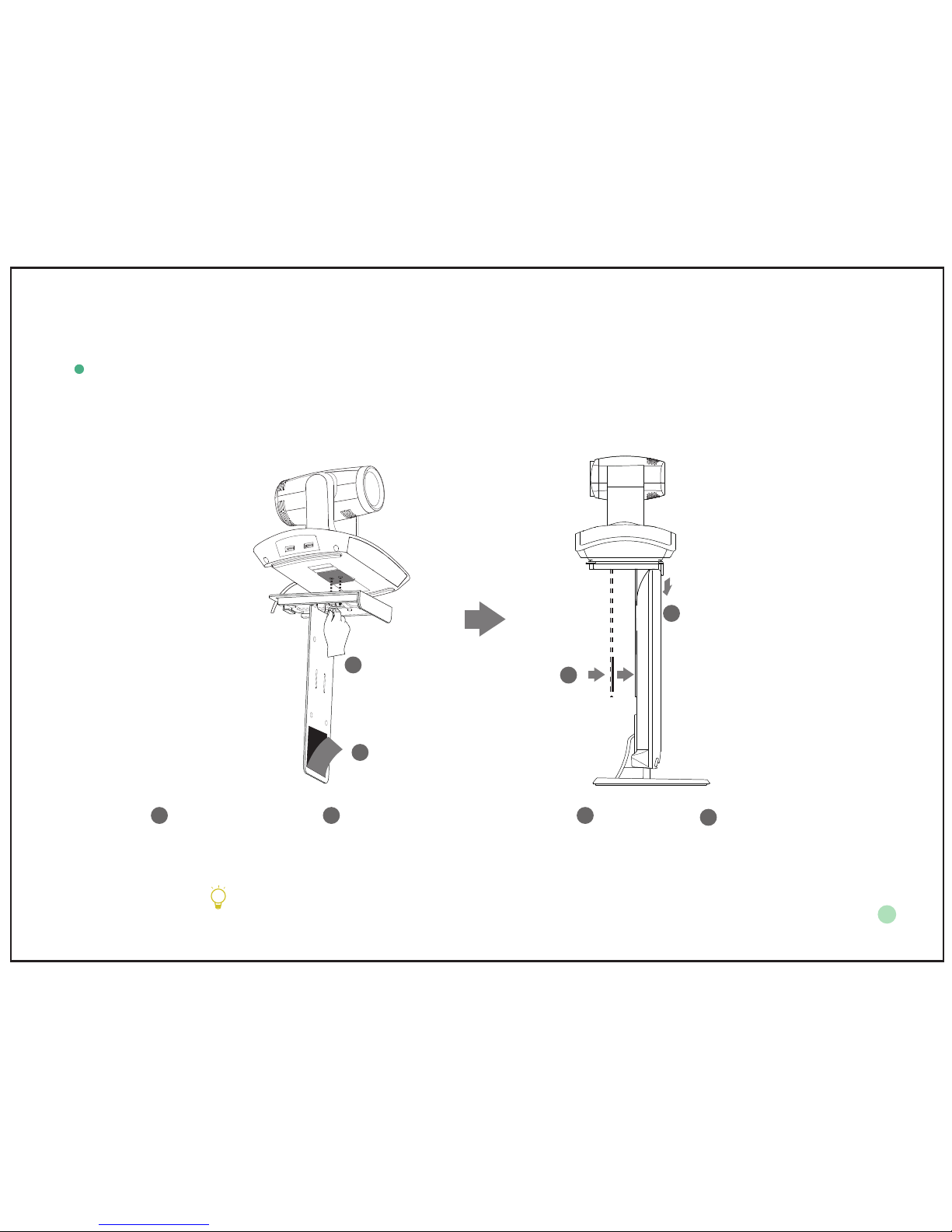

Hanging Mode

Adjust the bracket to ensure close adhesion to the back of the TV.

Lock the all-in-one unit Remove the protection of the Velcro

Please choose the following installation mode when the thickness of the TV is between 35-120mm.

Make sure the back of

Steps: 2Install bracket

the TV is clean, and then adjust the bracket to ensure close adhesion to the back of the TV with Velcro

The recommended height for VC110 all-in-one unit positioning is 1.5m-1.8m

Wall-mount Mode

Hole diameter: 6mm

Hole depth: 30mm

Steps：Punch holes & Insert expansion bolts Drive screws Adjust the screw position and manually

lock it Insert screws to lock the bracket to the wall Connect DVI cable Lock the camera

12 3

4 5 6

Screw specification: M3 8

50mm

100mm 4

5 6

Screw specification: T4 30

DVI Cable

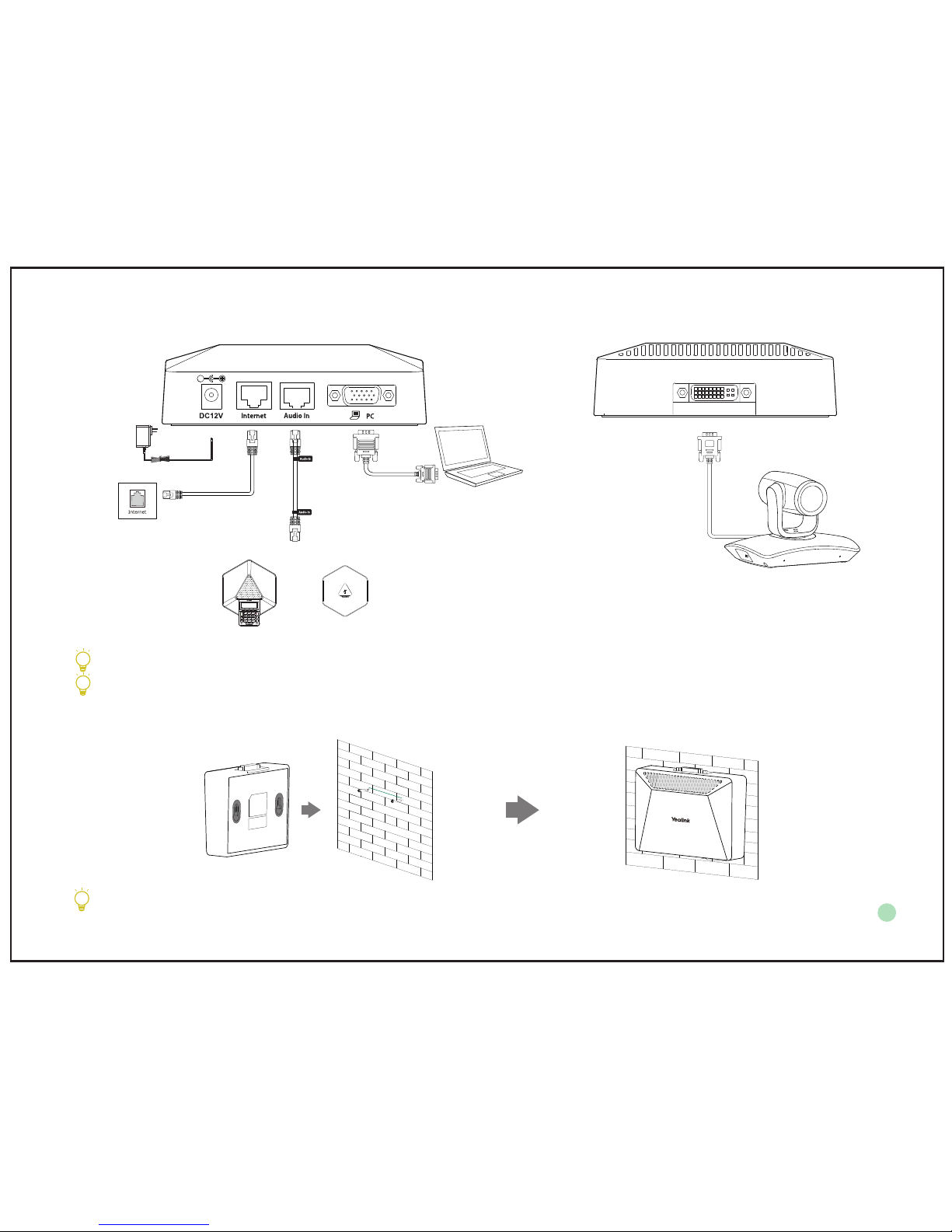

Wall Mount Method for the Cable Hub

DVI

83mm

Cable Hub Connection Diagram

To hang the cable hub on the wall, you need to purchase the screws (specification: T4 30) separately.

Connect to a VCP40 or VCM30 audio device

VGA Cable

(2m)

Ethernet Cable

(7.5m)

Ethernet Cable

VCP40

Power Adapter

VCM30

The cable hub can also be powered from a PoE-compliant switch or hub.

The VC110 video conferencing endpoint should be used with Yealink original power adapter (12V/2A) only.

Main Screen

Time and date Site name Status icon Endpoint IP address and

account information
