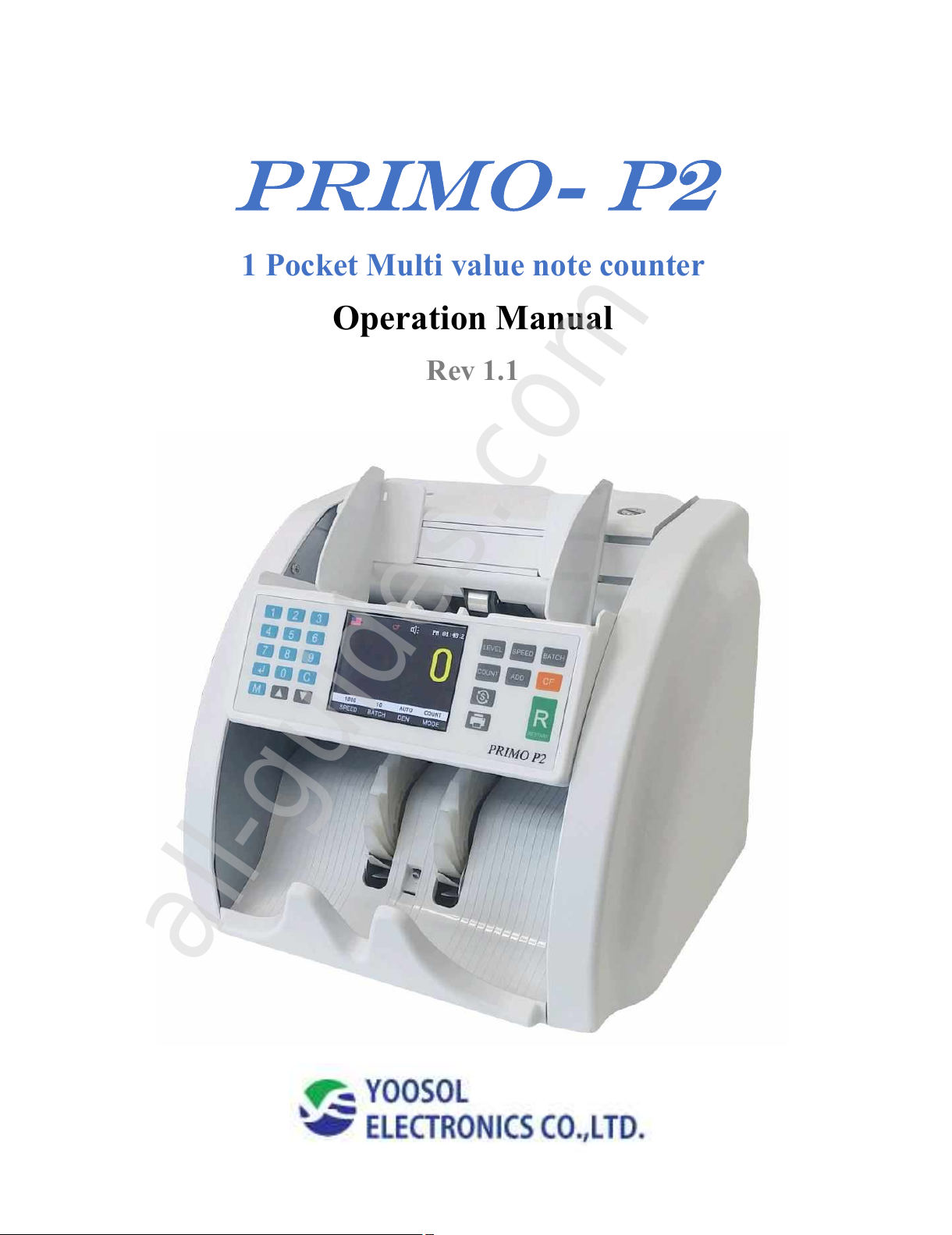

Yoosol Electronics PRIMO-P2 Bedienungsanleitung

PRIMO- P2

1 Pocket Multi value note counter

Operation Manual

Rev 1.1

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

CONTENTS

1. Specifications

2. Appearance

3. Sensor location

4. Display / Operation

4-1. Operation/ Count mode (Piece /Single/ Mix)

4-2. Operation/ Change speed

4-3. Operation/ Batch mode

4-4. Operation/ Currency(CUR) mode

4-5. Operation/ Add mode

4-6. Operation/ CF

4-7. Operation/ Density Setting (Adjustable 9 levels)

4-8. Operation/ Value list

5. Error code / Trouble shooting

6. Configuration

7. Accessories / Safety

All manuals and user guides at all-guides.com

- 3 -

1. Specifications

Primo P2

Speed (4 Selectable speeds)

1,000 notes/min (Standard)

(800 / 1000 / 1200 / 1500 notes/min)

Count Mode

Mixed/Single/Piece count

Available currencies

USD/EURO/And local currency (up to 8 country)

Display

3. 5 inch Color LCD (320 x 240 Pixels)

Dimension(mm)

292(W) x 251(D) x 244(H)

Weight

Approx. 6.5Kg

Hopper capacity

Max. 300 notes

Stacker capacity

Max. 250 notes

Feed system

Roller friction system

Sensor

Full image sensor, UV, MG and IR

Interface

RS-232, USB upgrade (USB Memory stick)

Power supply

100~240V 50/60Hz Free voltage

All manuals and user guides at all-guides.com

- 4 -

2. Appearance

Name

Hopper Guide

RS232-Image Serial port

Hopper

RS232-Main Serial port

Display

USB 2.0 Data collection

Side case

USB(HOST) - Upgrade

Stacker

RS232 - Connect CD

Kicker roller

RS232 - Connect printer

Gate adjustment screw

Power Switch

All manuals and user guides at all-guides.com

- 5 -

3. Sensor location

No.

Name

No.

Name

Stacker sensor

6CH Full line CIS sensor

Hopper sensor

IR array sensor

IR count sensor(In)

IR count sensor (Out)

MG sensor(6mm x 2 , 66mm x 1)

UV sensor

All manuals and user guides at all-guides.com

- 6 -

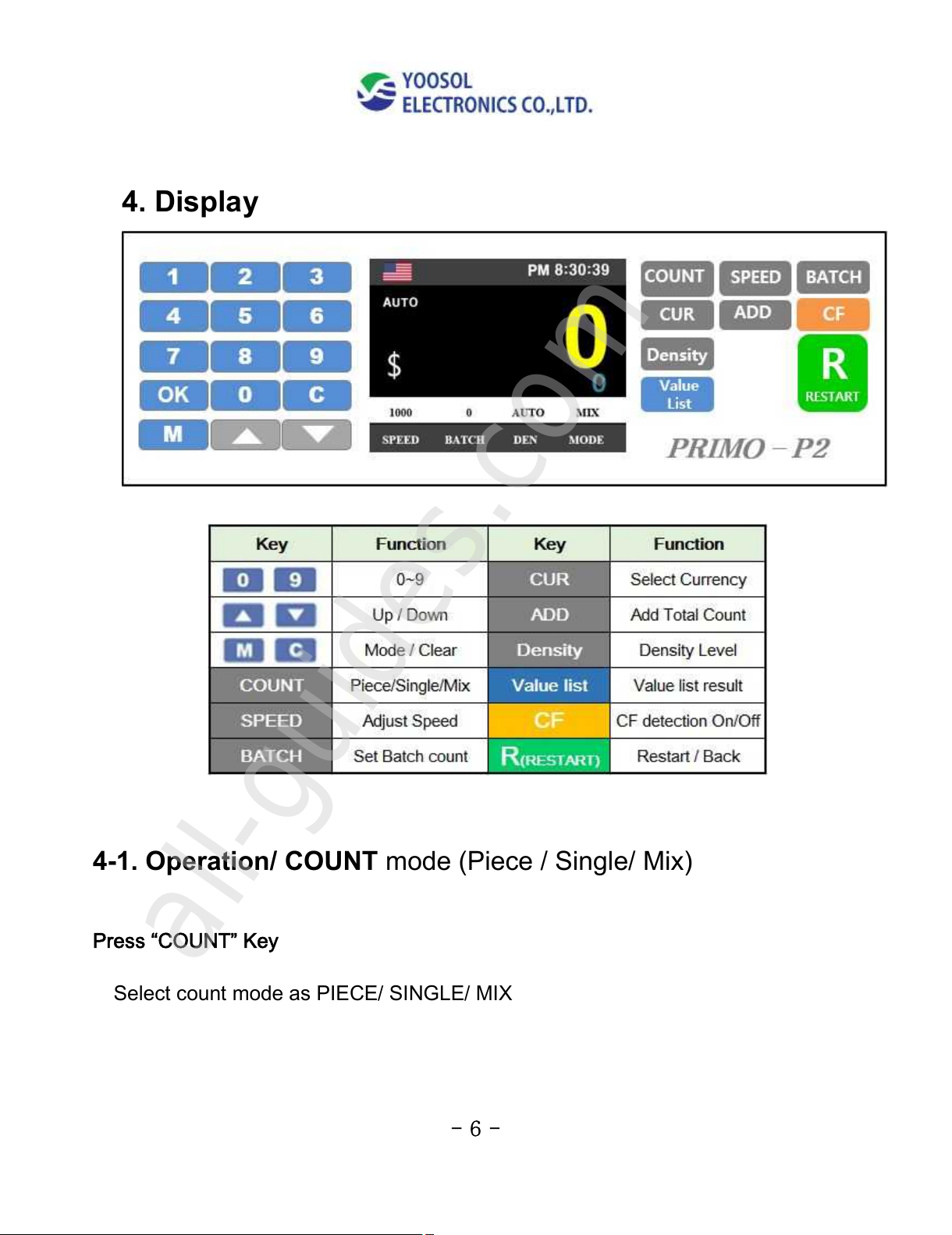

4. Display

4-1. Operation/ COUNT mode (Piece / Single/ Mix)

Press “COUNT” Key

Select count mode as PIECE/ SINGLE/ MIX

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

4-2. Operation/ Change Speed

Adjust Speed

- Default speed : 1,000 / min (Value count & CF detection speed)

- 4 Selectable speeds (800/1,000/1,200/1,500 notes / min)

Speed 1,500 / min (available for MG & UV detection only)

4-3. Operation/ Batch mode

Press “BATCH” Key

Select Batch number 10, 20, 50, 100, 200, 250 ~ unlimited) By BATCH Key.

Also select certain count number by Up/Down key.

Default set: 200/notes

All manuals and user guides at all-guides.com

- 8 -

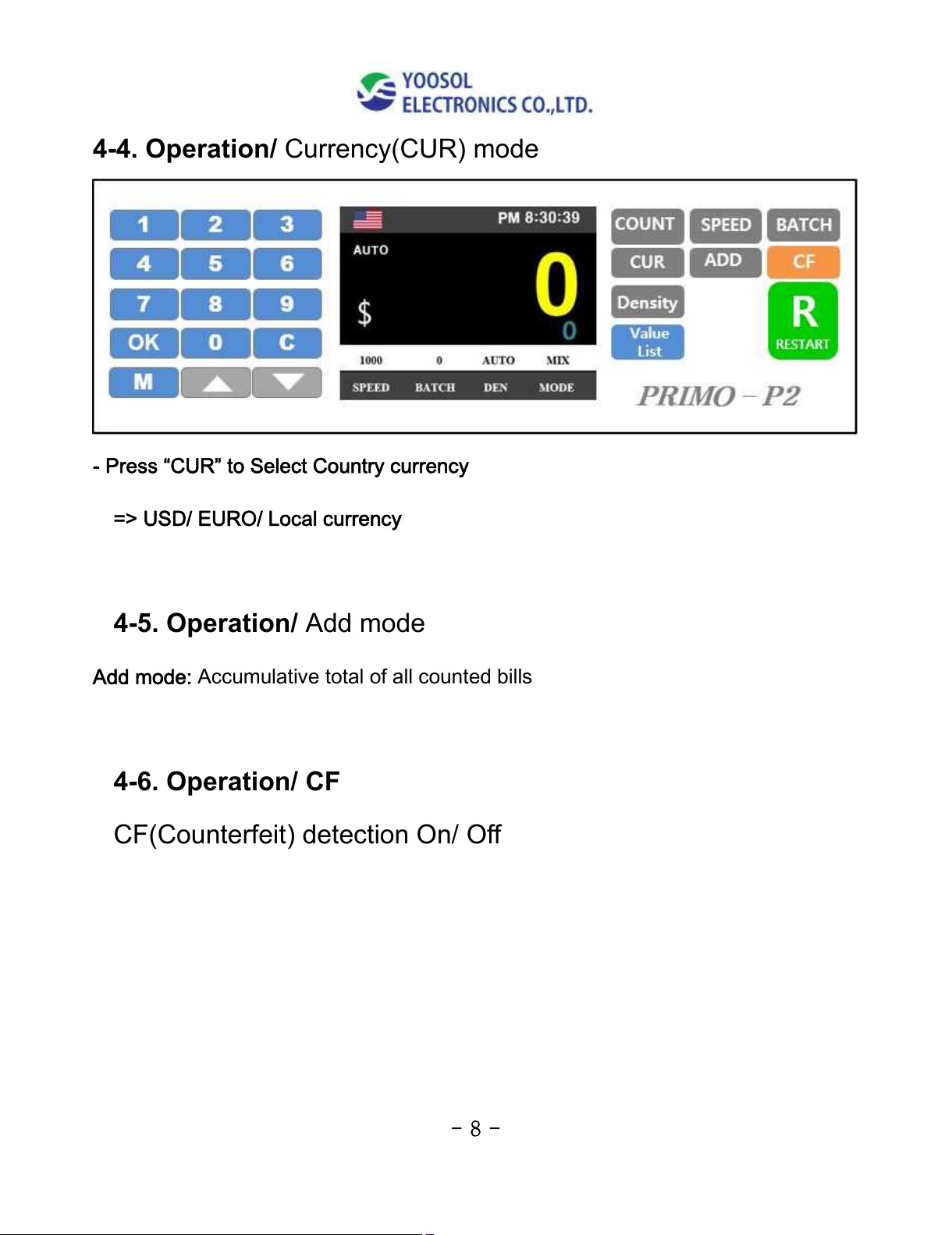

4-4. Operation/ Currency(CUR) mode

- Press “CUR” to Select Country currency

=> USD/ EURO/ Local currency

4-5. Operation/ Add mode

Add mode: Accumulative total of all counted bills

4-6. Operation/ CF

CF(Counterfeit) detection On/ Off

All manuals and user guides at all-guides.com

- 9 -

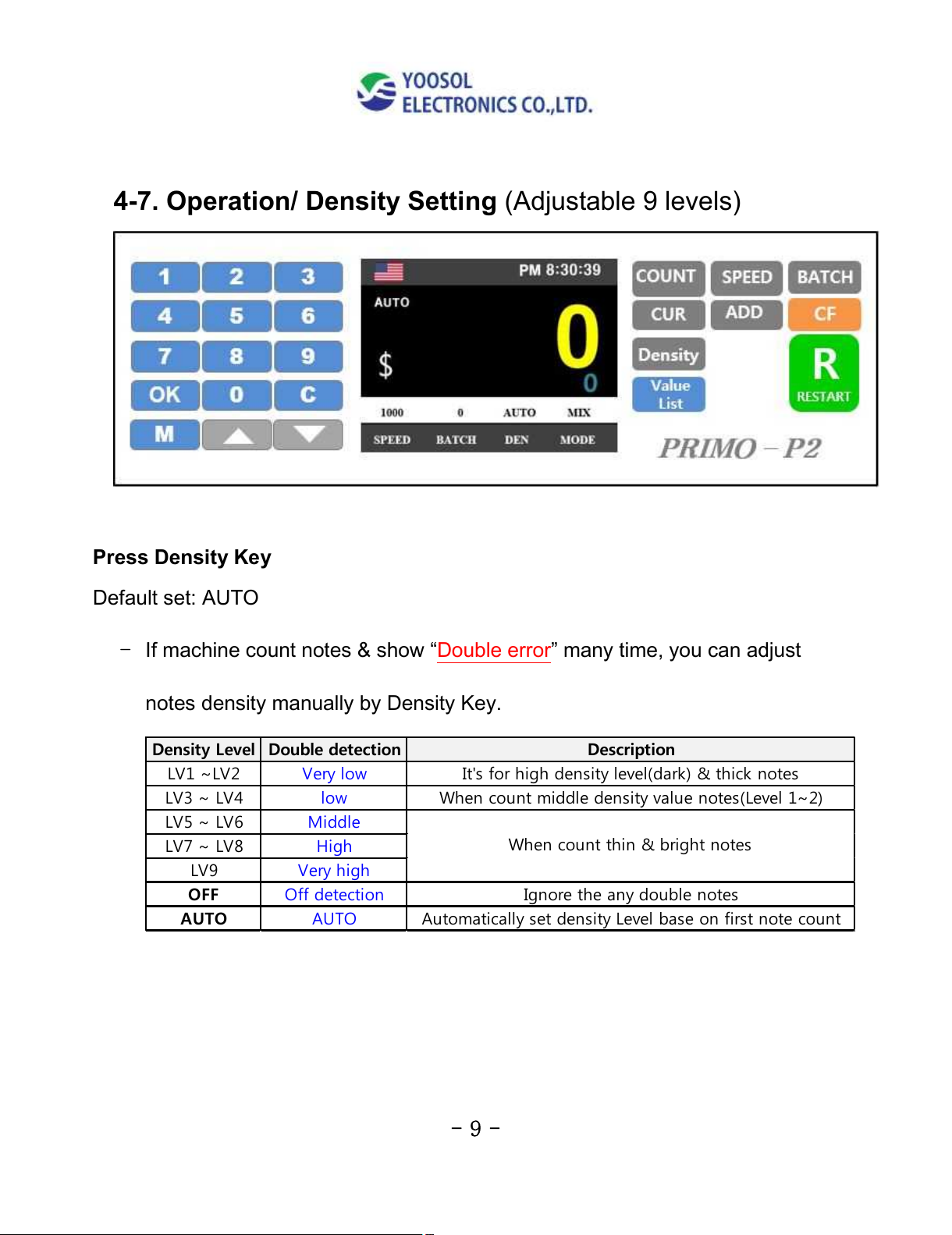

4-7. Operation/ Density Setting (Adjustable 9 levels)

Press Density Key

Default set: AUTO

- If machine count notes & show “Double error” many time, you can adjust

notes density manually by Density Key.

Density Level Double detection Description

LV1 ~LV2 Very low It's for high density level(dark) & thick notes

LV3 ~ LV4 low When count middle density value notes(Level 1~2)

LV5 ~ LV6 Middle

LV7 ~ LV8 High

LV9 Very high

OFF Off detection Ignore the any double notes

AUTO AUTO Automatically set density Level base on first note count

When count thin & bright notes

All manuals and user guides at all-guides.com

- 10 -

4-8. Operation/ Value List

Press “Value list” to switch the value count result. (AUTO)

Press OK to print out the value list

5. Error code / Trouble shooting

Code

Display

Symptoms

Trouble shooting


Poor Img Error

Bad or dirty notes

Check the condition of notes & restart


Img(W) Error

Width Image Error

Check the condition of notes & restart


Img(H) Error

Height Image Error

Check the condition of notes & restart

Img4~ 7

Img Recog Error

Image Recognition Error

Remove suspect note & restart


IR Error

Remove suspect note & restart


Fault image

Check the condition of notes & restart

ImgT

Img T Error

Time Error

Restart counting operation

Dbl

Double Error

Double notes

Remove notes & restart

Skew

Skew Error

Skew notes

Remove notes & restart

Chain

Chain Error

Chain notes

Remove notes & restart

Half

Half Error

Half notes

Remove notes & restart

Short Error

Remove suspect note & restart

MG Error

Remove suspect note & restart

UV Error

Remove suspect note & restart
