INSTALLATION MANUAL

FLOOR STANDING TYPE INDOOR UNIT

For correct installation, read this manual before starting installation.

Only trained and qualified service personnel should install, repair or service air conditioning equipment. Users

should not install the air conditioner by themselves.

All pictures are only sketches. If there is any difference between pictures in this manual and the actual shape

of the air conditioner you purchased, the actual shape shall prevail.

Concealed models:

YDCFS-022C15B

YDCFS-028C15B

YDCFS-036C15B

YDCFS-045C15B

YDCFS-056C15B

YDCFS-071C15B

YDCFS-080C15B

Exposed models:

YDEFS-022C15B

YDEFS-028C15B

YDEFS-036C15B

YDEFS-045C15B

YDEFS-056C15B

YDEFS-071C15B

YDEFS-080C15B

E-II-YDEFS-YDCFS-0508

CONTENT

Installation precaution...........................................................................1

Installation place

Install the main body..........................................................................4

Install the connecting pipe...................................................................8

Connect the drain pipe

......................................................................................1

Accessories..................................................................................................3

..........................................................................10

.............................................................................................................11

Control.........................................................................................................................13

Test operation...........................................................................................16

Electric Wiring

There is enough room for installation and maintenance.

The air outlet and the air inlet are not impeded, and the influence of external air is the least.

The air flow can reach throughout the room.

The connecting pipe and drainpipe could be extracted out easily.

There is no direct radiation from heaters

To install properly, please read this manual at first.

The air conditioner must be installed by qualified persons.

When installing the indoor unit or its tubing, please follow this manual as strictly as possible.

When all the installation work is finished, please turn on the power only after a thorough

check.

No further announcement if there is any change of this manual caused by product improv-

ement.

Note: The installor should illustrate to users how to correctly use and maintain the air-condi-

tioner, as well as remind users to carefully read and keep both Installation Manual and

Owner's Manual well.

INSTALLATION PRECAUTION

The Indoor Unit

INSTALLATION PLACE

Location in the following places may cause malfunction of the machine. (If unavoidable,

please consult your local dealer.)

a. There exists petrolatum.

b. There is salty air surrounding(near the coast).

c. There is caustic gas(the sulfide, for example) existing in the air (near a hot spring).

d. The Volt vibrates violently(in the factories).

e. In buses or cabinets.

f. In kitchen where it is full of oil gas.

g. There is strong electromagnetic wave existing.

h. There are inflammable materials or gas.

i. There is acid or alkaline liquid evaporating.

j. Other special conditions.

Cautions

Notes Before Installation

1. Select the correct carry-in path.

2. Move this unit as originally packaged as possible.

3. If the air conditioner is installed on a metal part of the building, it must be electrically

insulated according to the relevant standards to electrical appliances.

NOTE:

Remark per EMC Directive 89/336/EEC

For to prevent flicker impressions during the start of the compressor (technical process),

following installation conditions apply.

1. The power connection for the air conditioner has to be done at the main power distribution.

The distribution has to be of a low impedance, normally the required impedance reaches

a 32A fusing point.at

2. No other equipment has to be connected with this power line.

3. For detailed installation acceptance, please refer to your contract with the power supplier

restrictions do apply for products like washing machines, air conditioners or electricalif

ovens.

4. For power details of the air conditioner, refer to the rating plate of the product.

5. For any question contact your local dealer.

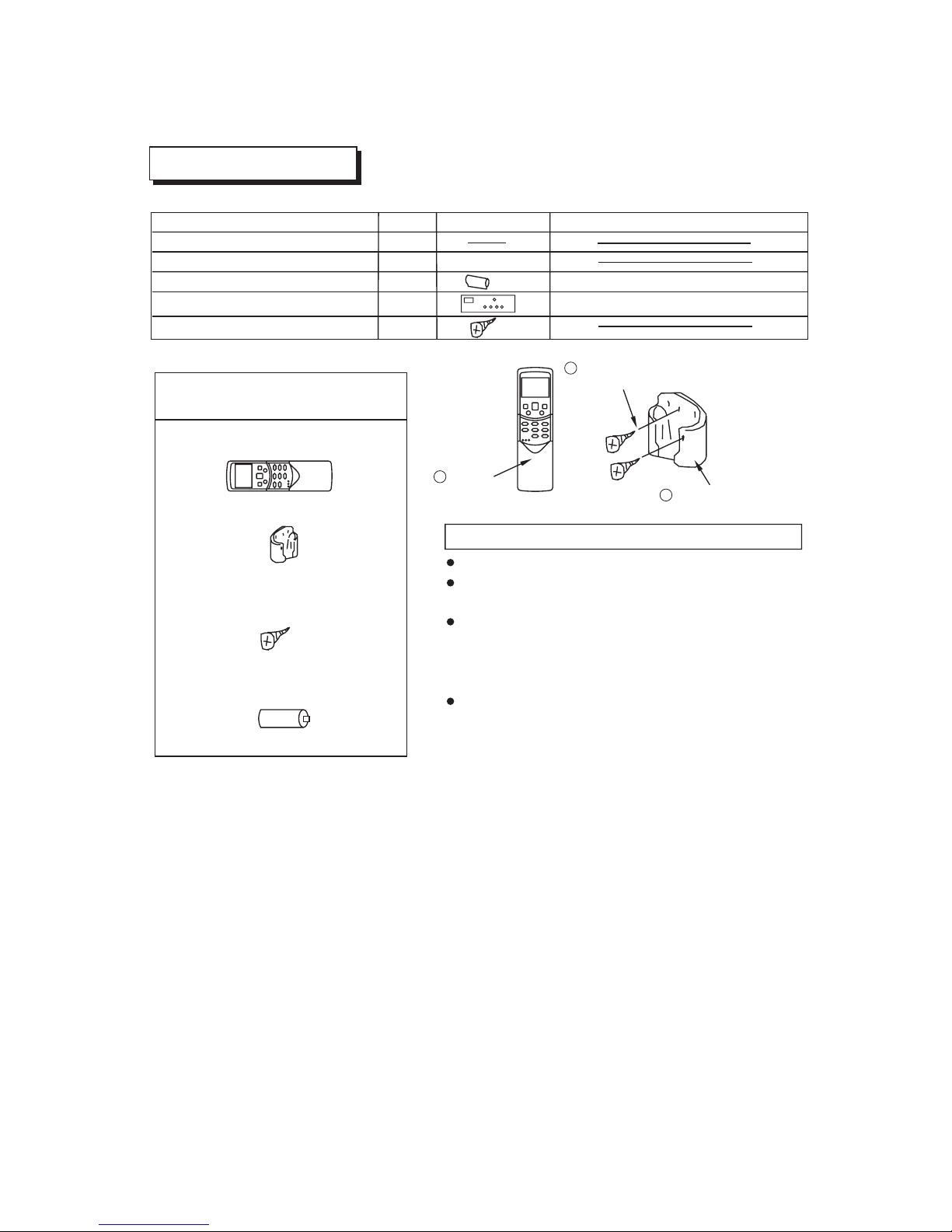

1. Remote controller..................1

2. Frame...................................1

3. Mounting screw

(ST2.9x10-C-H).....................2

4. Alkaline dry batteries(AM4)

...............................................2

Remote controller & Its Frame

Remote

controller Remote controller

holder

Mounting screw B

ST2.9x10-C-H

Never throw or beat the controller.

Before installation, operate the remote controller

to determine its location in a reception range.

Keep the remote controller at least 1m apart from

the nearest TV set or stereo equipment. (It is

necessary to prevent image disturbances or

noise interferences.)

Do not install the remote controller in a place

exposed to direct sunlight or close to a heating

source, such as a stove.

Note that the positive and negative poles are

in right positions when loading batteries.

Cautions on remote controller installation

Name of Accessories

Owner's manual

Installation manual

Q'ty

(This manual)

Qutline Usage

ACCESSORIES

Pipe insulation material Heat insulation

Signal receiver display board

1Receive Signal

Mounting screw(ST3.9x12-C-H)

Install the main body

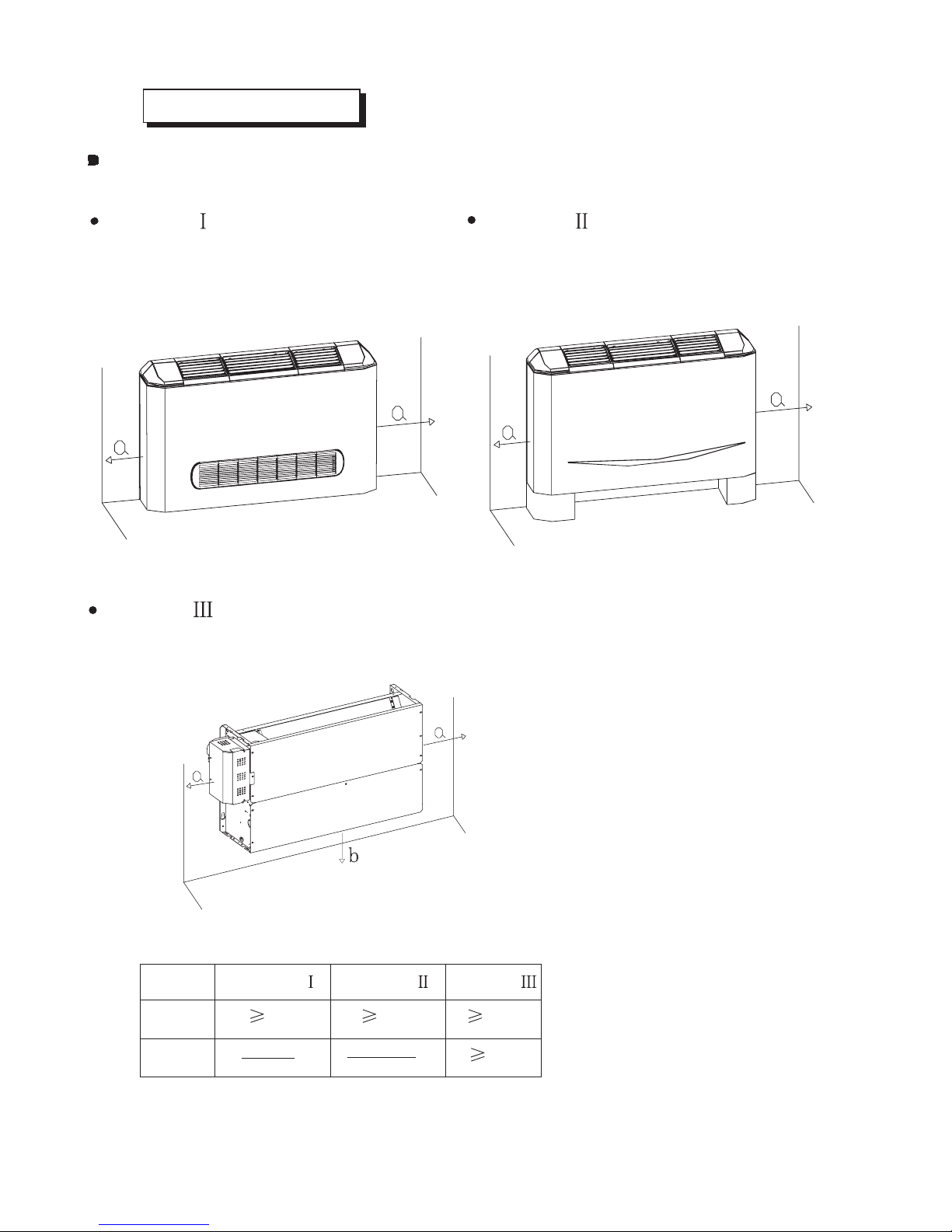

The units may be mounted vertically ,provided that the correct clearances for

positioning are maintained.(Refer to Chart 1 -3 )

Version

Vertical unit with casing,with air intake from

front and air outlet on top, for installation on

a wall or on feet on the floor.

Vertical unit with casing,with air intake from below

and air outlet on top, for installation on a wall or

on feet on the floor..

Vertical unit for building-in,with air intake from below and air delivery at the top,for

installation on a wall.

Version

a(mm)

b(mm)

Version

150

Version

150

Version

200

Chart 1 Chart 2

Chart 3

Table 1

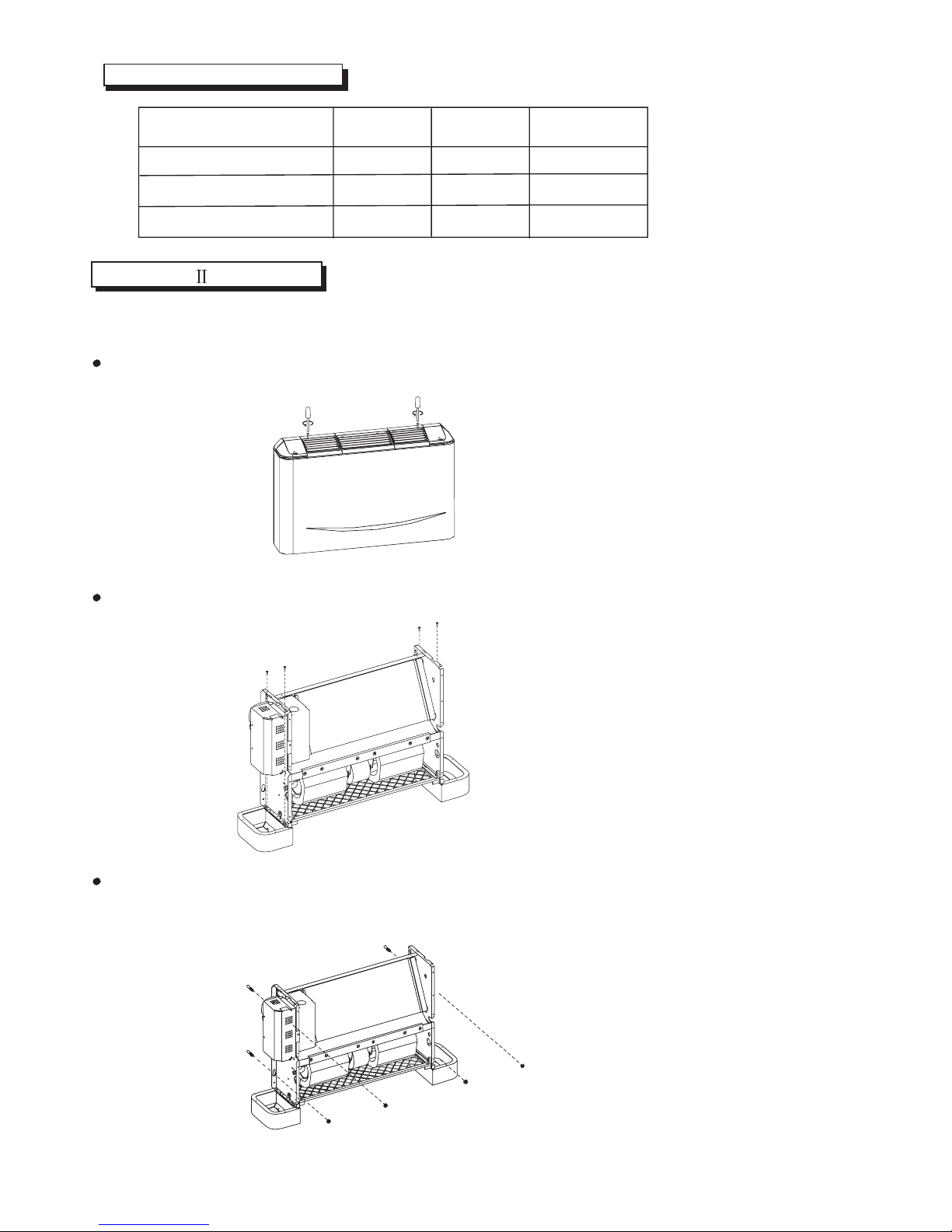

Version Installation

For installation,follow the instructions set out below:

Remove the external casing,unscrewing the screws which secure it

to the structure,as following indicated.(Refer to Chart 4)

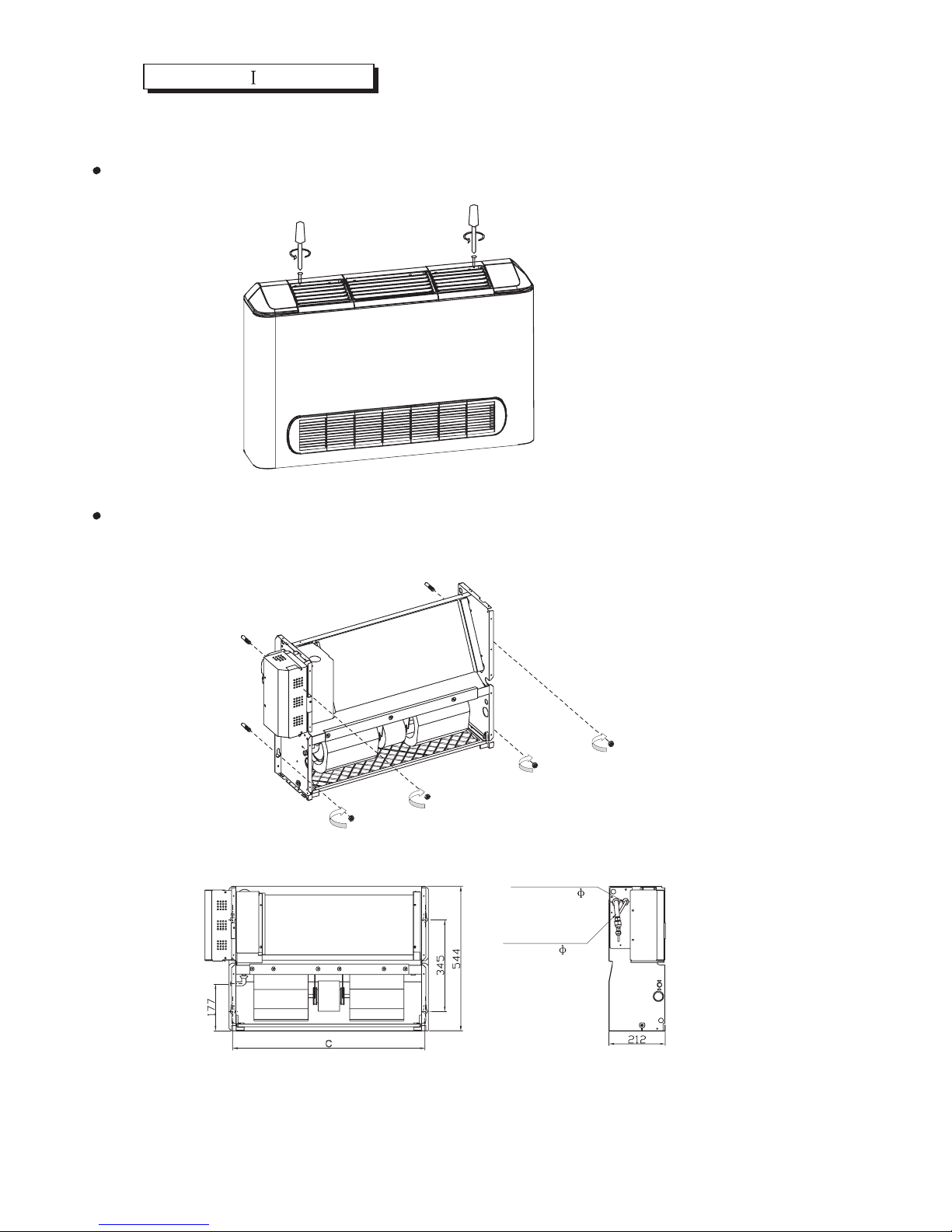

Mark out the fixing points on the wall,either by marking through the drillings in the unit

itself,or by referring to the measurements given in Table 2.

Secure the unit by driving the four fixing screws into suitable masonry plugs.(Refer to

Chart 5)

Chart 4

Chart 5

Chart 6

Connecting point of

refrigerant pipe

(Liquid side A)

Connecting point of

refrigerant pipe

(Gas side B)

A(mm) B(mm) C(mm)

6.35 12.7 725

6.35 12.7 925

9.52 16 1225

Capacity(W)

2200-2800W type

5600-8000W type

3600-4500W type

Version Installation

For installation,follow the instructions set out below:

Remove the external casing,unscrewing the screws which secure it

to the structure.(Refer to Chart 7)

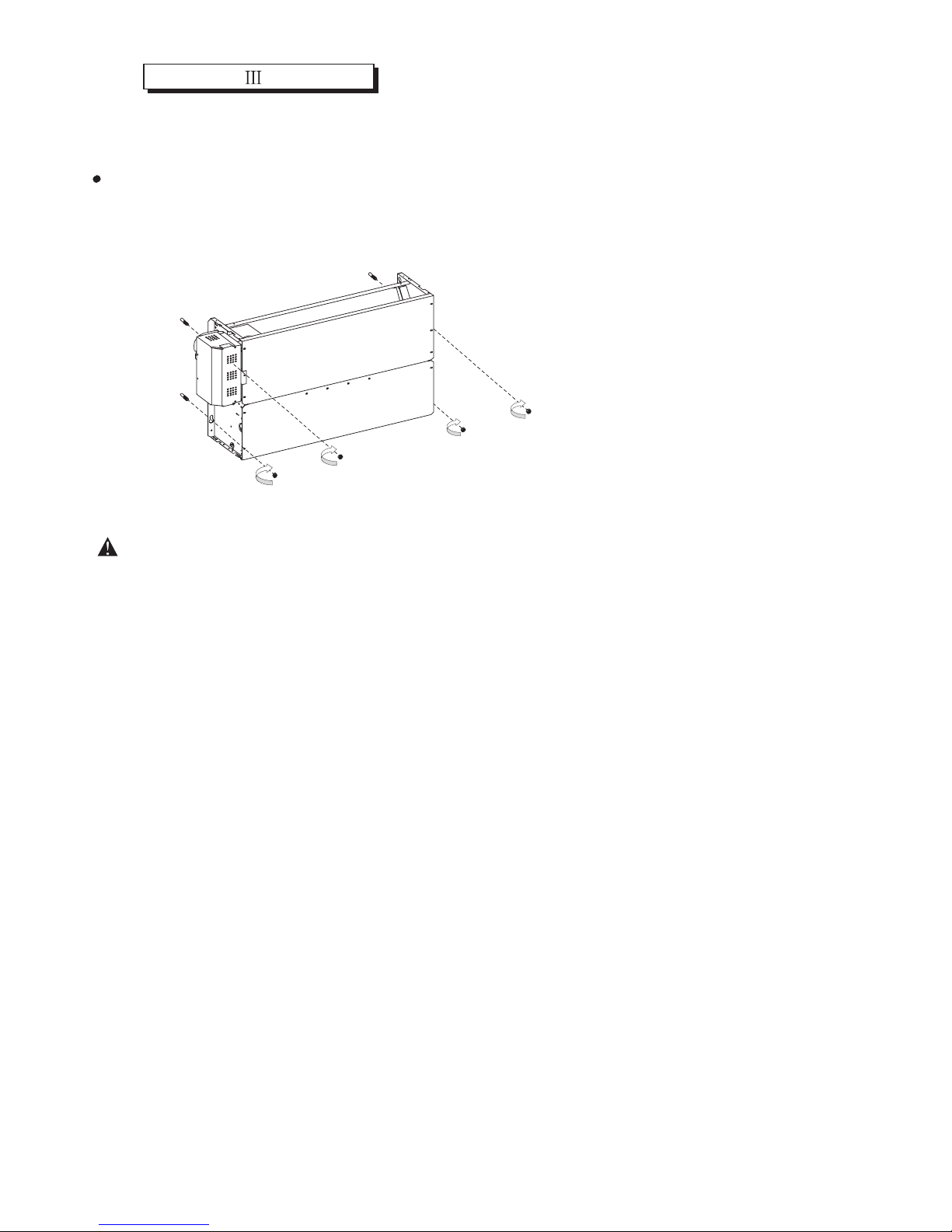

Put the unit onto the feet, and fix it by screws.(Refer to Chart 8)

Mark out the fixing points on the wall,either by marking through the drillings in the unit

itself,or by referring to the measurements given in Table 2.

Secure the unit by driving the four fixing screws into suitable masonry plugs.(Refer to

Chart 9)

The dimension of the unit

Table 2

Chart 7

Chart 8

Chart 9

Version Installation

For installation,follow the instructions set out below:

Mark out the fixing points on the wall,either by marking through the drillings in the unit

itself,or by referring to the measurements given in Table 2.

Secure the unit by driving the four fixing screws into suitable masonry plugs.(Refer to

Chart 10)

ATTENTION: The figures above are based on model with 2200-2800 as rated

capacity, which may differ from the unit you purchased.

Wtype

Chart 10

INSTALL THE CONNECTING PIPE

Do not let air, dust, or other impurities fall in the pipe system during the time of installation.

The connecting pipe should not be installed until the indoor and outdoor units have been

fixed already.

Keep the connecting pipe dry, and do not let moisture in during installation.

1) Connect the indoor unit at first, then the outdoor unit.

Bend the tubing in proper way. Don,t harm them.

The Procedure of Connecting Pipes

1. Measure the necessary length of the connecting pipe, and make it by the following way.

Daub the surfaces of the flare pipe and the joint nuts with frozen oil, and wrench it for 3~4

rounds with hands before fasten the flare nuts. (Refer to chart 12)

Be sure to use two wrenches simultaneously when you connect or disconnect the pipes.

Cautions

2) The stop valve of the outdoor unit should be closed absolutely (as original state). Every

time you connect it, first loosen the nuts at the part of stop valve, then connect the flare

pipe immediately (in 5 minutes). If the nuts have been loosened for a long time, dusts

and other impurities may enter the pipe system and may cause malfunction later. So

please expel the air out of the pipe with refrigerant before connection.

The bending angle should not exceed 90 C

Bending position is preferably in the bendable pipe. The larger the better it is .

Do not bend the pipe more than three times.

3) Expel the air (refer to the Expel The Air ) after connecting the refrigerant pipe with the

indoor unit and the outdoor unit.

Then fasten the nuts at the repair-points.

Notices For Benable pipe.

Cut out a desired concave at the bending part of the insulating pipe.

Then expose the pipe(cover it with tapes after bending).

To prevent collapsing of deforming, please bend the pipe at its biggest radius.

Use bender to get a small radius pipes.

Bend the connecting pipe of small wall thickness.
