York ZF 036-072 Bedienungsanleitung

036-21757-001-0416

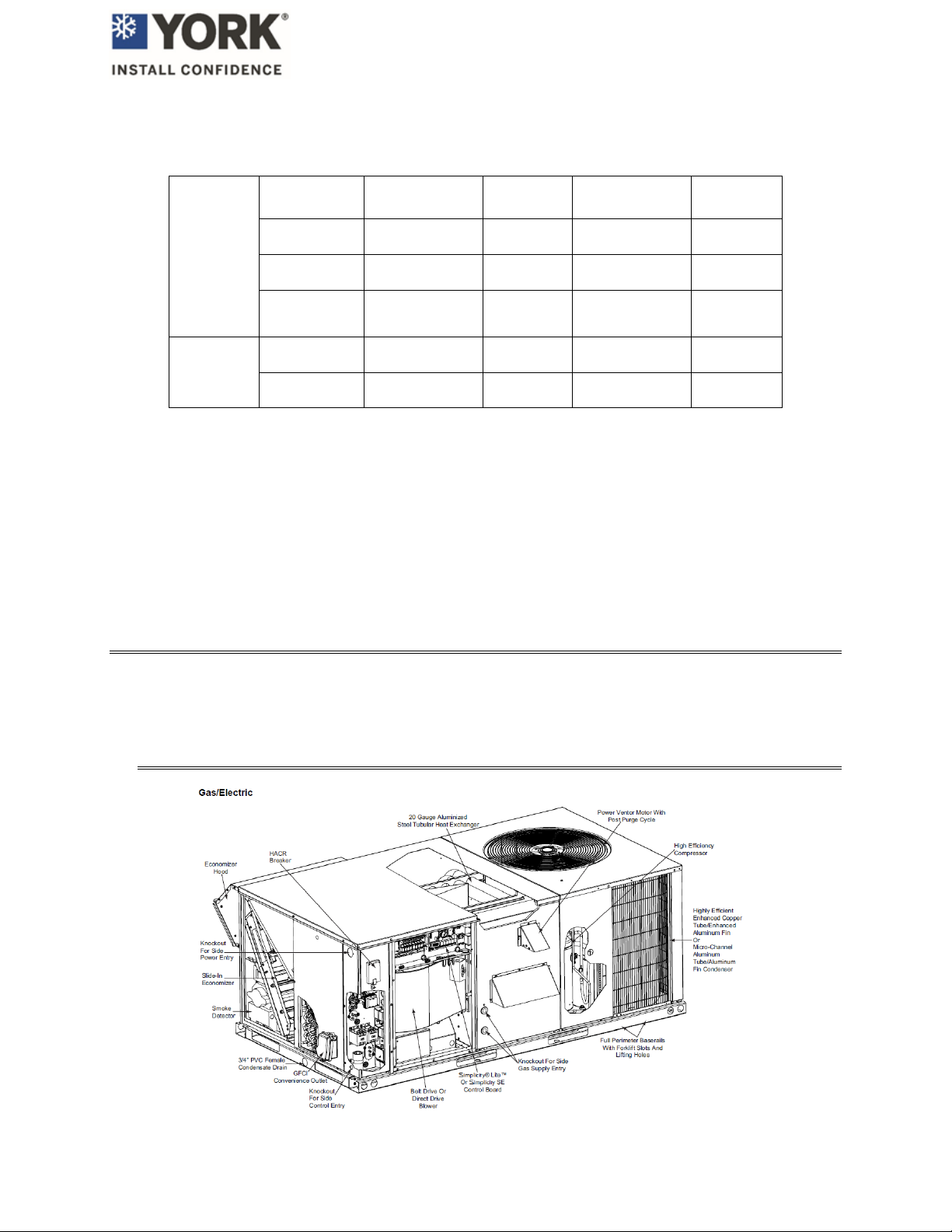

York 3-6 Ton Packaged Unit Overview

AC Units

Model

Cooling

Capacity MBH

SEER/IEER

Range

EER

Heating

Efficiency

ZF 036-072 36-72 MBH 13 SEER 10.8-11.0 EER 80% SSE

ZE 036-60 36-60 MBH 14 SEER 11.8-12.0 EER 81% AFUE

ZR 036-060

MagnaDry 36-60 MBH13 SEER 11.0 EER 80% AFUE

HP Units

XP 036-060 36-60 MBH13 SEER 10.8-11.0 EER 7.7 HSPF

XN 036-060 36-60 MBH 14 SEER 11.8-12.0 EER 8.0 HSPF

Standard Limited Warranties

Compressor: 5 Years

Aluminized Heat Exchanger: 10 Years

Stainless Steel Heat Exchanger: 15

Electric Heat Element: 5 Years

Other Parts: 1 Year

Key Talking Points:

-Smallest commercial RTU footprint available in industry

-Common Footprint/Roof Curb on all tonnages

-Large replacement population- manufactured since 1985

-Built in the USA

Product incompliance with:

ZE/XNunits ENERGY STAR

ASHRAE 90.1

CSA, U.L.1995

All products areOSHPD Seismic certified

Foundation

-Solid, one piece base rails. Fork truck accessible on 3

sides, provisioned for crane rigging

-Vertical/horizontal convertible duct configuration

-Reinforced & embossed condenser section- reduced

vibration, increased strength

-Galvanized steel drain pan standard with stainless steel

drain pan available as a factory option

Condenser Section

-Microchannel All-Aluminum Condenser standard

on ZF/ZEmodels- provides enhanced heat

transfer, more durable, lower refrigerant charge

required vs. traditional copper tube/alum fin

-Fintube coils onZR/XP/XN models due to increase

of condensation and drainage requirements.

-Compressor access thru side access panels ortop

- E-Coat (epoxy) option on both condenser and

evaporator coils toextend component life in corrosive environments

-Compressors mounted onraised rails andrubber isolators to minimize vibration and noise

Blower Section

-Isolated, centrifugal supply fan

-Direct drive and belt drive options

Return Air/Exhaust Section

-Modulating Economizer option

-Low Leak Economizer Dampers- exceeds

ASHRAE 90.1 2010/2013 & Title 24

requirements

-AMCA 511 Certified – 3 cfm/sq ft leakage

at 1”WC

-Dry bulb standard with optional single and dual enthalpy sensor kits for field installation

-Demand Control Ventilation/CO2 sensing available for field installation

Control Section

-Product features the Simplicity Smart Equipment Control (SSE), a digital control systems that

makes system setup, optimization and maintenance easy. Optional remote unit data access is

available via the Mobile Access Portal device (MAP) providing wireless or internet connectivity

to the equipment.

-Fault Detection and Diagnosis (FDD) available to monitor refrigerant line pressures and

temperatures to help identify system trends before a potential failure.

Supply Air and Heating Section

-ZF/ZE/ZR:Units available incooling only, cooling with electric heat, cooling with one or two

stage gas heat

-Electric Heat is factory or field installed accessory

-XP/XN- Units available in cooling andheating only andcooling with electric heat

-Aluminized steelheat exchanger with optional Stainless Steel Heat Exchanger

Cabinet

Galvanized Steel Cabinet with 1000 hour salt spray certified powder paint finish. Optional hinged and

tool-less filter, motor and electrical access panels.

York Competitive Direct Replacement (CDR) Overview

Standard Limited Warranties

Compressor: 5 Years

Aluminized Heat Exchanger: 10 Years

Stainless Steel Heat Exchanger: 15 Years

Electric Heat Element: 5 Years

Other Parts: 1 Year

Key Talking Points:

-Direct replacement unit for popular competitor units without need of an adaptor curb

and direct utility lineup

-Two footprints/two cabinet heights per footprint

-Embossed tops, solid one piece base rail

-Simplicity Smart Equipment Control

Units

Model

Cooling

Capacity MBH

SEER/IEER Range EER

Heating

Efficiency

ZX04-06 35-59 MBH 13 SEER 11.0 EER 80% SSE

ZY04-06 36-58 MBH 15-15.4 SEER 12.0 EER 80% SSE

ZX07-14 69-135 MBH

11. 5-11.9 IEER

12.75- 14.8 IEER IntelliSpeed (ZX08-14)

10.8-11.2

EER

80% SSE

ZY07-12 72-116 MBH

11.6- 12.6 IEER

14.4 IEER IntelliSpeed (ZY08-12)

11.5-12.2

EER

80% SSE

Units

XY04-06 36-58 MBH 15 SEER 12.5 EER 8.0-8.2 HSPF

XY07-09 71-98 MBH

13.2-13.5 IEER

14.7-15.0 IEER IntelliSpeed

11.8-12.0

EER

3.3-3.4 COP

Product in compliance with:

ZY/XY units ENERGY STAR

ZY/XY units reach CEE Tier 1/Tier 2 with

IntelliSpeed

ASHRAE 90.1, CSA, UL 1995

All products are OSHPD Seismic certified

Foundation (F)

-Full perimeter base rails- heavy gauge and design prevents transportation and rigging damage

Condenser Section (A, G, B)

-MicroChannel All-Aluminum Condenser coils standard on ZX/ZY units: provides enhanced heat

transfer, more durable, lower refrigerant charge vs. traditional copper tube/alum fin

- Fin/tube on XY HP units due to increase of condensation and drainage requirements.

- E-Coat (epoxy) option on both condenser and evaporator coils to extend component life in

corrosive environments

-Scroll Compressor standard with internal compressor protection

-Balanced outdoor fan for better performance and reliability

Blower Section (H)

-Dynamically balanced indoor fans for better performance and reliability

-Easy access for service and maintenance

-Direct drive and belt drive options available on 3-5 ton product

-Belt drive standard 6-12.5 ton product

-VFD IntelliSpeed option on 7.5-12.5 ton product

Return Air/Exhaust Section (C)

-Low Leak Economizer Dampers- meets ASHRAE 90.1 2010/2013 & Title 24 (less than 3% leak at

nominal CFM)

-Convertible filter rack- tool-less field conversion from 2” to 4” filters

Control Section (D)

-Product features the Simplicity Smart Equipment Control (SSE), a digital control systems that

makes system setup, optimization and maintenance easy. Optional remote unit data access is

available via the Mobile Access Portal device (MAP) providing wireless or internet connectivity

to the equipment.

-Fault Detection and Diagnosis (FDD) available to monitor refrigerant line pressures and

temperatures to help identify system trends before a potential failure.

Supply Air and Heating Section (J)

- Single (3-5 Ton only) and two stage gas heating available

-Aluminized steel heat exchanger with optional stainless steel heat exchanger

-Gas heat exchanger installed at slight angle to facilitate condensate drainage in cooling mode

-Electric heat available as a field installed accessory

Cabinet (E)

-Galvanized steel cabinet with 1000 hour salt spray certified powder paint finish

- Embossed cabinet top to increase structural support and rigidity

-Optional hinged cabinet doors for easy servicing of blower components, filters and controls

York 3-12.5 Ton Non-CDR Overview

Model Gross Capacity EER Range IEER Range1,2 SEER Range3

Heating

Efficiency

Units

MagnaDry

36.5 – 157 MBH 11.2-12.2 11.4-14.0 14.7-15 80.5-81.5%

ZF81 – 156 MBH 11.0-11.2 12.1-14.0 - 80%

ZH37 – 156 MBH 11.5-11.8 12.0-14.0 14 80.5-81.5%

ZT39 – 66 MBH 13.85-14.35 - 17.5-18.1 80.5-81.5%

ZJ37 – 154 MBH 12.0-12.2 12.8-14.5 15 80.5-81.5%

Units

XP80 – 158 MBH 11.0-11.5 10.8-13.5 -

3.2-3.4

COP

1. Higher IEER values utilize optional VFDs

2. IEER used for 6.5 – 12.5 Ton units

3. SEER used for 3 – 5 Ton units

Standard Limited Warranties

Compressor: 5 Years

Aluminized Heat Exchanger: 10 Years

Stainless Steel Heat Exchanger: 15 Years

Electric Heat Element: 5 Years

Other Parts: 1 Year

Key Talking Points:

-“18 SEER” ZTmodels are industry leading

-Multiple cabinet styles/heights, but single footprint

-Featured service options are standard (hinged and tool-less accesspanels and slide out blower

section)

-Built in the USA

Cabinet Structure

General Unit Layout, will change marginally based on tonnage and options

Certifications

All ZH/ZT/ZJunits are ENERGY STAR compliant

ZHunits w/IntelliSpeed meet CEE Tier 1

ZJunits 2/ IntelliSpeed meet CEE Tier 2

ZTunits meet CEE Advanced Tier

All models areASHRAE 90.1 compliant

All products areOSHPD Seismic Certified

All products are CSA listed andtested per U.L. 1995

-1 footprint, 2 heights, 3 cabinet styles (12.5T AC and 12.5T HP each have different coil configuration)

-Standard hinged and tool-less access panels

3 – 10 Ton AC/HP 12.5 Ton AC

12.5 Ton HP

Air Filter Racks

Air filters are easily removed by rotating the locking clip and then pulling the handle outward.

Blower Assembly

-Belt drive motors with standard andhigh static motor options

-VFDs standard for ZTunits, available on6.5-12.5 ton units as either VAV or IntelliSpeed

-IntelliSpeed is multi-speed offering with supply fan RPM based onnumber of compressors or heating stages

energized

For ease of maintenance, the entire blower assembly slides outward in the track on the base. On VFD units the supply

fan VFD is located in the blower compartment.

Gas Heat

-3 – 5 Ton offers option of 1 or 2 stages of gas heat

-6.5 – 12.5 Ton all gas heat units have 2 heating stages

-Gas heat exchanger and burner controls located below the blower section

-Stainless Steel gas heat option

Refrigeration System

-3 – 5 ton units utilize 1 stage of cooling

-All 6.5 -12.5 ton units have 2 cooling stages with independent refrigeration circuits

Compressor access

Low Leak Economizer

-All factory installed economizers contain low leak damper

-Our low leak dampers are AMCA 511 certified

-Low leak damper requirement is maximum leakage of 10 cfm/ft2, our dampers are rated at 3 cfm/ft2

Control Section

-Product features the Simplicity Smart Equipment Control (SSE), a digital control systems that makes system

setup, optimization and maintenance easy. Optional remote unit data access is available via the Mobile Access

Portal device (MAP) providing wireless or internet connectivity to the equipment.

-Fault Detection and Diagnosis (FDD) available to monitor refrigerant line pressures and temperatures to help

identify system trends before a potential failure.

Convertible Supply/Return Openings

-Unit ships for down flow ducting

-Units can be easily converted in the field for horizontal supply and/or return connections

-Conversion is accomplished by removing side panel and fastening into bottom panel to block opening

-Some models require different economizer configuration for horizontal return opening

Panels to remove for horizontal supply and return openings
