■EPDT-209■

This symbol indicates a potentially hazardous situation that, if not avoided,

could result in death or serious injury.

This symbol indicates a hazardous situation that, if not avoided, may result

in minor or moderate injury. (“Caution” may also be used to indicate other

unsafe practices or risks of property damage.)

Model GD-24/24B

Pressure Reducing Valve

Installation & Operation Manual

Please read this manual thoroughly before using the pressure reducing valve, so that

you may do so correctly and safely.

Please carefully store this manual in a handy place.

－－－－－The following safety symbols are used in this manual. －－－－－

Warning

Caution

Contents

1. Features ············································································· 1

2. Specifications ································································ 1

3. Dimensions and Construction

3.1 Dimensions and Weight···················································· 2

3.2 Construction ·································································· 3

4. Operation ··········································································· 3

5. Nominal Size Selection

5.1 Nominal Size Selection Chart ············································ 4

5.2 Flow Rate Characteristics Chart ········································ 5

5.3 Pressure Characteristics Chart·········································· 5

6. Installation

6.1 Piping Example······························································ 6

6.2 Warning and precaution on installation ··························· 6

7. Operating Procedure

7.1 Warning and precaution on operation ································· 7

7.2 Adjustment Procedure ···················································· 7

8. Maintenance Procedure························································· 7

8.1 Warning and precaution on maintenance and inspection···· 8

8.2 Troubleshooting ····························································· 8

9. Exploded Drawing······························································· 9

After Sales Service

-1-

■EPDT-209■

GD-24/24B water pressure reducing valve can be used as a pressure control unit in water supply

systems of general residential housing, high-rise buildings, industrial plant, and factory equipment.

It can also be used to provide stable water pressure in high-rise apartment units, and for hilly

districts where each house requires an individual water supply system. Trouble free flow control

solutions are achieved through the use of a stainless steel valve seat and a suspension type clamp in

the drive mechanism.

1. Features

1) The use of a suspension type clamp in this direct-acting type pressure reducing valve eliminates

sliding parts, such as O-rings, etc., and provides longer service life.

2) Bronze body construction prevents rusty water problems.

3) A stainless steel valve seat reduces wear and increases durability.

4) A sealed construction prevents external leakage even if the diaphragm should break.

5) The valve can be mounted in horizontally and vertically.

2. Specifications

Model GD-24 GD-24B

Nominal size 15～50A

Application (Fluid) Hot or cold water Hot, cold, or sea water

Inlet pressure 0.2～1.6MPa

Reduced pressure 0.05～0.55MPa

Min. differential pressure 0.05MPa

Temperature 5～80℃

Material

Body Bronze

Valve Brass Bronze

Disc Urethane rubber

Valve seat Stainless steel

Diaphragm NBR

Cap Brass Bronze

Plug Stainless steel

Connection JIS Rc

*Pressure gauge connection size is R 1/8.

*Install attached products at site.

《Options》

Suffix:

G - D-type 1.0MPa pressure gauge

S - Strainer (SY-24, 60mesh as a standard)

GS - Gauge and strainer

Caution

Please collate with attached label and specification of ordered model.

*Please consult factory in case they do not match each other.

-2-

■EPDT-209■

3. Dimensions & Construction

3.1 Dimensions & Weight

【GD-24/24B】

(mm)

Nominal

size d L H H1Weight

(kg)

15A Rc 1/2 80 193 41.5 1.8

20A Rc 3/4 90 210 45 2.4

25A Rc 1 100 230 50 3.3

32A Rc 1 1/4 120 265 60 4.7

40A Rc 1 1/2 150 315 62 8.2

50A Rc 2 185 365 73 14.3

【Pressure gauge】

-3-

■EPDT-209■

3.2 Construction

No. Name of parts

1 Body

2 Spring Chamber

3 Cap

4 Valve

5 Valve Seat

6 Disc

7 Suspension Metal

8 Diaphragm Shell

9 Diaphragm

10 Spring Plate

11 Adjusting Screw

12 Lock Nut

13 Washer

14 Set Screw

15 Spring Lock Washer

16 Nut

17 Adjusting Spring

18 O-ring

19 Bolt

20 Sealed Nut

21 Spring

22 Plug

27 Label

28 Spring Washer

4. Operation

(Refer to the parts number in “3.2 Construction”)

Turning the adjusting screw(11) to compress the adjusting spring(17) and the load of adjusting

spring is introduced to the diaphragm(9) and suspension metal(7) to open the valve(4). Then,

the fluids begin to flow from the inlet side through the upper side of the valve. The reduced

pressure is led to the diaphragm to be balanced with the adjusting spring load, and control the

valve travel to maintain the reduced pressure.

-4-

■EPDT-209■

5. Nominal Size Selection

5.1 Nominal Size Selection Chart (For Water)

Note: *Considering such factors as noise and durability, a 2 m/s flow velocity

within the pipe is ideal.

●Cv Value

Nominal size 15A 20A 25A 32A 40A 50A

Cv value 1.5 1.9 3 4 7 10

●Calculation formula for Cv value

Cv Δ

=365.0

P1 : Inlet pressure [MPa･A] V : Rated flow rate [m3/h]

P2 : Reduced pressure [MPa･A] G : Specific gravity relative to water

ΔP : P1－P2 [MPa] Cv :Cvvalueofthenominalsize

ΔP: Inlet/reduced pressure differential (MPa)

V: Flow rate (m3/h)

Nominal size

-5-

■EPDT-209■

5.2 Flow Rate Characteristics Chart

5.3 Pressure Characteristics Chart

-6-

■EPDT-209■

6. Installation

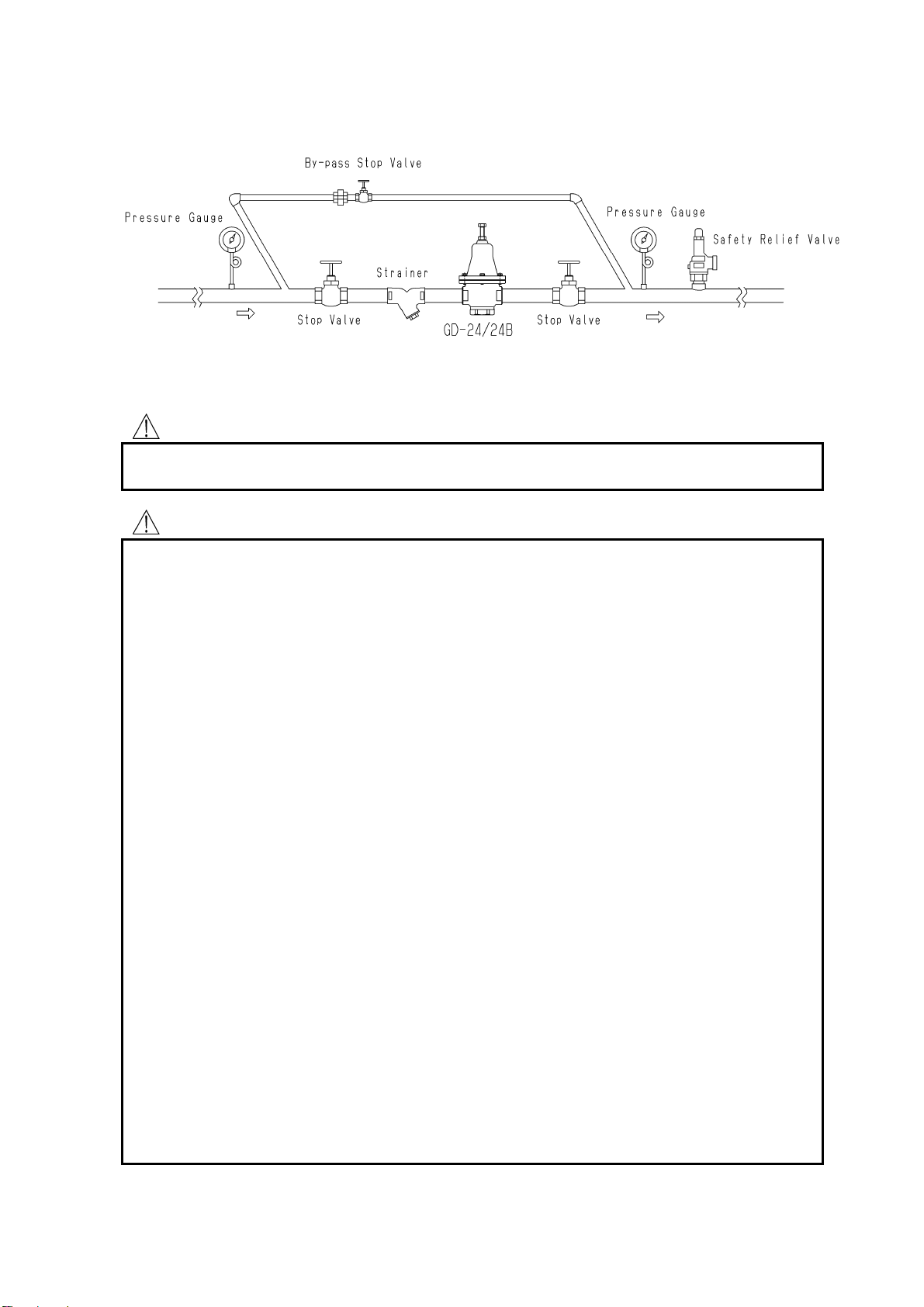

6.1 Piping Example

6.2 Warning and precaution on installation

Warning

In case installing safety relief valve as safety device at outlet side, joint relief pipe at outlet of

safety relief valve and guide it to safety place where steam can relief out.

Caution

( 1 ) Do not disassemble the valve unreasonably.

*Disassembling the valve at your discretion may affect the original performance.

( 2 ) Remove foreign matter and scales from the lines before installing the valve.

*Failure to do so may prevent the valve from functioning correctly.

( 3 ) Install a strainer (Screen: 60 mesh) at the valve inlet side.

*Failure to do so may hamper correct pressure control, which affects the original

performance.

( 4 ) Install a safety relief valve at the valve outlet side for protection of equipments.

*Failure to do so prevents problem detection, resulting in equipment damage.

( 5 ) Install a pressure gauge at both the inlet and outlet sides of the valve.

*Failure to do so may hamper correct pressure adjustment.

( 6 ) When installing quick open and close valves, such as a solenoid valve, secure at least 3 m

from the valve.

*Failure to do so may result in malfunction or drastically shortened service life.

( 7 ) When pressure reducing in two stages, secure at least 3 m between the valves.

*Failure to do so may result in malfunction, affecting the original performance.

( 8 ) Install the valve in proper direction of the fluid flow.

*Failure to do so affect the performance.

( 9 ) Do not apply excessive load, torque or vibration to the valve.

*Doing so may result in malfunction or drastically shortened service life.

(

) Secure the necessary maintenance space at the installation site of the pressure reducing

valve.

*In case there is not enough space for maintenance, pressure reducing valve cannot be

disassembled at the time of maintenance.

(

)

The set pressure of safety relief valve must be higher than the set pressure of pressure

reducing valve.

*In case reseating pressure of safety relief valve is lower than the set pressure of

pressure reducing valve, safety relief valve will continue to blow.

(

)

Do not freeze pressure reducing valve.

*Freezing may damage pressure reducing valve.

(

)

Do not allow pipe adhesive materials to leak into pressure reducing valve.

*In case the adhesive material is acquired in pressure reducing valve, it causes

malfunction.

-7-

■EPDT-209■

7. Operating Procedure

7.1 Warning and precaution on operation

Warning

( 1 ) Do not touch directly to pressure reducing valve with bare hands after flowing hot fluids

*Doing so may result in burns.

( 2 ) Before flow the hot fluids in the pipe line, make sure that the fluids will not cause the

risks through the end of piping system and the pipes are connected tightly.

*In case hot fluids blows out, it may result in burns.

Caution

( 1 ) When opening the by-pass stop valve, ensure that the reduced pressure will not exceed

set pressure of safety relief valve.

*In case reduced pressure exceeds set pressure of safety relief valve, the safety relief

valve operates and blows out the fluids.

( 2 ) When operation is discontinued for a long period of time, completely purge fluid from

pressure reducing valve and piping system, and close the stop valve located up stream

and down stream of pressure reducing valve.

*Water scales developed in the piping may cause erratic operation of pressure reducing

valve.

7.2 Adjustment Procedure

GD-24/24B pressure reducing valve is set at 0.1MPa at the factory. Change the set pressure as

appropriate.

Wrong or poor adjustment may cause hunting, scale buildup or water hammer, or severely

damage relevant parts. Be sure to follow the following steps to complete proper adjustment.

(Refer to the parts number in “3.2 Construction”).

1) Close the stop valves at both sides of the pressure reducing valve, and thoroughly purge the

system through the by-pass line, with the by-pass valve opening adjusted so that the safety

relief valve is not activated. When completed, be sure to close the by-pass valve.

2) Slowly open the inlet stop valve, then open the outlet stop valve slightly, allowing a trickle

to be discharged.

3) Loosen the lock nut(12), and slowly turn the adjusting screw(11) (clockwise to increase,

counterclockwise to reduce) while observing the outlet side pressure gauge.

4) Slowly open the outlet stop valve to its full-open position.

5) After the adjustment, tighten the lock nut(12).

8. Maintenance Procedure

Be aware of foreign materials because many of faults on pressure reducing valve are due to the

existence of foreign materials. Please be reminded that our warranty does not cover damages

caused by foreign materials at the customer site. Failure resulting from faulty pressure gauge,

clogged strainer and leakage from by-pass stop valve are phenomena kindred to failure of pressure

reducing valve. Clogged strainer will decrease the secondary pressure and leakage from by-pass

pipe will increase the secondary pressure. Before do the troubleshooting of pressure reducing valve,

check such symptom of the strainer and stop valve.

-8-

■EPDT-209■

8.1 Warning and precaution on maintenance and inspection

Warning

The pressure reducing valve shall be disassembled and inspected by qualified persons.

( 1 ) Completely discharge internal pressure from the valves, lines, and equipment, and cool

the valve down to a level where you can touch it with bare hands before disassembly and

inspection.

*Failure to do so may result in injury or burns due to residual pressure or spillage

around the valve.

Caution

( 1 ) To maintain the functions and performance of pressure reducing valve, perform

periodical inspection.

*User should request to specialized dealer or manufacturer for such tasks.

( 2 ) Pressure reducing valve should be disassembled and inspected by qualified person or

manufacturer.

*Request the treatment to specialized dealer or manufacturer in case of any problems.

( 3 ) During disassembling, internal fluid flows out. Discharge it into a suitable container.

Disassembling pressure reducing valve after all fluids have been discharged.

*Fluid spills will contaminate surroundings.

( 4 ) Close the stop valves before and after pressure reducing valve, and remove all foreign

matter and scales via the by-pass line before operation.

*Failure to do so may cause the malfunction of pressure reducing valve.

･Consumable parts and replacement period

Service life of consumable parts is dependent on the frequency and condition of usage. Rough

indication of service life is given below.

(Refer to the parts number in “3.2 Construction”)

Name of parts No. Replacement period

Diaphragm (9) 3 years

Disc (6) 3 years

O-ring (18) 3 years

8.2 Troubleshooting

(Refer to the parts number in “3.2 Construction”)

Problem Cause Countermeasure

Reduced pressure

exceeds prescribed

level.

1. Diaphragm(9) is damaged.

2. Foreign matter is embedded in

the valve(6) and/or valve seat(5),

or else scratches exist.

1. Replace the diaphragm(9).

2. Disassemble and remove the

foreign mater.

If scratches exist, replace it.

Pressure does not

rise to the desired

level.

1. Strainer is clogged.

2. Pressure gauge malfunction.

1. Disassemble and clean.

2. Replace the pressure gauge.

Leakage

1. Loosen Bolt(19).

2. Loosen Cap(3).

3. Broken O-ring(18) for cap.

1. Tighten Bolt(19).

2. Tighten Cap(3).

3. Replace O-ring(18) for cap

new one.

Abnormal noise is

heard.

1. The suspension metal(7) is in

incorrect position.

1. Correct the position of the

suspension metal(7).

-9-

■EPDT-209■

9. Exploded Drawing

*15/20A no Washer.

･Part names shown in boxes are consumable parts.

Nut

Spring Lock Washer

Diaphragm Shell

Diaphragm

Suspension Metal

Pressure

Gauge

Body

Valve Seat

Set Screw

Washer*

Disc

Valve

O-ring

Spring

Cap

Adjusting Screw

Sealed Nut

Bolt

Spring Washer

Spring Chamber

Spring Plate

Adjusting Spring

Lock Nut

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Yoshitake Steuereinheit Handbücher

Yoshitake

Yoshitake OB-3 Bedienungsanleitung

Yoshitake

Yoshitake GD-400 Bedienungsanleitung

Yoshitake

Yoshitake SCV-4 Bedienungsanleitung

Yoshitake

Yoshitake TA-18ML Bedienungsanleitung

Yoshitake

Yoshitake GPK-2001 Bedienungsanleitung

Yoshitake

Yoshitake GD-26G Bedienungsanleitung

Yoshitake

Yoshitake BLV-2SF Bedienungsanleitung

Yoshitake

Yoshitake SU-20H Bedienungsanleitung

Yoshitake

Yoshitake AL-250 Bedienungsanleitung

Yoshitake

Yoshitake GLV-20F Bedienungsanleitung

Yoshitake

Yoshitake GD-26 Series Bedienungsanleitung

Yoshitake

Yoshitake BSV-10F Bedienungsanleitung

Yoshitake

Yoshitake TA-16 Series Bedienungsanleitung

Yoshitake

Yoshitake AL-32 Bedienungsanleitung

Yoshitake

Yoshitake REDMAN DD-2 Series Bedienungsanleitung

Yoshitake

Yoshitake AL-27 Bedienungsanleitung

Yoshitake

Yoshitake GD-200 Series Bedienungsanleitung

Yoshitake

Yoshitake PD-1 Bedienungsanleitung

Yoshitake

Yoshitake SCV-3 Bedienungsanleitung

Yoshitake

Yoshitake AF-7 Bedienungsanleitung

Yoshitake

Yoshitake GP-1000 Bedienungsanleitung

Yoshitake

Yoshitake GD-28S-NE Bedienungsanleitung

Yoshitake

Yoshitake CF-90 Bedienungsanleitung

Yoshitake

Yoshitake GDK-2000 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
