ZALMAN CNPS7500-Cu LED Bedienungsanleitung

User’s Manual

CNPS7500 LED Series

www.ZALMAN.com

V 2.4

Intel Socket 1155/1156/775 CPUs

Core i7

Core i5

Core i3

Core 2 Quad

Core 2 Duo

Pentium Dual Core

Pentium D

Pentium 4

Celeron D

AMD Socket AM3/AM2+/AM2/754/939/940 CPUs

Phenom II

Phenom

Athlon II

Athlon X2

Athlon FX

Athlon

Opteron

Dual-Core Opteron

Sempron

To ensure safe and easy installation,

please read the following precautions.

.COM

2. Specifications

Model

Spec. CNPS7500-Cu LED CNPS7500-AlCu LED

Materials Pure Copper Pure Copper and

Aluminum

Weight 848g 500g

Dimensions 121(L) Ⅹ121(W) Ⅹ67(H)㎜

Fan

Bearing-Type 2 Ball-Bearing

RPM 1,150 ~ 2,300rpm ±10%

Noise Level 17.0 ~ 32.0dBA ±10%

Input Voltage 12V

Fan

Mate 2

Output Voltage 5V ~ 11V ±2%

Maximum Capacity Up to 6W

1. Precautions

1) Use and keep product away from reach of children and pets.

2) Do not ingest the Thermal Grease, and avoid its contact with skin and

eyes. If contact is made with skin, wash off with water. If ingested or

irritation persists, seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this

product.

4) Excessive force exerted on the fan may cause damage to the fan and/

or system.

5) Avoid inserting objects or hands into the fan while it is in operation to

prevent product damage and injuries.

6) Check the components list and condition of the product before

installation. If any problem is found, contact the retailer to obtain a

replacement.

7) Zalman Tech Co., Ltd. is not responsible for any damages due to

overclocking.

8) During transportation of the system, the cooler must be removed.

Zalman is not responsible for any damages that occur during the

transport of a system.

9) Product design and specifications may be revised to improve quality

and performance.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due

to external causes, including but not limited to, improper use,

problems with electrical power, accident, neglect, alteration,

repair, improper installation, or improper testing.

.COM

3. Components

Clip Support

Cooler

User’s Manual Clip Lever

Thermal Grease

Clip Support Fixing Bolts Washers Nuts

Fan Mate 2 CableFan Mate 2 Double-Sided Tape

.COM

4. Installation Requirements

1) Space Requirements

2) Compatible CPUs

The cooler’s installation requires unobstructed space with dimensions of

124㎜(width), 124㎜(height), 70㎜(depth), and the CPU as a central

reference point. Please check if components such as ODDs and PSU protrude

into the required space.

①Intel Socket 1155 / 1156 / 775 CPUs

②AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 CPUs

124㎜

70㎜

124㎜

Core i7 / i5 / i3 Core 2 Quad Core 2 Duo

all clock speeds all clock speeds all clock speeds

Pentium 4 Celeron D

Prescott Cedar Mill

up to 540 up to 650 all clock speeds

3) (For heatsink-installed RAM users) Check for physical

interference between the RAM and CPU

For users of Intel and AMD motherboards, please check the RAM’s height before

installation. If the RAM’s height exceeds 36mm (1.42”), interference between CPU

cooler and RAM may prevent the use of Dual/Full-Channel Mode.

※Exception: all Phenom II models up to 945 (less than 95W), all Phenom

models up to 9650 (less than 95W)

.COM

1) Intel Socket Installation

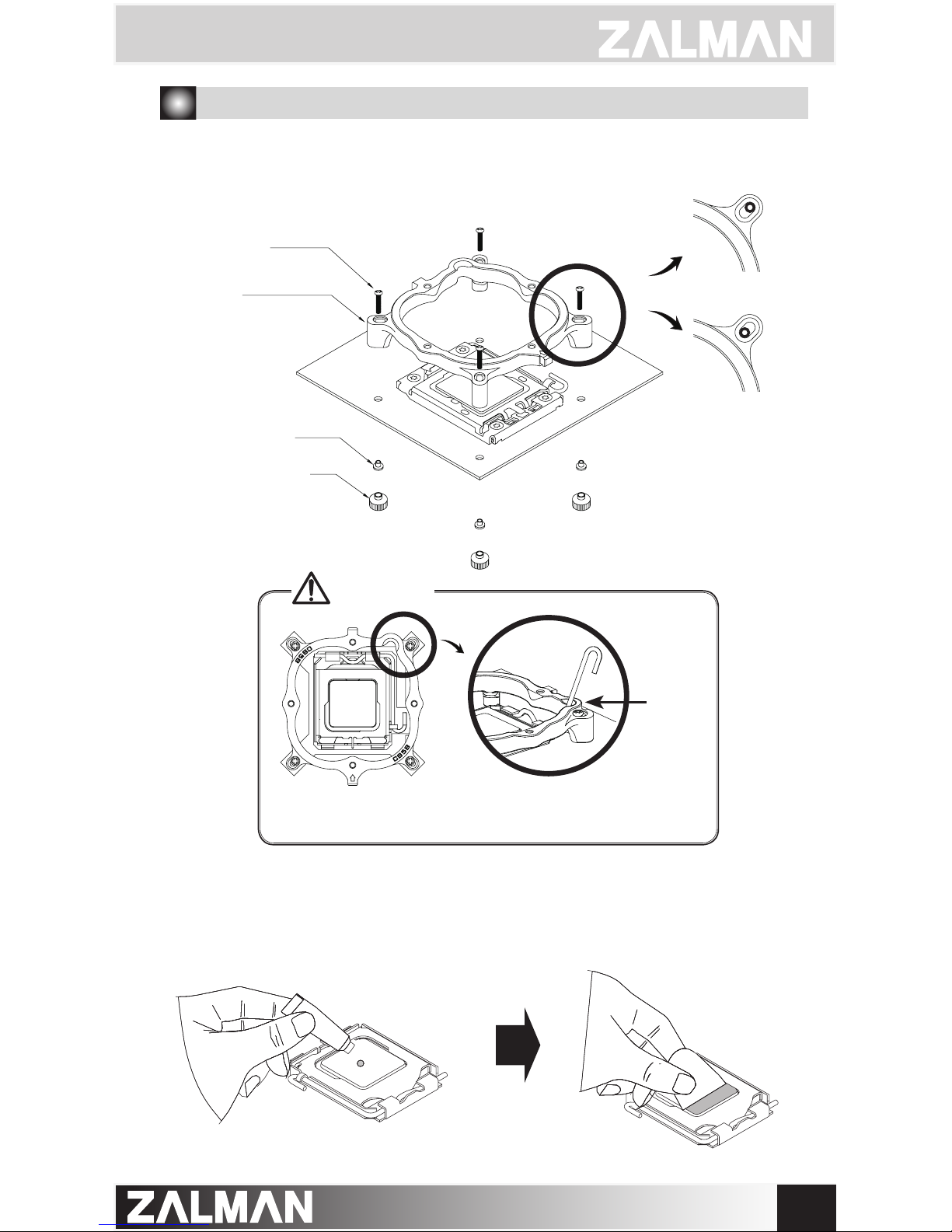

①Install the Clip Support to the motherboard according to the socket-type.

5. Installation

②Clear off any particles or residue from the CPU’s surface then spread

a thorough layer of Thermal Grease on the CPU and the base of the

cooler.

▶Please make note of the Lever Slot’s direction when

installing the Clip Support.

Caution

Nut

Washer

Bolt(silver)

Clip Support

M/B

Socket 1155 / 1156

Socket 775

Lever

Slot

.COM

2) AMD Socket Installation

③Insert the Clip Lever through the Clip’s Clip Lever slot.

④Hook the opposite side of the Clip onto the Lug first, then use a

screwdriver to hook the Clip Lever onto its Lug.

①Clear off any particles or residue from the CPU’s surface then spread

a thorough layer of Thermal Grease on the CPU and the base of the

cooler.

Lug

.COM

③Hook the opposite side of the Clip onto the Lug first, then use a

screwdriver to hook the Clip Lever onto its Lug.

②Insert the Clip Lever through the Clip’s Clip Lever slot.

①Connect Fan Mate 2 between the

Fan Cable and the motherboard

as shown in the diagram below.

②Fan Mate 2 can be installed to the

side of the case using Double-Sided

Tape.

M/B

Fan Connector (Cooler)

Double-Sided Tape

6. Fan Mate 2 Installation and Usage

1) Fan Mate 2 Installation

Lug

.COM

2) Fan Mate 2 Operation

Ajust the Fan Speed Control Knob

for RPM control.

Fan Speed Control Knob

In the case that you get a BIOS error beep:

①Rotate the Fan Speed Control Knob clockwise to the maximum setting.

②Disable CPU Fan Detected in BIOS setting or set the system monitoring

program’s CPU Fan RPM to the lowest setting.

※Certain motherboards will not boot if the CPU fan’s RPM is not detected. In this

case inquire to the motherboard’s manufacturer for additional details.

BIOS Booting Error
