ZCG 7691

INSTRUCTION BOOKLET

Introduction

This gas appliance has been designed and manufactured to all the

necessary British Standards. It also carries the C.E. mark. The

appliance complies with European Council Directive 90/396/EEC.

It is important that you understand how to use and care for the

appliance properly before you use it for the first time.

We have written this booklet with your safety in mind. Read the

booklet thoroughly before you use the appliance. Keep the booklet in a

safe place so that anyone who uses the appliance can read it. Pass the

booklet on with the appliance if you give or sell it to someone else.

We have included several drawings to show the right and wrong way

of doing things.

The right way will have a smiling face by it.

A sad face shows something is wrong.

RATING PLATE

This is situated on the lower front frame of the appliance and can be

seen upon opening the door. Alternatively the rating plate may also be

found on the back or top of some models (Where applicable). Do not

remove the rating plate from the appliance as this may invalidate

the guarantee.

For your safety

This appliance is not intended to be operated by means of an

external timer or separate remote control system.

This appliance is designed for domestic use to cook food. You

must not use it for any other purpose. It is not designed for

commercial use.

Keep children, babies and toddlers away from the appliance at

all times.

The installation instructions tell you how and where it can be

fitted. If the appliance is already installed you must make sure

that all instructions have been followed. If you are in any doubt

ask a registered person.

Z C G 7 6 9 1

Introduction

Lighting the appliance 4

The grill 7

The hotplate 10

The ovens 13

Oven cooking chart - main oven 16

- top oven 19

The electronic timer 22

Slow cooking 26

Care and cleaning 28

Installing the appliance 35

General information 37

What is wrong and why? 39

Servicing 41

Installation Instructions 43

Technical Data 44

Safety requirements/ventilation 45

Location of appliance 46

Installation 47

Testing 49

Guarantee Conditions 52

Z C G 7 6 9 1

Contents

Contents Page

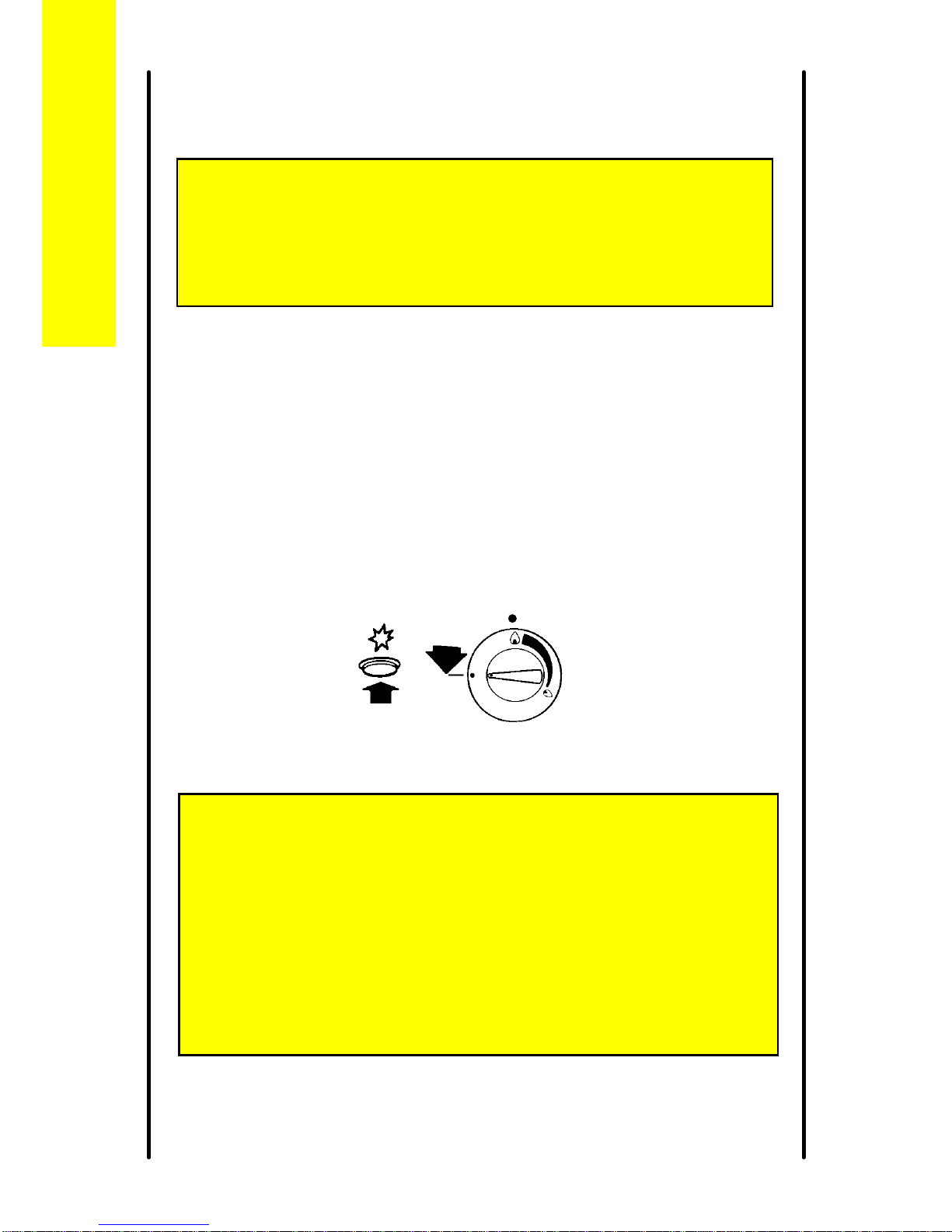

Lighting the appliance

The system works by means of an electric spark system. Details about

the plug are given in 'General Information'.

Hotplate

To light:

1. Lift up the lid. You cannot use the hotplate when the lid is down.

2. Push in and hold the control knob, turn to the large flame symbol

(highest setting) and press the ignition button immediately. Keep the

control knob depressed for up to 5 seconds, but no longer than 10

seconds. After this time release the controls. The flame should

remain alight. If after 10 seconds the burner has not lit, stop

operating the appliance and wait at least 1 min before attempting a

further ignition of the burner.

Warning: If the ignition button is not pressed immediately a build up of

gas may cause the flame to spread.

Please note: If you have any trouble lighting a hotplate burner turn all

the hotplate control knobs off. Make sure the hotplate burner parts have

been replaced correctly.

Z C G 7 6 9 1

Lighting the appliance

For your safety

In the event of the burner flames being accidentally extinguished,

turn off the burner control and do not attempt to re-ignite the burner

for at least 1 min.

For your safety

If you close the lid of the appliance while any of the hotplate

burners are lit the gas will go out. This is because it would be

dangerous if the burners stayed on when the lid was closed.

Always use the control knob to turn off a burner. Do not use

the lid as a cut-off device. This will only cut off the gas when

the lid is closed. The gas will flow again when the lid is

opened.

BACK LEFT

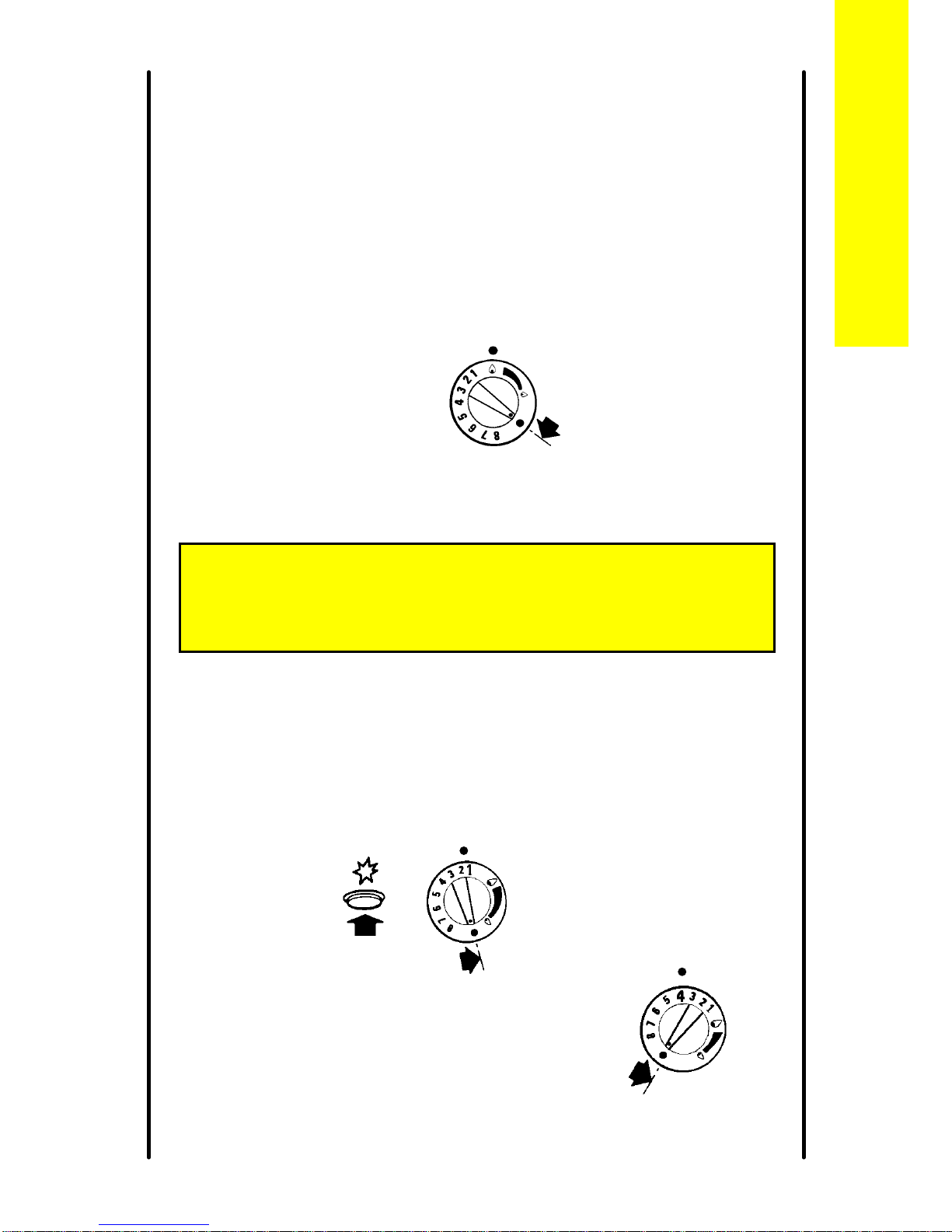

Grill/top oven

The grill and the top oven are operated by the same control so you

cannot use them both at the same time.

Grill

To light:

1 Open the door.

2 Push in the control knob and turn it to the right to the large flame

symbol (highest setting). After a few seconds the the grill will light

automatically. When the burner has lit release the control.

3 Leave the grill door open when you are using the grill.

Warning: If the ignition button is not pressed immediately a build up of

gas may cause the flame to spread.

Top oven

To light:

1 Open the oven door.

2 Push in the control knob and turn it to the left to gas mark 1 and

press the ignition button immediately. When the burner has lit

release the button. There will only be small flames at first.

3 Now turn the control knob to the gas

mark you want.

4 Wait until the burner is showing large

flames.

5 Close the oven door.

Important: Remember to remove the grill pan handle before you use

the top oven.

Z C G 7 6 9 1

For your safety

Never cover the grill pan or grid with foil as this can lead to grill

fires.

Lighting the appliance

TOP OVEN/GRILL

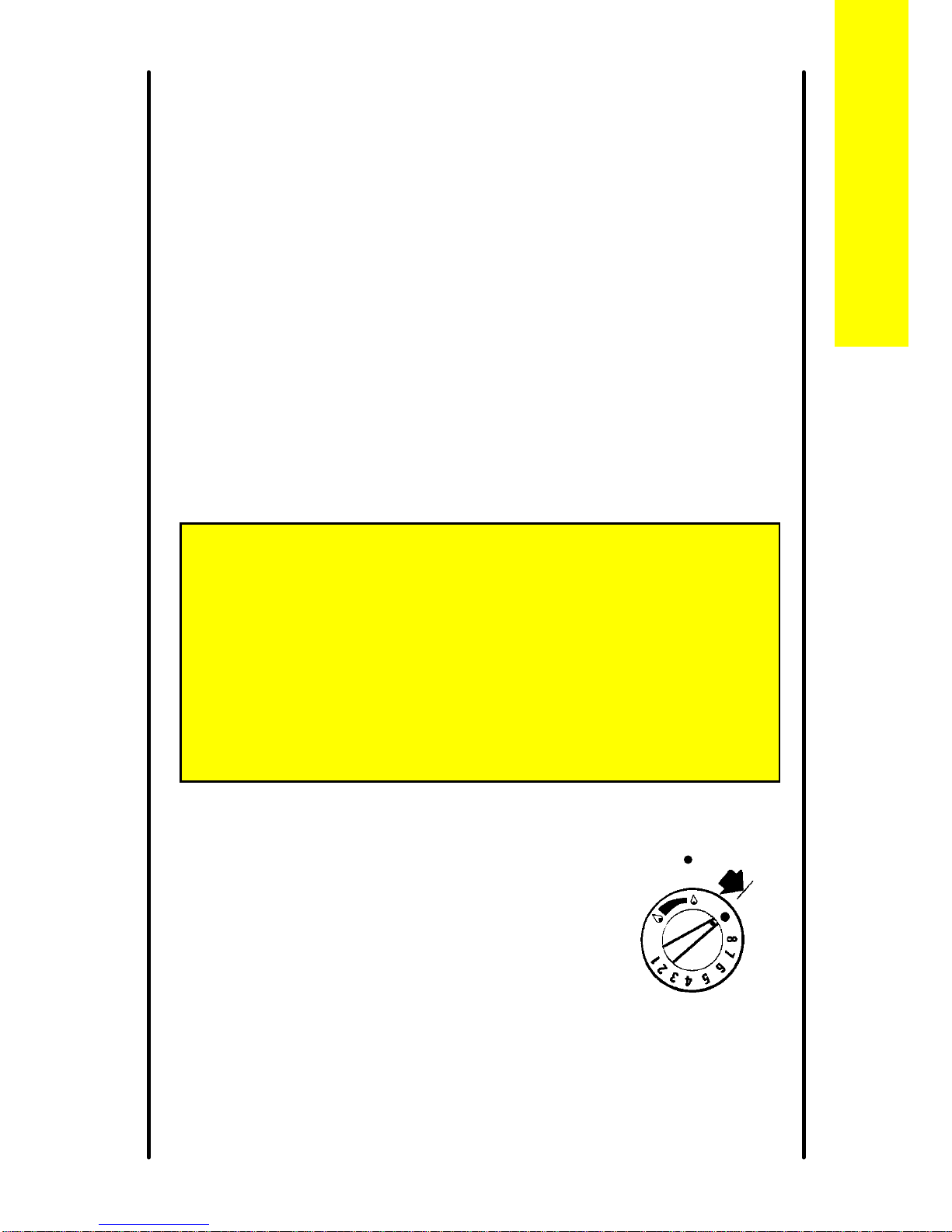

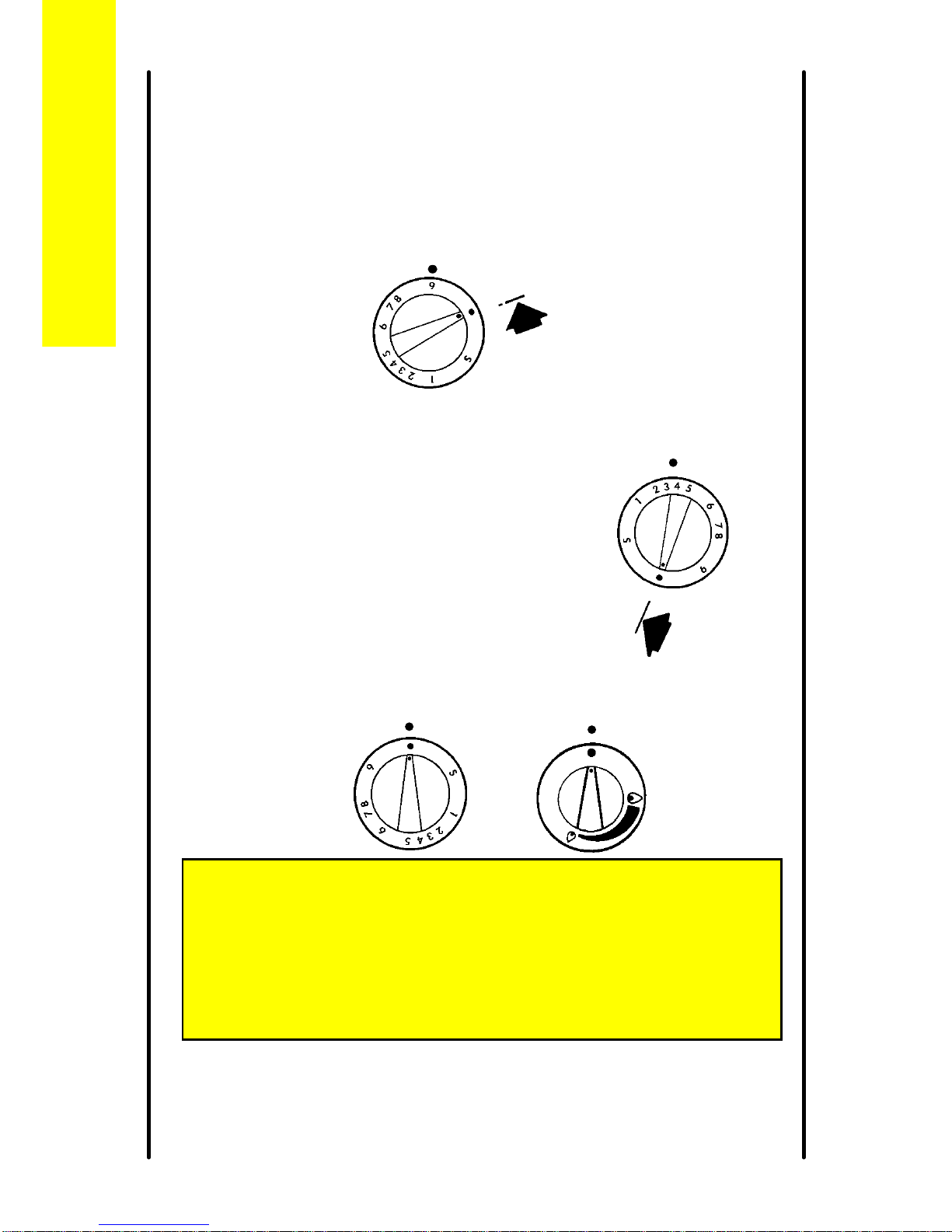

Main oven

To light:

1 Set the time of day on the clock.

2 Open the oven door.

3 Push in the control knob and turn it to gas mark 9. After a few

seconds the oven will light automatically and the oven light will

illuminate.

4 Now turn the control knob back to the gas

mark you want.

5 Wait until the burner is showing large

flames.

6 Close the oven door.

If there is an electrical power failure (such as

a power cut) you cannot use the main oven.

You can use the top oven.

To turn off any burner

1 Push in the control knob and turn it to the off position. This is shown

by a large dot.

Oven light

The main oven light will come on when the oven burner is alight. If you

need to replace the oven light bulb, follow the instructions given in

'General Information'.

Z C G 7 6 9 1

For your safety

When you are lighting any burner check that it has lit before you

leave the appliance.

When you are turning off a burner, do not leave the appliance until

the flame has gone out.

Lighting the appliance

MAIN OVEN

FRONT LEFT

MAIN OVEN

The grill

The grill is a high-speed grill. The instructions below tell you how to vary

the heat setting and how to change the height of the grid to suit the food

you are cooking. You should remember to turn the food regularly.

You should not use the grill to keep food warm as it will continue to

cook the food.

Prior to using the grill

We suggest that you operate the grill for approximately 5 - 10 mins to

burn off any residue from the surface. During this period a slight odour

may be emitted, it is therefore advisable to open a window for

ventilation.

When you first operate the grill you may hear some sounds as the

burner heats up, this is quite normal and is not a fault on the appliance.

Heat control

The grill control has two heat settings.

The control knob turns to the right from

'OFF' to 'LOW' and then to 'HIGH'. Use the high

setting for fast cooking such as toast. Use the

low setting to cook thicker food such as chicken

after you have browned it on the high setting.

Z C G 7 6 9 1

For your safety

The grill pan and handle must be in place before igniting the grill.

You must keep the grill door open when the grill burner is lit.

Accessible parts may be hot when the grill is used. Young

children should be kept away.

Never cover the grill pan or grid with foil as this can lead to grill

fires.

The grill

TOP OVEN/GRILL

Cooking positions

There is only one position for the grill shelf

(Position 2). Positions are counted from the

top downwards.

Most food should be cooked on the grid in

the grill pan. You can turn the grid over to suit

different thicknesses of food.

You can place some dishes straight on to

the grill shelf. This is useful when you are

browning the top of food such as cauliflower

cheese.

General

The shelf in the grill/top oven is different from the shelves in the main

oven. It is important that you do not swap them over. Only use the shelf

with the solid metal plate underneath it in the grill/top oven.

When you are not using the grill you should remove the handle and

store the pan on the shelf in the grill. Turn the grill burner off before you

store the pan. Remember that the pan will get hot when you are using

the main oven.

You can use the grill compartment to warm plates when you are

using the main oven.

Preheating

You don't usually need to preheat the grill. You may wish to preheat it for

a couple of minutes when you are cooking steak or browning food.

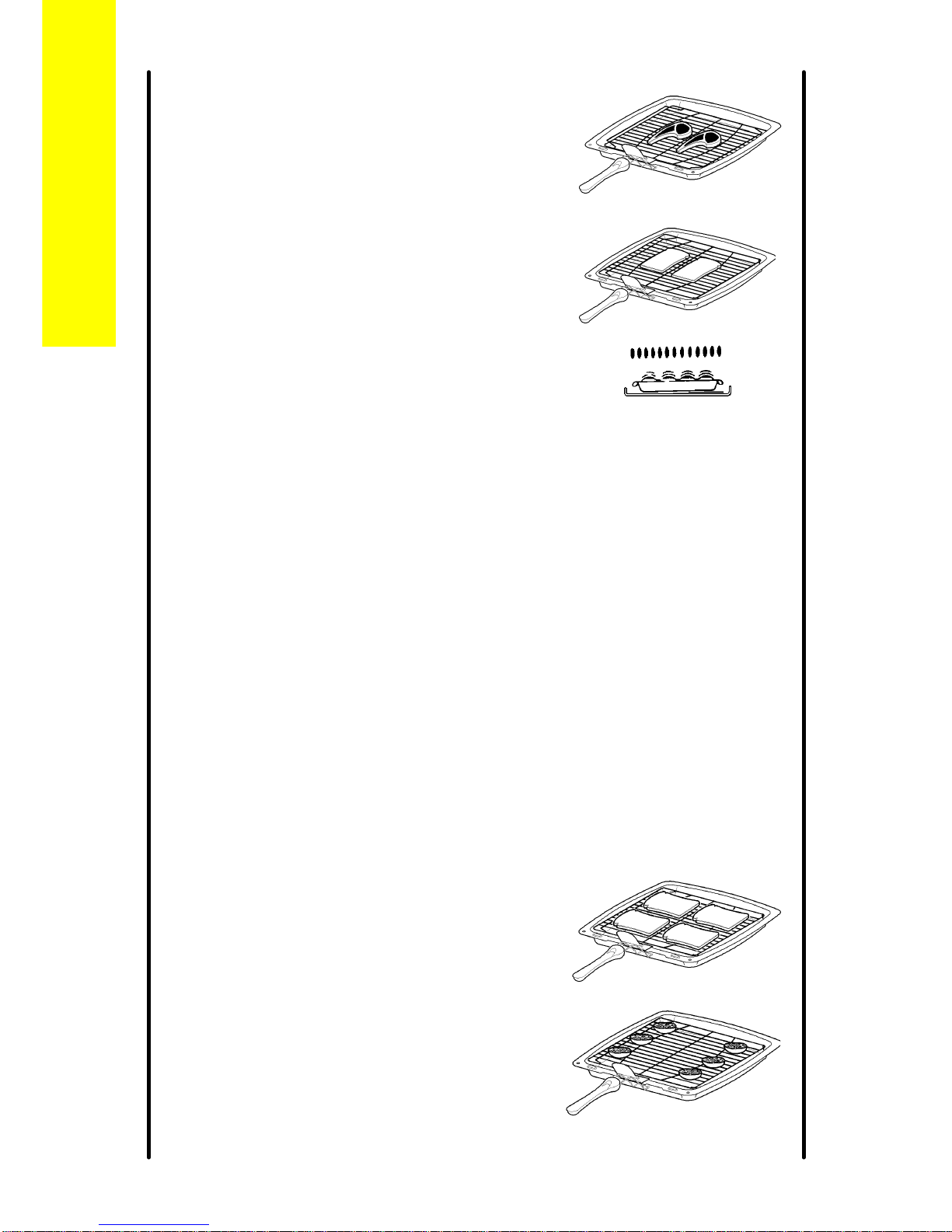

Positioning food on the grid

Place food such as toast, tea-cakes and

muffins towards the centre of the grid.

Place food which needs a gentle heat,

such as tomatoes and mushrooms towards

the edge of the grid.

Arrange meat, meat products and fish to

suit their thickness and how you like them

cooked.

Z C G 7 6 9 1

The grill

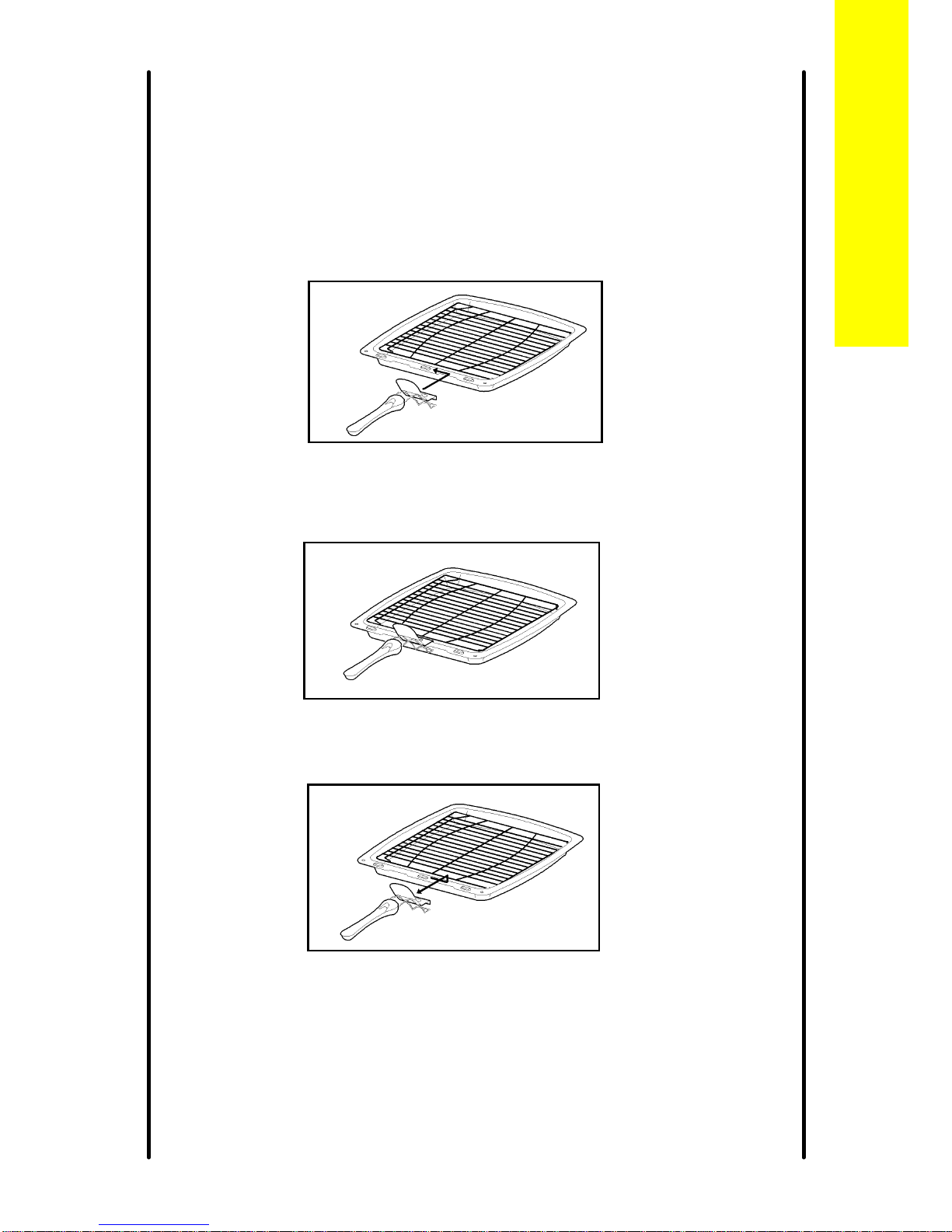

The grill pan and handle

The grill pan is supplied with a removable handle.

To attach the handle, place the wirework under the cut out in the pan so

that the metal plate hooks over the top of the grill pan.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to

remove the grill pan handle during grilling.

Place the grill pan on the shelf so that the pan is positioned centrally

beneath the grill.

To remove the handle, slide the handle to the right and lift the handle

away from the cut out on the grill pan.

Note

If you require an additional handle for your grill pan, this can be ordered

from your Local Service Force Centre by quoting part number

311479800\6.

Z C G 7 6 9 1

The grill

The hotplate

You can only use the hotplate when the lid is open. If you have any

trouble lighting a hotplate burner turn all hotplate control knobs off and

make sure the hotplate burner parts have been replaced correctly.

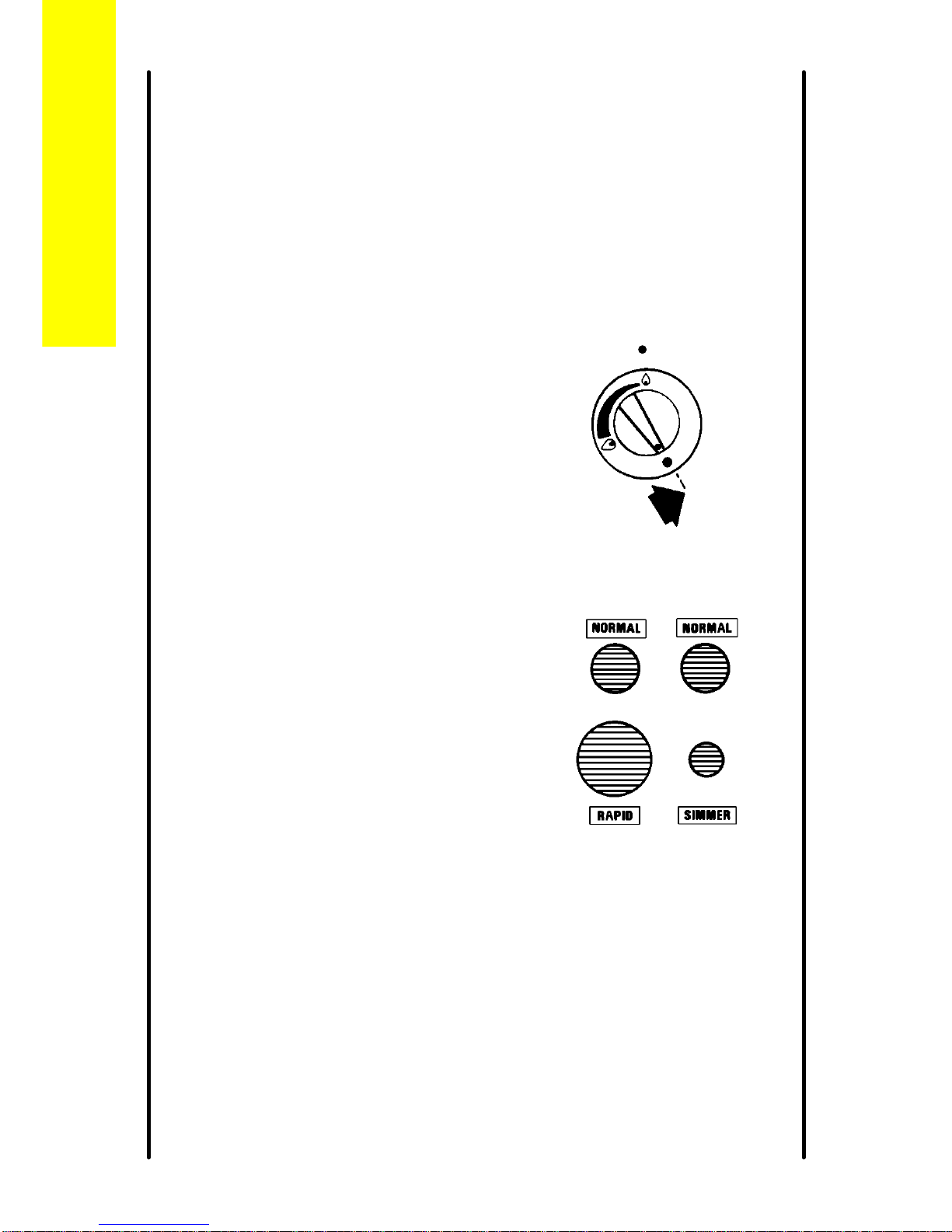

Heat control

The hotplate control knobs turn

anticlockwise from 'OFF' to 'HIGH'

and then to 'LOW'. You can adjust

the heat by turning the control

between the highest and lowest

settings. These are shown as a

large and a small flame symbol.

Burner sizes

The hotplate has three burner sizes

to suit different types of cooking:

Largest burner (Rapid) - use a large

pan for food such as chips.

Medium burners (Normal) - use for

everyday cooking.

Small burner (Simmer) - use for

simmering food such as soups and

stews.

The largest pan which you should use on any burner is 230mm (9").

The base of the smallest pan should not measure less than 100mm (4").

Z C G 7 6 9 1

The hotplate

FRONT LEFT

Inhaltsverzeichnis

Andere Zanussi Kocher Handbücher

Zanussi

Zanussi GC 5600 Bedienungsanleitung

Zanussi

Zanussi ZCV66AEWC Bedienungsanleitung

Zanussi

Zanussi ZCG91206 Bedienungsanleitung

Zanussi

Zanussi ZCI66080WA Bedienungsanleitung

Zanussi

Zanussi ZCV680TCXA Bedienungsanleitung

Zanussi

Zanussi GC19 Montageanleitung

Zanussi

Zanussi ZCV665MWC Bedienungsanleitung

Zanussi

Zanussi MC19 M Bedienungsanleitung

Zanussi

Zanussi ZM 962 Montageanleitung

Zanussi

Zanussi ZCV 560 NW Bedienungsanleitung

Zanussi

Zanussi GC 9601 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZCG92356XA Bedienungsanleitung

Zanussi

Zanussi ZCM 631 Bedienungsanleitung

Zanussi

Zanussi ZCG62386 Bedienungsanleitung

Zanussi

Zanussi ZCG92496XA Bedienungsanleitung

Zanussi

Zanussi ZCE 630 Bedienungsanleitung

Zanussi

Zanussi ZCG7551 Bedienungsanleitung

Zanussi

Zanussi EC 5614 - A Montageanleitung

Zanussi

Zanussi ZCG 7551X Bedienungsanleitung

Zanussi

Zanussi ZSX 6 AMT Bedienungsanleitung

Zanussi

Zanussi ZCV66050WA Bedienungsanleitung

Zanussi

Zanussi GC 20M Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZCG5000/ZCG5001 Bedienungsanleitung

Zanussi

Zanussi ZCG662 Bedienungsanleitung

Beliebte Kocher Handbücher anderer Marken

Modena

Modena FC 7645 SGM Betriebsanleitung

Electrolux

Electrolux Insight EKG6049 Bedienungsanleitung

Stanley

Stanley Donard 60 Bedienungsanleitung

Bartscher

Bartscher 201TC Bedienungsanleitung

Parkinson Cowan

Parkinson Cowan 50 GR/BU Bedienungsanleitung

Siemens

Siemens HK9P00020U Bedienungsanleitung

Creda

Creda S150E Leitfaden

Creda

Creda HB48309 Bedienungsanleitung

Bosch

Bosch HCE743220F Bedienungsanleitung

Tricity Bendix

Tricity Bendix SE545P Bedienungsanleitung

NEFF

NEFF E1461A2/01 Bedienungsanleitung

Smeg

Smeg SNL61MA9 Bedienungsanleitung

RiverGrille

RiverGrille TF2002501-RG Bedienungsanleitung

Vollrath

Vollrath 69504F Bedienungsanleitung

Tricity Bendix

Tricity Bendix CSIE500 Bedienungsanleitung

AEG

AEG Competence 5731 V Bedienungsanleitung

Euromaid

Euromaid ES60 Bedienungsanleitung

Hotpoint

Hotpoint HUI 62 TP Bedienungsanleitung
