ZCG5000/5001

INSTRUCTION BOOKLET

Introduction

This gas appliance has been designed and manufactured to all the

necessary British Standards. This appliance carries the C.E. mark.

It is important that you understand how to use and care for the appliance

properly before you use it for the first time.

We have written this booklet with your safety in mind. Read the booklet

thoroughly before you use the appliance. Keep the booklet in a safe

place so that anyone who uses the appliance can read it. Pass the

booklet on with the appliance if you give or sell it to someone else.

We have included several drawings to show the right and wrong way

of doing things.

The right way will have a smiling face by it.

A sad face shows something is wrong.

RATING PLATE

This is situated on the lower front frame of the appliance and can be

seen upon opening the door. Alternatively the rating plate may also be

found on the back or top of some models (Where applicable). Do not

remove the rating plate from the appliance as this may invalidate

the guarantee.

Z C G 5 0 0 0 / 5 0 0 1

For your safety

This appliance is not intended to be operated by means of an

external timer or separate remote control system.

The appliance is designed for domestic use to cook food. You

must not use it for any other purpose. It is not designed for

commercial use.

Keep children, babies and toddlers away from the appliance at all

times.

The installation instructions tell you how and where it can be

fitted. If the appliance is already installed you must make sure

that all instructions have been followed. If you are in any doubt

ask a registered person.

Contents

Page

Lighting the appliance 4

The grill 7

The hotplate 11

The ovens 14

Oven cooking chart - main oven 17

- second oven 20

Slow cooking 23

Care and cleaning 25

Installing the appliance 32

General information 34

What is wrong and why? 36

Servicing 37

Installation instructions 39

Technical Data 40

Safety requirements/ventilation 41

Location of appliance/installation 42

Testing 44

Guarantee Conditions 46

Z C G 5 0 0 0 / 5 0 0 1

Contents

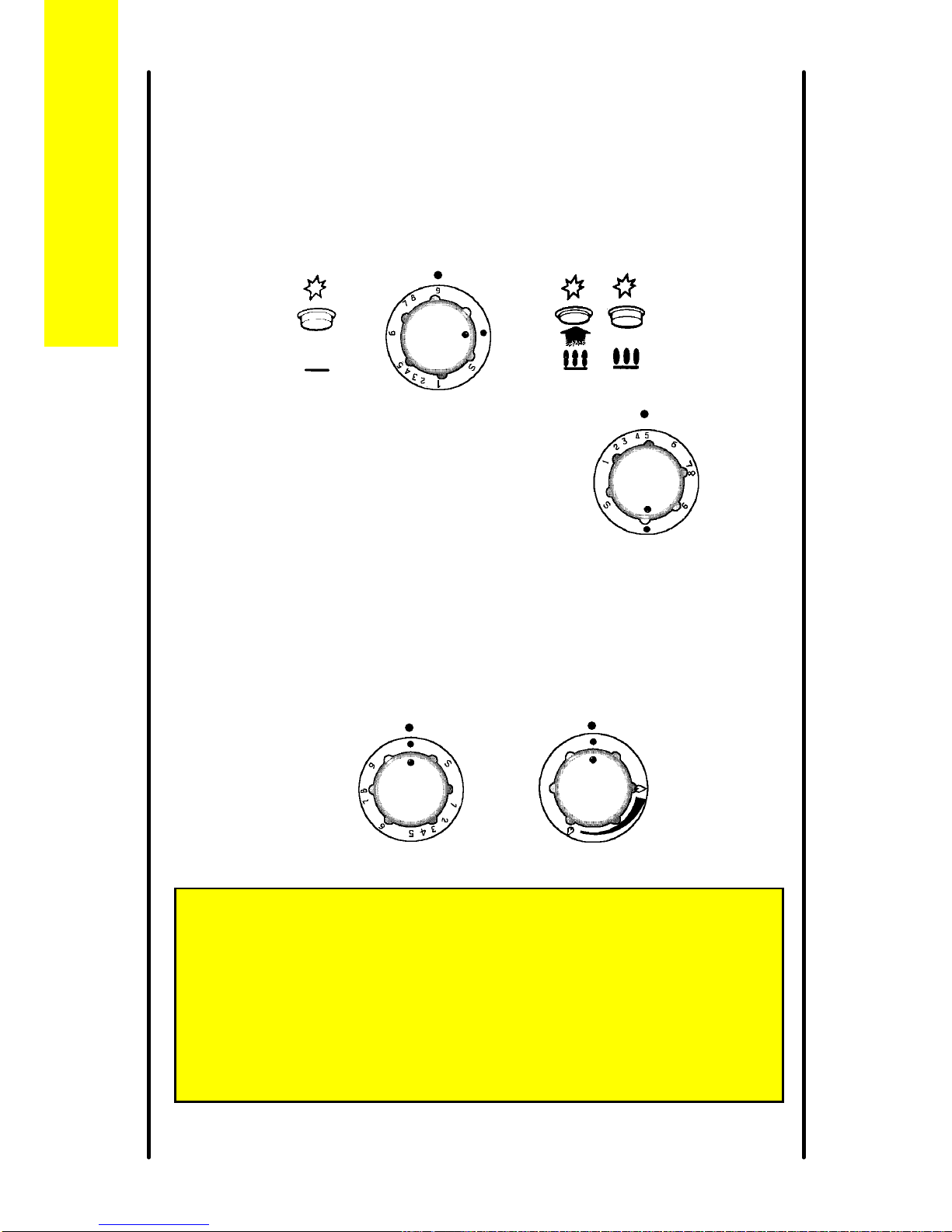

Lighting the appliance

The system works by means of a battery. Details on how to replace the

battery are given in 'General Information'.

Hotplate

To light:

1 Lift up the lid. You cannot use the hotplate when the lid is down.

2 Push in the control knob and turn to the large flame symbol (highest

setting), and press the ignition button immediately. When the burner

has lit release the button.

Warning: If the ignition button is not pressed immediately a build up of gas

may cause the flame to spread.

Please note: If you have any trouble lighting a hotplate burner turn all the

hotplate control knobs off. Make sure that the burner parts have been

replaced correctly.

Grill/second oven

The grill and the second oven are operated by the same control so you

cannot use them both at the same time.

Z C G 5 0 0 0 / 5 0 0 1

Lighting the appliance

For your safety

If you close the lid of the appliance while any of the hotplate

burners are lit the gas will go out. This is because it would be

dangerous if the burners stayed on when the lid was closed.

Always use the control knob to turn off a burner. Do not use

the lid as a cut-off device. This will only cut off the gas when

the lid is closed. The gas will flow again when the lid is

opened.

For your safety

In the event of the burner flames being accidentally extinguished, turn

off the burner control and do not attempt to re-ignite the burner for at

least 1 min.

FRONT LEFT

Grill

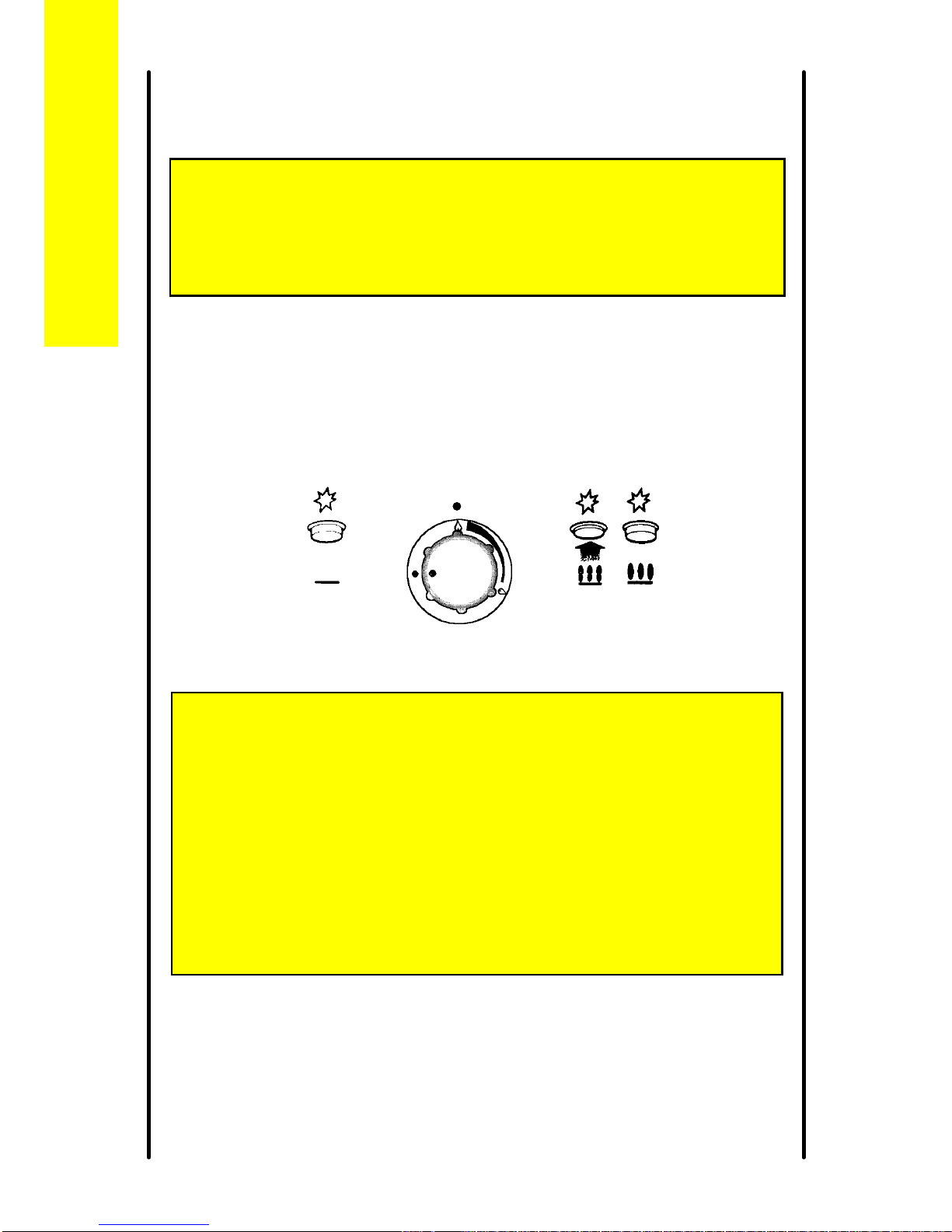

To light:

1 Open the door.

2 Push in the control knob and turn it to the right to the large flame

symbol (highest setting), and press the ignition button immediately.

When the burner has lit release the button.

3 Leave the grill door open when you are using the grill.

Warning: If the ignition button is not pressed immediately a build up of gas

may cause the flame to spread from the grill cavity.

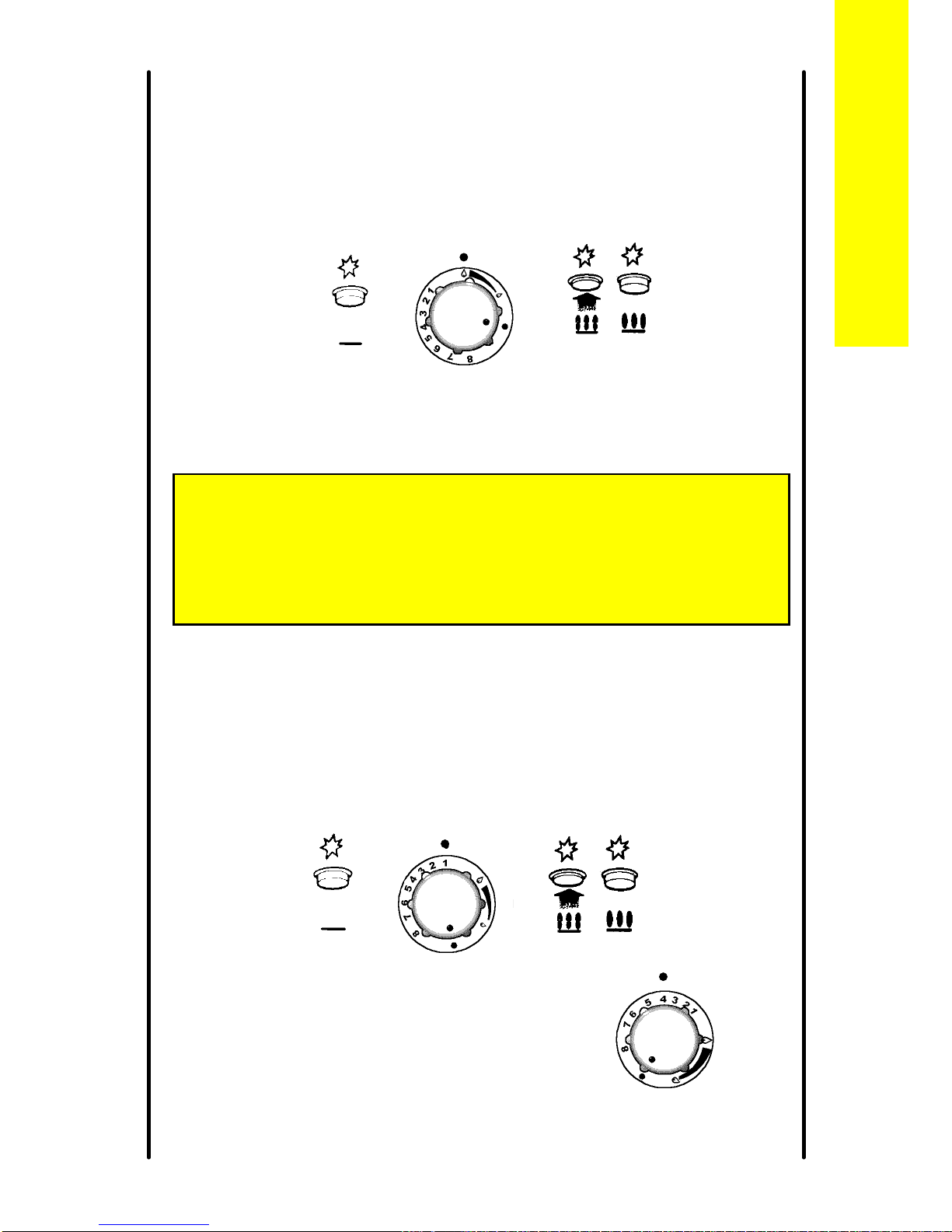

Second oven

To light:

1 Open the oven door.

2 Push in the control knob and turn it to the left to gas mark 1, and press

the ignition button immediately. When the burner has lit release the

button. There will only be small flames at first.

3 Now turn the control knob to the

gas mark you want.

4 Wait until the burner is showing

large flames.

5 Close the oven door.

Important: Remember to remove the grill pan handle before you use the

second oven.

Z C G 5 0 0 0 / 5 0 0 1

Lighting the appliance

For your safety

Never cover the grill pan or grid with foil as this can lead to grill

fires.

OVEN/GRILL

Main oven

To light:

1 Open the oven door.

2 Push in the control knob and turn it to gas mark 9, and press the

ignition button immediately. When the burner has lit release the

button. There will only be small flames at first.

3 Now turn the control knob to the gas mark

you want.

4 Wait until the burner is showing large

flames.

5 Close the oven door.

To turn off any burner

1 Push in the control knob and turn it to the off position. This is shown

by a large dot.

Z C G 5 0 0 0 / 5 0 0 1

For your safety

When you are lighting any burner check that it has lit before you

leave the appliance.

When you are turning off a burner, do not leave the appliance until

the flame has gone out.

Lighting the appliance

MAIN OVEN

FRONT LEFT

MAIN OVEN

The grill

The grill is a high-speed grill. The instructions below tell you how to vary

the heat setting and how to change the height of the grid to suit the food

you are cooking. You should remember to turn the food regularly.

You should not use the grill to keep food warm as it will continue to

cook the food.

Prior to using the grill

We suggest that you operate the grill for approximately 5 - 10 mins to burn

off any residue from the surface. During this period a slight odour may be

emitted, it is therefore advisable to open a window for ventilation.

When you first operate the grill you may hear some sounds as the burner

heats up, this is quite normal and is not a fault on the appliance.

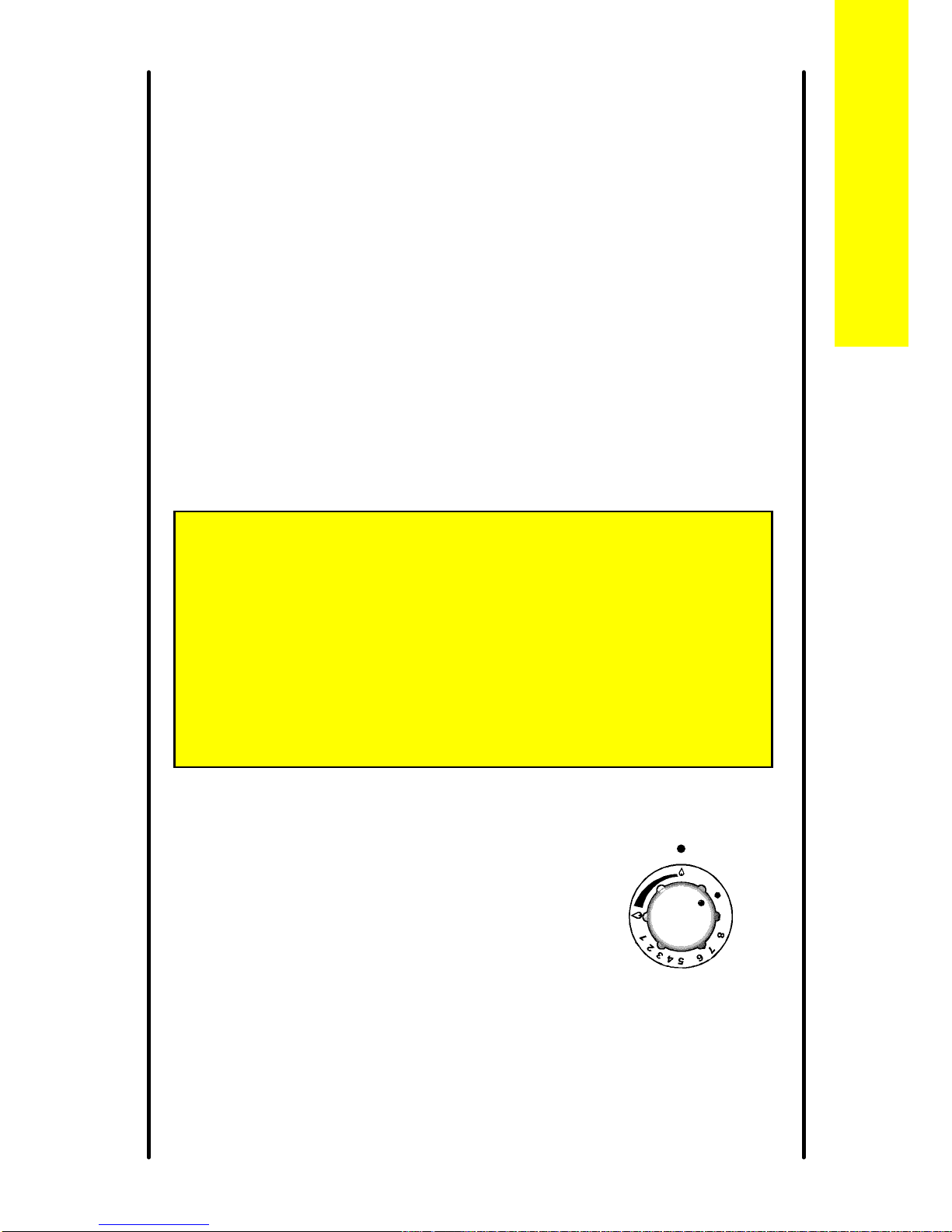

Heat control

The grill control has two heat settings.

The control knob turns to the right from 'OFF'

to 'LOW' and then to 'HIGH'. Use the high setting

for fast cooking such as toast. Use the low setting

to cook thicker food such as chicken after you

have browned it on the high setting.

Z C G 5 0 0 0 / 5 0 0 1

For your safety

The grill pan and handle must be in place before igniting the grill.

You must keep the grill door open when the grill burner is lit.

Accessible parts may be hot when the grill is used. Young

children should be kept away.

Never cover the grill pan or grid with foil as this can lead to grill

fires.

The grill

OVEN/GRILL

Cooking positions

There is only one position for the grill shelf

(Position 2). Positions are counted from the top

downwards.

Most food should be cooked on the grid in the

grill pan. You can turn the grid over to suit

different thicknesses of food.

You can place some dishes straight on to the

grill shelf. This is useful when you are browning

the top of food such as cauliflower cheese.

General

The shelf in the grill/second oven is different from the shelves in the main

oven. It is important that you do not swap them over. Only use the shelf

with the solid metal plate underneath it in the grill/second oven.

When you are not using the grill pan you should remove the handle

and store the pan on the shelf in the grill. Turn the grill burner off before

you store the pan. Remember that the pan will get hot when you are using

the main oven.

You can use the grill compartment to warm plates when you are using

the main oven.

Preheating

You don't usually need to preheat the grill. You may wish to preheat it for a

couple of minutes when you are cooking steak or browning food.

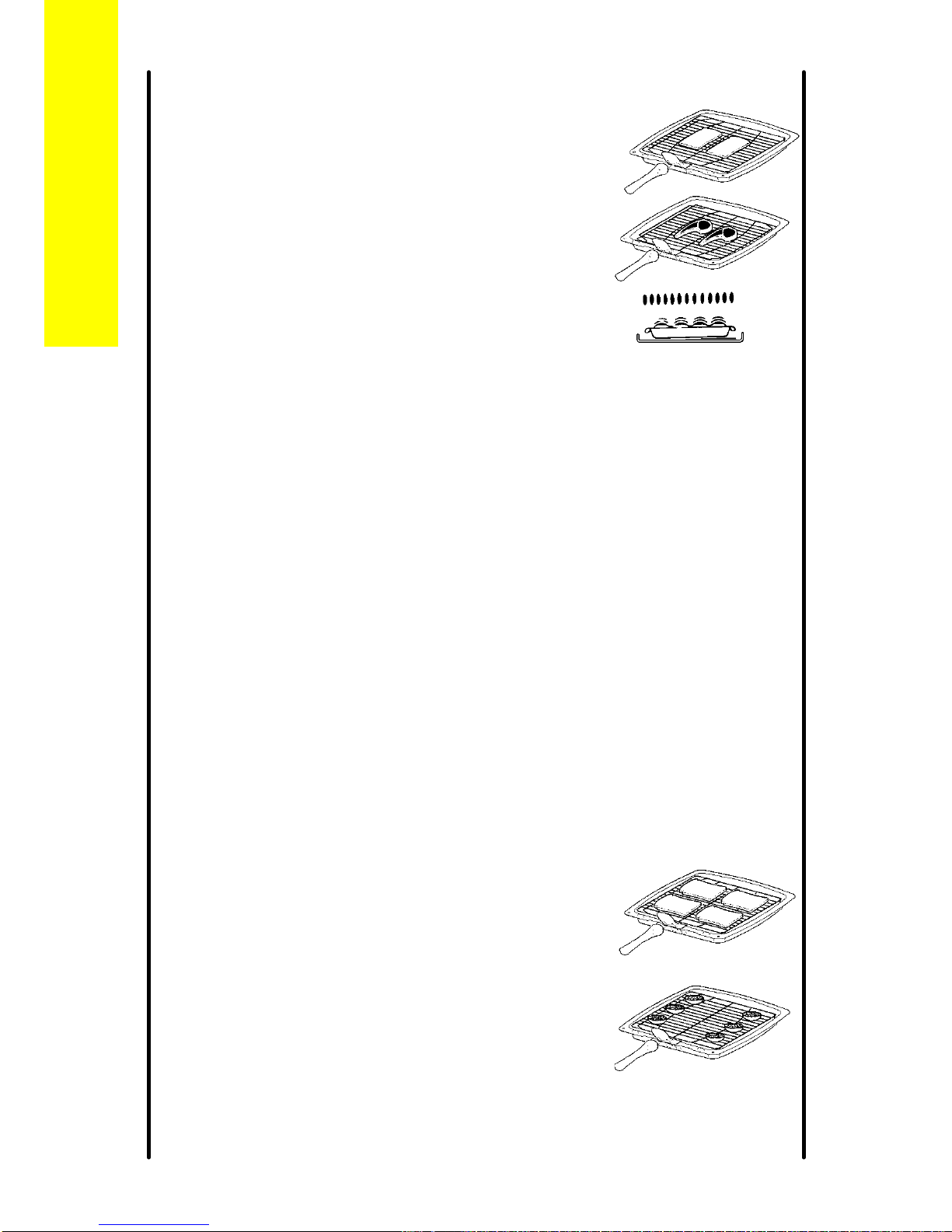

Putting food on the grid

Place food such as toast, tea-cakes and muffins

towards the centre of the grid.

Place food which needs a gentle heat, such

as tomatoes and mushrooms towards the edge of

the grid.

Arrange meat, meat products and fish to suit

their thickness and how you like them cooked.

Z C G 5 0 0 0 / 5 0 0 1

The grill

The grill pan and handle (NG models only)

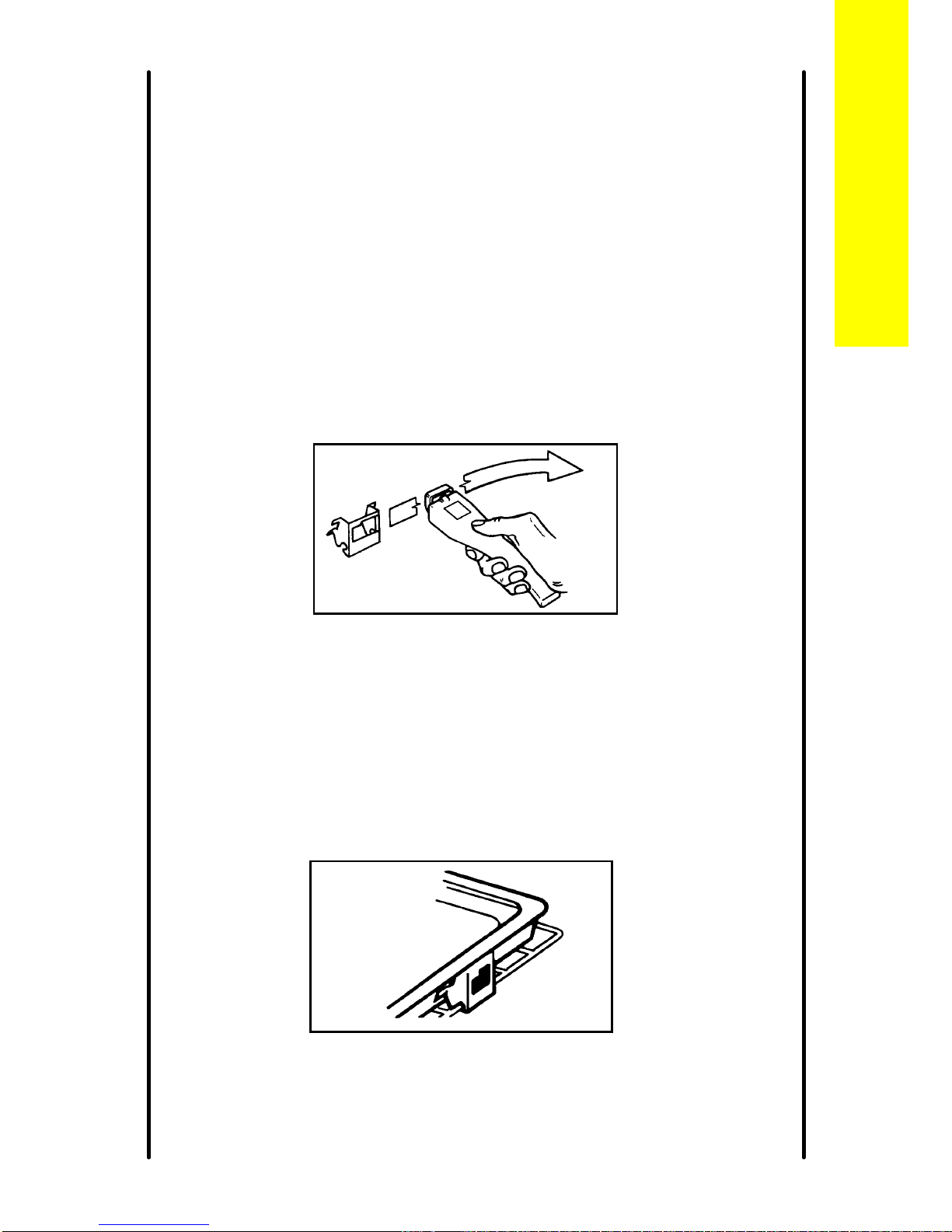

The grill pan is supplied with a removable handle.

To insert the handle, press the button on the handle with the thumb and

pivot the handle slightly upwards inserting the lip into the widest part of

the bracket. Move the handle towards the left, lower into position and

release the button.

Ensure the handle is positively located.

When removing the handle, press the button on the handle with the

thumb and pivot the handle slightly upwards and towards the right to

remove from the bracket.

Ensure your hand is protected when removing the grill pan handle

as the grill element can become very hot.

ALWAYS REMOVE THE GRILL PAN HANDLE DURING COOKING.

To correctly locate the grill pan on the shelf, ensure that the cut out on

the underside of the handle bracket locates over the front bar of the

shelf.

To check the progress of the food being grilled, the grill pan should be

withdrawn on the shelf to attend to food during cooking.

Z C G 5 0 0 0 / 5 0 0 1

The grill

The grill pan and handle(LPG models only)

The grill pan is supplied with a removable handle.

To attach the handle, place the wirework under the cut out in the pan so

that the metal plate hooks over the top of the grill pan.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to

remove the grill pan handle during grilling.

Place the grill pan on the shelf so that the pan is positioned centrally

beneath the grill.

To remove the handle, slide the handle to the right and lift the handle

away from the cut out on the grill pan.

Note

If you require an additional handle for your grill pan, this can be ordered

from your local Service Force Centre by quoting part number

311479800\6.

Z C G 5 0 0 0 / 5 0 0 1

The grill

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Zanussi Kocher Handbücher

Zanussi

Zanussi ZCG43200BA Bedienungsanleitung

Zanussi

Zanussi ZCE 630 Bedienungsanleitung

Zanussi

Zanussi ZCV551MW Bedienungsanleitung

Zanussi

Zanussi ZCV660CTX Bedienungsanleitung

Zanussi

Zanussi ZCV665MWC Bedienungsanleitung

Zanussi

Zanussi ZCV6602M Bedienungsanleitung

Zanussi

Zanussi EC 29 B Montageanleitung

Zanussi

Zanussi ZCG63260XE Bedienungsanleitung

Zanussi

Zanussi ZCG662 Bedienungsanleitung

Zanussi

Zanussi ZCG551 Bedienungsanleitung

Zanussi

Zanussi GC 5601 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZCE 600 W Bedienungsanleitung

Zanussi

Zanussi GCF9621 Bedienungsanleitung

Zanussi

Zanussi ZCM 1000X Bedienungsanleitung

Zanussi

Zanussi ZCG669GN Bedienungsanleitung

Zanussi

Zanussi ZCG560G Bedienungsanleitung

Zanussi

Zanussi ZCE 620 X Bedienungsanleitung

Zanussi

Zanussi Z 8050 G Montage- und Bedienungsanleitung

Zanussi

Zanussi ZCM 610 X Bedienungsanleitung

Zanussi

Zanussi ZCG63050WA Bedienungsanleitung

Zanussi

Zanussi ZCG 7690 Bedienungsanleitung

Zanussi

Zanussi ZCM 5000 Montageanleitung

Zanussi

Zanussi Gas and mixed fuel cookers Bedienungsanleitung

Zanussi

Zanussi ZCM 6600 Bedienungsanleitung

Beliebte Kocher Handbücher anderer Marken

Modena

Modena FC 7645 SGM Betriebsanleitung

Electrolux

Electrolux Insight EKG6049 Bedienungsanleitung

Stanley

Stanley Donard 60 Bedienungsanleitung

Bartscher

Bartscher 201TC Bedienungsanleitung

Parkinson Cowan

Parkinson Cowan 50 GR/BU Bedienungsanleitung

Siemens

Siemens HK9P00020U Bedienungsanleitung

Creda

Creda S150E Leitfaden

Creda

Creda HB48309 Bedienungsanleitung

Bosch

Bosch HCE743220F Bedienungsanleitung

Tricity Bendix

Tricity Bendix SE545P Bedienungsanleitung

NEFF

NEFF E1461A2/01 Bedienungsanleitung

Smeg

Smeg SNL61MA9 Bedienungsanleitung

RiverGrille

RiverGrille TF2002501-RG Bedienungsanleitung

Vollrath

Vollrath 69504F Bedienungsanleitung

Tricity Bendix

Tricity Bendix CSIE500 Bedienungsanleitung

AEG

AEG Competence 5731 V Bedienungsanleitung

Euromaid

Euromaid ES60 Bedienungsanleitung

Hotpoint

Hotpoint HUI 62 TP Bedienungsanleitung
