Zanussi 402070 Bedienungsanleitung

ZANUSSI

P R O F E S S I O N A L

GLASSWASHERS

NGW

402070

BASKET FOR GLASSES-395X395X100 MM 1 1

INCLUDED ACCESSORIES

Supply voltage 230 V, 1N, 50 230 V, 1N, 50

Net weight - kg. 37 37

Noise level - dBA <61 <61

total power 3.3 2.3

Power - kW

Boiler elements - kW 3 3

Boiler capacity - lt. 5 5

water consumption - lt./cycle 2.3 2.3

temperature during rinse - °C 80-90 80-90

duration - sec. 16 16

Hot rinse cycle

electrical elements - kW 0.8 0.8

power pump - kW 0.3 0.3

tank capacity - lt. 6 6

temperature -°C 55-65 55-65

Washing cycle

height 290 290

depth 400 400

width 400 400

Cell dimensions - mm

height 715 715

depth 565 565

width 460 460

External dimensions - mm

Basket capacity/h 30 30

Duration cycles - sec. 120 120

N° of cycles 1 1

Detergent dispenser l

Drain pump l

hardness - °f 7-14 7-14

temperature - °C 10 10

Water supply

NGW

402070

NGWDPDD

402071

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

The range consists of a base model LB2

available in 2 versions:

402070 - standard model

402071 - standard model with drain pump

and detergent dispenser

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� A high standard of washing, rinsing and

hygiene is achieved.

� One cycle of 120 seconds.

� Glasses, cups and crockery up to a height

of 270 mm can be washed due to the ample

loading height.

� 5 litre capacity boiler, washing

temperature 55° to 65°C and rinse

temperature 80° to 90°.

� Double-walled washing chamber and tank.

Separate washing and rinsing circuits. Upper

and lower rotary washing arms and rinsing

arms.

� Load bearing frame, front panels, tank,

washing and rinsing arms and jets in 304

AISI stainless steel.

� Frontal access to the main components:

boiler elements, thermostats, timer, rinse aid

dispenser and electrical components.

� One basket, 100 mm in height; electric

cable and hose for water connection supplied

as standard.

� All models comply with the standards of

the main international approval bodies and

are H marked.

GLASSWASHERS

NGW

EAAB3 2011-04-12 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

YELLOW CUTLERY CONTAINER 864242 864242

STAINLESS STEEL TANK FILTER FOR GLASSW. 864003 864003

ROUND BASKET KIT WITH SQUARE FRAME 867057 867057

RINSE BOOSTER PUMP-SING.TANK PRESSURE DW 864051 864051

KIT TO MEASURE TOTAL/PART.WATER HARDNESS 864050 864050

KIT 4 PLASTIC BOXES FOR CUTLERY-YELLOW 865574 865574

INSERT FOR"FLUTE"GLASSES 867058 867058

INSERT FOR 7 PLATES DIAM. 240 MM 867062 867062

INSERT FOR 14 SAUCERS 867060 867060

INCLINED INSERT FOR CUPS 867061 867061

FILTER FOR TOTAL DEMINERALIZATION 864015 864015

FILTER FOR PARTIAL DEMINERALIZATION 864017 864017

COVER GRID FOR SMALL/LIGHT ITEMS IN RACK 867016 867016

BASKET FOR GLASSES-395X395X200 MM 867054 867054

BASKET FOR GLASSES-395X395X100 MM 867053 867053

BASKET FOR GLASSES+SAUCERS/CUTLERY INS. 867055 867055

BASKET FOR 16/8 PLATES DIAM.190/240 MM 867052 867052

BASKET F.GLASSES-ANGLED BASE-395X395X200 867056 867056

NGW

402070

NGWDPDD

402071

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

GLASSWASHERS

NGW

EAAB3 2011-04-12 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

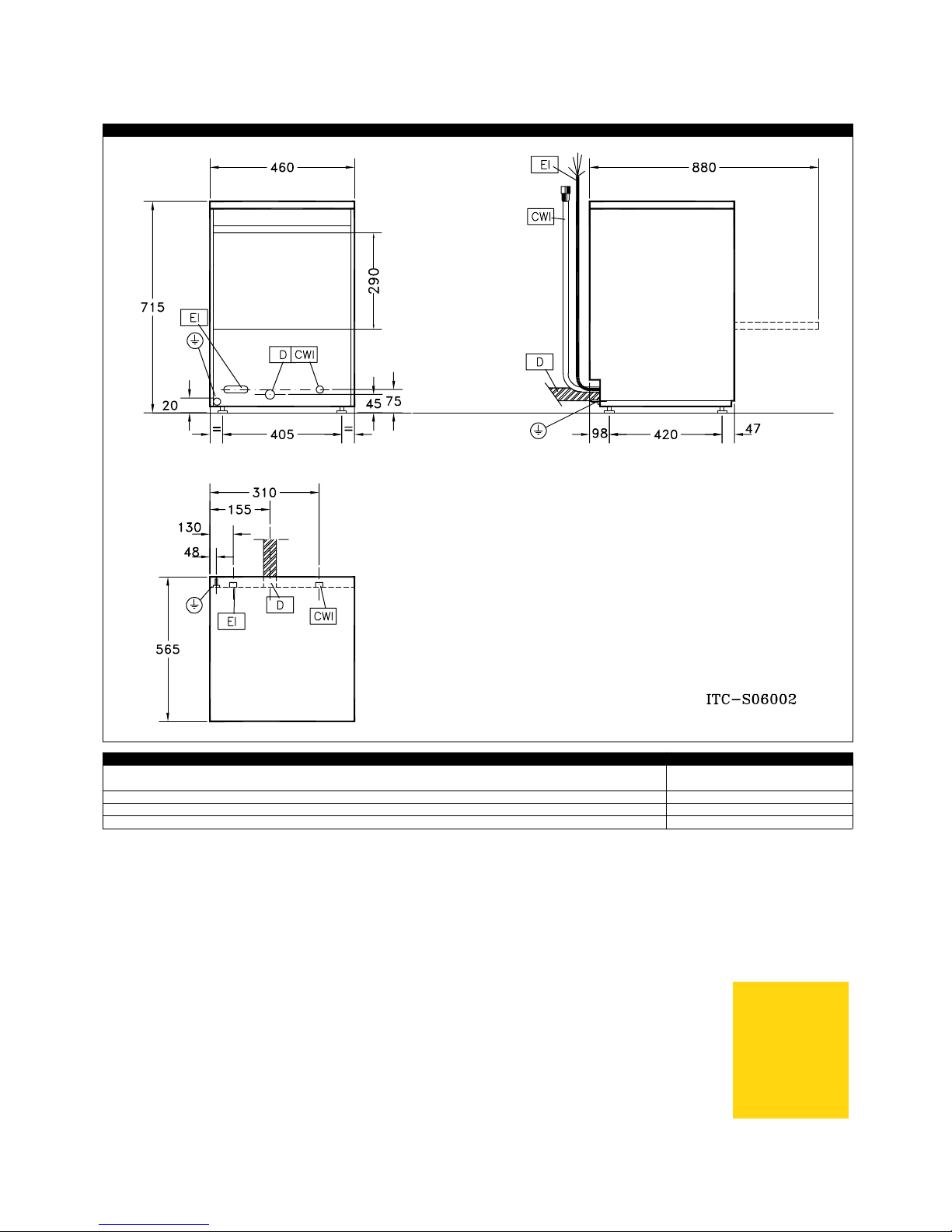

EI - Electrical connection 230 V, 1N, 50

D - Water drain 22mm

CWI - Cold water inlet G 3/4"

NGW

402070

LEGEND

402070

GLASSWASHERS

NGW

EAAB3 2011-04-12 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

EI - Electrical connection 230 V, 1N, 50

D - Water drain 27mm

CWI - Cold water inlet G 3/4"

NGWDPDD

402071

LEGEND

402071
