Zanussi TCS 683 LT Bedienungsanleitung

TUMBLE DRYER

SUŠILNI STROJ

BUBNOVÁ SUŠIČKA

SUSZARKA DO BIELIZNY

TCS 683 LT

kg 2

kg 1

650

45'- 55'

25'- 35'

kg 5

kg 2,5

800/ 900

85' -105'

45'- 60'

1000/ 1200

75' - 100'

40' - 55'

800/ 900

110'- 130'

60' - 75'

1000/ 1200

100'- 125'

55' - 70'

AUTOREVERSE

INSTRUCTION BOOKLET

NAVODILA ZA UPORABO

NÁVOD K OBSLUZE

INSTRUKCJA OBSŁUGI

125995110

YOUR NEW TUMBLE DRYER

With your new tumble dryer you will have soft dry

laundry with any weather conditions.

It is fitted with a condensing device that

condenses the moist air drawn from the laundry

which is then collected in a water container. The

water container can be discharged directly by

means of a suitable drain hose.

The appliance has been developed meeting all

top quality requirements in order to guarantee its

long life.

Low energy consumption and short drying time

make the operation of your tumble dryer

extremely economical.

Ecological hints

In order to obtain energy savings, it is advisable

to follow these instructions:

■Whenever possible, dry the maximum load for

the selected programme, as described in the

programme tables. Small loads are

uneconomical.

■The laundry should be well spun before being

loaded into the dryer. The higher the spin

speed, the shorter the drying time and

therefore the lower the energy consumption.

■Avoid overdrying the laundry by selecting the

suitable time according to the degree of

dryness required. Overdried laundry is not

easily ironed.

■To take advantage of the maximum load

capacity, laundry that has to be store dried

can be dried with laundry that has to be iron

Environment protection

■Packaging recycling

Materials marked with the symbol are

recyclable. To enable them to be recycled, they

must be placed in the appropriate collection

areas (or containers). Check with your local

Council or Environmental Health Office.

>PE<= polyethylene

>PS<= polystyrene

>PP<= polypropylene

■Tumble dryer scrapping

When the appliance is to be scrapped, cut off

the power supply cable and make the door

closing device unusable to prevent young

children from being trapped inside.

Use authorised disposal sites for your old

appliance.

The symbols you will see on some paragraphs of this booklet have the following meaning:

Important information concerning the

safety in the use of your machine.

Disregarding this information might

lead to damages.

Information for correct use of your

machine and to obtain the best

performance.

Important information concerning

environment protection.

Our contribution to the protection of the

environment: we use recycled paper.

dried. Select the iron dry programme; when

this is over, remove the laundry to be ironed

and dry the remaining items.

■If the filter and the condenser are regularly

cleaned, short drying time and low energy

consumption are guaranteed.

■The room should be well ventilated. The

room temperature must not exceed +35°C

during drying.

CONTENTS

Warnings................................................Page 4

Description of the appliance........Page 5

Technical specifications ................Page 5

Installation.............................................Page 6

■Positioning.................................................Page 6

■Electrical connection .................................Page 6

■Stacking kit................................................Page 6

■Connecting a drain hose ...........................Page 6

Use.............................................................Page 7

■Control panel.............................................Page 7

■Drying Times.............................................Page 8

■Useful hints ...............................................Page 9

■Drying sequence .......................................Page 10

Maintenance.........................................Page 11

■External cleaning.......................................Page 11

■Cleaning the filter ......................................Page 11

■Cleaning condenser .................................Page 11

■Emptying water container..........................Page 12

Something not working..................Page 13

ENGLISH

WARNINGS

Installation

■Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

■Make sure that the appliance does not stand

on its electrical supply cable.

■If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

Use

■Always unplug the appliance after use.

■Clothes which are dripping wet should not be

placed in the dryer.

Always load well spun laundry. The higher the

spin speed, the lower the electricity

consumption and the shorter the drying times.

■Never tumble dry items that have been in

contact with chemicals such as dry cleaning

fluid. These are of a volatile nature and could

cause an explosion.

■As some bulky items such as duvets and

eiderdowns should be dried in large

commercial machines because of their bulk,

check with the manufacturer of the item if it is

suitable for drying in a domestic machine,

even if the dry weight of the item is within the

limit advised.

■Always check that no cigarette lighters have

been left in pockets.

■Leave the door slightly ajar when not in use to

preserve the door seal.

■The fluff filter must be cleaned after every

use.

■Do not operate the appliance with a damaged

filter or without filter as this may cause a fire.

■Do not overload the appliance.

■Do not allow fluff to accumulate around the

dryer.

■Do not dry canvas shoes or sports shoes, as

they could get stuck between the door and

the drum, thus blocking the latter.

Service/Repair

■Under no circumstances should you attempt

to repair the machine yourself. Repairs

carried out by inexperienced persons may

cause injury or serious malfunctioning. Refer

to your local Zanussi Service Centre. Always

insist on genuine Zanussi spare parts.

General safety

■It is dangerous to modify or try to modify the

specifications of this appliance in any way.

■This appliance is designed to be used by

adults. Children should not be allowed to

touch the controls or play with the product.

■Pets and small children may climb into tumble

dryers. Check your appliance each time

before use.

Please read this instruction booklet carefully before using this appliance and pay particular attention

to these warnings.

It is most important that this instruction book should be retained with the appliance for future

reference. Should the appliance be sold or transferred to another owner, or should you move house

and leave the appliance, always ensure that the book is supplied with the appliance in order that the

new owner can get to know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully before

installing or using the appliance.

ENGLISH

TECHNICAL SPECIFICATIONS

DIMENSIONS Height 85 cm

Width 60 cm

Depth 60 cm

ELECTRICAL CONNECTION Voltage/Frequency 220-230 V/50 Hz

Max. power absorbed 2200 W (10A)

DRYING CAPACITY Cotton, linen 5 kg

Synthetics 2 kg

ENERGY CONSUMPTION: Cotton, linen 3.8 kWh (5 kg store dry)

Cotton, linen 3.0 kWh (5 kg iron dry)

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

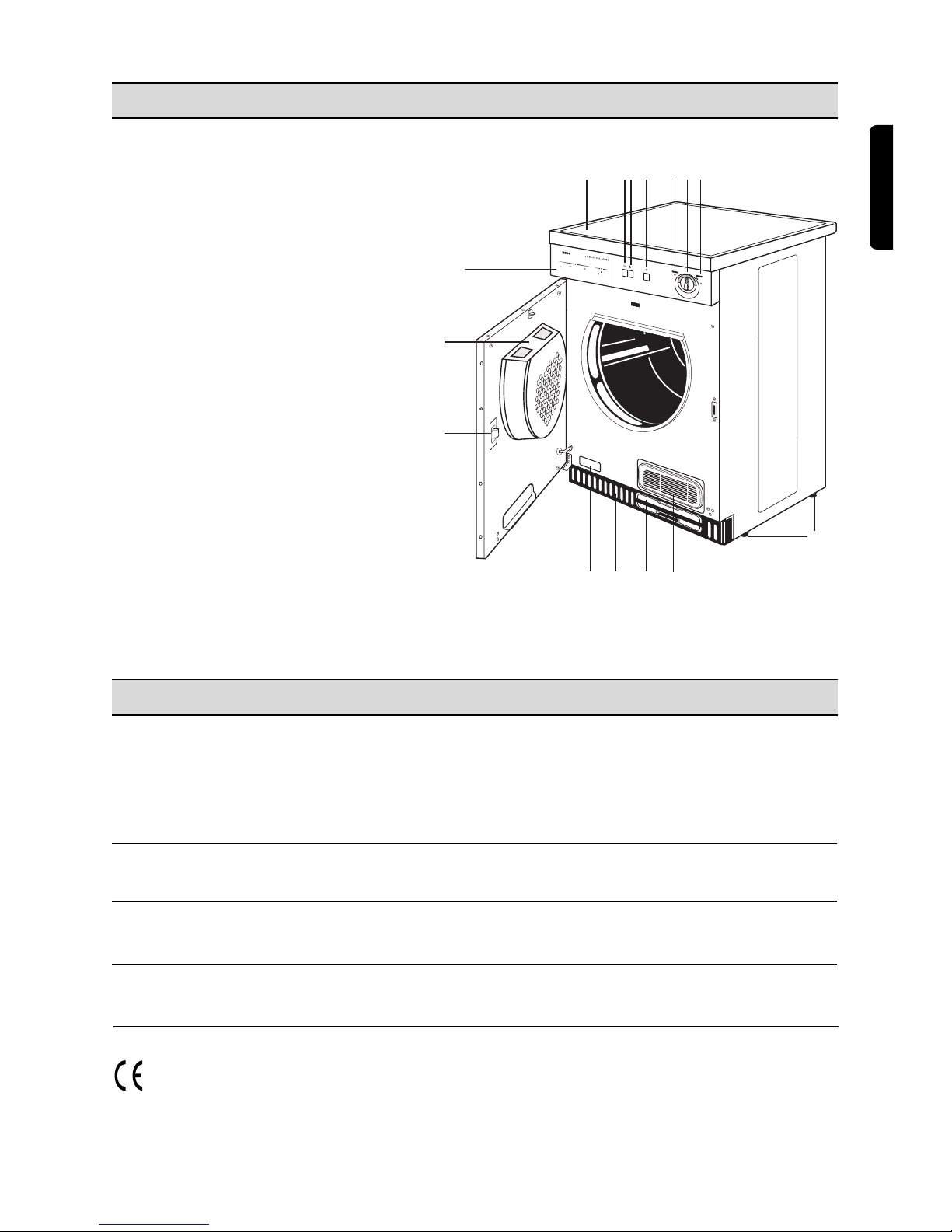

DESCRIPTION OF THE APPLIANCE

01 Top cover

02 Programme chart

03 Door opening button

04 Low temperature button

05 Start button

06 “Water container full” light

07 Drying time selector dial

08 Mains-on light

09 Fluff filter

10 Lock

11 Rating plate

12 Ventilation grid

13 Water container

14 Condenser

15 Adjustable feet

11 14

1345

AUTOREVERSE

kg 2

kg 1

650

45'- 55'

25'- 35'

kg 5

kg 2,5

800/ 900

85' -105'

45'- 60'

1000/ 1200

75' - 100'

40' - 55'

800/ 900

110'- 130'

60' - 75'

1000/ 1200

100'- 125'

55' - 70'

Positioning

The tumble dryer can be positioned on any firm

level surface. Check that it is absolutely level

with the aid of a spirit level. If it is not, raise or

lower the feet until it is.

Air must be able to circulate freely all round the

appliance. Do not obstruct the front ventilation

grille or the air intake grilles at the back of the

machine.

The feet must never be removed.

Do not restrict the floor clearance through

deep-pile carpets, strips of wood or similar.

This might cause heat build-up which would

interfere with the operation of the appliance.

Important

The hot air emitted by the tumble dryer can reach

temperatures of up to 60°C. The appliance must

therefore not be installed on floors which are not

resistant to high temperatures.

When operating the tumble dryer, the room

temperature must not exceed 35°C, as it may

affect the performance of the appliance.

The tumble dryer must be installed in a clean

place, where dirt does not build up.

Electrical connection

This machine is designed to operate on a 220-

230 V, single-phase, 50 Hz supply.

Check that your domestic electrical installation

can take the maximum load required (2.2 kW),

also taking into account any other appliances in

use.

Connect the machine to an earthed socket, in

accordance with current wiring regulations.

The manufacturer declines any

responsibility for damage or injury

through failure to comply with the

above safety precaution.

INSTALLATION

Stacking kit

It is possible to mount the dryer on top of all

washing machines having a worktop 60 cm wide

and a front loading. To this purpose, the special

stacking kit is available through your dealer.

Complete installation instructions are enclosed

with the kit.

Connecting a drain hose

If there is a sink or drain near the appliance, the

condensed water can be discharged directly

through a hose that is available on the market.

In order to connect the hose to the appliance

proceed as follows:

■Remove the clamp (A)

■Pull out the plug (B)

■Insert the drain hose (C)

■Fasten the hose (C) to the appliance using the

clamp (A).

If the appliance is stacked on the washing

machine, the condensed water can be

discharged through the hose as shown in figure,

but take into account that the hose must be

pointed downwards.

P1044

P1043

P1046

ENGLISH

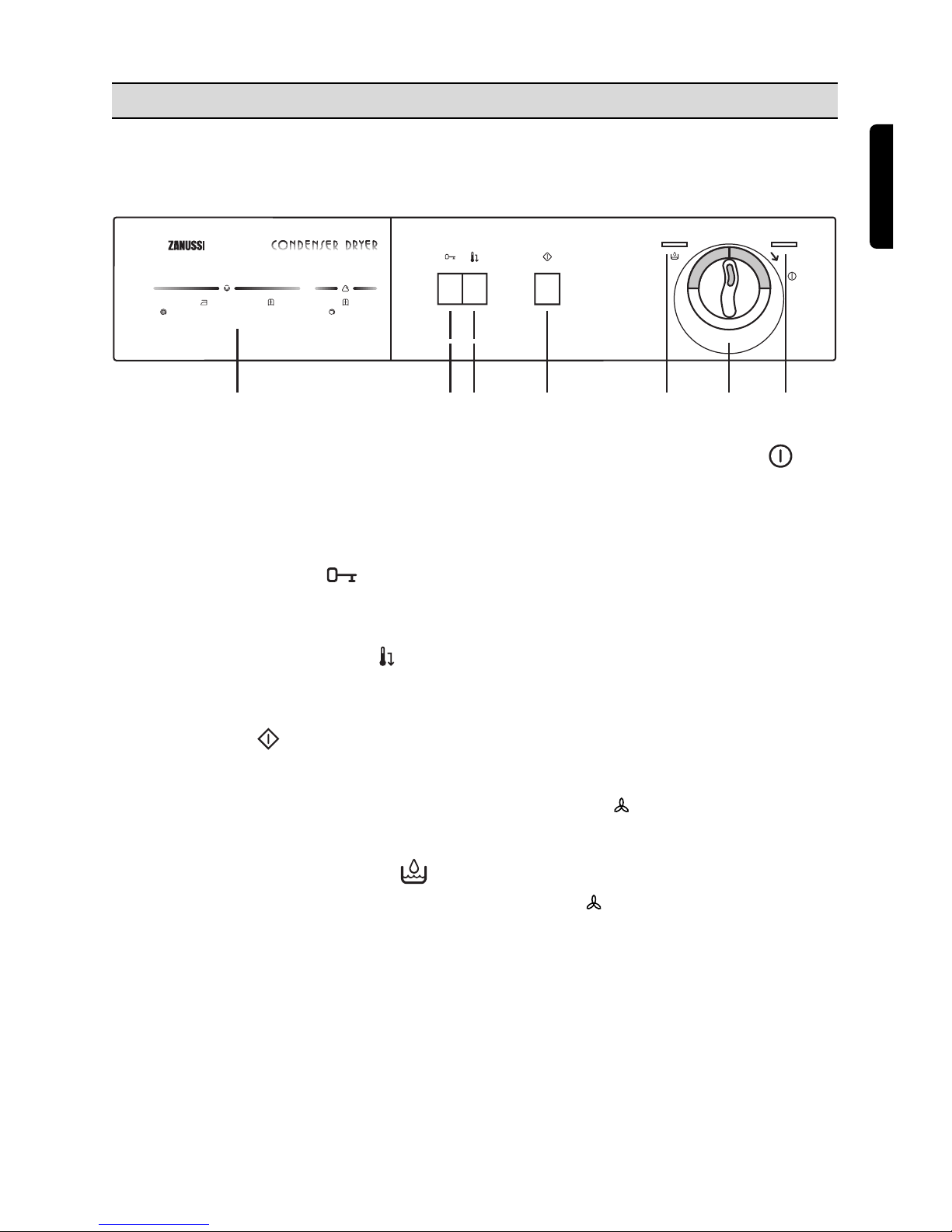

USE

1 Programme Chart

The programme chart provides a summary of all

the programmes available and the corresponding

drying times.

2 Door opening and programme

interruption button

To open door, press this button: the programme

in progress is interrupted.

3 Low Temperature button

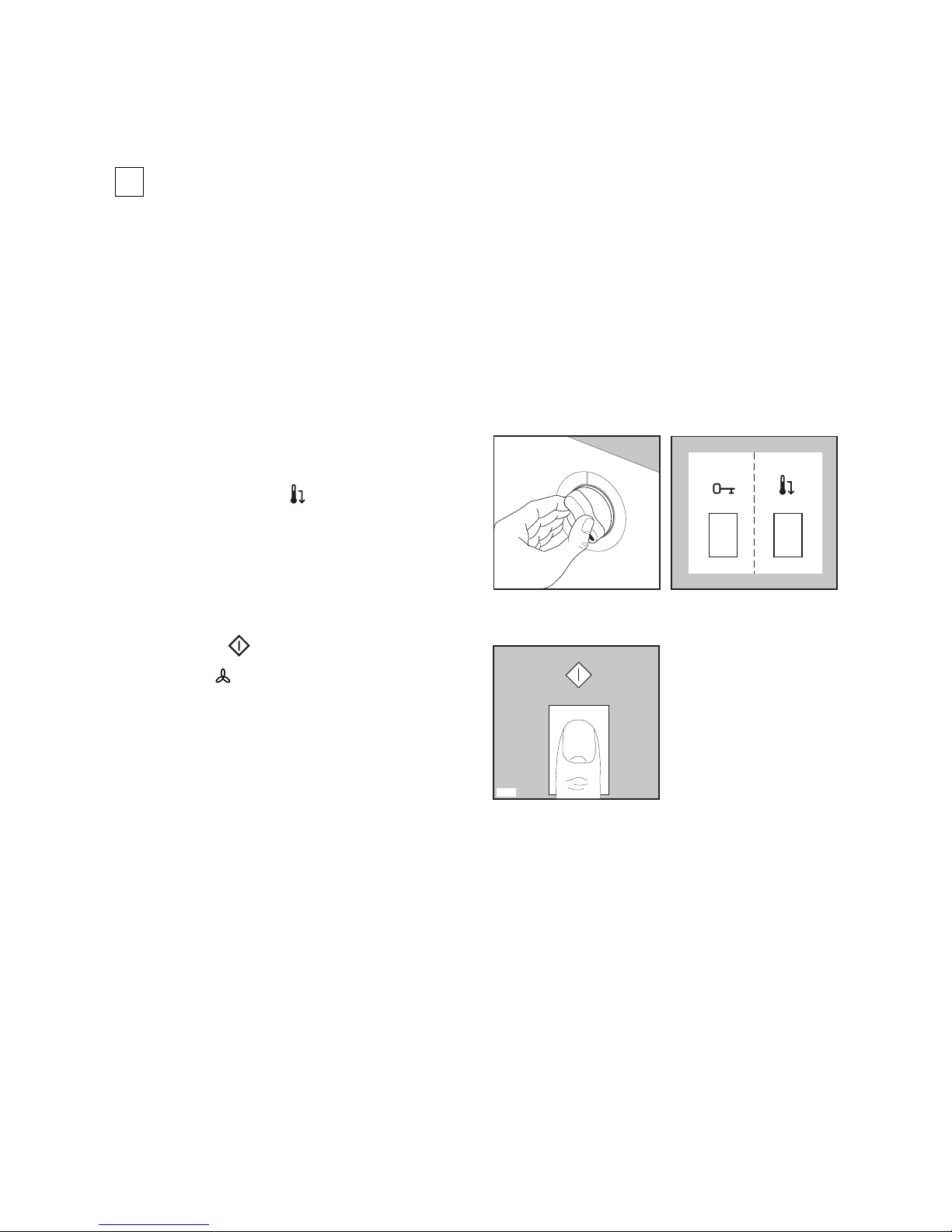

Press this button to reduce the temperature when

drying particularly delicate cotton or linen items.

4 Start button

After selecting the drying time, press start button:

the appliance will start drying.

If the door is opened during drying, the

programme is interrupted. It will be resumed

by pressing the button again.

5 “Water container full” light

This light lights up when the water container is

full or when it has been inserted incorrectly.

6 Drying Time Selector Dial

The selector dial incorporates two drying cycles,

one of up to 150 minutes at a high temperature

for cotton and linen, and one of up to 100

minutes at a low temperature for synthetic

fabrics.

To set the machine to the selected time, turn the

dial clockwise until the time you want coincides

exactly with the pointer.

NEVER attempt to turn the dial in an

anticlockwise direction.

The drying time depends on:

- the speed of the last spin

- the desired degree of drying

- the type of laundry

- the size of the load.

Cooling phase

When selecting the drying time, it should be

remembered that it includes a 10 minute cooling

phase. The heating is automatically cut off and

the laundry is cooled.

The position on the dial can be selected to

refresh jumpers, clothes, etc.

7 Mains-On Light

This lights up when the machine starts operating

and goes out at the end of the programme or by

opening the door.

Control panel

kg 2

kg 1

650

45' - 55'

25' - 35'

kg 5

kg 2,5

800 / 900

85' -105'

45' - 60'

1000 / 1200

75' - 100'

40' - 55'

800 / 900

110' - 130'

60' - 75'

1000 / 1200

100' - 125'

55' - 70'

AUTOREVERSE

1234567

Synthetics

Selector dial: up to 100 minutes

Degree of drying required Degree of spin given

rpm Quantity

kg Drying times

mins

650 2 45-55

1 25-35

1 20-30

Store dry

The laundry must be suitably spun in your washing machine before being placed in the tumble dryer

(800 rpm minimum). If the washing machine spins at a lower speed than 800 rpm, it is advisable to

buy a spin-dryer.

Drying times are given as a guide only and vary according to the size of the load, the type of laundry,

the degree of spinning prior to drying.

Start by selecting a short drying time. If necessary, perform an additional drying cycle afterwards.

Experience will soon enable you to estimate the drying time needed for your usual laundry loads. It is

advisable to take note of them.

Size of load

It is not necessary to weigh the laundry, if these instructions are followed:

■Cottons, linen: full drum, but not overloaded.

■Synthetics: half drum.

■Particularly delicate fabrics: do not fill the drum more than 1/3.

For a mixed load (cotton and synthetics, for example) select the drying time suitable for the most

delicate fabrics and then increase it by approx 10 mins.

Drying Times

Cotton and Linen

Selector dial: up to 150 minutes

Degree of drying required Degree of spin given

rpm Quantity

kg Drying times

mins

Store dry

Iron dry

800/900

1000/1200

5 110 - 130

2.5 60 - 75

5 100 - 125

2.5 55 - 70

800/900

1000/1200

5 85 - 105

2.5 45 - 60

5 75 - 100

2.5 40 - 55

Iron dry 650 2 30-40

ENGLISH

Useful hints

■Try to load to the maximum capacity of the

machine as small loads are uneconomical.

For information, here is a list of the average

weights of some common laundry items.

Sheet 700 - 1000 g

Tablecloth 400 - 500 g

Kitchen towel 70 - 120 g

Table napkin 50 - 100 g

Towelling hand towel 150 - 250 g

Bathrobe 1000 - 1500 g

Man’s shirt 200 - 300 g

Pillowcase 100 - 200 g

Man’s pyjamas 400 - 500 g

Ladies’ nightdress 200 - 250 g

■Never tumble dry the following:

Particularly delicate items such as net curtains,

woollen, silk, fabrics with metal trim, nylon

tights, bulky materials such as anoraks,

blankets, eiderdowns, sleeping bags, feather

quilts and any items containing rubber foam or

materials similar to rubber foam.

■Always follow the instructions on garment

labels.

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

■Close pillowcases and covers with fasteners to

prevent small laundry items getting tangled

inside them. Close press studs, zips and hooks

and tie belts and apron strings.

■Sort laundry according to type and degree of

drying required.

■Do not over-dry laundry, this avoids creasing

and saves energy.

■Avoid drying dark clothes with light coloured

fluffy items such as towels as they could attract

the fluff.

■The laundry must be thoroughly spun before

tumble drying.

■Easy-care items, too, e.g. shirts, should be

briefly pre-spun before drying (depending on

crease resistance approx. 30 seconds or using

the special brief spin programme of your

washing machine).

■Knitted textiles (knitted underwear) may shrink

a little during drying. Please do not overdry

items of this type. It is advisable to allow for

shrinkage when choosing the size of new

purchases.

■You can also put starched items into your

dryer. However, to achieve the desired

starched effect, choose the programme “iron

dry”. To remove any starch residues, wipe out

the internal drum after drying with a moist cloth

and then rub it dry.

■To avoid a static charge when drying is

completed, use either a fabric softener when

you are washing the laundry or a fabric

conditioner specifically for tumble dryers.

■Remove the laundry when the dryer has

finished drying.

■If individual items are still damp after drying,

set a brief post-drying time, but at least 20

minutes. This will be necessary particularly for

multilayered items (e.g. collars, pockets, etc.).

Drying sequence

Before starting up for the first time it is advisable

lo load a few moist cloths into the dryer and to let

it run for about 20 minutes. This ensures that no

dust and dirt is left in the drum.

Operation

1. Connect the appliance.

2. Load the laundry.

3. Close the door.

4. Select the desired drying time (in high or low

temperature section, depending on the

laundry).

5. In case, press button .

6. Press button : the programme starts.

If the position on the dial is reached, the

heating is automatically cut off and the laundry is

cooled.

After around 10 minutes, the programme is over.

Important: It is not advisable to open the door

during operation to check the degree of dryness.

As the laundry is warm, when touched it gives

the impression of still being damp, even if it is

dry. Open the door after the programme has

finished.

If the programme has to be interrupted, it is

advisable to perform the cooling phase to

prevent the heat from building up inside the

machine.

After drying

■Switch off the appliance.

■Clean the filter and empty water container

(see pages 11 and 12).

P0555

P0918

Inhaltsverzeichnis

Andere Zanussi Trockner Handbücher

Zanussi

Zanussi ZTA 110 Bedienungsanleitung

Zanussi

Zanussi ZDP7207PZ Bedienungsanleitung

Zanussi

Zanussi THE8080S Bedienungsanleitung

Zanussi

Zanussi TDS333E Bedienungsanleitung

Zanussi

Zanussi ZDC8203WZ Bedienungsanleitung

Zanussi

Zanussi ZDC72B4PW Bedienungsanleitung

Zanussi

Zanussi TDS 281 W Bedienungsanleitung

Zanussi

Zanussi ZDC8203P Bedienungsanleitung

Zanussi

Zanussi ZDP7202PZ Bedienungsanleitung

Zanussi

Zanussi ZDC 67550W Bedienungsanleitung

Zanussi

Zanussi TCE 7124 W Bedienungsanleitung

Zanussi

Zanussi ZDC 5350 W Bedienungsanleitung

Zanussi

Zanussi ZDC47200W Bedienungsanleitung

Zanussi

Zanussi TD 160 T Bedienungsanleitung

Zanussi

Zanussi TC 7124 Bedienungsanleitung

Zanussi

Zanussi ZTB 200 Bedienungsanleitung

Zanussi

Zanussi TDS 383 W Bedienungsanleitung

Zanussi

Zanussi TDS 382 W Bedienungsanleitung

Zanussi

Zanussi ZDCB47209W Bedienungsanleitung

Zanussi

Zanussi TD30 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi TD 4213 W Bedienungsanleitung

Zanussi

Zanussi TC 481 W Bedienungsanleitung

Zanussi

Zanussi TDS 372T Bedienungsanleitung

Zanussi

Zanussi ZTE7101PZ Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
