Zanussi TD4100 Bedienungsanleitung

TUMBLE DRYER

SECADORA

SECADOR

TD 4100

kg 5

kg 2,5

800 / 900

70' - 90'

35' - 50'

1000 / 1200

65' - 85'

30' - 45'

800 / 900

80' - 100'

55' - 70'

1000 / 1200

75' - 95'

50' - 65'

650

50' - 60'

30' - 35'

kg 2,5

kg 1

DUAL TEMPERATURE

INSTRUCTION BOOKLET

INSTRUCCIONES PARA EL USO

INSTRUÇÕES DE UTILISAÇÃO

125994480

125994480.qxd 06/02/01 10.00 Pagina 1 (Nero/Process Black pellicola)

Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in

the first pages.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

Transport damages

After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local

Service Centre.

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle emphasize information that is particularly important for your safety or correct

functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of

the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

125994480.qxd 06/02/01 10.00 Pagina 2 (Nero/Process Black pellicola)

ENGLISH

Contents

Important safety information ............4

Disposal............................................................5

Tips for environmental protection 5

Description of the appliance..............6

Installation ......................................................7

Positioning ............................................................7

Fitting the vent hose ..........................................7-8

Door reversal ........................................................8

Electrical connection ............................................8

Stacking kit............................................................8

Use........................................................................9

The control panel ..................................................9

Drying times ........................................................10

Operating sequence............................................11

Useful hints ........................................................12

Maintenance and Cleaning................13

External cleaning ................................................13

Cleaning the door................................................13

Cleaning the filter ................................................13

Something not working? ....................14

Technical specifications

DIMENSIONS: Height 85 cm

Width 60 cm

Depth 57 cm

ELECTRICAL CONNECTION: 220/230 V/50 Hz

MAX. POWER ABSORBED: 2200 W

MIN. FUSE RATING: 10 A

MAX. DRYING CAPACITY: Cotton, linen 6 kg

Synthetics 2.5 kg

CONSUMPTION: Cotton, linen 3.3 kWh (5 kg store dry)

Cotton, linen 2.7 kWh (5 kg iron dry)

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

125994480.qxd 06/02/01 10.00 Pagina 3 (Nero/Process Black pellicola)

Important safety information

Installation

• Any electrical work required to install this appliance

should be carried out by a qualified electrician or

competent person.

• Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

• This tumble dryer is designed to be vented through

to the open air. It should have its own ventilation

system which should not be joined with any other

ventilation system connected to any other

appliance.

Use

• This appliance is designed for domestic use only. If

the machine is used for any other purposes or is

not used correctly, the manufacturer accepts no

responsibility for any damage that might occur.

• Always unplug the appliance after use.

• Clothes which are dripping wet should not be

placed in the dryer.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substances are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

• Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

• Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

• Clean fluff filter after using tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filter is damaged.

• Do not allow fluff to accumulate around the dryer.

General safety

• It is dangerous to alter the specifications or attempt

to modify this product in any way.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Zanussi Service

Centre. Always insist on genuine Zanussi spare

parts.

Child safety

• Children are often not aware of how dangerous

electrical appliances can be. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! Keep them out of children’s reach.

• Make sure that children or pets do not climb into

the drum.

• When the appliance is to be scrapped, cut off the

electrical supply cable and destroy the plug with

the remaining cable. Disable the door catch in

order to prevent children from becoming trapped

inside while playing.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or

using the appliance.

125994480.qxd 06/02/01 10.00 Pagina 4 (Nero/Process Black pellicola)

ENGLISH

To save energy and to help protect the environment,

we recommend that you follow these hints:

• Try to load the maximum capacity of the machine

as small loads are uneconomical.

• Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and

saves energy.

Select the drying programme according to the type

of laundry and the required degree of dryness.

• To utilize the maximum load, laundry which is to be

dried ready to put away (store dry) can be dried

together with items to be ironed. To do this, select

the programme for iron-dry, remove the iron-dry

items at the end of the programme and then finish-

dry the rest of the load.

• Clean the filter regularly to avoid excessive drying

times and high electricity consumption.

• Ventilate the room well. The room temperature

should not exceed +35°C during drying.

Tips for environmental protection

• Packaging materials

The materials marked with the symbol are

recyclable.

This means that they can be recycled by disposing of

them properly in appropriate collection containers.

• Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

Disposal

125994480.qxd 06/02/01 10.00 Pagina 5 (Nero/Process Black pellicola)

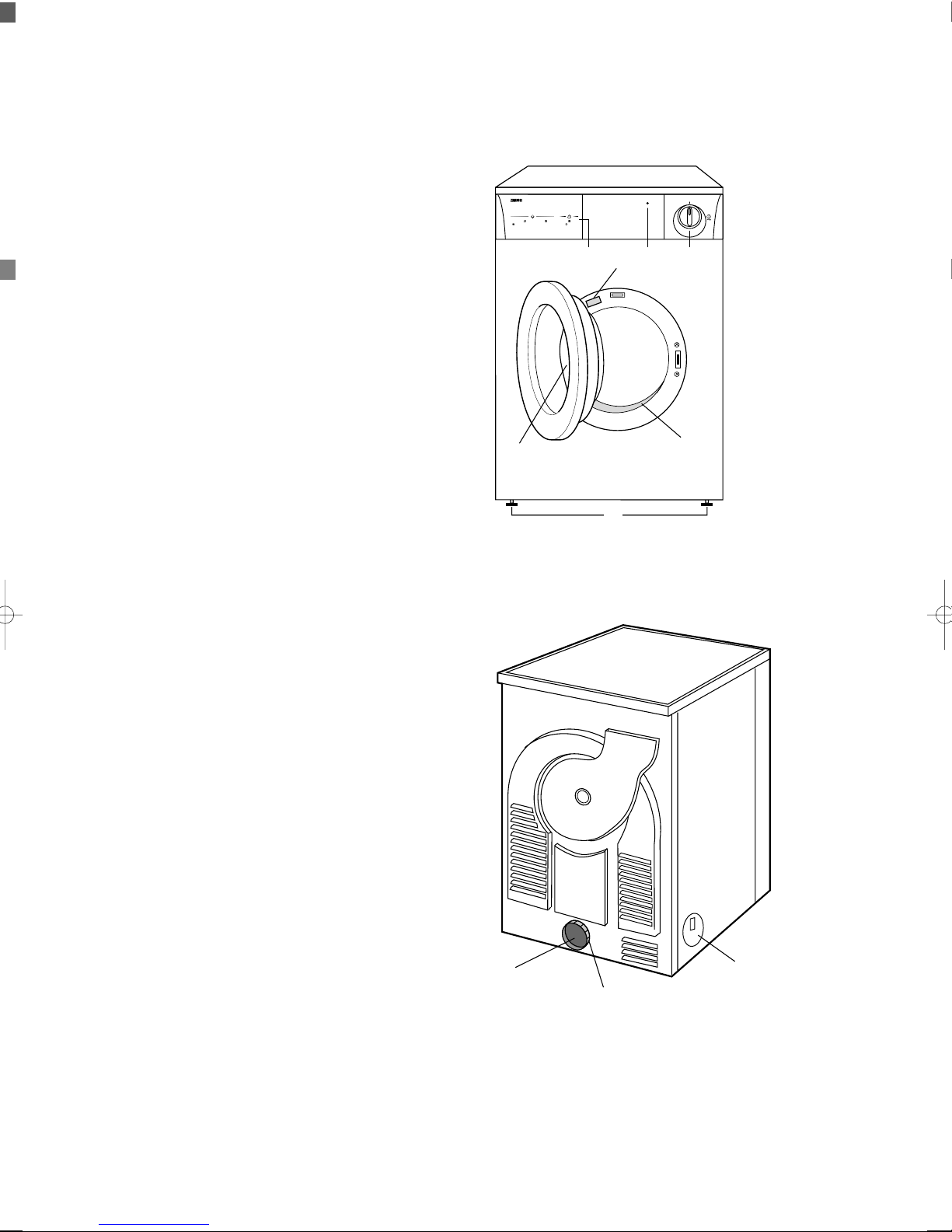

Description of the appliance

1 Programme chart

2 Mains-On Light

3 Time Selector Dial

4 Rating Plate

5 Door Handle

6 Fluff filter

7 Adjustable feet

8 Side vent outlets

9 Ring nut

10 Rear vent outlet

12 3

TD 4100

kg 5

kg 2,5

800 / 900

70' - 90'

35' - 50'

1000 / 1200

65' - 85'

30' - 45'

800 / 900

80' - 100'

55' - 70'

1000 / 1200

75' - 95'

50' - 65'

650

50' - 60'

30' - 35'

kg 2,5

kg 1

DUAL TEMPERATURE

125994480.qxd 06/02/01 10.00 Pagina 6 (Nero/Process Black pellicola)

ENGLISH

Installation

Positioning

It is recommended that, for your convenience, the

machine is positioned close to your washing

machine.

Whilst drying, the tumble dryer will expel a certain

amount of warm, very moist air, and this should be

removed from the room as quickly as possible to

prevent condensation. In an extremely well

ventilated room or close to an open window, this

may occur naturally.

However, in general, it is better to carry the dryer's

exhaust outside via the 100 mm diameter flexible

hose supplied with the appliance; ending either

temporarily at an open window, or permanently at a

fixed ventilation grille, fitted to an exterior wall or

window.

The tumble dryer must be installed in a clean place,

where dirt does not build up.

Make sure there are no obstructing items or material

near the air-intake louvres provided at

the back (e.g. paper, rags etc.).

To keep vibration and noise to a minimum when the

dryer is in use, it should be placed on a firm, level

surface.

Once in its permanent operating position, check that

the dryer is absolutely level with the aid of a spirit

level. If it is not, raise or lower the feet until it is.

The feet must never be removed.

Do not restrict the floor clearance through deep-

pile carpets, strips of wood or similar. This might

cause heat build-up which would interfere with

the operation of the appliance.

Important

When operating the tumble dryer, the room

temperature must not exceed 35°C, as it may affect

the performance of the appliance.

P0046

Fitting the vent hose

To simplify the installation, there is a choice of vent

outlets: one at the back, the others in the left and

right-hand side.

Connect the hose to whichever is the more

convenient by pulling the ring nut (A) from the vent

outlet at the back, screwing it on to the hose and

pushing it firmly back into place.

The unused vents should now be sealed with the

special snap covers provided.

Advice: If the hose is long and the room

temperature low, the moisture might condense to

water inside the hose. This is an unavoidable

natural phenomenon. To prevent this water from

Iying in the hose or flowing back into the tumble

dryer, it is advisable to drill a small hole (dia.

3 mm) in the lowest point of the hose and to place a

small container below it.(See picture, point B).

Once connected to the dryer, run the vent hose to

the desired outlet point, ensuring that the run’s

overall length is less than 2 m, and that it contains

no more than two bends. As to the outlet itself, if you

have decided on a fixed wall/window grille, a good

local builder’s merchant should be able to supply

you with the necessary fittings and installation

advice.

P1056 B

P1027

P1028

125994480.qxd 06/02/01 10.00 Pagina 7 (Nero/Process Black pellicola)

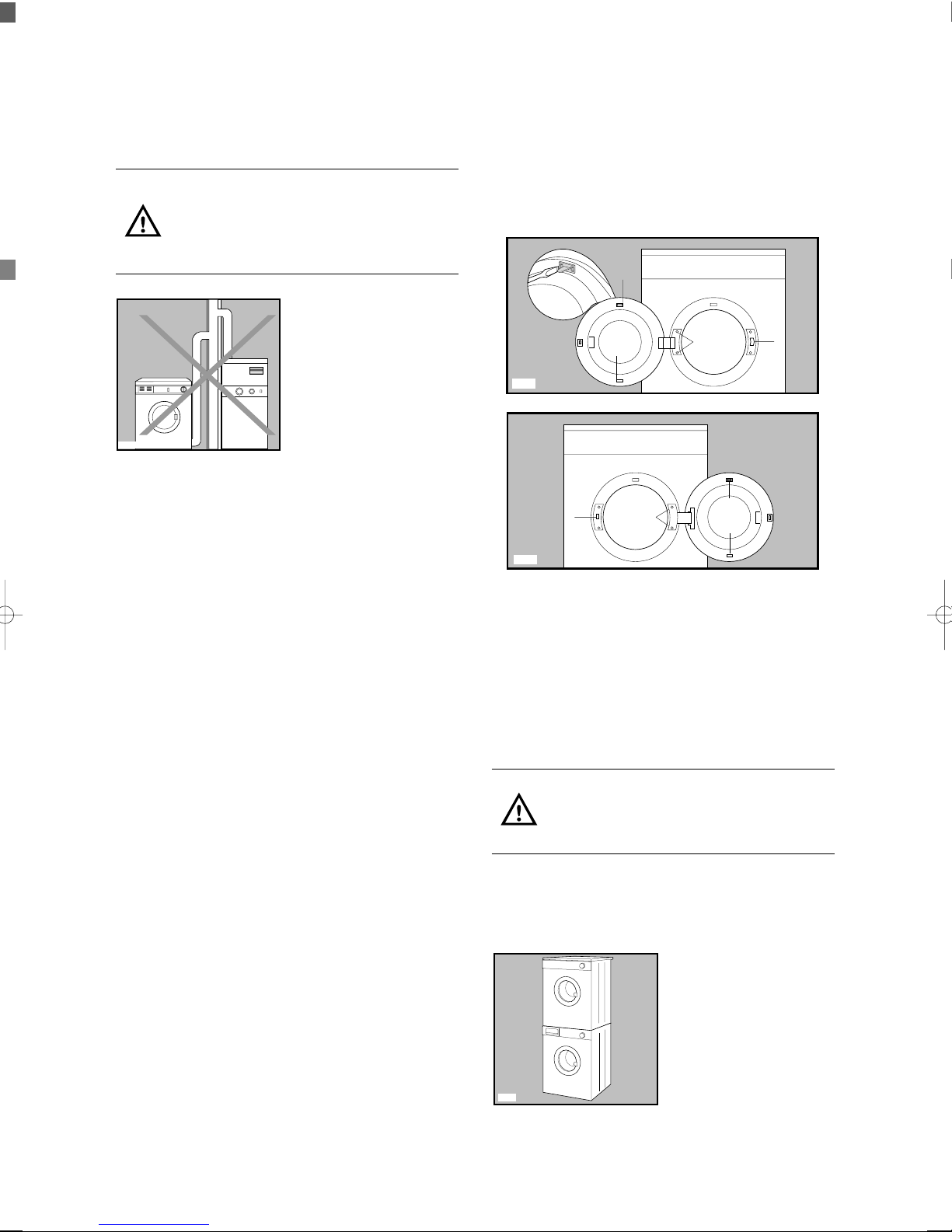

It is important not to connect the vent

hose to, for example, a cooker hood, or

a chimney or flue pipe designed to carry

the exhaust from a fuel burning

appliance.

Note that to avoid condensation problems, it is

essential that the dryer be fitted with the flexible hose

to carry its “exhaust” at least beyond the kitchen

units; preferable outside the kitchen.

In order to prevent the appliance from overheating, it

is important that the steam exhaust is unobstructed.

Therefore, in case of a permanent hose fitted to an

exterior wall or ceiling, it must be ensured an

exhaust capacity of at least 150 m3/h.

If the dryer is fitted next to kitchen units, make

sure that the vent hose is not squashed. If the

hose is partially squashed, drying efficiency will

be reduced, resulting in longer drying times and

higher energy consumption.

If the hose is completely squashed, the safety

cut-outs with which the machine is fitted may

operate.

Door reversal

To make it easier to load or unload the laundry the

door can be reversed.

This operation must be carried out by qualified

personnel.

Operate as follows:

- Remove the door by unscrewing the two screws

(1) fastening the hinge to the cabinet (Fig. A).

- Remove the safety catch (2) and the plug (3) by

bending the two fastening tags (Fig. A).

- Refit the safety catch (2) and plug (3) on the door

by reversing their positions (Fig. B).

- Remove the plastic plate (4) by unscrewing the two

fastening screws (Fig. A).

P0055

- Refit the plastic plate (4) on the opposite side

(Fig. B).

- Refit the door by screwing in the two screws (1)

which fasten the door to the cabinet (Fig. B).

Electrical connection

This machine is designed to operate on a 220-230 V,

single-phase, 50 Hz supply.

Check that your domestic electrical installation can

take the maximum load required (2.2 kW), also

taking into account any other appliances in use.

Connect the machine to an earthed socket, in

accordance with current wiring regulations.

The manufacturer declines any

responsibility for damage or injury

through failure to comply with the

above safety precaution.

Stacking kit

A special stacking kit is available through your

dealer, to enable the mounting of the dryer on top of

your washing machine.

P0280

P0748 B

P0283 A

125994480.qxd 06/02/01 10.00 Pagina 8 (Nero/Process Black pellicola)

ENGLISH

Use

The control panel

123

TD 4100

kg 5

kg 2,5

800 / 900

70' - 90'

35' - 50'

1000 / 1200

65' - 85'

30' - 45'

800 / 900

80' - 100'

55' - 70'

1000 / 1200

75' - 95'

50' - 65'

650

50' - 60'

30' - 35'

kg 2,5

kg 1

DUAL TEMPERATURE

1 Programme Chart

This will help you to select the correct time for drying.

2 Mains-On Light

This lights up when the machine starts operating and

goes out at the end of the programme.

3 Drying Time Selector Dial

The selector dial incorporates two drying cycles, one

of up to 150 minutes at a high temperature for

cotton and linen, and one of up to 100 minutes at a

low temperature for synthetic fabrics.

To set the machine to the selected time, turn the dial

clockwise until the time you want coincides exactly

with the pointer.

NEVER attempt to turn the dial in an anticlockwise

direction.

When selecting the drying time, you should

remember that it includes a 10 minute cooling phase

(position on the dial).

This phase should not be shortened, stopped or

avoided, as this could cause skin burns or damages

to the laundry.

Additional drying

If at the end of the programme the laundry is still too

damp, set the dial for a further period of drying

(remembering to take into account the cooling

period).

125994480.qxd 06/02/01 10.00 Pagina 9 (Nero/Process Black pellicola)

Synthetics

Selector dial: up to 100 minutes

Degree of drying required Degree of spin given

rpm

Quantity

Drying times

mins

650

2.5 50-60

1 30-35

0.5 25-30

Store dry

Never overfill the drum (do not load large quilts, for example).

The laundry must be suitably spin dried in your washing machine before being placed in the tumble dryer

(500rpm minimum).

Drying times vary according to:

- The type of laundry

- The size of the load

- The degree of spinning prior to drying

Drying times are given as a guide only. Experience will soon enable you to estimate the drying time needed for

your usual laundry loads.

Do not start by selecting a long drying time. It is better to determine the required degree of dryness by gradually

increasing the drying time.

For a mixed load (cotton and resistant synthetics, for example) select the time for the most delicate fibres and

increase it by 10 mins.

Drying Times

Cotton and Linen

Selector dial: up to 150 minutes

Degree of drying required Degree of spin given

rpm Quantity

Drying times

mins

Store dry

Iron dry 800/900

1000/1200

6 90-110

5 70-90

2.5 35-50

6 85-105

5 65-85

2.5 30-45

Iron dry 650 2.5 40-50

800/900

1000/1200

6 100-120

5 80-100

2.5 55-70

6 95-115

5 75-95

2.5 50-65

125994480.qxd 06/02/01 10.00 Pagina 10 (Nero/Process Black pellicola)

Inhaltsverzeichnis

Andere Zanussi Trockner Handbücher

Zanussi

Zanussi TD 100 Montageanleitung

Zanussi

Zanussi TD 201/A Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZTH485 Bedienungsanleitung

Zanussi

Zanussi TD534 Bedienungsanleitung

Zanussi

Zanussi ZI 930 Montageanleitung

Zanussi

Zanussi TG220 Bedienungsanleitung

Zanussi

Zanussi TD525 Bedienungsanleitung

Zanussi

Zanussi ZDH87A2PW Bedienungsanleitung

Zanussi

Zanussi TDS 280 W Bedienungsanleitung

Zanussi

Zanussi TDE 4234 W Bedienungsanleitung

Zanussi

Zanussi TCS 584 EW Bedienungsanleitung

Zanussi

Zanussi TC 180 Bedienungsanleitung

Zanussi

Zanussi TD530 Bedienungsanleitung

Zanussi

Zanussi ZDP7206PZ Bedienungsanleitung

Zanussi

Zanussi THE7051 Bedienungsanleitung

Zanussi

Zanussi ZTK 120 Bedienungsanleitung

Zanussi

Zanussi THE7201 Bedienungsanleitung

Zanussi

Zanussi ZDC 37200W Bedienungsanleitung

Zanussi

Zanussi TD163 Bedienungsanleitung

Zanussi

Zanussi ZTBB 276 Bedienungsanleitung

Zanussi

Zanussi TD30 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi TDS 362 T Bedienungsanleitung

Zanussi

Zanussi ZTE7100PZ Bedienungsanleitung

Zanussi

Zanussi TC 450 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
