ZANUSSI

P R O F E S S I O N A L

REFRIGERATED TABLES - 3 COMPARTMENTS

CONCEPT SERIES - REMOTE

728264

1/1 GN GREY "RILSAN"

GRID

3 3 2 1

INCLUDED

ACCESSORIES

No Worktop l

Power supply - V, phases,

230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

Net weight - kg. 130 130 138 146 146

installed-electric 0.015 0.009 0.015 0.015 0.015

Power - kW

at evaporation

temperature - °C

-20 -20 -20 -20 -20

Refrigerant power

Refrigerant type R404a R404a R404a R404a R404a

N° defrost in 24 hrs. 4/30 4/30 4/30 4/30 4/30

Door hinges 1 Left+2 Right 1 Left+2 Right 1 Left+1 Right Left Left

N° of drawers 2½ 4x1/2 6x1/2

Min/Max internal humidity -

50 50 50 50 50

Top material 304 AISI Galvanized Steel 304 AISI 304 AISI 304 AISI

Without worktop l

height 543 543 543 543 543

depth 580 580 580 580 580

Internal dimensions - mm

height 850 800 850 850 850

depth/with open doors 700, 1102 700, 1098 700, 1102 700, 1102 700, 1102

width 1591 1591 1591 1591 1587

External dimensions - mm

Cooling unit Remote Remote Remote Remote Remote

Gross capacity (D.I.N.

8952) - l.

420 415 420 415 415

Operating mode Ventilated Ventilated Ventilated Ventilated Ventilated

Operating temperature -

min/max °C

-2/10 -2/10 -2/10 -2/10 -2/10

HB3PR

728264

HB3PNTR

727109

HB2P2CR

728294

HB1P4CR

728295

HB6CR

728296

CHARACTERISTICS MODELS

TECHNICAL DATA

RANGE

COMPOSITION

Zanussi Professional have designed and

produced a complete range of refrigerated

tables, that combines the dual function of

worktop and refrigerated table. This

versatility allows notable savings in space

whilst offering functional and modular

solutions to kitchen requirements.

FUNCTIONAL AND

CONSTRUCTION

FEATURES

� Remote refrigeration unit.

� 150mm height-adjustable feet.

� Internal and external doors, front and side

panels and worktop in 304 AISI stainless

steel.

� Rounded internal corners for ease of

cleaning.

� Refrigerated compartment designed to

accommodate GN 1/1 containers.

� Digital control panel.

� Suitable to operate in ambient

temperatures up to +43°C. Temperature

range: -2/+10 °C.

� Forced air circulation for rapid cooling and

an even temperature distribution.

� Automatic evaporation of defrost water.

Drain outlet.

� Access to all components from the front.

� In compliance with H requirements.

� C.F.C. and H.C.F.C. free.

� High-density expanded polyurethane

foam, 50 mm in thickness, with

cyclopenthane injection.

� Developed and produced in ISO 9001 and

ISO 14001 certified factory.

DBAD30 2010-05-28 The Company reserves the right to alter technical specifications without prior notice.

www.zanussiprofessional.com

ZANUSSI

P R O F E S S I O N A L

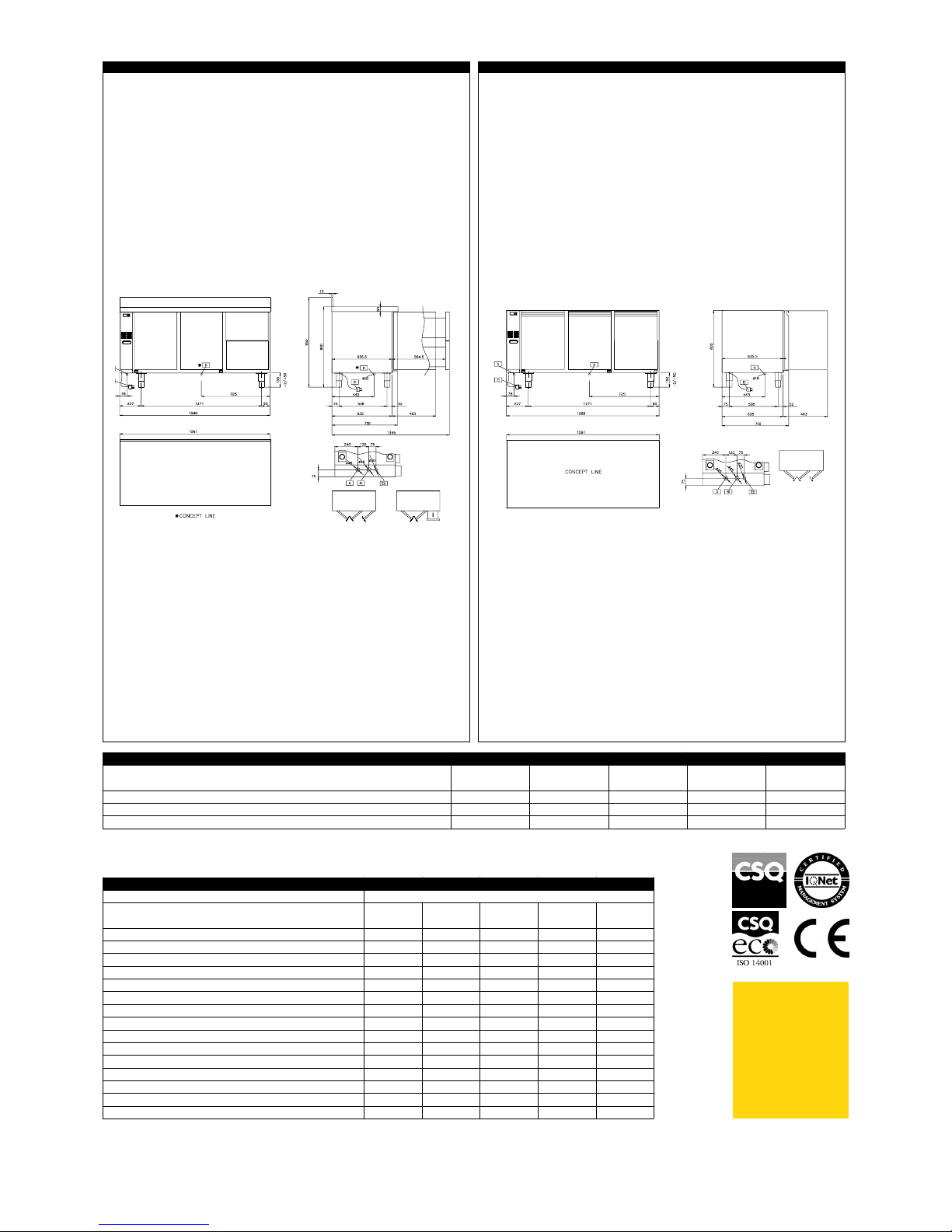

WORKTOP+UPSTAND F. 3 DOOR REF.TABLE-REM 880113

WORKTOP FOR 3 DOOR REFRIG.TABLES-REMOTE 880197

S/S STRUCTURE TO SUPPORT 6 GRIDS (R+L) 880140 880140 880140 880140

REMOTE UNIT FOR 2-3 DOOR REFRIG.TABLES 880044 880044 880044 880044 880044

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457 881457

LOCK KIT FOR REFRIGERATED TABLES 880130 880130 880130 880130 880130

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205 880205 880205

KIT HACCP EKIS 922166 922166 922166 922166 922166

KIT DOOR REVERSIBILITY FOR REF.TABLES 880046 880046 880046 880046 880046

KIT 4 WHEELS (2 W/BRAKE)+4 (40MM)SPACERS 880025 880025 880025 880025 880025

KIT 2 S/S GRIDS GN1/1 FOR REFRIG.TABLES 880139 880139 880139 880139

DRAWER KIT-1/3+2/3 (BOTTLES)-REF.TABLES 880126 880126 880126 880126 880126

AUTOMATIC DEFROST WITH WASTE EVAPORATION 880028 880028 880028 880028 880028

3x1/3 DRAWER KIT FOR REFRIGERATED TABLES 880115 880115 880115 880115 880115

2x½ DRAWER KIT FOR REFRIGERATED TABLES 880118 880118 880118 880118

HB3PR

728264

HB3PNTR

727109

HB2P2CR

728294

HB1P4CR

728295

HB6CR

728296

ACCESSORIES MODELS

OPTIONAL ACCESSORIES

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

ED - Remote electrical connection lllll

D - Water drain 18mm 18mm 18mm 18mm 18mm

HB3PR

728264

HB3PNTR

727109

HB2P2CR

728294

HB1P4CR

728295

HB6CR

728296

LEGEND

728264, 728296, 728295, 728294 727109
